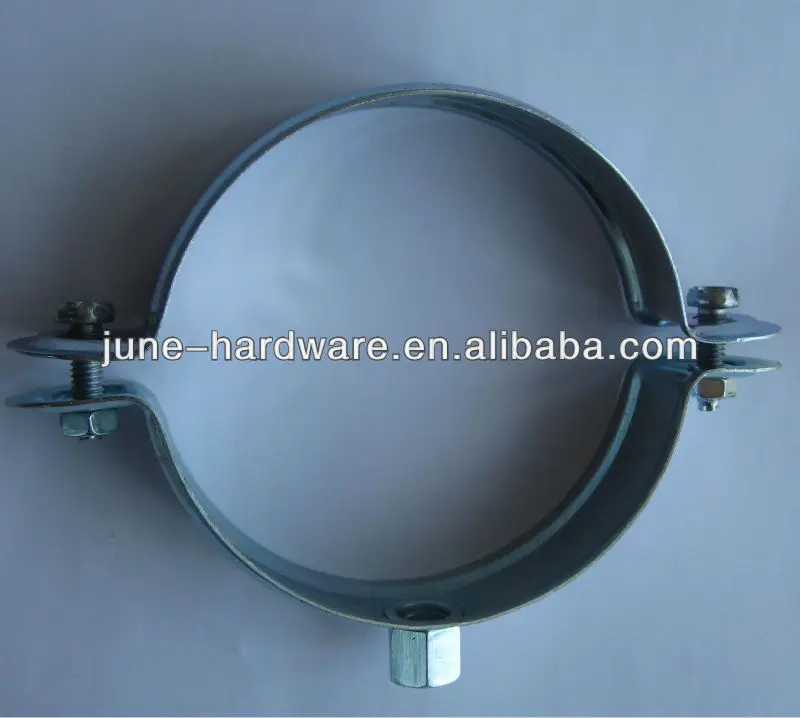

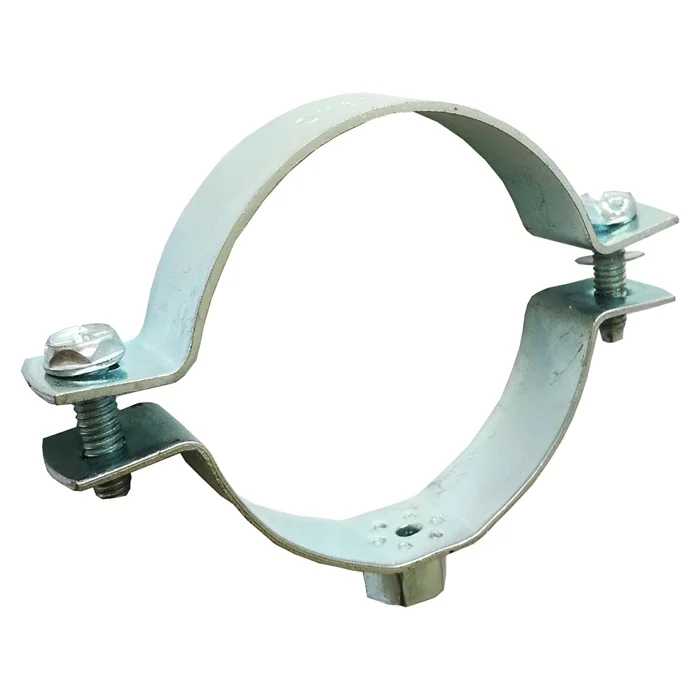

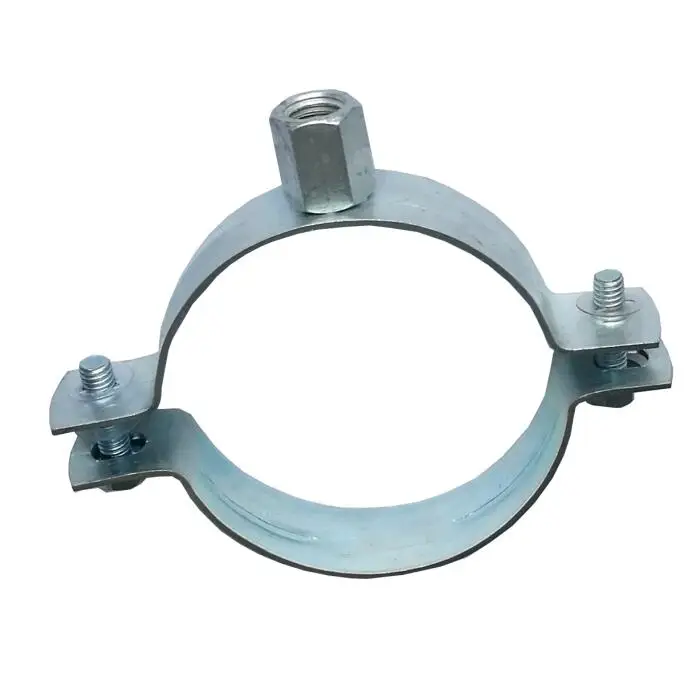

Легкий тип стальной ПВХ зажим трубы
- Category: Clamps >>>
- Supplier: Ningbo June Pipe Fitting Co. Ltd.
Share on (887436861):
Product Overview
Description
| Code | D(DN) | D(") | D(mm) | G | B(mm) | H(mm) | h(mm) | b(mm) | s(mm) |
| 003016 | 15 | 1/4" | 12-16 | M8 | 51 | 22 | 15 | 20 | 0.8 |
| 003019 | 18 | 3/8" | 15-19 | M8 | 54 | 26 | 17 | 20 | 0.8 |
| 003025 | 22 | 1/2" | 20-25 | M8 | 61 | 32 | 19 | 20 | 0.8 |
| 003030 | 28 | 3/4" | 26-30 | M8 | 66 | 35 | 21 | 20 | 0.8 |
| 003036 | 35 | 1" | 32-36 | M8 | 74 | 42 | 24 | 20 | 0.8 |
| 003043 | 40 | 1-1/4" | 38-43 | M8 | 81 | 50 | 28 | 20 | 0.8 |
| 003051 | 48 | 1-1/2" | 47-51 | M8 | 87 | 54 | 31 | 20 | 0.8 |
| 003058 | 54 | -- | 53-58 | M8 | 94 | 60 | 34 | 20 | 0.8 |
| 003064 | 60 | 2" | 60-64 | M8 | 100 | 66 | 37 | 20 | 0.8 |
| 003072 | 70 | -- | 68-72 | M8/M10 | 112 | -- | -- | 20 | 0.8 |
| 003080 | 75 | 2-1/2" | 75-80 | M8/M10 | 117 | -- | -- | 20 | 0.8 |
| 003086 | 83 | -- | 81-86 | M8/M10 | 124 | -- | -- | 20 | 0.8 |
| 003092 | 90 | 3" | 87-92 | M8/M10 | 130 | -- | -- | 20 | 0.8 |
| 003105 | 100 | 3-1/2" | 99-105 | M8/M10 | 146 | -- | -- | 23 | 0.8 |
| 003112 | 110 | -- | 109-112 | M8/M10 | 149 | -- | -- | 23 | 0.8 |
| 003118 | 115 | 4" | 113-118 | M8/M10 | 151 | -- | -- | 23 | 0.8 |
| 003130 | 125 | -- | 125-130 | M8/M10 | 170 | -- | -- | 23 | 1.2 |
| 003137 | 133 | -- | 132-137 | M8/M10 | 172 | -- | -- | 23 | 1.2 |
| 003142 | 140 | 5" | 138-142 | M8/M10 | 172 | -- | -- | 23 | 1.2 |
| 003152 | 150 | -- | 148-152 | M8/M10 | 202 | -- | -- | 23 | 1.2 |
| 003166 | 160 | 6" | 159-166 | M8/M10 | 226 | -- | -- | 25 | 1.2 |
| 003212 | 200 | -- | 200-212 | M8/M10 | 268 | -- | -- | 25 | 1.2 |
| 003220 | 220 | 8" | 215-220 | M8/M10 | 276 | -- | -- | 25 | 1.2 |
