High Speed ABA 3 2 Layer HDPE LDPE PE Blown Film Extruder Agriculture Polyethylene Plastic Film Blowing Machine Price

Product Overview

Description

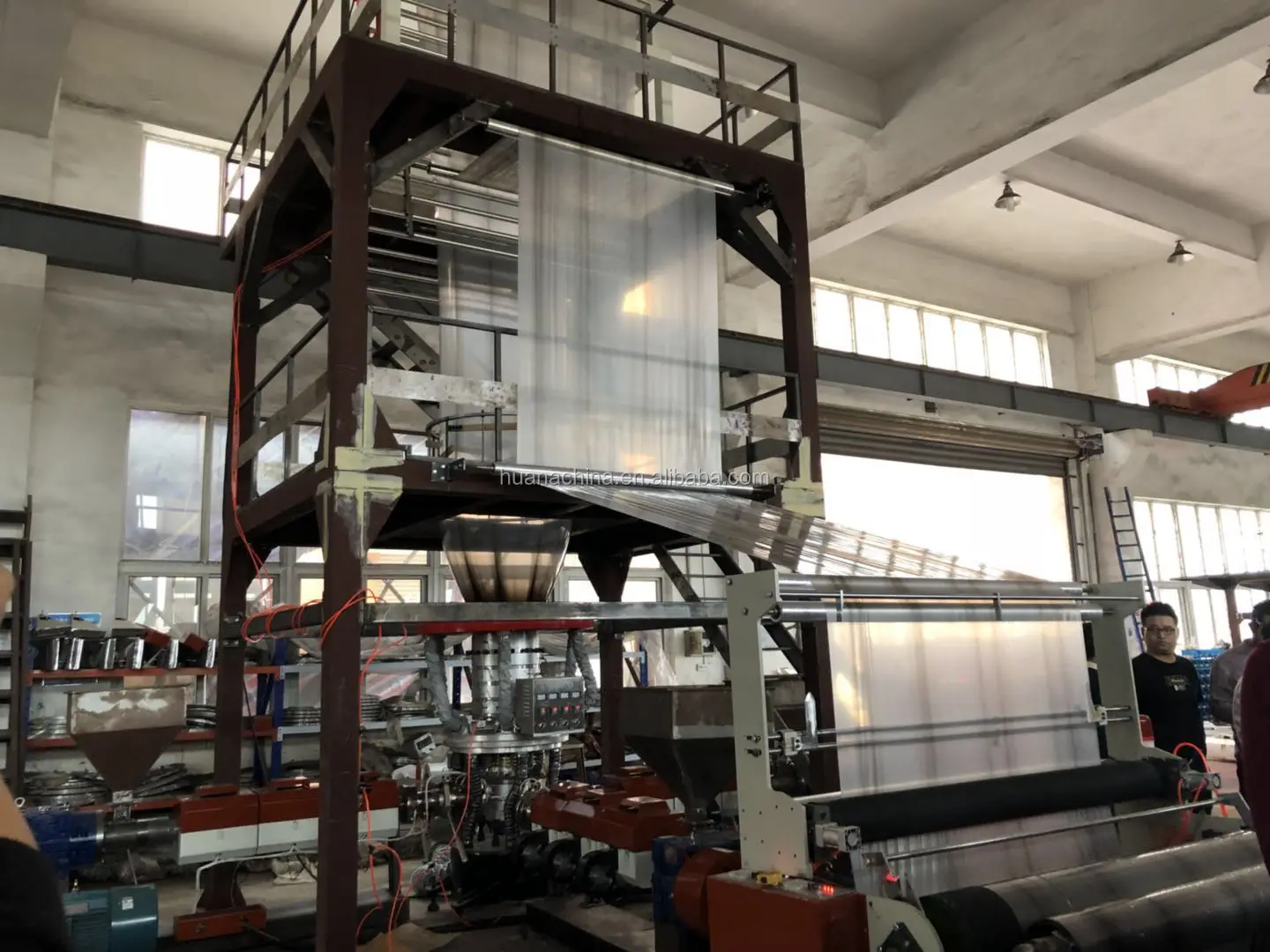

SJX2-FM1700 Plastic Film Blowing Machine

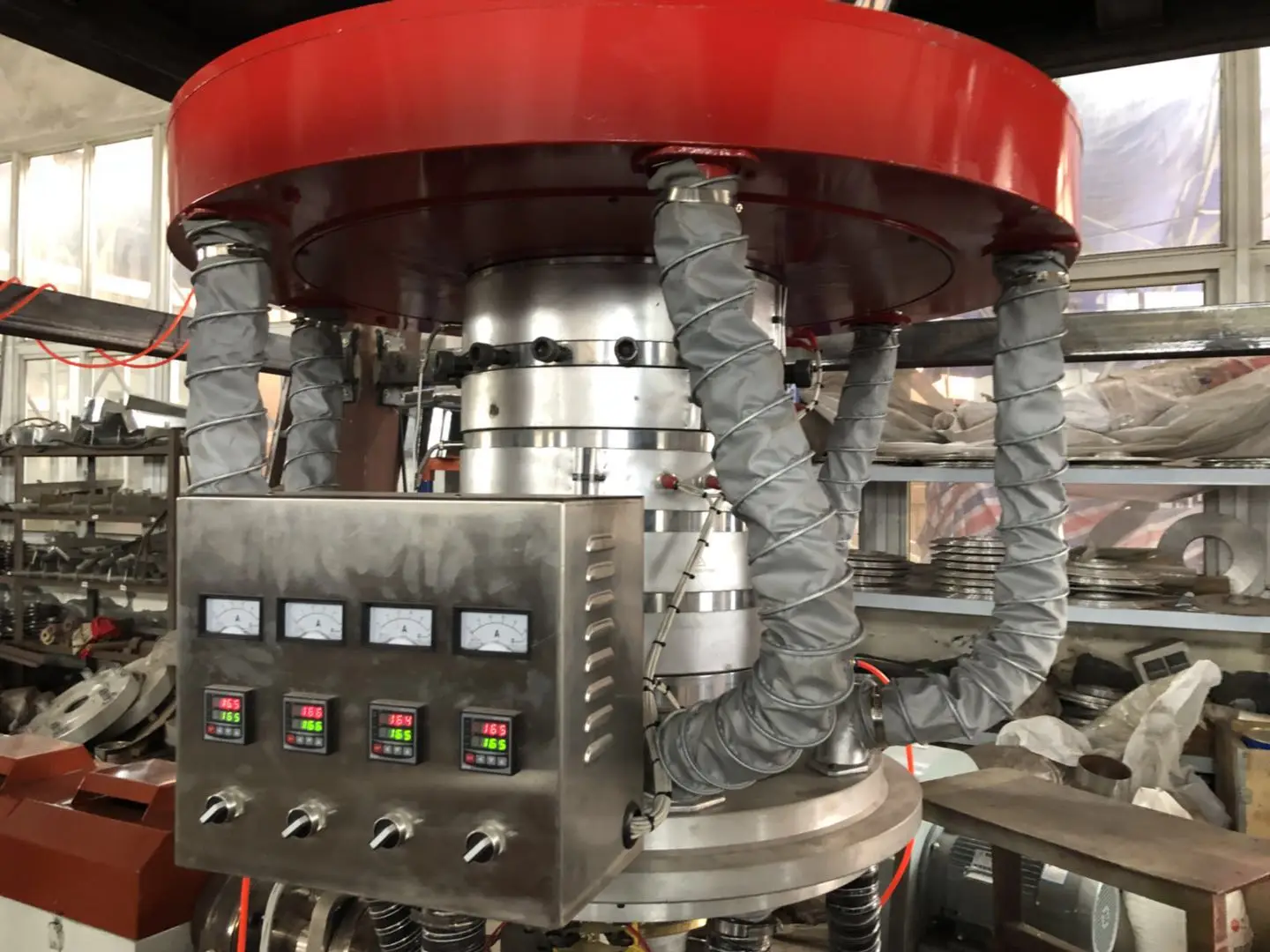

The machine entails advanced consecutive rotation machine head,ensures smooth and homogenous products,meets the film’s quality reouirement during the subsequent working procedure of the packing machine or the printer,also is useble for manufacturing the complex bead sheen film,complex hydro-packing film,insulation film,multi-functional farming film,etc,lts application range is gradually widening to the target of plastic product development





Feature:

1).Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package

.

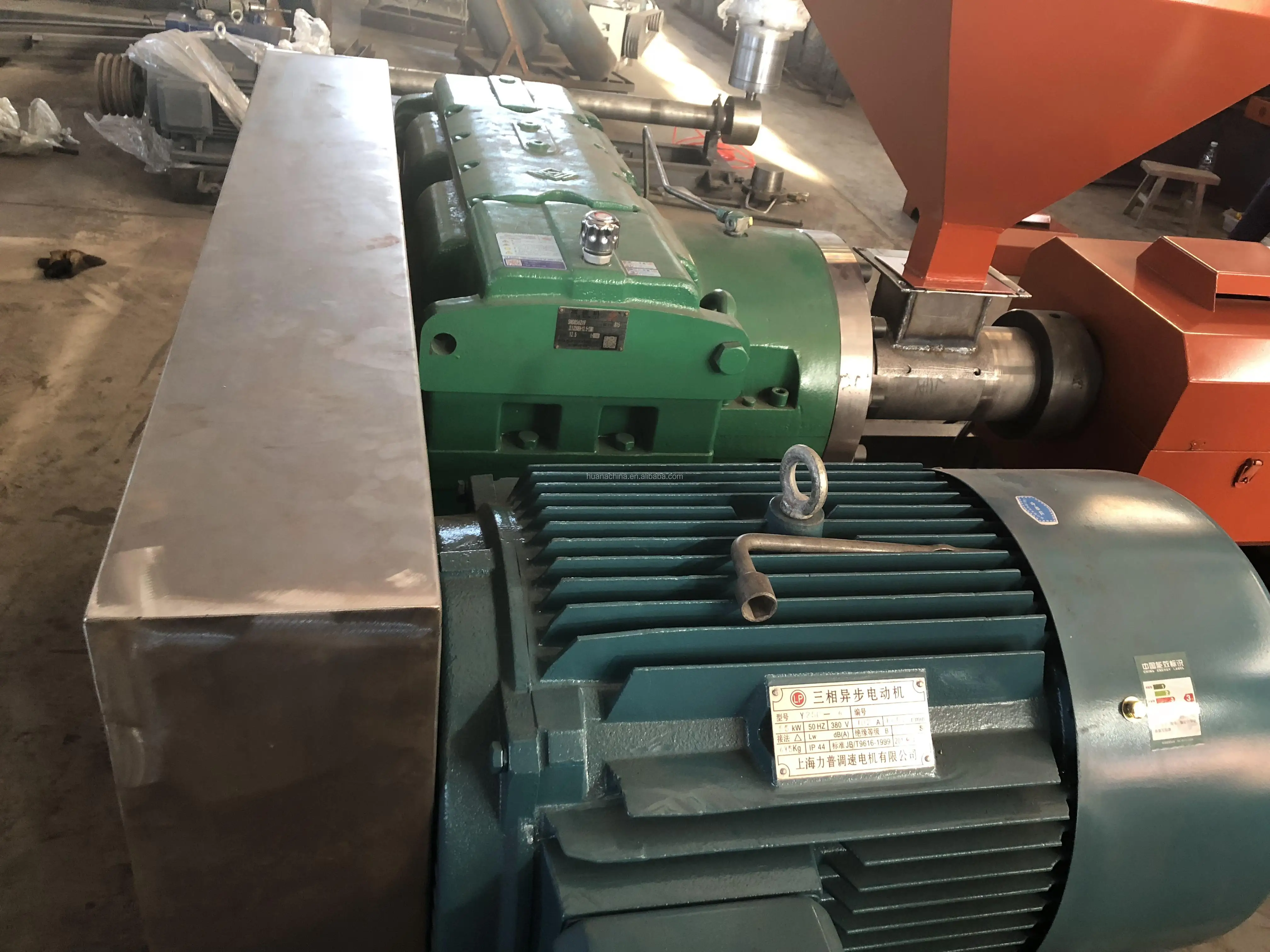

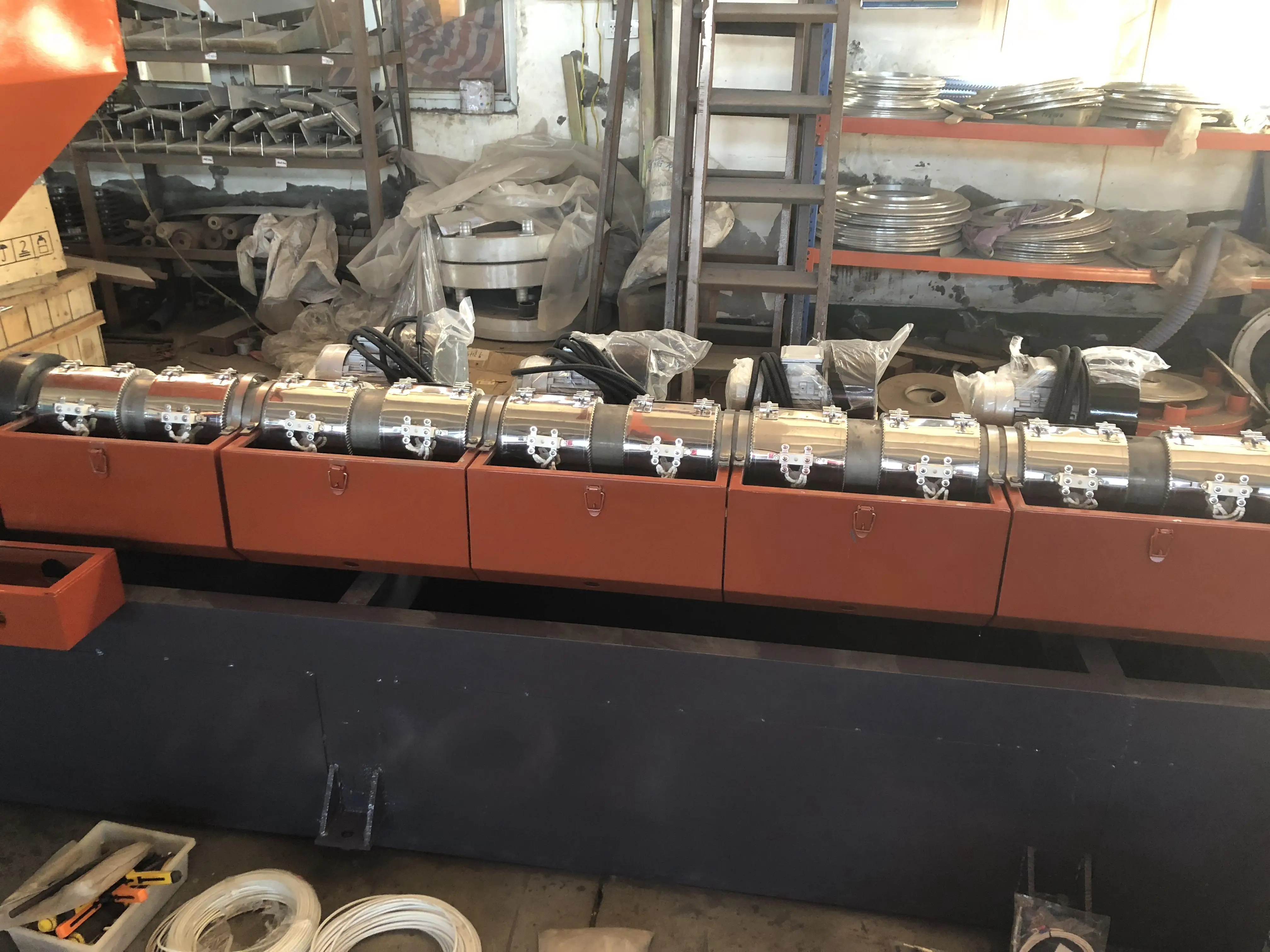

2).The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.



3).The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.


4).Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.







Main Technical Variables

Model	SJX2-FM1100	SJX2-FM1350	SJX2-FM1700
screw diameter	Φ55×2    1	Φ60×2	Φ65×2
screw ratio L/D	28:1	28:1	28:1
screw speed	15-120r/min	15-120r/min	15-120r/min
main motor power	15kw×2	18.5kw×2	22kw×2    1
extrusion output(single)	60kg/h	80kg/h	120kg/h
range of die	Φ120 Φ200 (Exchange)	Φ150 Φ250×1	Φ220 Φ300×1
single-sided thickness of film	0.01-0.15mm	0.01-0.15mm	0.01-0.15mm
max folding width of film	1000mm	1200mm	1500mm
electric total capacity	55kw	68kw	87kw
overall dimension	5500×3500×5800	6000×4000×6000	6500×4500×7000
weight of machint	5.5T	6.2T	7.5T
