vertical axis windturbine/vanes for wind generator

Product Overview

Description

vertical axis Wind turbine



features:

1. It can be installed in the narrow space like the roof of public facilities,

companies, factories, and residence, etc.



2. Wind-resistant structure , noise-free, vibration-free, and will not hinder the spread of the signals.

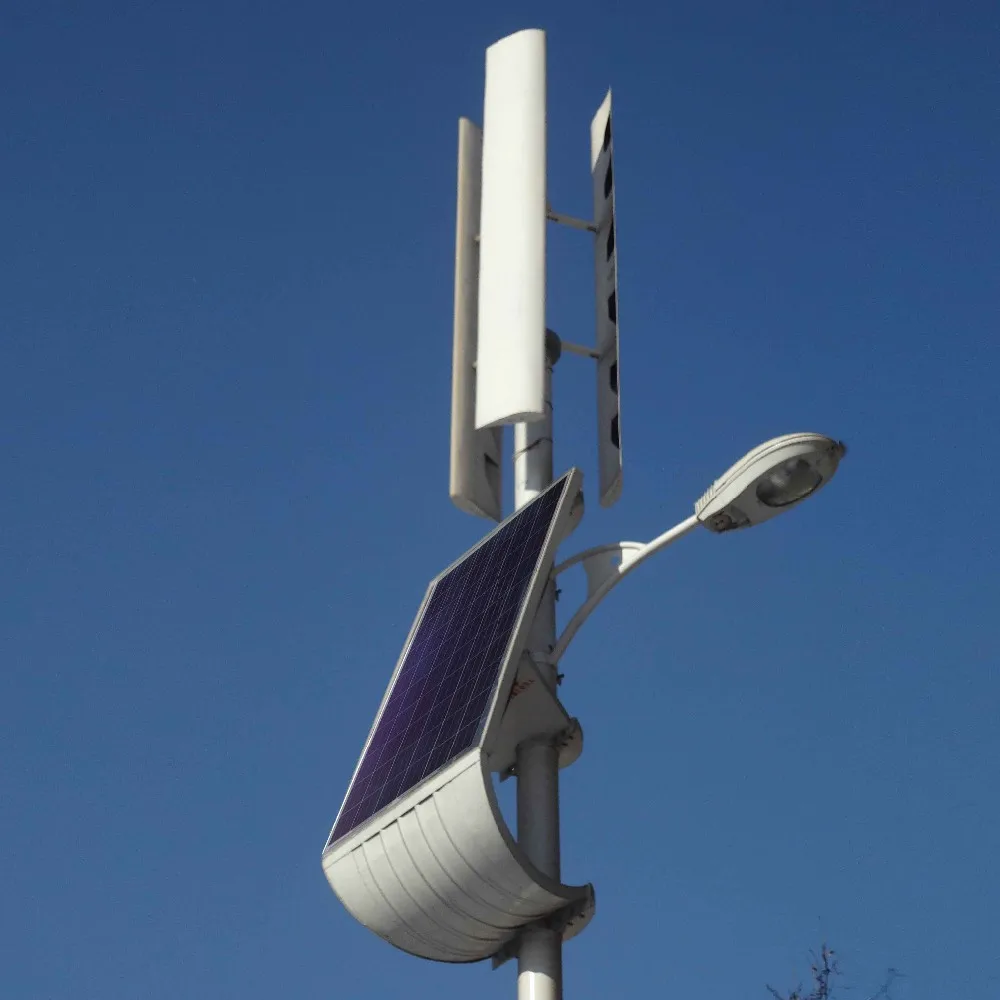

3. Multiple generators can be combined, and generate electricity complemented by the solar-panel.

4. your own logo could be spray on it.











Specification:



model	TYD300	TYD1000
Power	300W	1000W
start-up wind speed	1.0m/sec	1.0m/sec
generating electricity speed	1.5m/sec	2.0m/sec
rated output wind speed	12.0m/sec	12m/sec
subsistance wind speed	60.0m/sec	60.0m/sec
Blade length	2.0m	3.5m
Blade width	30cm	30cm
Blade Diameter	2.0m	2.0M
number of blade	3pcs	4pcs
Generator
Diving mode	direct	direct
rated speed	300rpm	300rpm
rated output	300w	1000w
cover material	erosion resistant alumium	erosion resistant alumium
