Insulated panel beautiful design

Product Overview

Description



Product name	Thickness of the panel	Thickness of steel sheet	Thermal conductivity	Density of the panel	Cementation strength	Thermal resistance.
Metallic embossed wall panel (Xiangtuo)	16mm	0.27-0.33	0.025W(m*k)	3.7kg/m2	0.13MPa	0.66(m2.k)/W



  Poly Urethane sandwich wall panel(16/60mm) is a new popular product for insulation. It can be used in new and old buildings. It's firproof , heat insulation and a good decorative material for the building.



Advantage is hereby:

1Safe and reliable

2 Industrialization, quality assurance

3 Four-fold insulation, significant energy-saving

4 Different colors, decorative appearance

5 Widely used, for both old and new buildings

6 Environmental protection, ecological priority

7 Flexible constructions

8 One-time investment, long-term benefit, cost-effective

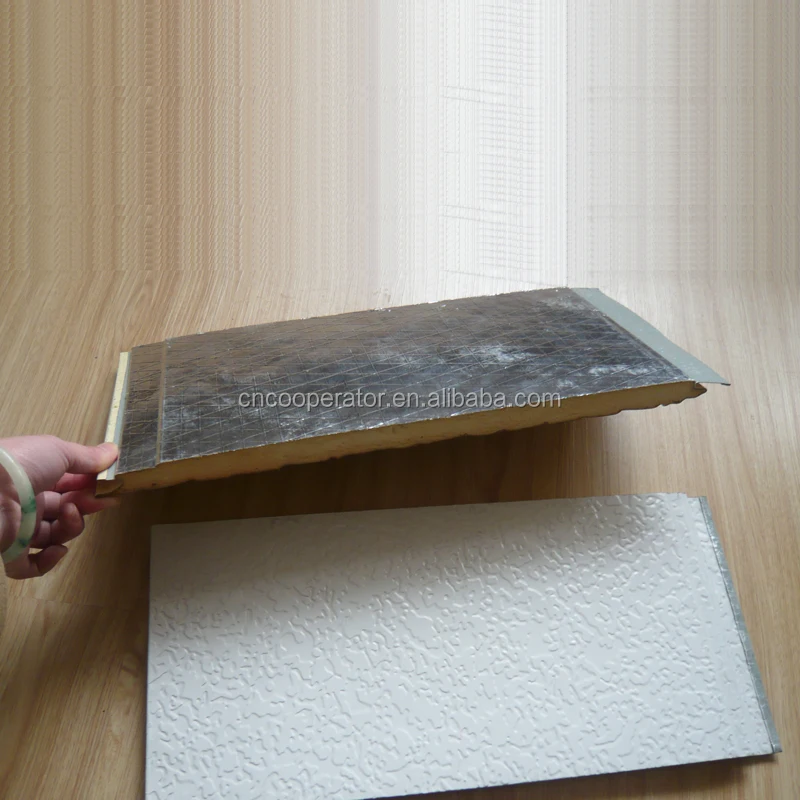

Panels Composition

 Top material: aluminum-zinc coated metal board,

 Core material: rigid high-density Polyurethane foaming with fire-retardant treatment,

 Back material: fiber foil paper.



Decorative wall panel is not only suitable for the newly set up brick-concrete structure, framework structure, steel structure, lightweight buildings, but also perfect for energy-saving reconstruction of the old buildings.

 Various patterns are available. We can produce the profiles and teach the installation methods.

Welcom to visit our facotry to see the PU wall panel built houses.
