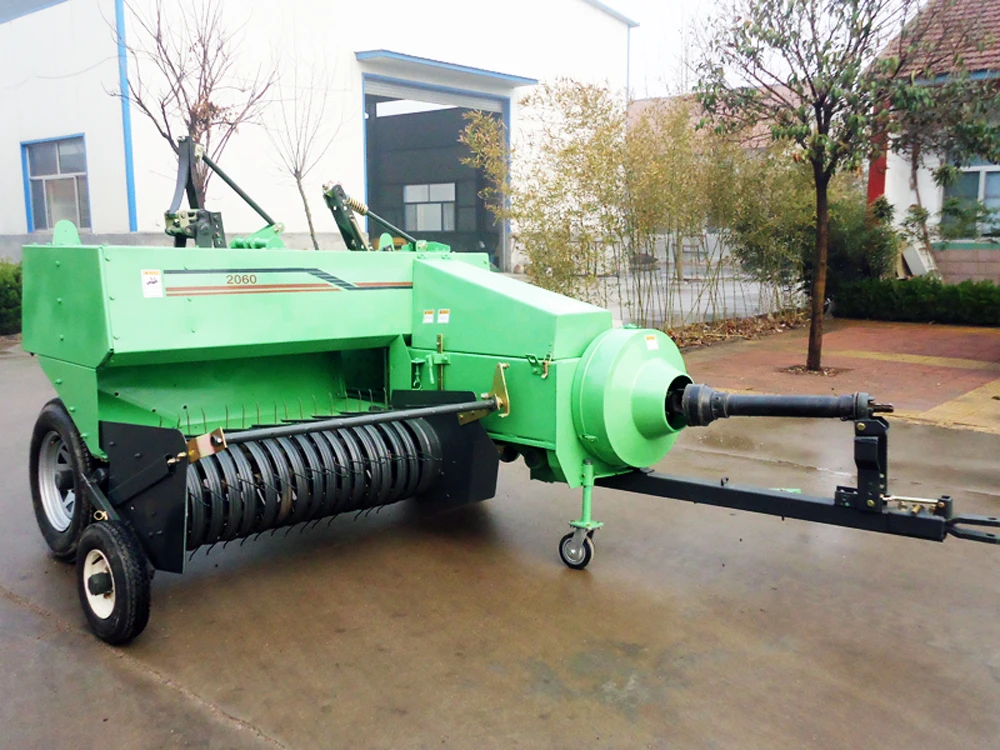

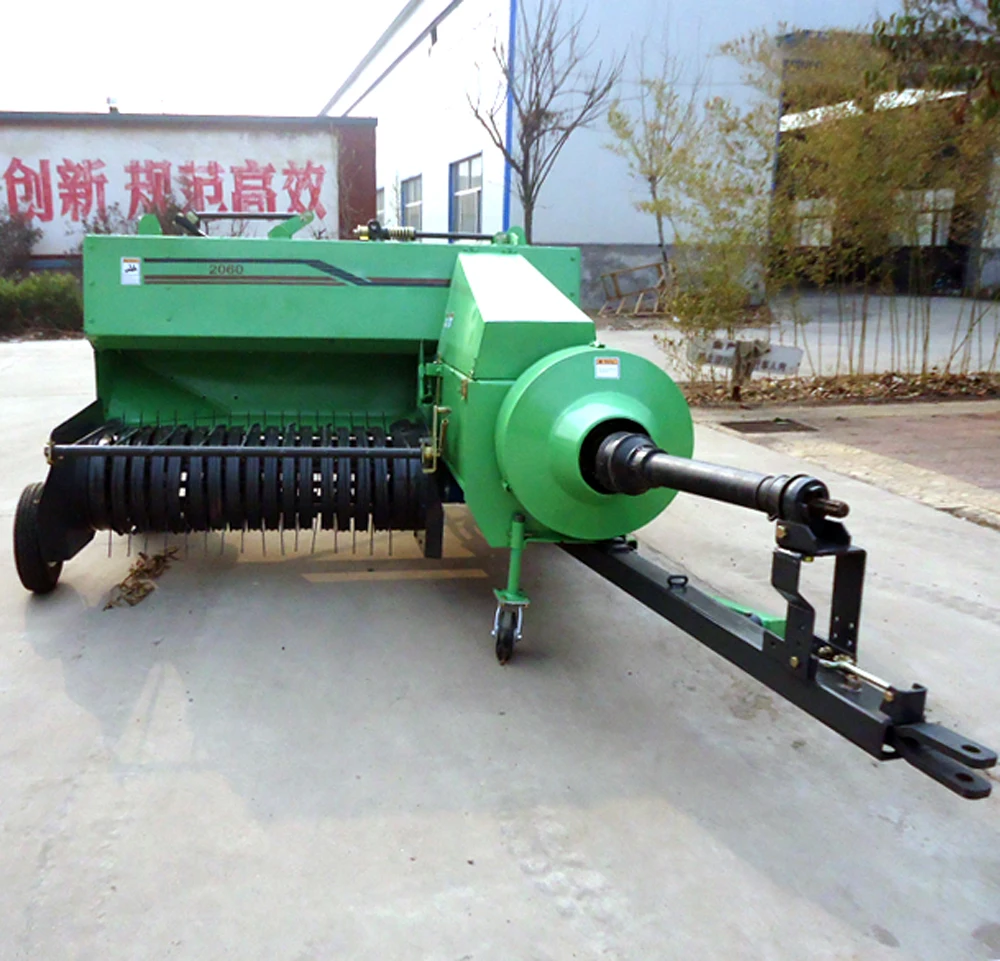

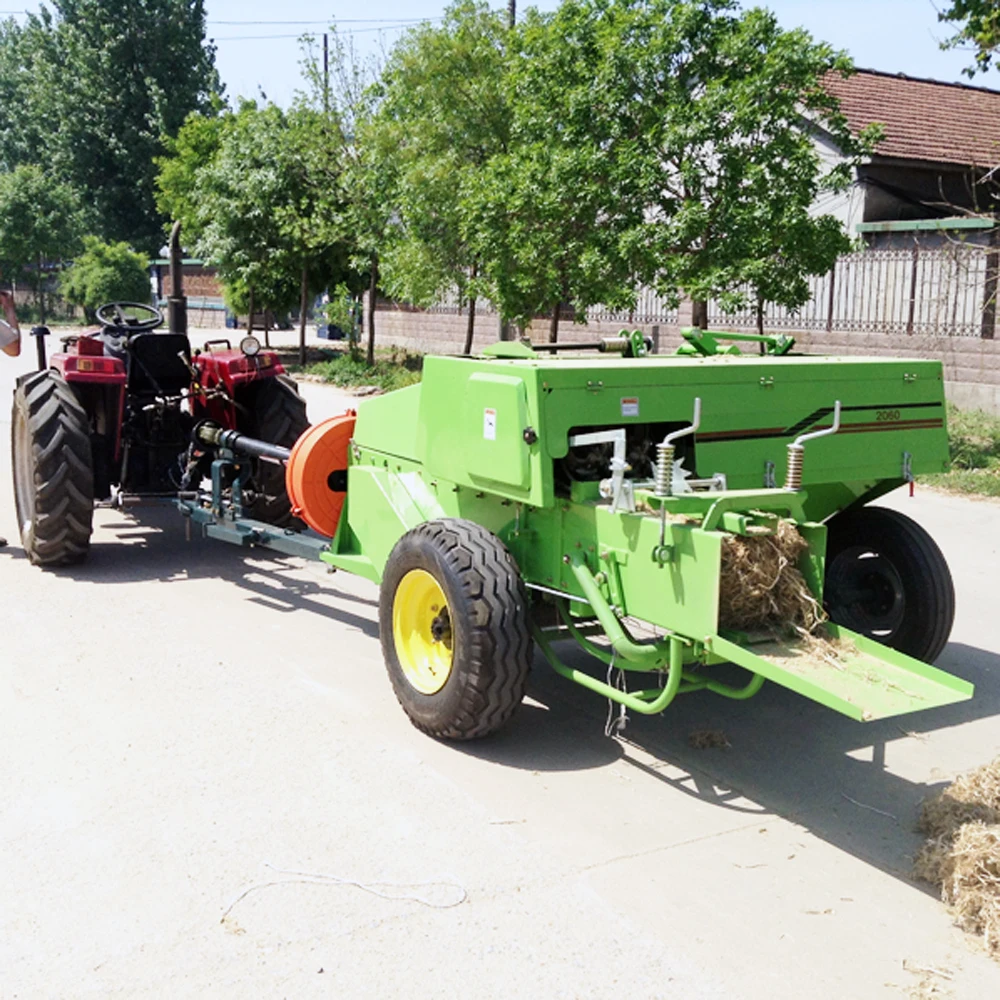

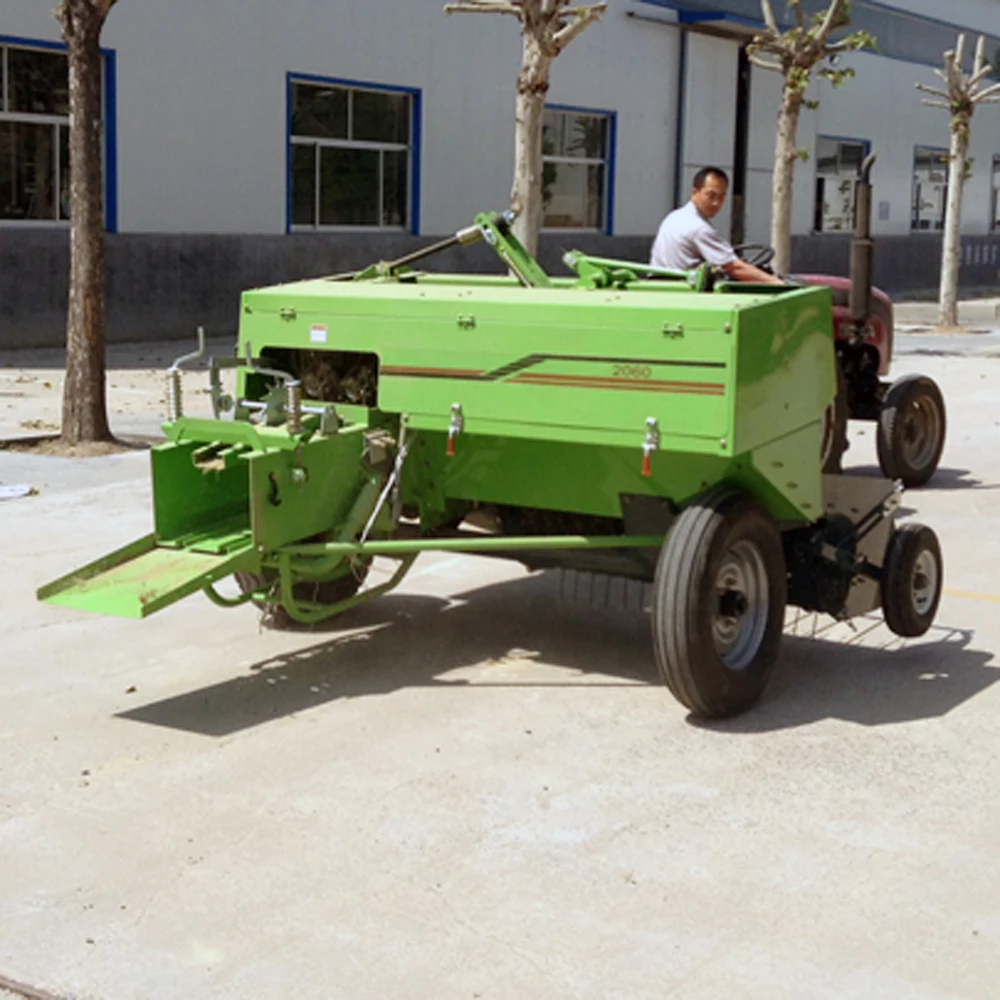

RXFK2060 small square baler

Product Overview

Description

Brief Introduction for the square baler RXYK2060







 Square Baler should be trailed by tractor or combine harvester and working for picking up rice straw , wheat straw, soybean, corn stalk or forage grass scattered in the field and deliver them into forming assembly



 which will make straw or forage grass into square package  with compression space.



needn't stop the tractor after the bales are finished, so, the efficiency is higher than a round baler.







Feature
1- Simple and Compact in structure
2- Easy operation
3- High working efficiency
4- Low cost and spare parts are available from us.

5. offset design, easy to check the working  situation.

6. for compact tractors 25HP is enough.

7. towed type, using 2 point link or trailer mounted

8. widely used in all kinds straw













Specifications data:

MODEL	RXFK2060
Section Dimension	320*420 mm
Length of Bale	300-1000 mm (adjustable)
Overall Dimension (L*W*H)	4100*2150*1300 mm
Weight	1030kg
Width of the pick-up	1440 mm
Num of spring-tooth	32
Line of spring-tooth	4
Plunger Stroke	600mm
Plunger Speed	92 times/min
Matching power	above 25 hp
PTO Speed	540rpm

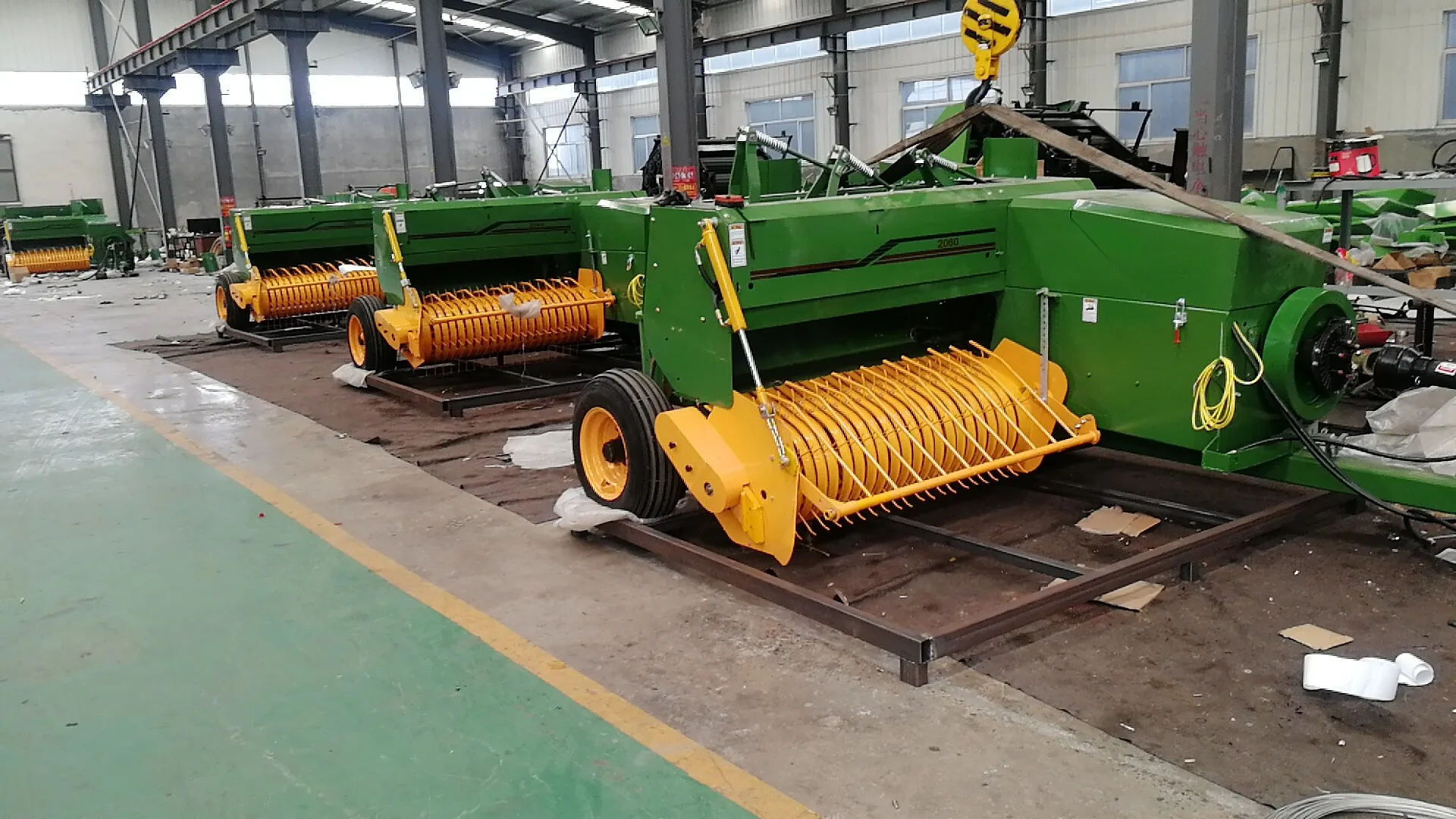

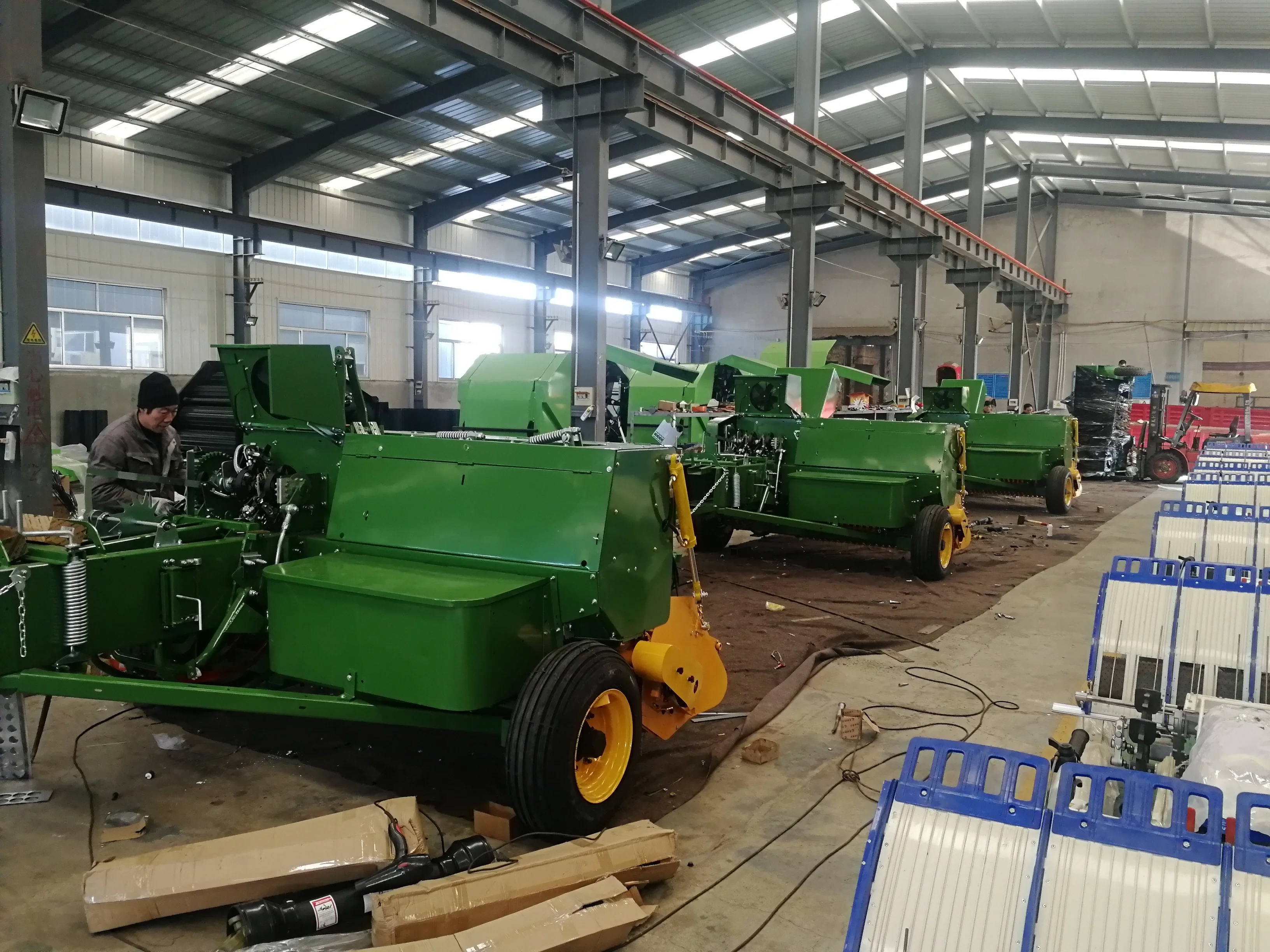

workshop pictures

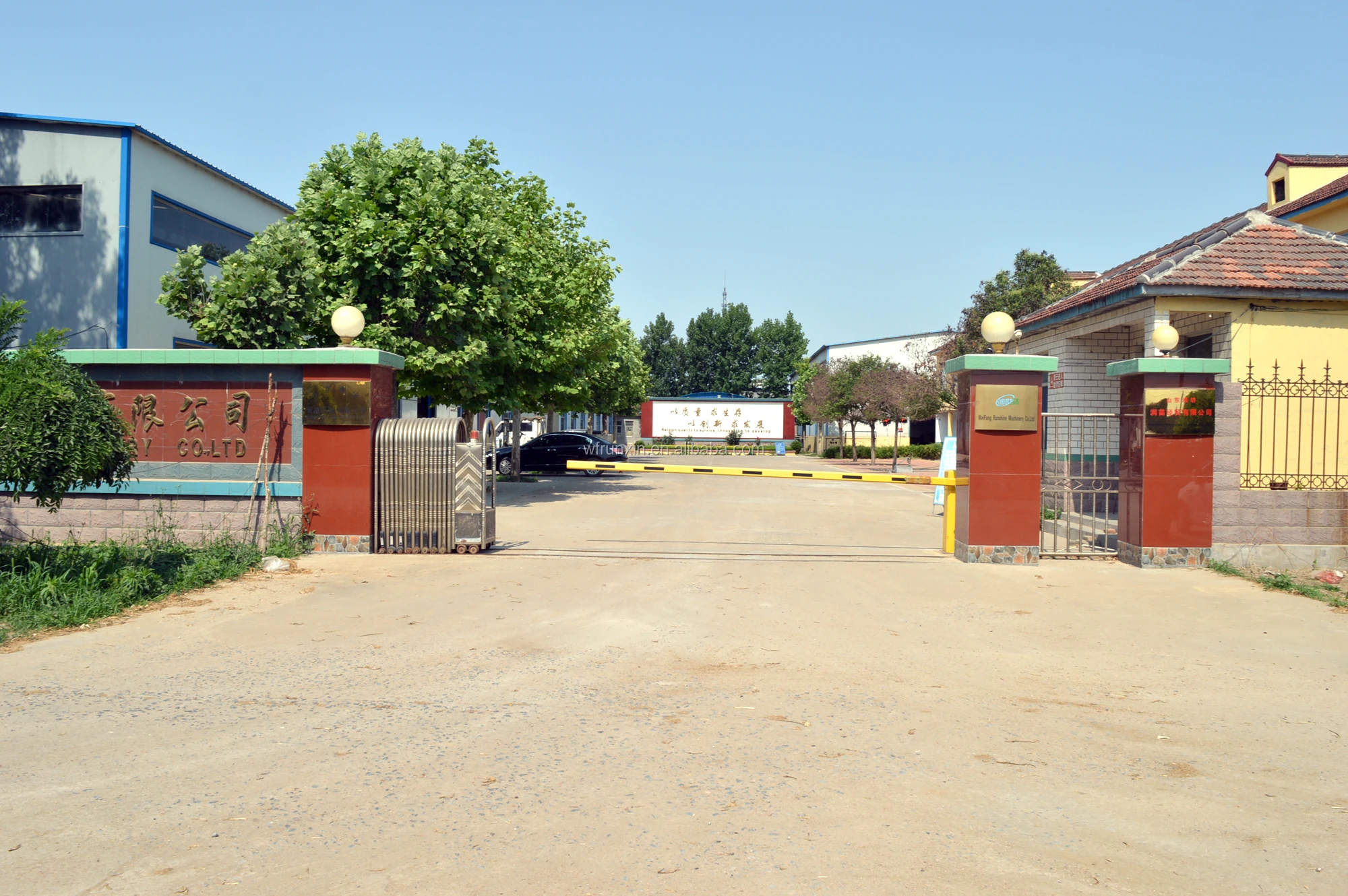

factory pictures







please contact me to get it.

40HQ container loads 10sets.

1 year warranty
