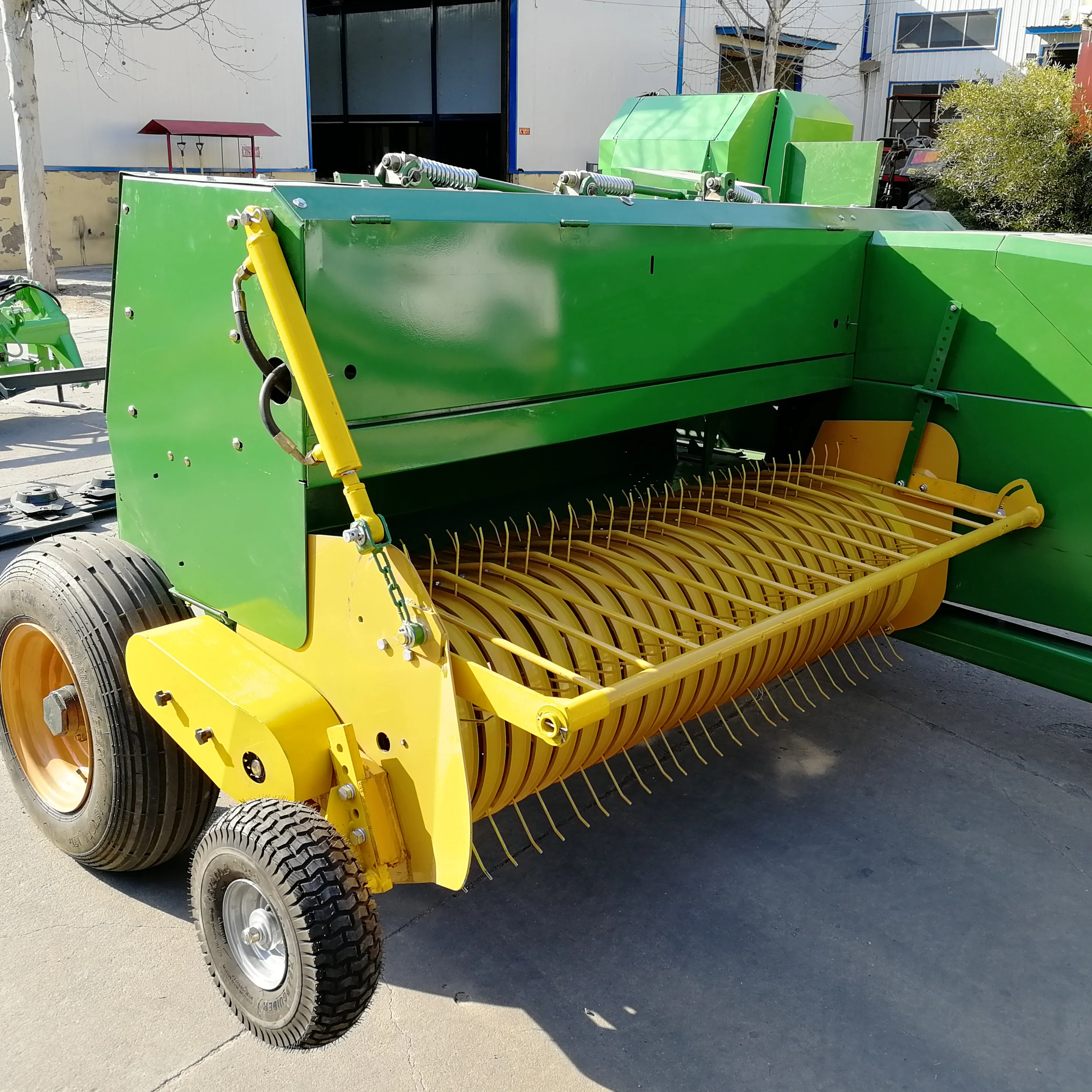

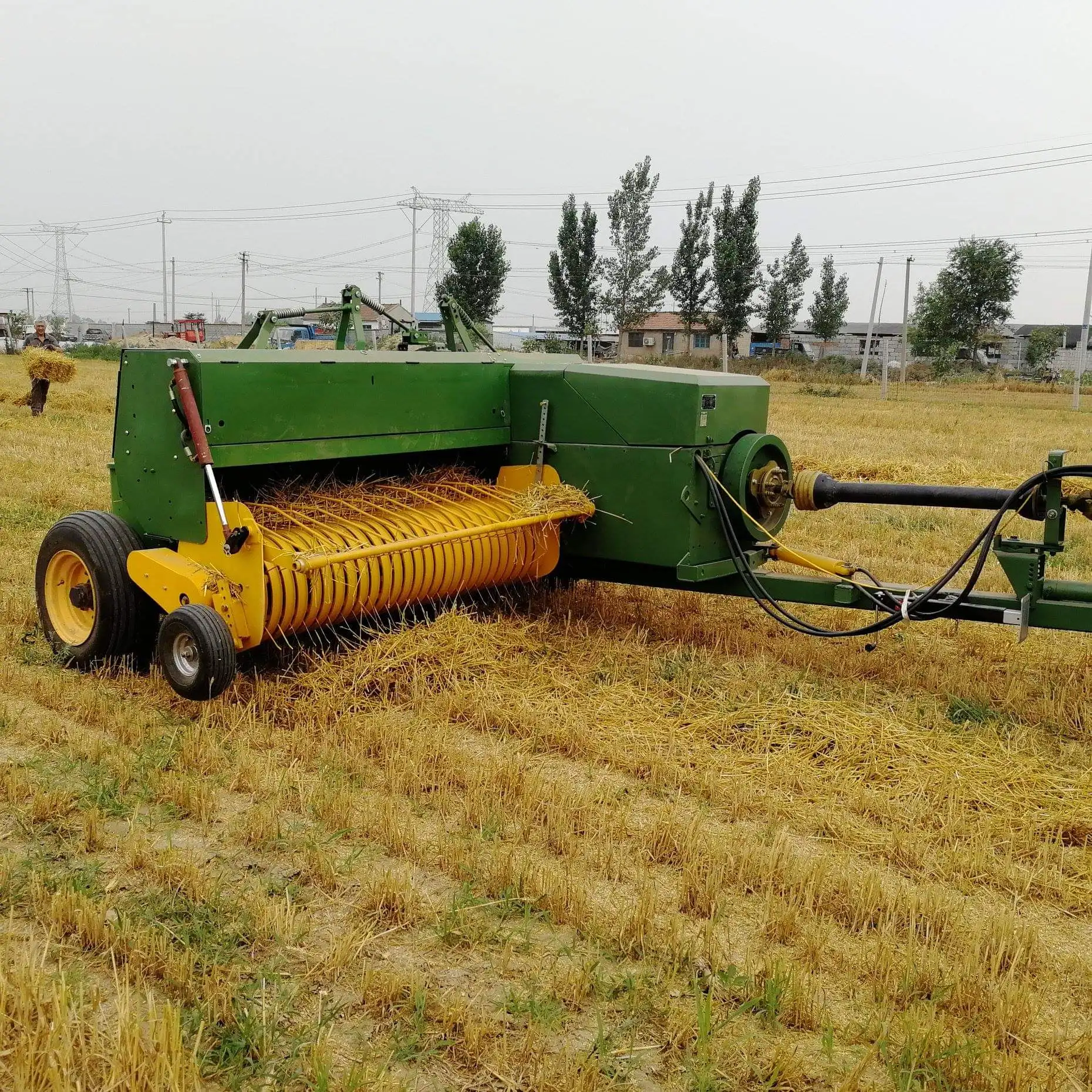

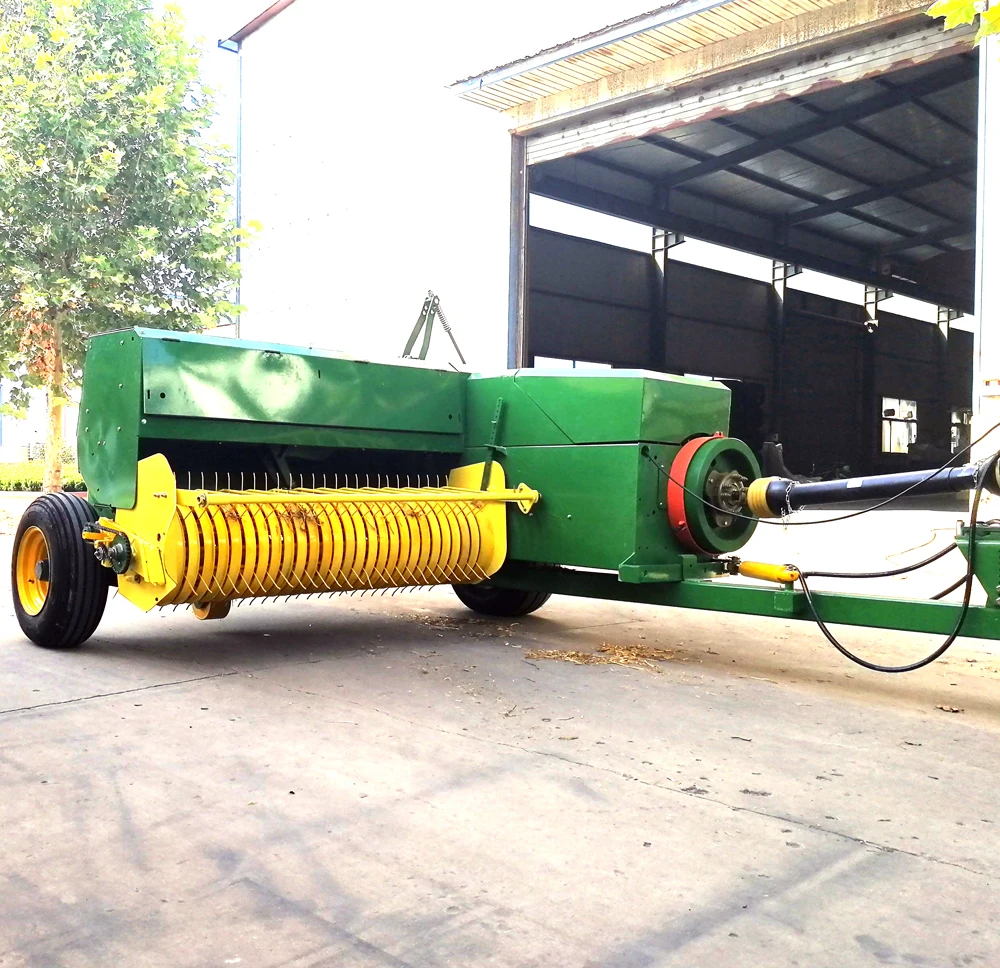

Runshine bale making machines RXFK5070 square baler

Product Overview

Description

Brief Introduction for the square baler RXYK5070



 Square Baler should be trailed by tractor or combine harvester and working for picking up rice straw , wheat straw, soybean, corn stalk or forage grass scattered in the field and deliver them into forming assembly



 which will make straw or forage grass into square package  with compression space.



needn't stop the tractor after the bales are finished, so, the efficiency is higher than a round baler.





Feature
1- Simple and Compact in structure
2- Easy operation
3- High working efficiency
4- Low cost and spare parts are available from us.

5. offset design, easy to check the working  situation.

6. for compact tractors 50HP is enough.

7. towed type, using 2 point link or trailer mounted

8. widely used in all kinds straw



Weifang Runshine Square baler is well designed.











Specifications data:

Model	RXFK5070	RXFK2060
Cross section	36x46cm	32x42cm
Bale length	30-120cm adjustable	30-100cm adjustable
Pickup width	(160cm)	1.44m
Knotting time	0.7s	0.9s
Plunger frequency	70-110/m	70-100/m
PTO speed	540RPM	540RPM
Working speed	4-7km/h	4-7km/h
Tractor required	Over 40HP	around 50HP
Overall size	500x249x180cm	4100x2150x1300mm
Structural weight	1700kgs	1030kgs
