binocular microscope biological video microscope microscope with CCD camera

Product Overview

Description

Optical Microsocpe with camera

1) technical parameters

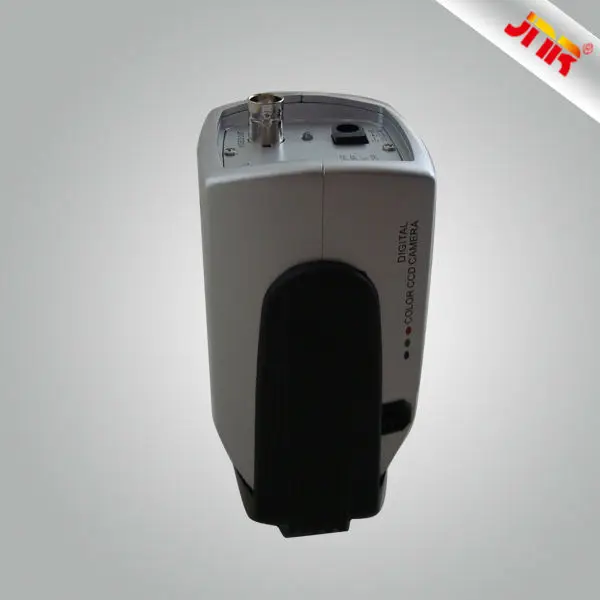

1. Camera  1/3 SONY CCD

2. Camera image sharpness  ≥ 480 lines

3. Wide field eyepiece  WF10X

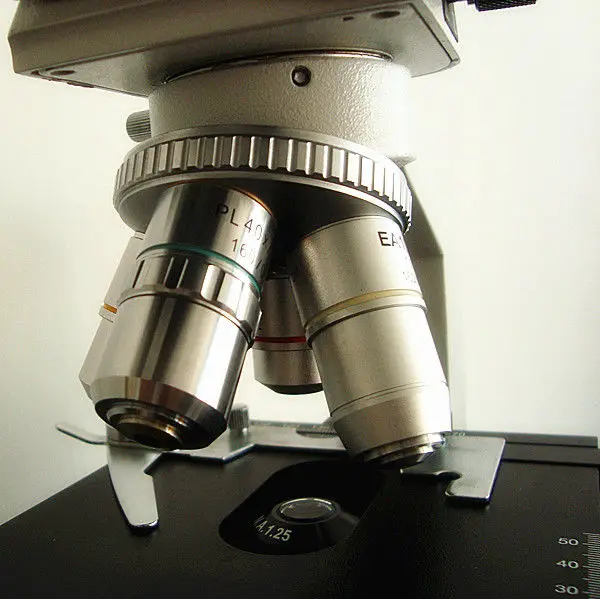

4. Achromatic Objective(s)   4X/0.10X/0.25, 40X/0.65, 100X/1.25(oil)

5. Converter    dumping four-hole, ball bearings positioning.

6. Stage   Double layers mechanical stage two biopsy forceps

7.Focusing  coaxial coarse and fine focusing ,Triangular steel column rails, move more smoothly

8. Condenser: N.A.1.25 Oil (Abbe condenser, numerical aperture 1.25), iris diaphragm, adjustable condenser Center

9. Illumination  Cora lighting, halogen lamps, brightness adjustable

10. Power Supply: switching power supply, wide voltage

11. Gross weight: 8.62kg

12.  Size of the package: 51.5*37*29cm

(2)Components

Name	Quantity	Note
Video microscopy host	1
CCD medical camera	1
CCD regulated power supply	1
USB video collection box	1	Computer matching
Slide	1
Cover glass	1
A two conversion head	1
Video line	2
Light bulb	1	spare
