Servo motor and PLC Automatic zipper bag and self standing three side seal doypack bag making machine

Product Overview

Description

three side seal bag making machine



USE:

It’s a multi-functional equipment to make three side sealing bag, zipper bag and self-standing bag, with three traction servo motor (Made in Japan, Panasonic) and Taiwan PLC controlling system. Finished bags are widely used in food industry. The machine produces bags with stable operation and low noise.



Suitable Material: BOPP, COPP, PET, PVC, Nylon etc. plastic laminated film, multiple-layer extruding film, aluminum compound film.



Features:

1. Unwinding material adopts automatic magnetic powder constant tension.
2. Japan Panasonic PLC controlling system, touch screen.
3. With hole punch for different type and size
4. Set length, temperature directly with touch screen.
5. With automatic counting function
6. With alarm system for errors, like no material, temperature abnormal, tension abnormal etc.
7. Solid and steady machine body, use 12mm thickness steel plate.
8. With CE/ISO certificate

Main Technique Parameters:

Model	ZD-600
Max. bag width	600mm
Max. bag length	400mm (More than 400mm, multiply feeding)
Max unwinding width	1250mm
Max unwinding diameter	600mm
Precision	+/- 0.5mm
Max speed	160t/min
Operational power supply	380V, 3phase
Gross power	70kw(45KW when operation)
External dimension (L×W×H)	13000*2200*1870mm
Weight of complete machine	7000kg

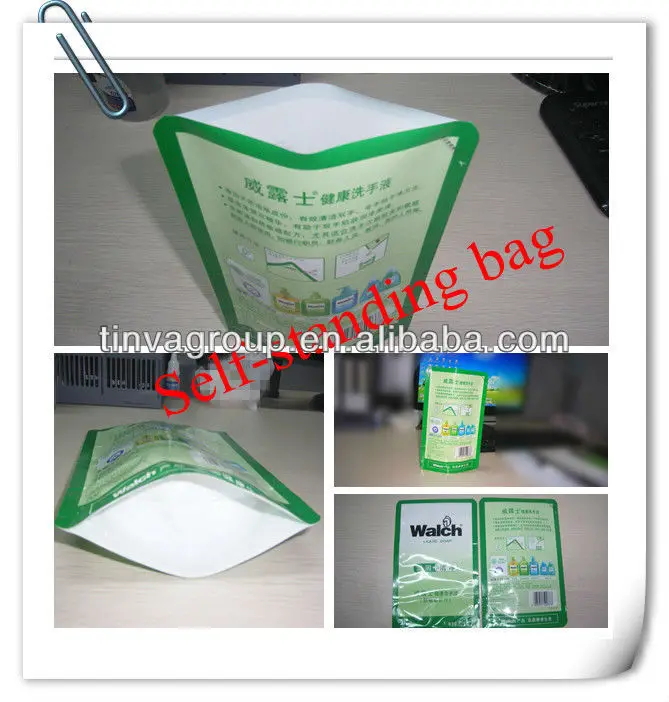

Finishd self standing bag on three side seal bag making machine:

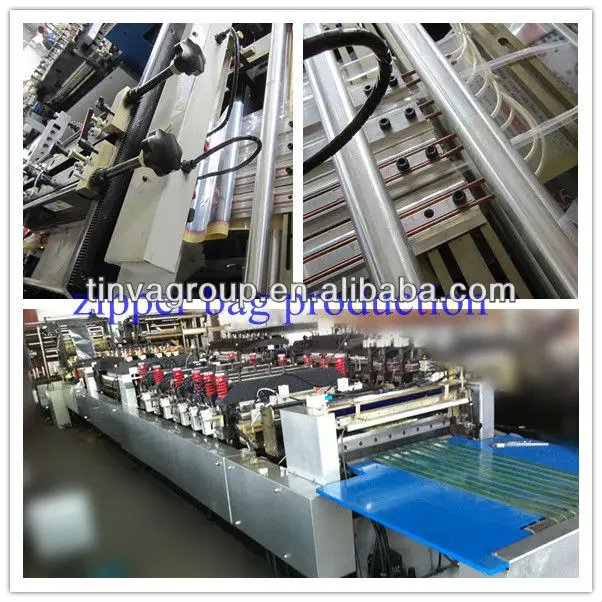

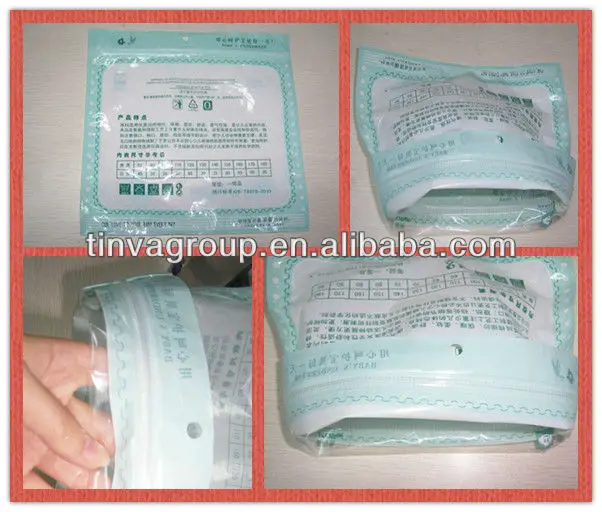

zippr bag:

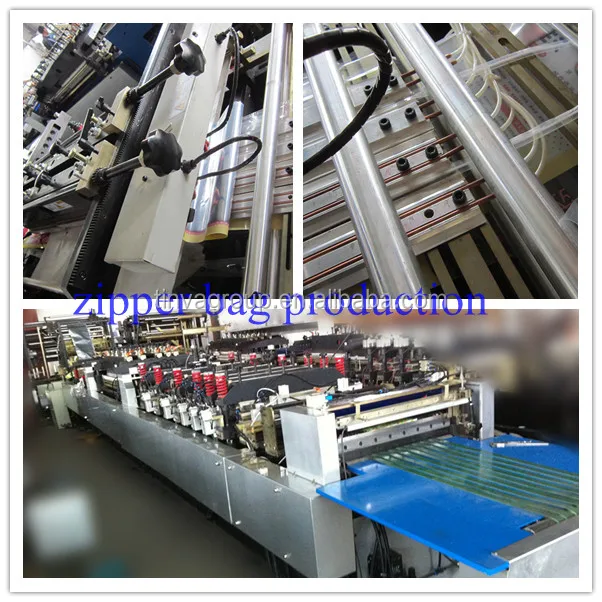

Three side seal making Machine Show:

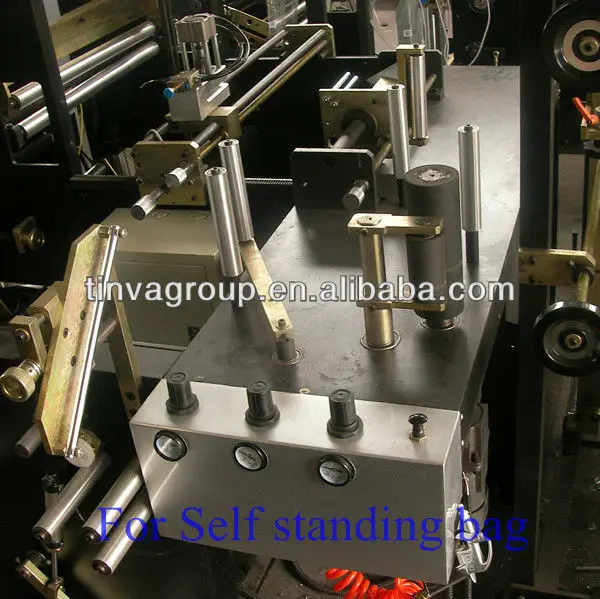

Self standing bag production:

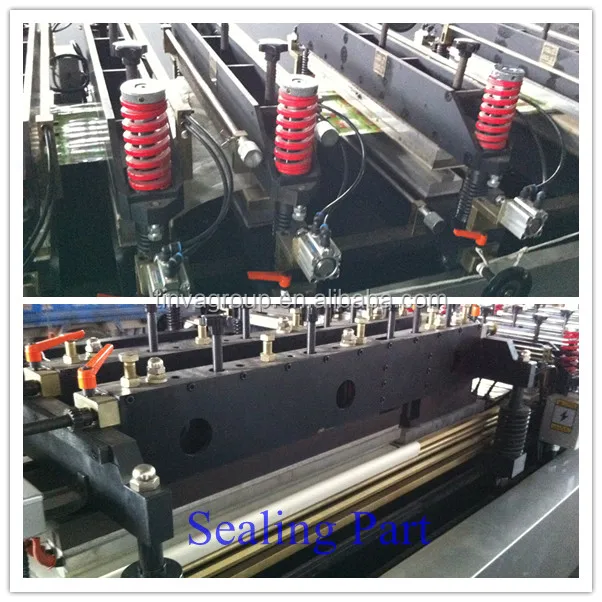

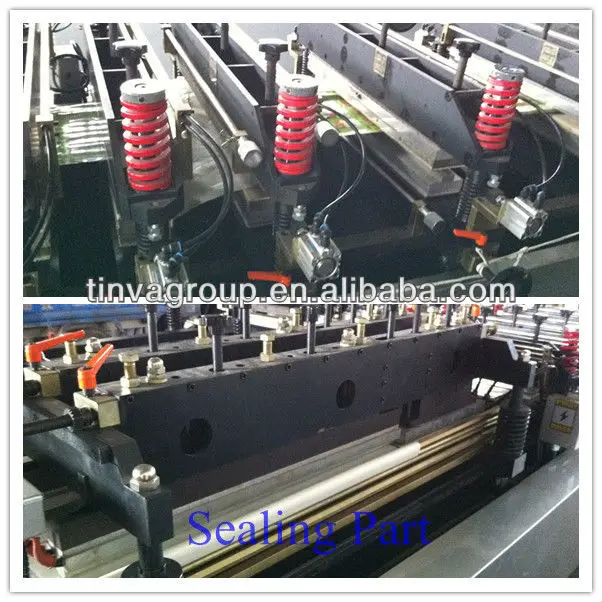

Sealing:

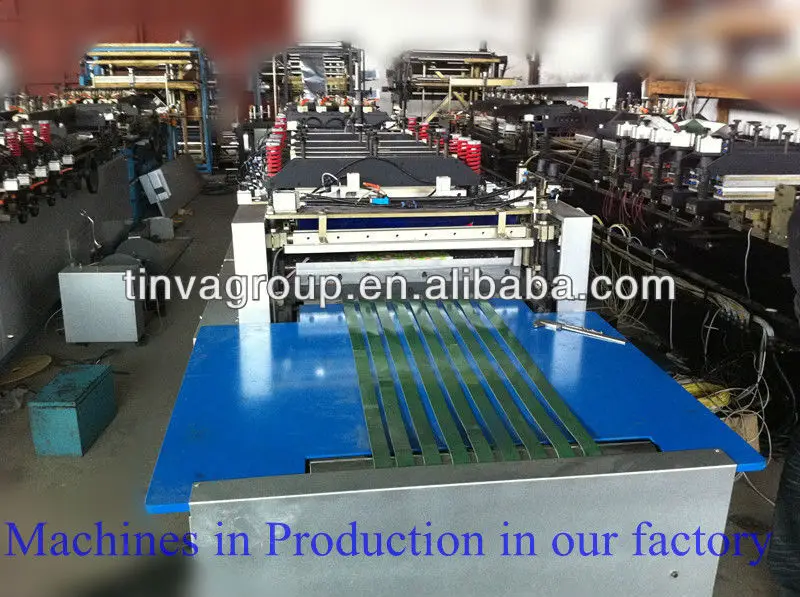

 Machines in prodution:



Certificate:
