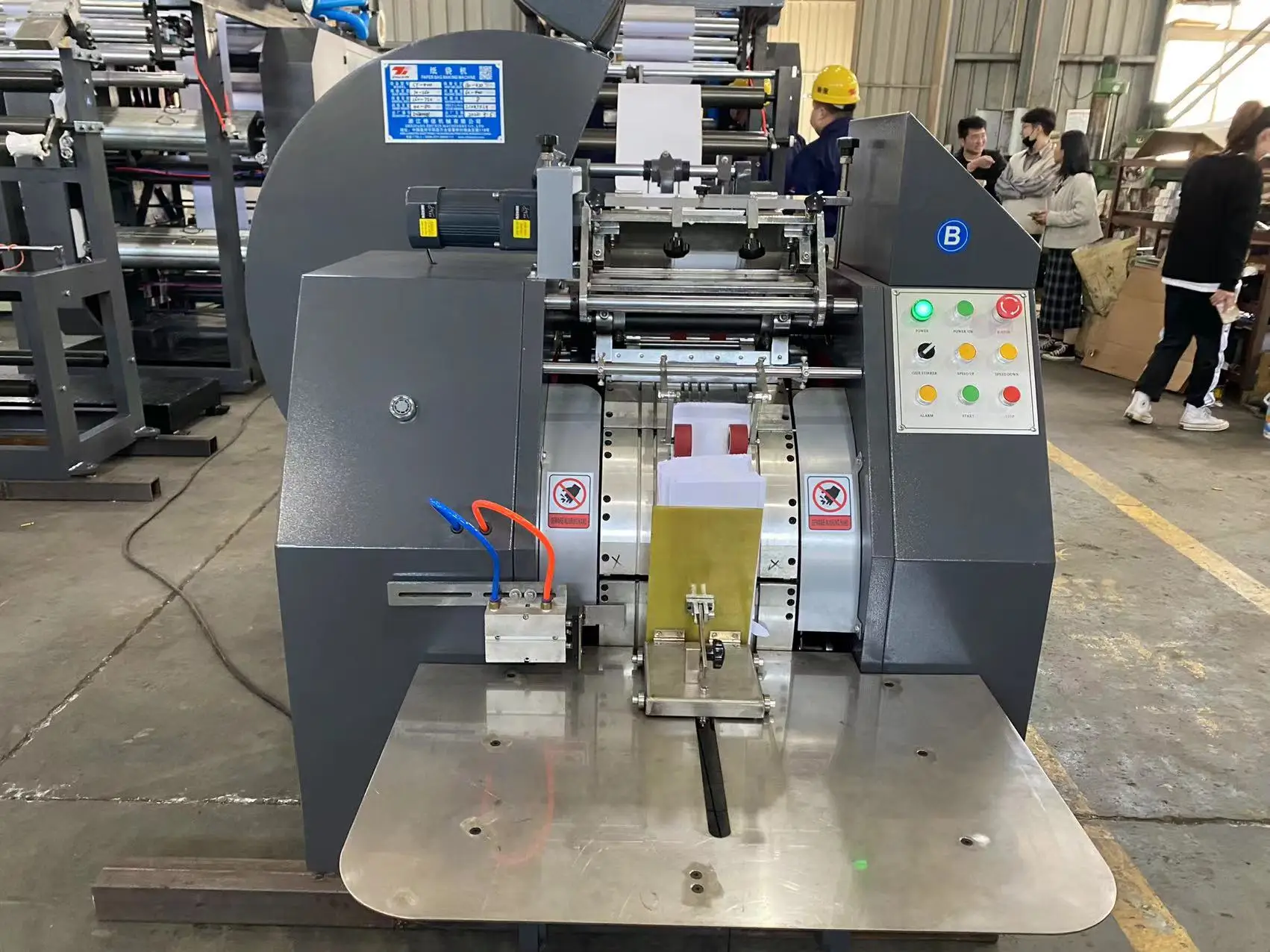

higj speed mini square bottom kfc kraft food paper bag making machine price in china
- Category: >>>
- Supplier: Zhejiang Zhuxin Machinery Co. Ltd.
Share on (895778157):
Product Overview
Description
CY-400 KFC food paper bag making machine auto loading paper bag making machine
Max bag size: L*W 420*260mm
Min bag size: L*W 160*80mm
Paper weight: 40-80gsm
Performance and Characteristics:
Suited for 30-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.
Main Technical:
Paper weight:40-80gsm
bag length:160-420mm
bag width:80-260mm
speed:100-400pcs/min
power:10kw
total weight:2500kg
machine dimension:4000*2100*1900mm
Main parts
Photocell eye 2 sets
Photoelectrical correction controller 1 set
PLC 1set China brand
Servo motor 2sets YASKAWA 220V
Frequency converter 1set
Paper bag width panel 2sets
Video: //www.tudou.com/programs/view/QAVZ8pm2B-w/
: L*W 420*260mm
Min bag size: L*W 160*80mm
Paper weight: 40-80gsm
Performance and Characteristics:
Suited for 30-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.
Main Technical:
Paper weight:40-80gsm
bag length:160-420mm
bag width:80-260mm
speed:100-400pcs/min
power:10kw
total weight:2500kg
machine dimension:4000*2100*1900mm
Main parts
Photocell eye 2 sets
Photoelectrical correction controller 1 set
PLC 1set China brand
Servo motor 2sets YASKAWA 220V
Frequency converter 1set
Paper bag width panel 2sets
Video: //www.tudou.com/programs/view/QAVZ8pm2B-w/
