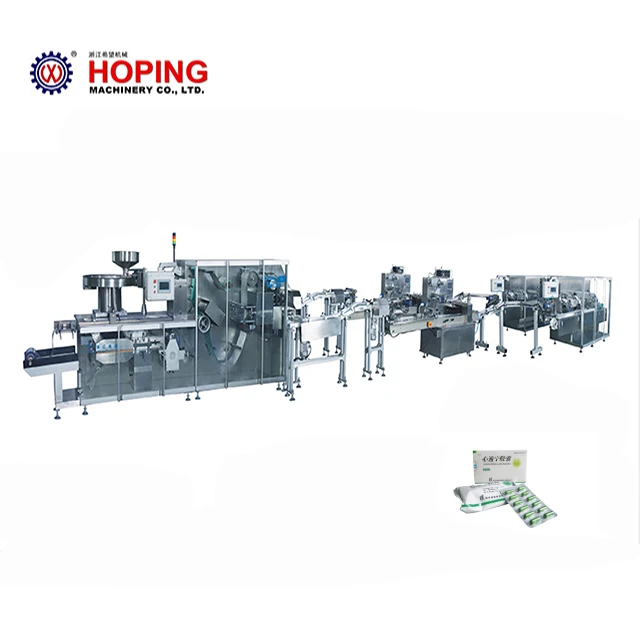

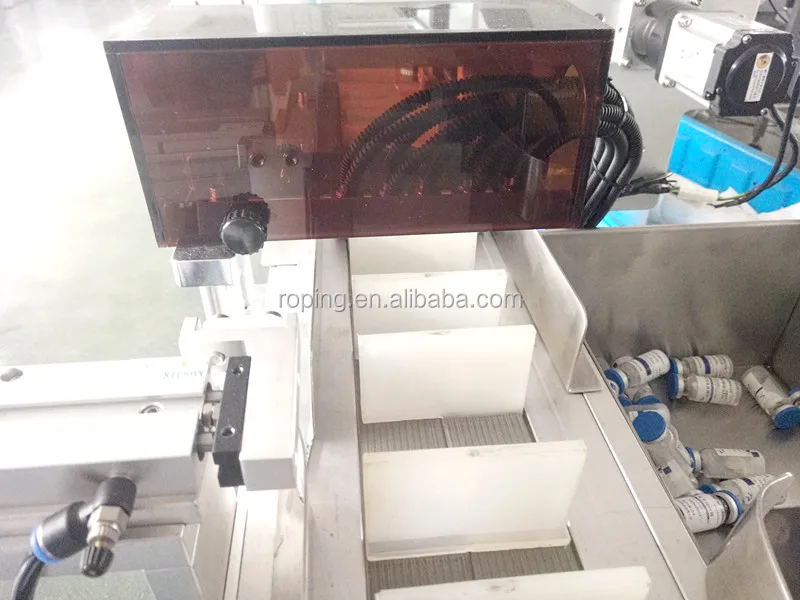

1,The line machine integrating blister ,vial/ampoule feeding together.
2, Detection, rejection and cartoning packing into an organic whole.
3,With compact structure, simple operation and PLC touch screen adopted.
4,Change parts can special designed by customer's requirement.

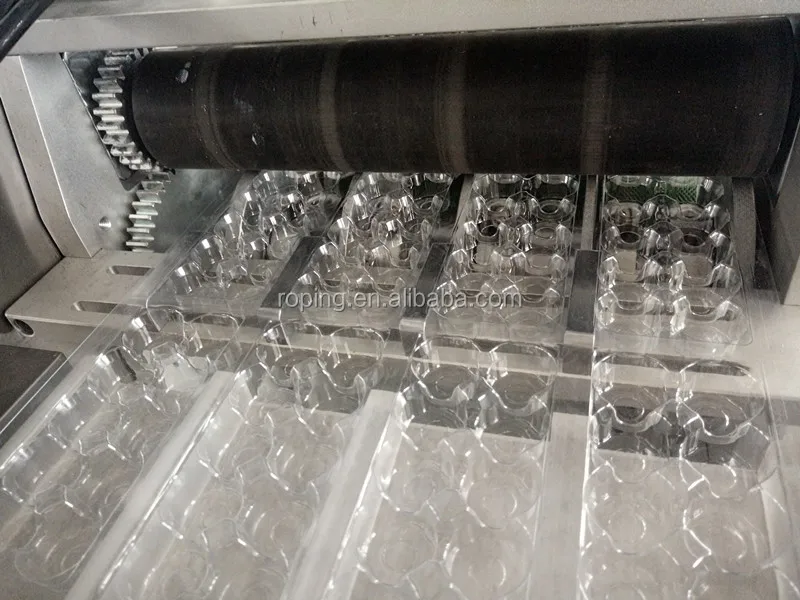

Ⅰ Vial/Ampoule Blister Packing Machine
Main Technical Parameter
Capacity
25-30 punch/min
Range of stroke(mm)
40-120
Packing Material Pharmacy PVC(mm)
PTP alu foil(mm)
(0.2-0.4)*260
(0.02-0.05)*260
Clean compressed air(pressure)
0.5-0.7Mpa
Air consumption(m³/min)
≥0.4
Power
AC380V 50HZ 9KW
Water chiller for moulds
recyle water with 60L/h consumption
Overall dimensions(mm)
4420*710*1700
Net Weight(kg)
1700

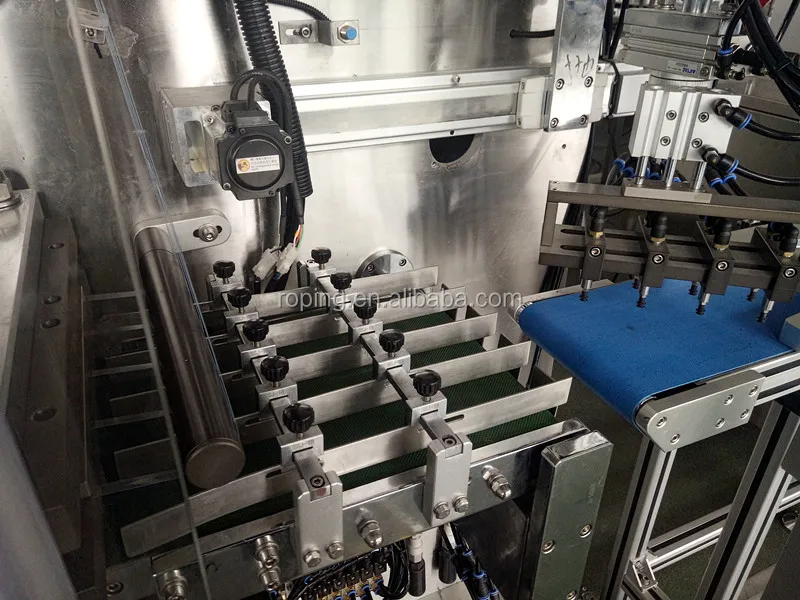

Ⅱ Cartoning Machine
Main Technical Parameter:
Capacity(box/min)
30-120
Box dimension (mm)
(70-125)*(35-85)*(15*65)
Leaflet dimension(mm)
(80-260)*(80-180)
Clean compressed air(pressure)
0.5-0.7Mpa
Air consumption(m³/min)
≥0.3
Power
AC220V 60HZ 1KW
Overall dimensions(mm)
1750*1200*1700
Net Weight(kg)
1200
Packaging & Delivery
Packaging details:exporting standard wooden case, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Within 45 days after receipt of 30% payment by T/T.
