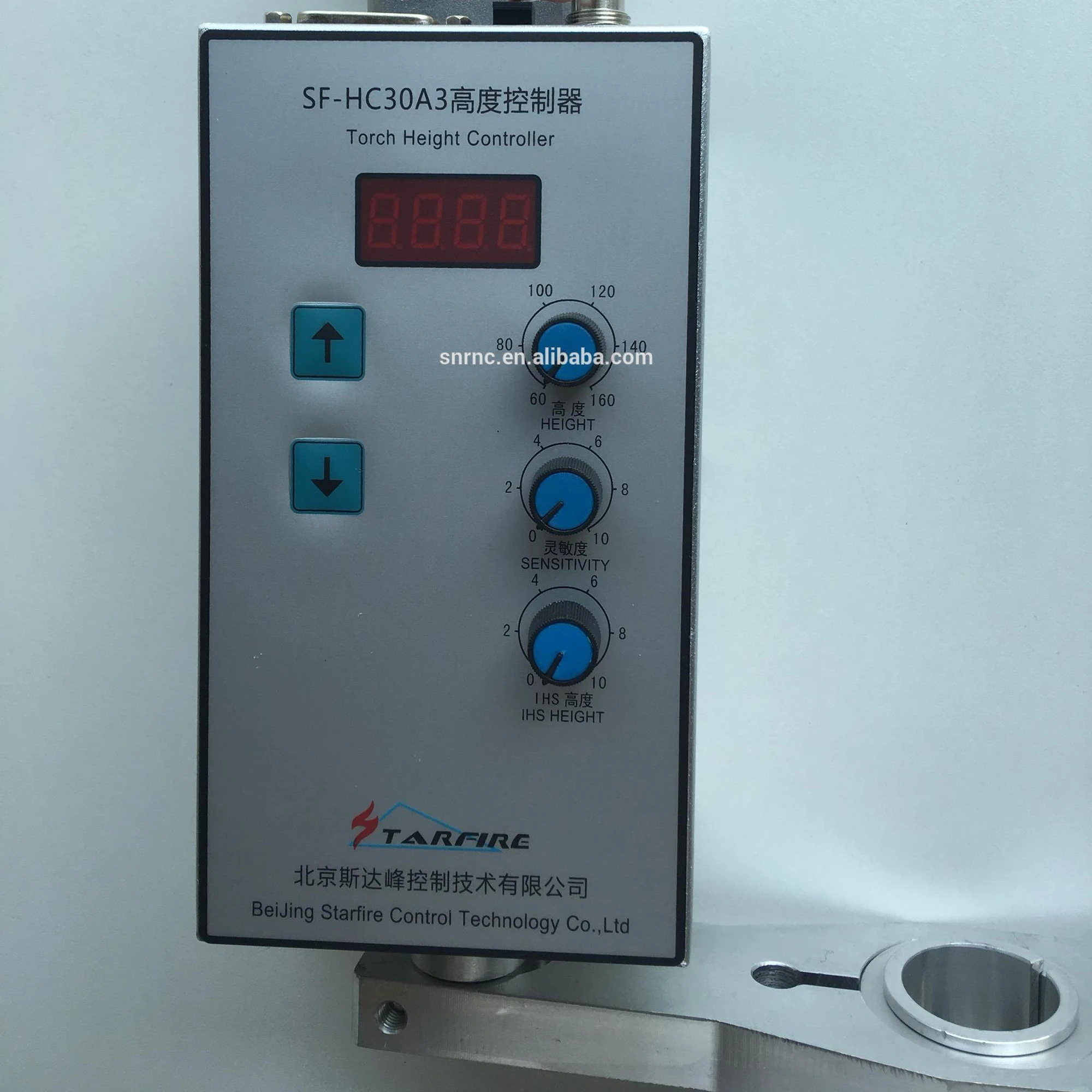

automatic torch height controller SF HC30A3

Product Overview

Description

SF-HC30A3 auto torch height control for plasma and flame

Technical characteristics



stepper motor is used to replace the traditional dc motor

SF - HC30A flame/plasma cutting height controller adopted stepping motor control technology, has subverted the traditional dc motor adjustable high mode, fast, stable, and greatly improve the service life of the product.

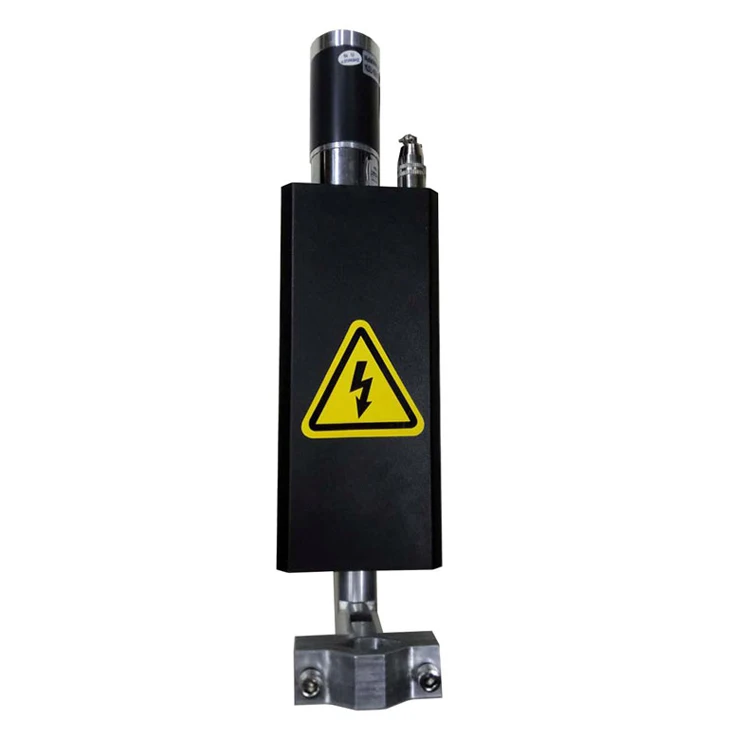

 mechanical lifting device and adjustable high controller integration

Detector, controller, drive integration design, make products to high integration, adjust stroke 10 cm.

full digital technology

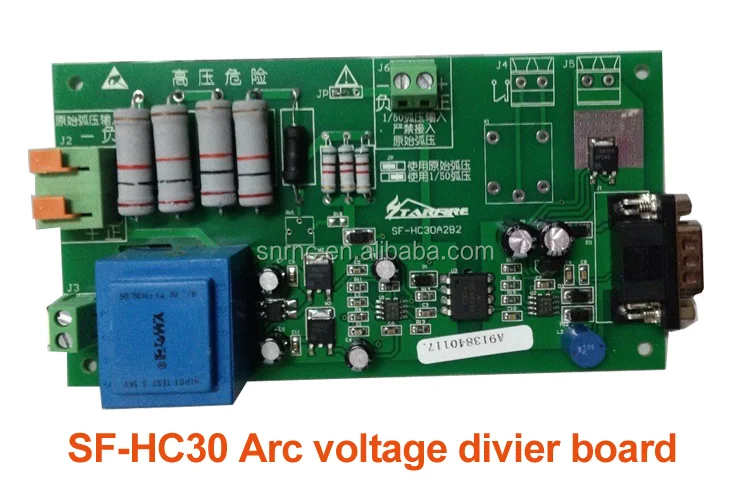

Circuit adopts SMT technology, there were adjustable device, full digital control technology to ensure that the product has the high reliability.

In the bad environment can use

Shell choose seal anti-interference waterproof and moistureproof aluminum box design, especially suitable for flame cutting, plasma cutting of high temperature, high electromagnetic interference bad environment.

various interface easy to use

Interface simple control convenient, suitable for all flame cutting, plasma cutting numerical control system, also can be used alone.



The main technical index



power requirement	DC 24 v ± 2 V3 A
applicable motor	17 hs (42) series of stepping motor
manual adjusting range	0 ~ 100 mm
automatically adjustable high control range	3 ~ 30 mm
automatically adjustable high adjustment speed	3000 mm/points
control accuracy	+ / - 0.5 mm
box body size	155 x 87 x 71 mm
working environment	- 10 ~ 50 °C
weight	3KG
