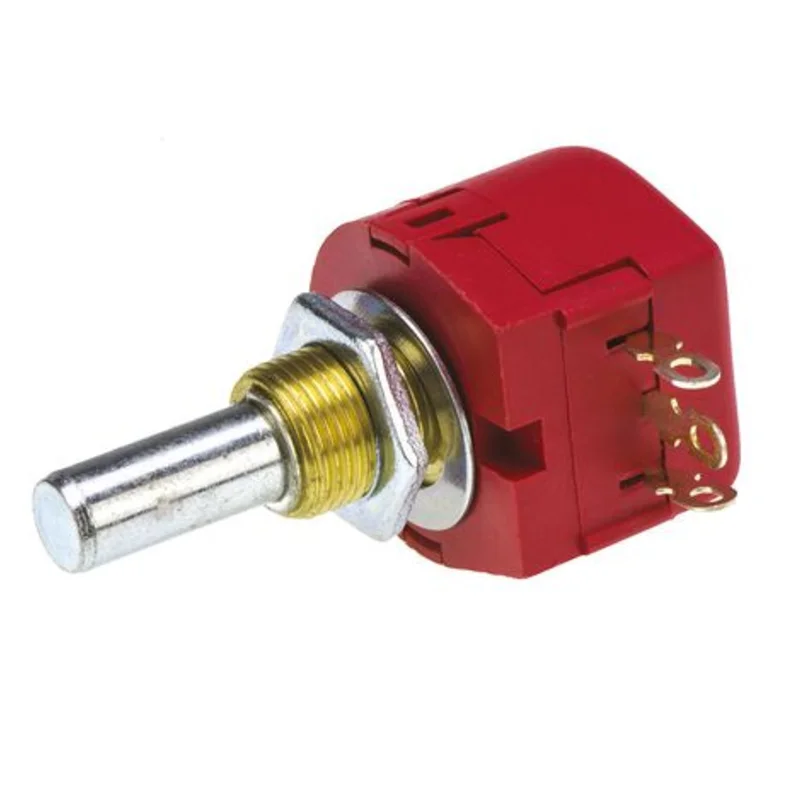

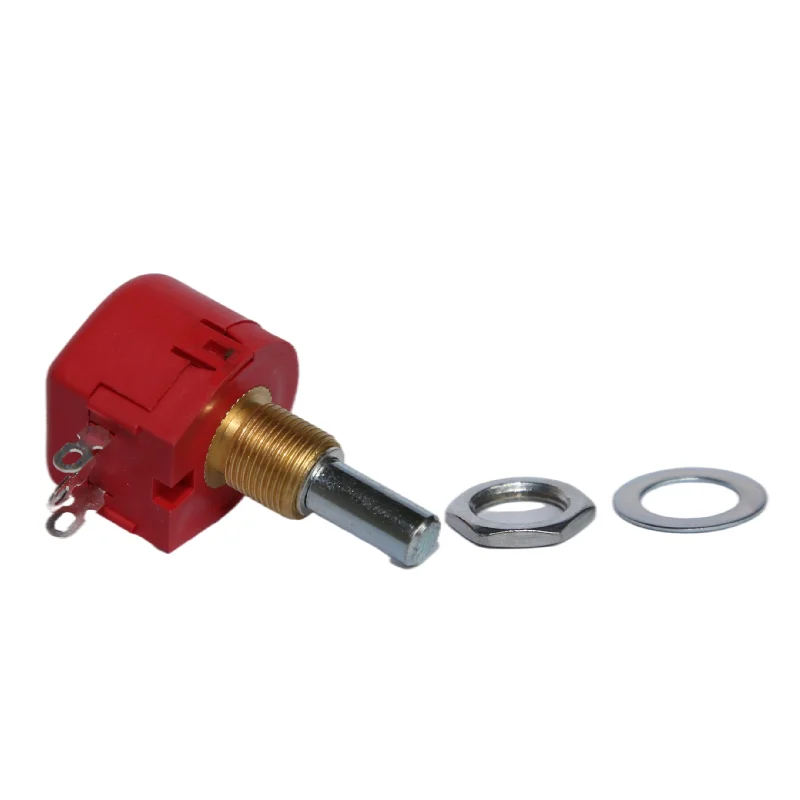

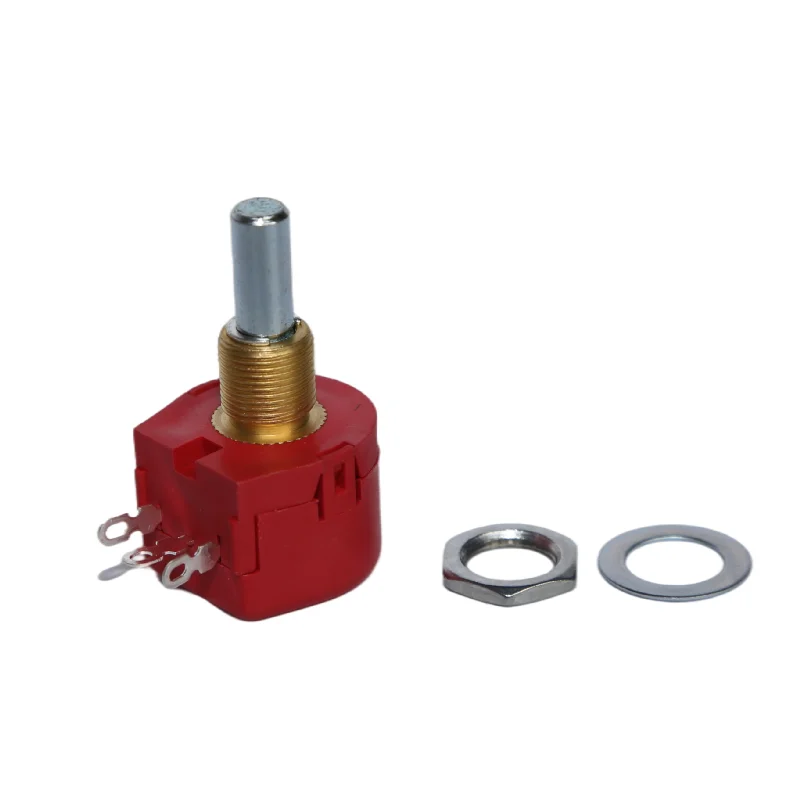

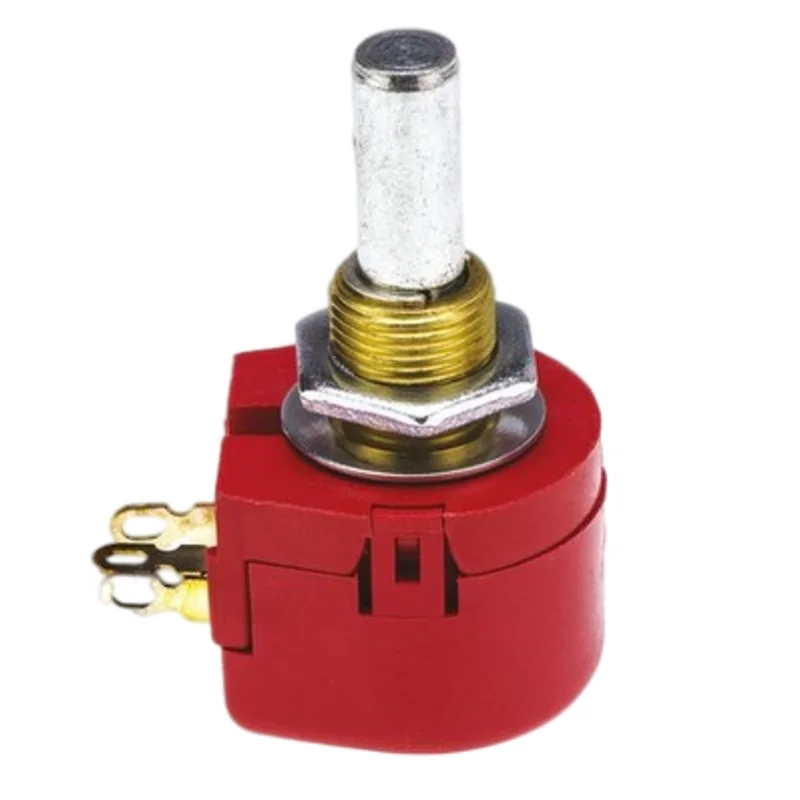

WX118 0.5W 10% single turn wirewound long shaft potentiometer 2.5k ohm

Product Overview

Description

1, WX118 potentiometer wirewound potentiometer b10k potentiometer





2, The drawing of  WX118



3,WX118 Specification

Model	WX118
Standard Resist. Range	100Ω~22kΩ
Power Ratings	1W/40°C
Maximum Working Voltage	200V
Maximum Wiper Current	100mA
Operating Temp. Range	-55°C~+125°C
Resistance Tolerance	±10%
Effective Electrical Travel	mech.285°±5° elektr.265°±5°
End Resistance	2Ωmax
Dielectric Strength (Room Conditions)	1000V AC
Insulation Resistance	1000MΩmin.(at 500V DC)
Shaft Torque	3.5~100mN.m
Rotational Life	5000cycles without discontinuity
Temperature Coefficient	±100ppm/°C



4.



5.



6.



7,How to order:

For example :3386W-102 ---3386 means  Specification

                                           ---W means type

                                           ---102 means resistance code

8. For more info., pls contact us:



Skype ID: serena.shu16

QQ ID:  1153409713

Tel.:+ 86-15680731820



Other potentiometers we produce:

Trimmer Potentiometer 3296, 3362, 3329, 3386, 3266, 3006, 3323 PT15 PT10 PT06 WI1609(Similar Vishay potentiometer). Wire-wound potentiometer 3590, 3540,  RV24, R1001,WX118 .etc.
