Product Overview
Description
Specification
SIZE (inch) | O.D (mm) | SLOT (inch) | LENGTH (m) | Collapse Strength (psi) | Tensile Weight (ton) | Wire size (mm) | RODS (mm) |
4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
Features

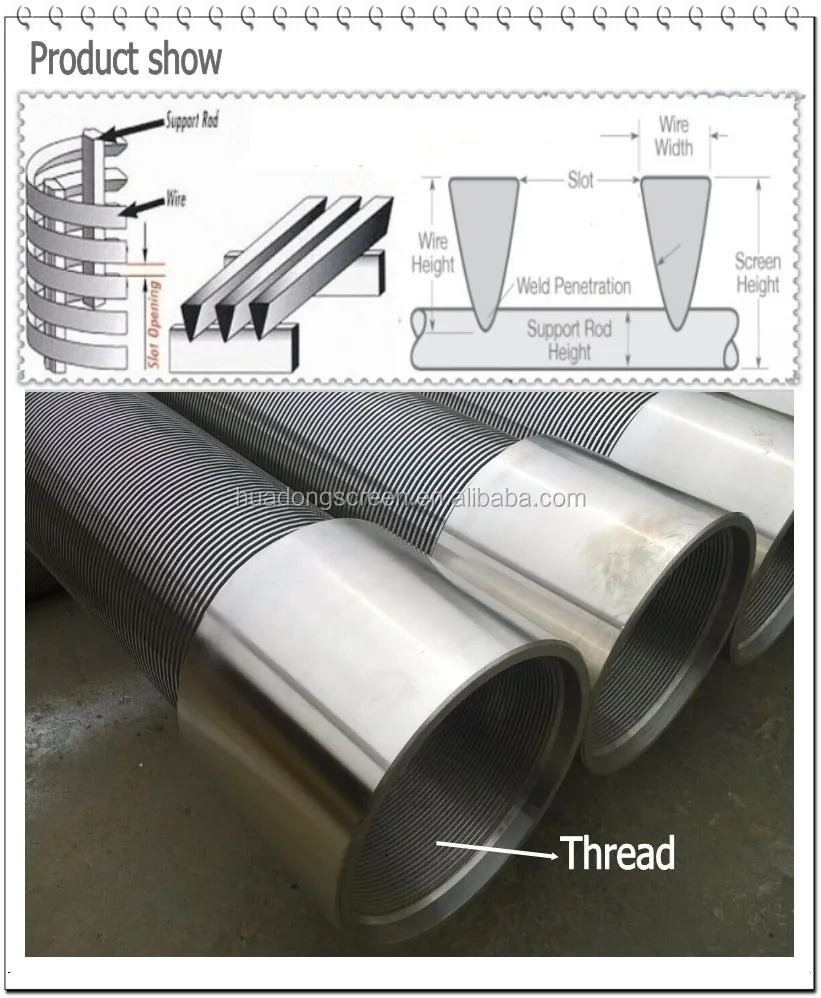

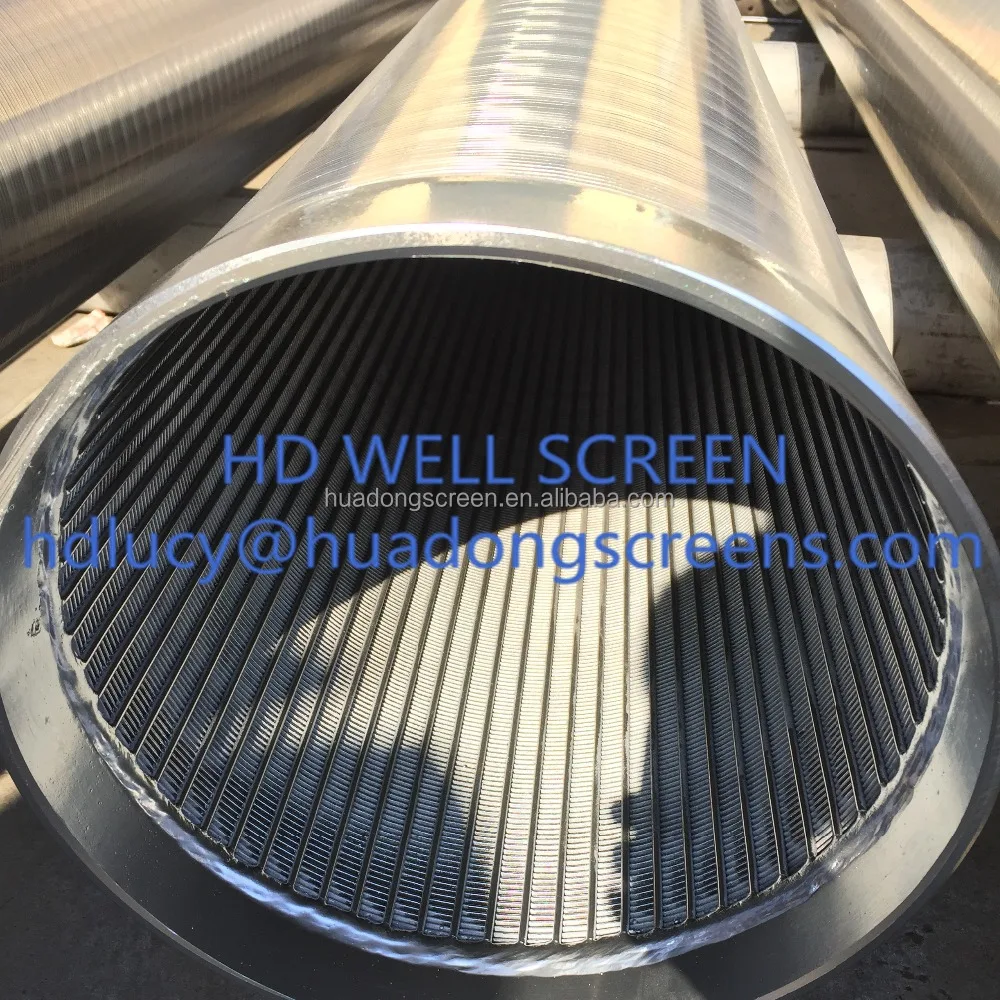

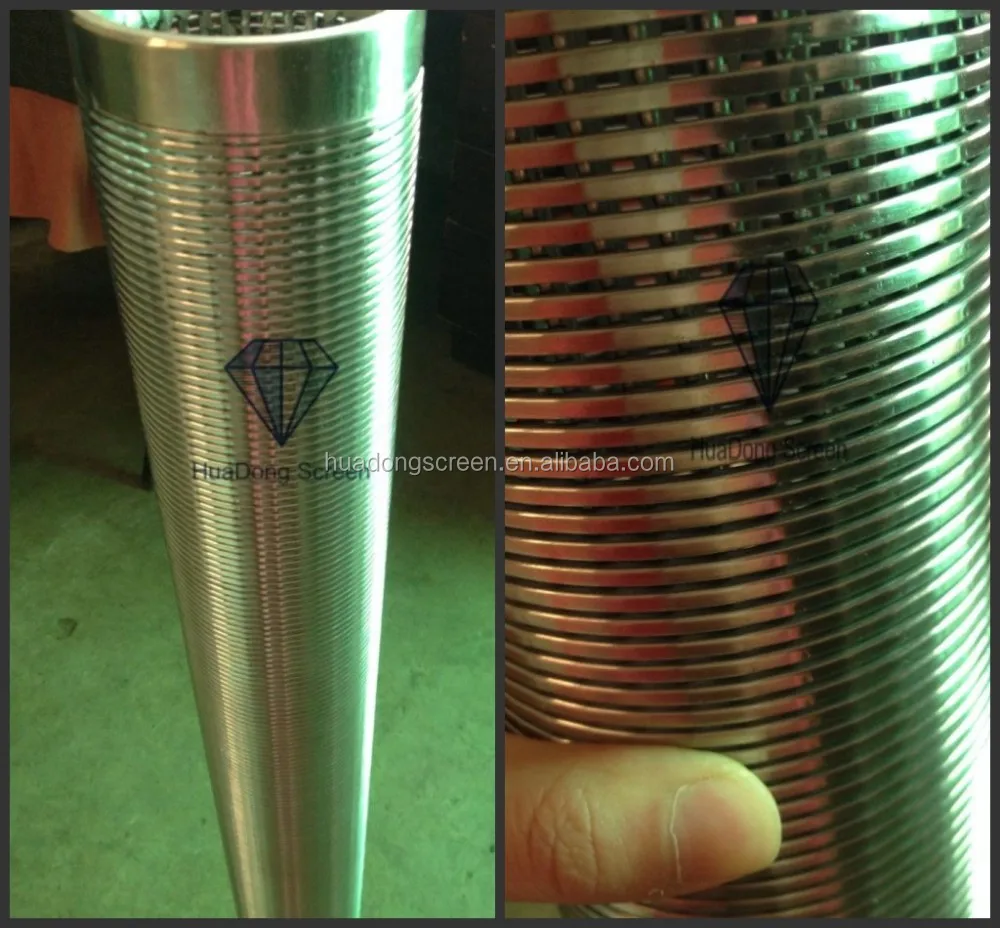

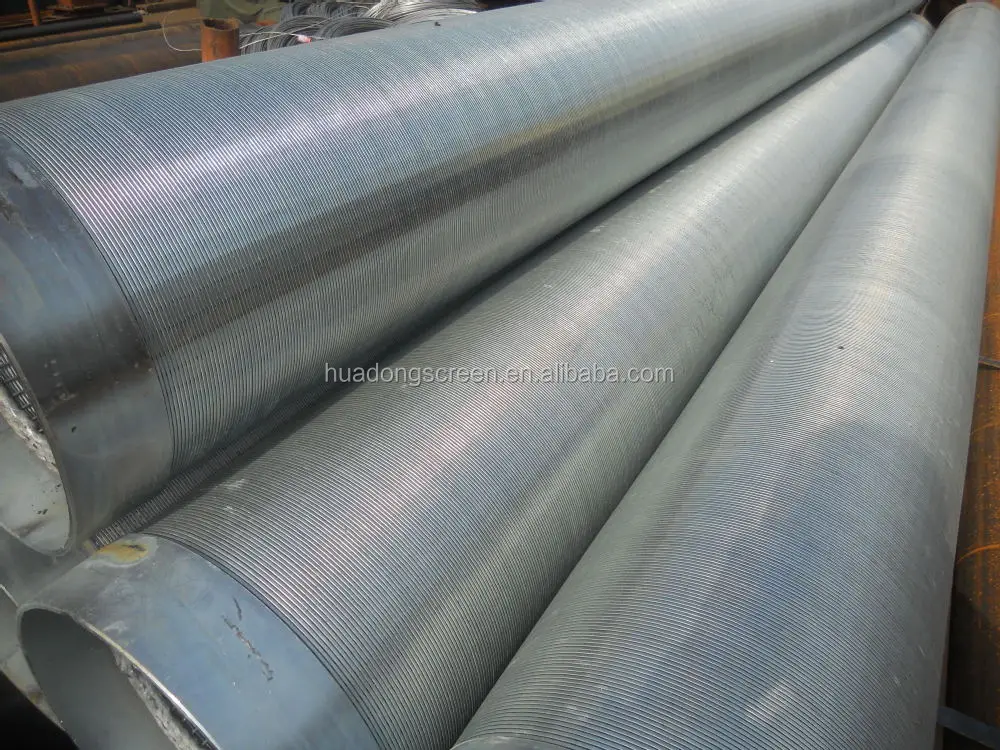

Johnson screen are consisted by a V or wedge shaped wire around an internal array of longitudinal support rods.Each intersecting point of these wire is fusion welded.The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening ,hence the screen allows water(oil) to enter your well freely in ample quantitles while at the same time keeps the majority of sand and gravel out of the well.
Advantage
1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2. V shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5. Ladder-like wire welded screens have the features of easy backwashing,last long, afety and reliability as well as low comprehensive cost.

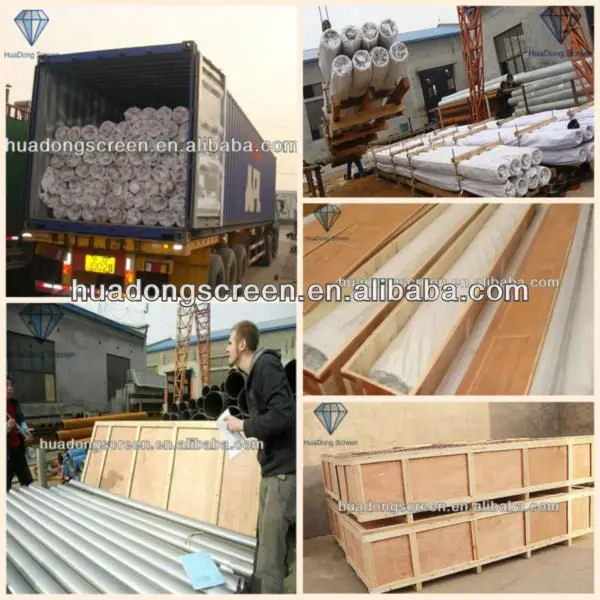

Packing details
Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with:
Name & identification mark of manufacturer-HuaDong Brand
Batch number
Date of manufacture
Material
Collapse strength&Tensile pressure
We provide with 24-hour service and await your calls respectfully! My What's App is+8615037392551, My skype is dalianmao0517.
