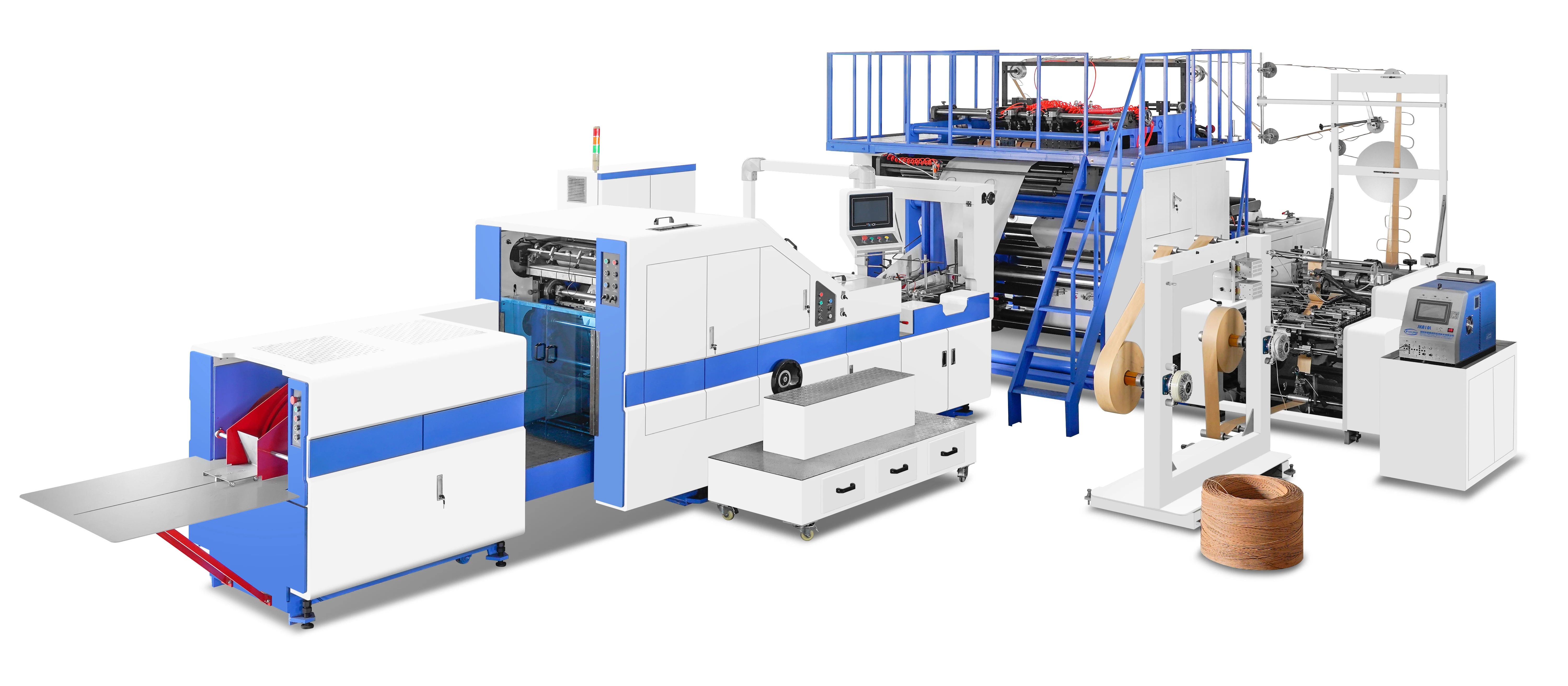

2022 zhuxin brand square bottom paper bag machine

Product Overview

Description

Adjustable Roll Square Bottom Shopping Paper Bag Making Machine





 Features:

Use hydraulic lifting for material handling, and automatic tension control system for  unwinding.

Side gluing uses Italy ZATOR.

Automatic error correction uses Italy SELECTRA.

Paper tube forming device with thumb-cut fuction.

Automatic stop for having no material.

Center clip, drum wheel clamp and drum wheel machanical finger are all use spider synchronous adjustment mechanical design, which can significantly reduce the adjustment time for replacing size.

Use German KEB servo with SICK photoelectric eye, which can accurately tracking the printed material.

Equipped with automatic lubrication supply system and jams alarm system.

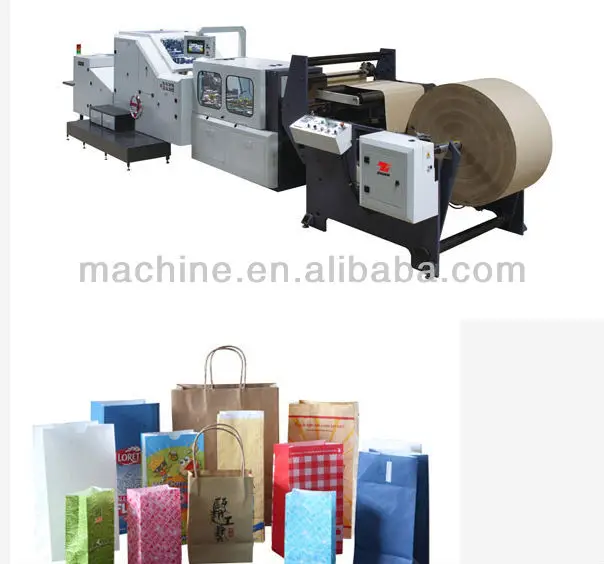

Model	CY-290	CY-460
Paper Roll Width	320-900mm (12.60’’-36.61’’)	600-1300mm (23.62’’-51.18’’)
Tube Cutting Length	230-580mm(9.06’’-22.83’’)	230-580mm (9.06’’-22.83’’)
Bag Width	80-290mm(3.15’’-11.42’’)	220-460mm (8.66’’-18.11’’)
Bag Length	155-505mm (6.10’’-19.88’’)	155-505mm (6.10’’-19.88’’)
Bottom Size	60-160mm (2.36’’-6.30’’)	60-180mm(2.36’’-7.08’’)
Paper Thickness	60-180gsm	60-180gsm
Max. Paper Roll Diameter	1500mm (59’’)	1500mm(59’’)
Material Core Diameter	76mm(2.99’’)	76mm(2.99’’)
Max. Production Speed	220pcs/min	180pcs/min
Total Power	15kw	15kw
Machine Weight	8500 kg	10000kg
Machine Size (LxWxH)	8600mm×2500mm×1800mm	8600mm×3000mm×1800mm
