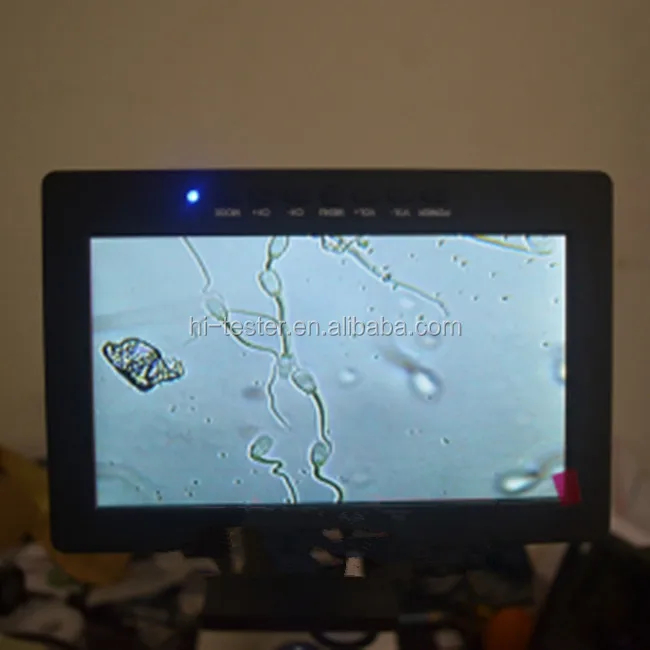

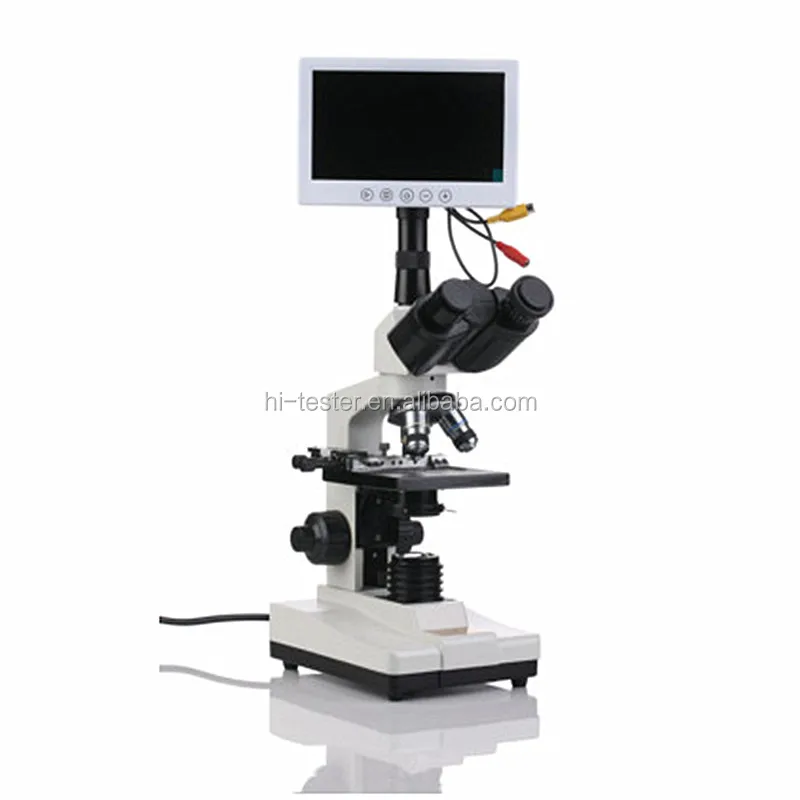

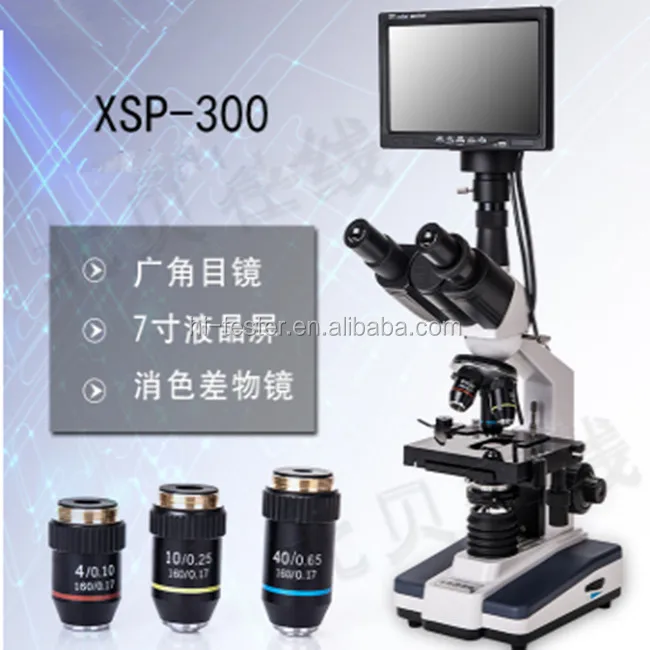

XSP 300 7inch TV Microscope, Binocular microscope with 7 inch LED screen
- Category: >>>
- Supplier: Shenzhen Pantai Precision Instruments Co. Ltd.
Share on (898706107):
Product Overview
Description
7" Smart Digital Microscope Pad Camera (Model:ScopePad-350)
Features
1.5 Megapixels High-definition Professional Digital Microscopic Imaging
2. Exclusive Core Image Processing Technology, High-fidelity Color Restoration
3. Industrial Embedded Digital Processing Platform, Stable and Reliable
4. Complete Application Functions, Not Only Camera, Also Tablet PC!
5. HD Screen Display, Smooth Interchanging Operation
6. Android 2.3 Operating System
7. Standard C-mount Interface, Compatible with the Monocular, Binocular, Trinocular and any
kind of Microscope such as Stereo, Video, Dissecting Microscope or Telescopes.
8. Optional Accessory Include: 0.5x Nose Piece with Φ23mm,Φ30mm and Φ30.5mm
Adapter Rings for Different Diameter Eyepiece Holders.
9. High Performance and Highly Cost-effective
Applications
1. Biological Teaching Digital Imaging
2. Medical Digital Imaging Microscopy
3. Field Operation Digital Microscopic Imaging
4 .Family Natural Science Education
5 .Remote Monitoring(For Telescope)
Specifications
Digital Parts | 1/2.5 " CMOS Sensor, 5megapixels (2592*1936), Selectable Resolutions for Capturing Images | |
Image-previewing Rate:30fps at Full Resolution | ||
Video Format:480P/15FPS | ||
White Balance Setting:Manual / Automatic / Preset | ||
Programmable Controls:Gain, Frame Rate, Frame Size, Exposure | ||
Pixel Size:2.2μm x 2.2μm | ||
ADC:12bit | ||
Dynamic Range:71dB | ||
SNRMAX:38.1dB | ||
Shutter Type:Global Reset Release (GRR) | ||
Color Filter Array:RGB Bayer Pattern | ||
Connection:International Standard C-type Interface Work with Both C-mount and Eyepiece Adapters | ||
Display | 7" TFTLCD HD Screen(1024*600), Maximum Brightness: 350 lumen | |
G-sensor, 5points Capacitance Touch Screen | ||
Operating System | Android 2.3 | |
CPU | 1GHz | |
RAM | 512MB DRAM | |
Storage Device | Onboard Flash 4GB, Support External TF Card, Maximum Capacity of 32GB | |
Application Software | Browser, Calculator, Calendar, Camera, Clock, Email, ES File Explorer, Gallery, Google Search, Music, Setting, Sound Recorder, E-book, MSN/Skype Chatting, Game Playing, etc. | |
Google Android Market Support Thousands of Applications Download | ||
Battery | Rechargeable Li-Polymer Battery, Capacity: 4500mAh | |
WIFI | 802.11(b/g/n) | |
Bluetooth | V2.1 + EDR | |
Sensor Function | G-Sensor | Onboard G-sensor, Support X/Y/Z 3axis Gravity Sensor |
Interface | 1* Mini USB Interface | |
1* Micro-SD Card Slot (Up to 32GB) | ||
1* 3.5mm Standard Stereo Earphone Slot | ||
Audio | 2* Built-in Class-D Digital Power Amplifier Loudspeaker, Built-in Microphone | |
Media File Formats | Video Supported | Video Supported:MPEG-2 Main-High, H.264 BP/MP/HP, VC1 SP/MP/AP, RV10 8/9/10, MPEG-4/Xvid SP/ASP, DivX 3/4/5/6, H.263 P0/P3, MJPEG Encode:H.264 BP, H.263 P0/P3, MPEG-4 SP, MPEG-2 Main-Main, MJPEG, 3D Video Primary Formats |
Audio Support | MP3, ACC, ADTS, M4A, WMA | |
Photo Support | JPG, GIF, BMP, PNG | |
Language | Multi Languages:English, Czech, Dansk, German, Spanish, Russian, French, Italian, Dutch, Norwegian, Polski, Portugues, Greek, Portuguese, Svenska, Turkey, Korean, Japanese, Simplified Chinese, Traditional Chinese etc. | |
Power Switching Adaptor | DC5V 2000mA, Optional Plug Types:USA , EU, UK and Japan, etc. | |
Accessories | Power Adapter, USB Cable, USB Switch Wiring(Short) | |
Ambient Condition | 0°C — +40°C | |
