CDW 80 Low Temperature Impact Testing Meter/Low Temperature Meter
- Category: >>>
- Supplier: Jinan Liangong Testing Technology Co. Ltd.
Share on (898732394):
Product Overview
Description

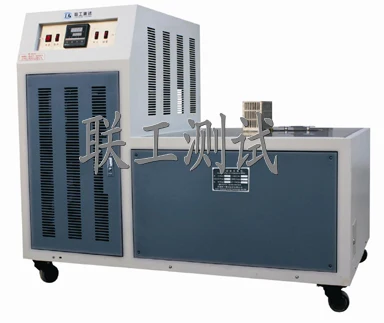

CDW-80 Low Temperature Impact Testing Meter/Low Temperature Meter
Product Description
CDW-80-type low-temperature impact testing meter is the compressor refrigeration of
the latest research and development in accordance with cooling requirement of GB229-2002" metal charpy notched impact test method". This equipment used imported Thailand Kang Shuang compression engine refrigeration technology of the USA,the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2002 EN10045-2,E23-02A of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing . At the same time, it can also be used for other low-temperature detection and testing.
Main technical parameters:
1,temperature range:+30~-80(room temperature:<=25)
2,temperature accuracy:<+/-0.5
3,cooling speed:+30~0 about 2.0/min
4,effective working spaces:150×150×240mm
5,the sample quantity can be loaded:>100 pcs
(the impact of sample size:10×10×55mm)
6,stirring motor:12w
7,the work of power supply:220v~240v,50HZ,7W
8,temperature control acuuracy:+/-0.5
9,a display timer:1min-100minutes, 1minute resolution
10,the accuracy of digital thermometer 0.01, resolution of 0.01cooling medium:Ice-free ethanol or other liquid
11,cooling medium: Ice-free ethanol or other liquid
12,double stirring motor: to be able to fuuly exercise cryogenic liqid so that the sample can even uniform cooling
13,to move the door ;movable type
14,the console is the stainless steel plate
15,French TaiKang compressor
16,pattern placed frame are stainless steel Nets
Our Services
Warranty:
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training:
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer's company when you need.
Maintenance services:
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Our main Products
Our main products are materials testing machine, inclduing broaching machine, temperature champer, impact tester, bending testing machine, compression testing machine, universal testing machine, hardness tester, cupping testing machine, metallographic machines. and other OEM customized testing machine etc.
1, Comupter Control Electro-hydraulic Servo Universal Testing Machine
2, GW-40B/50B Steel Bar Bending and Recerse Bending Testing Machine
3, High Strength Bolts Tensile and Torsion Testing machine
4. low temperature cooling chamber/freezing chamber for charpy impact test
5. laboratory equipment hydraulic 100ton steel bar tensile testing machine
6.concrete compression testing machine price
7. computer control cement compression testing machine
8. JB-300B Impact Testing Machine/izod impact testing machine/Charpy Pendulum Impact Tester
9. 50J plastic chapry and Izod impact tester
10. CSL-Y-type Impact Specimen Gap Hydraulic Broaching Machine
Company Information
Liangong Group, a well-known enterprise in testing machines industry as well as a state-level high-tech enterprise which specialized in R & D production and sales fo testing equipment for metal and nonmetal materials. Liangong Group include Jinan Liangong Testing Technology Co., Ltd, Shandong Liangong Testing Machine Co., Ltd, ASTM Testing Equipment Co.,Ltd. Our company covers an area of 30,000 square meters, construction area of 10,000 square meter, with a total investment of 80 million yuan. Our company has a well experienced, strong and large-scale R & D team and is based on high-quality technical personnel. By means of advanced science and technology, strong production capacity and financial support, we cooperate with many domestic and foreign well-known educational institutions and research institutions closely to make our company be in domestic leading position in research and development of new products.
Our service objective: reliable quality, Credit and Reputation First, and service in time!
We promise to provide each customer with timely, efficient and high-quality service!
www.lgtester.com www.jnliangong.com www.testermachine.com
https://youtu.be/eV36YIy20fY
LIANGONG GROUP:
CUSTOMER VISITS AND INSTALLATION & TRAINING AT SITE
