STA CE Quality Silicon Carbide Sic Burner Nozzle for Furnace

Product Overview

Description

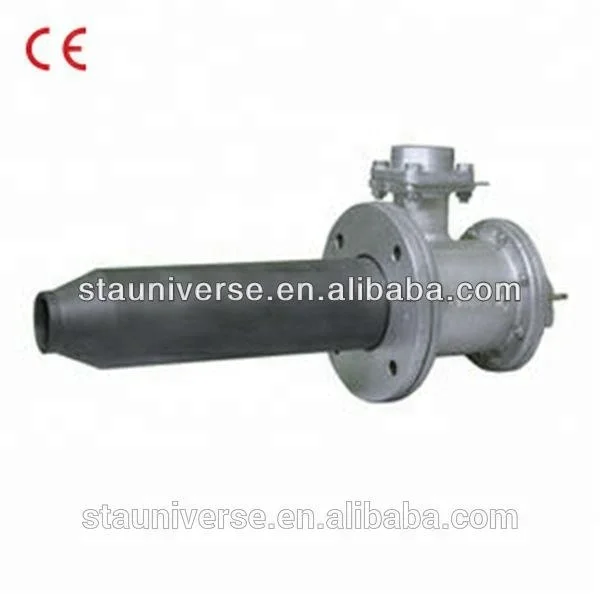

   STA- CE-Quality Silicon Carbide Sic Burner Nozzle for Furnace

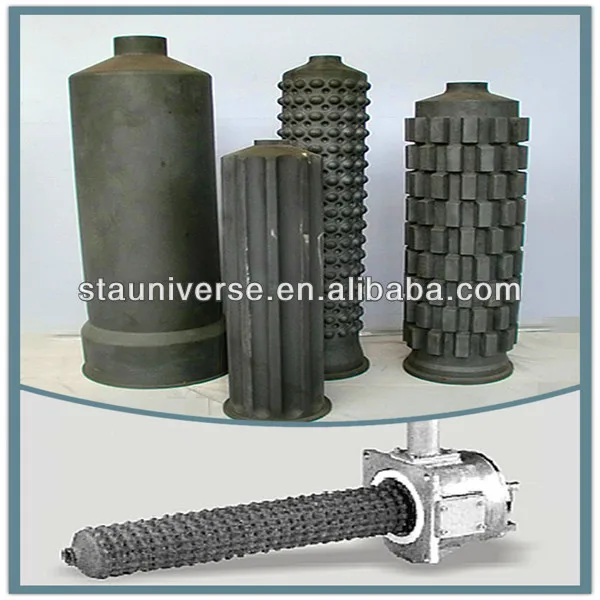

RBSiC (SiSiC) Burner Tubes have superior rapid cooling and rapid heating resistance, wear resistance,

oxidation resistance, high bending strength, no falling slag, no crazing, have a long time service life,

easy to change, effective to control the uniform temperature inside the kilns.



RBSiC (SiSiC) Burner Tubes are widely used in shuttle kilns, tunnel kilns, roller kilns and other fuel

industry kilns.



Technical Parameter of Reaction Bonded Silicon Carbide

item	unit	data
temperature of application	C	1380
density	g/cm3	>=3.02
open porosity	%	<0.1
bending strength	Mpa	250(20C)
	Mpa	280(1200C)
modulus of elasticity	Gpa	330(20C)
	Gpa	300(1200C)
thermal conductivity	W/m.k	45(1200C)
coefficient of thermal expansion	K-1*10-6	4.5
rigidity		13
acid-proof alkaline		Excellent
