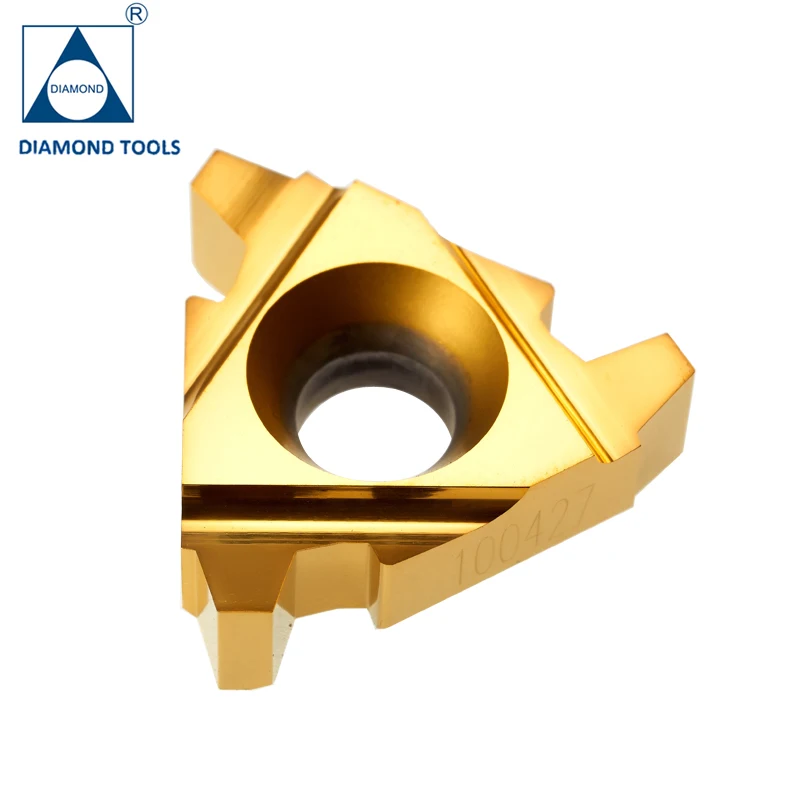

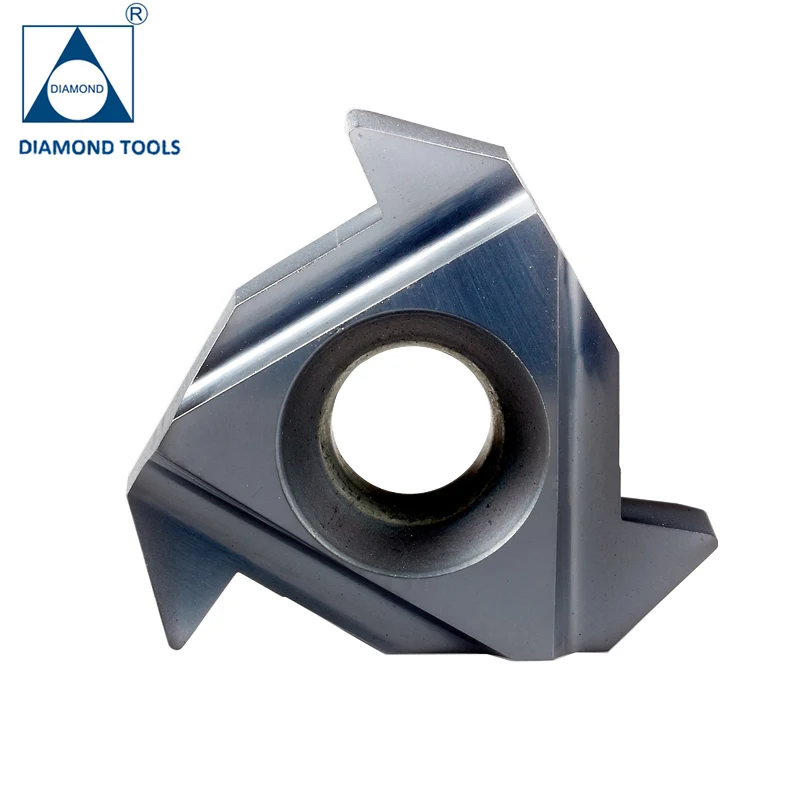

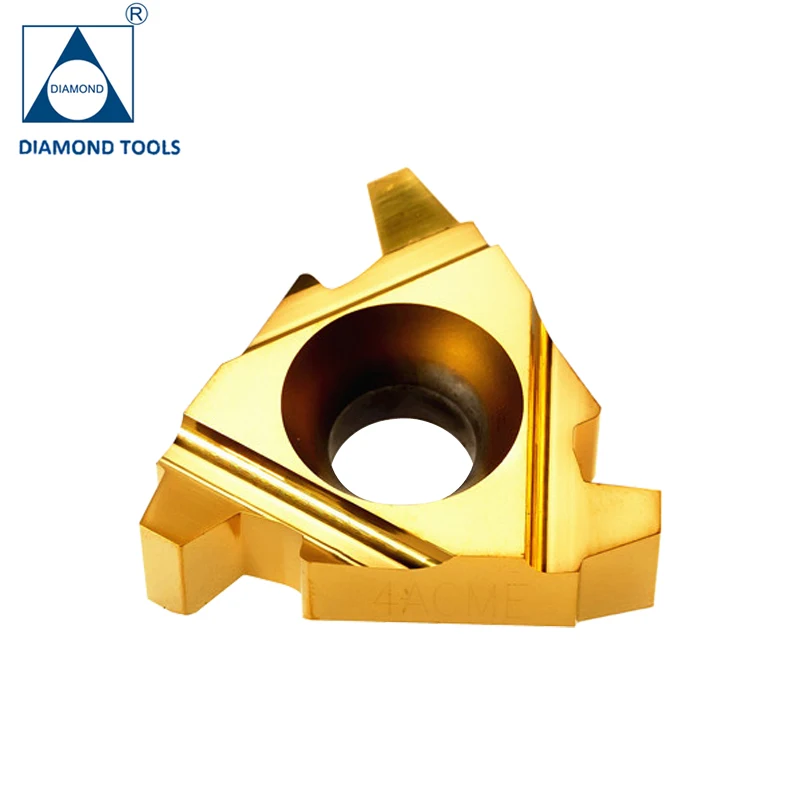

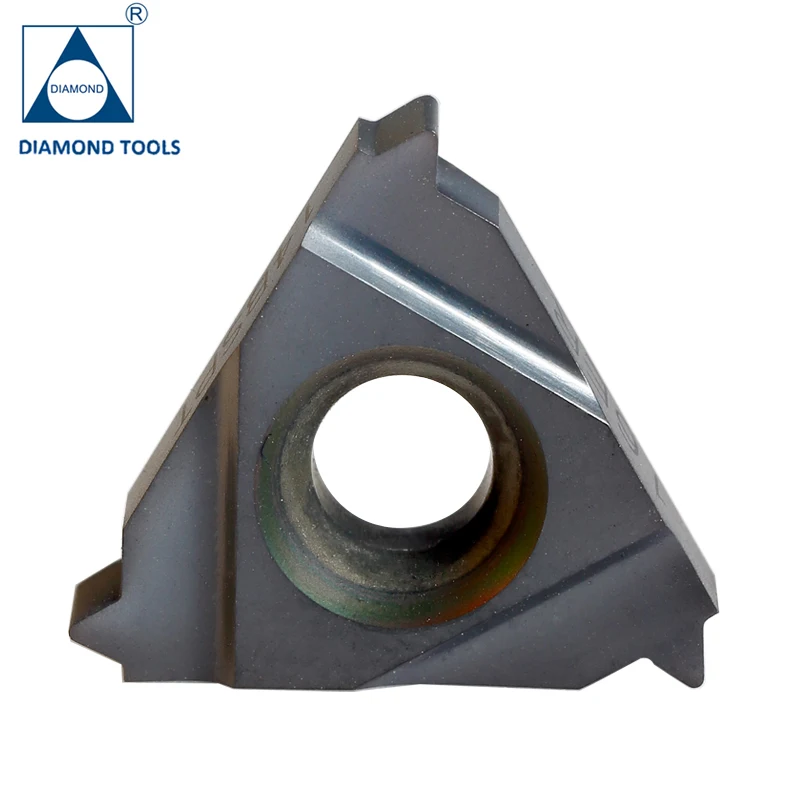

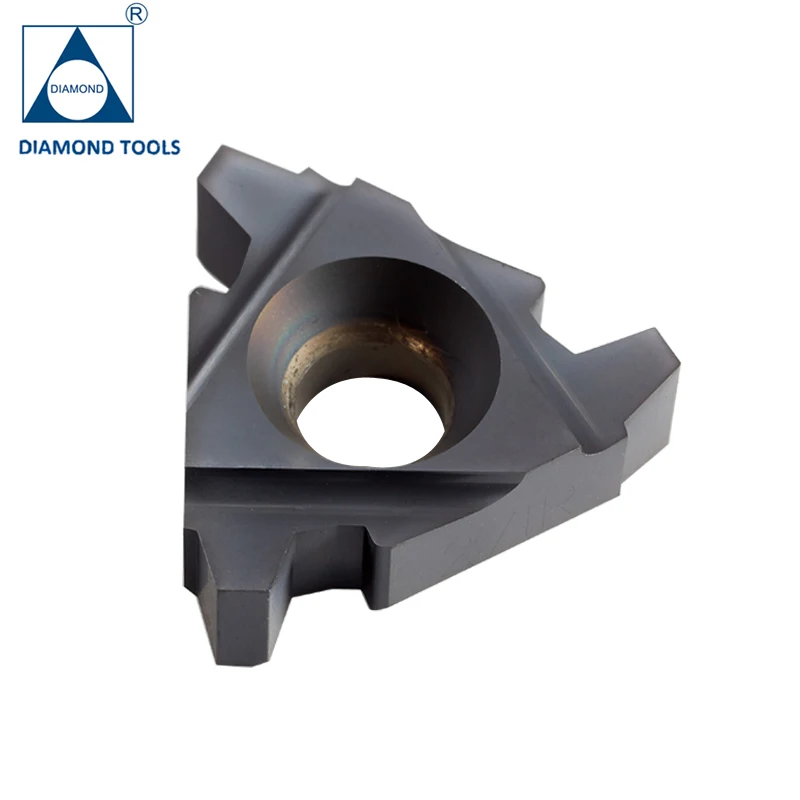

Round DIN 405 carbide threading inserts 16ER10 RD

Product Overview

Description

Round DIN 405 carbide threading inserts 16ER10 RD:



1.Application: Our carbide threading inserts good for Low carbon steel, medium-carbon steel, High carbon steel, Alloy steel , Adjusting quality steel, Stainless steel, Cast steel, Cast iron,Aluminium alloy and copper alloy machining

 2.Advantage Features:

   A. Full profile design ensures the precision of threads.

   B. Rake face feature: Smooth rake face design makes the chip removal more fluency.

   C. Cutting edge process feature: . Uniform horning cutting edge design ensures inserts with small cutting force .

3. Performance: Just use it and you will say yes.

4. Stock: There are always more than 50,000pcs standard inserts in stock for urgent shipment.

5. Test samples: A few pcs free samples for your test.

6. Delivery: Within 5days shipment by international express DHL, UPS, FEDEX, TNT,DPEX and EMS.

 Specificatons:



	D	Pitch	Designation		Dimension
		TPI	Right hand	Left hand	L	X	Y
External	3/8"	10	16ER 10 RD	16EL 10 RD	16	1.1	1.2
		8	16ER 8 RD	16EL 8 RD		1.3	1.4
		6	16ER 6 RD	16EL 6RD		1.5	1.7
	1/2"	6	22ER 6 RD	22EL 6 RD	22	1.5	1.7
		4	22ER 4 RD	22EL 4 RD		1.7	2.3
	5/8"	4	27ER 4 RD	27EL 4 RD	27	1.7	2.3
Internal	3/8"	10	16IR 10 RD	16IL 10 RD	16	1.1	2.2
		8	16IR 8 RD	16IL 8 RD		1.3	1.4
		6	16IR 6 RD	16IL 6 RD		1.5	1.7
	1/2"	6	22IR 6 RD	22IL 6 RD	22	1.5	1.7
		4	22IR 4 RD	22IL 4 RD		1.7	2.3
	5/8"	4	27IR 4 RD	27IL 4 RD	27	1.7	2.3

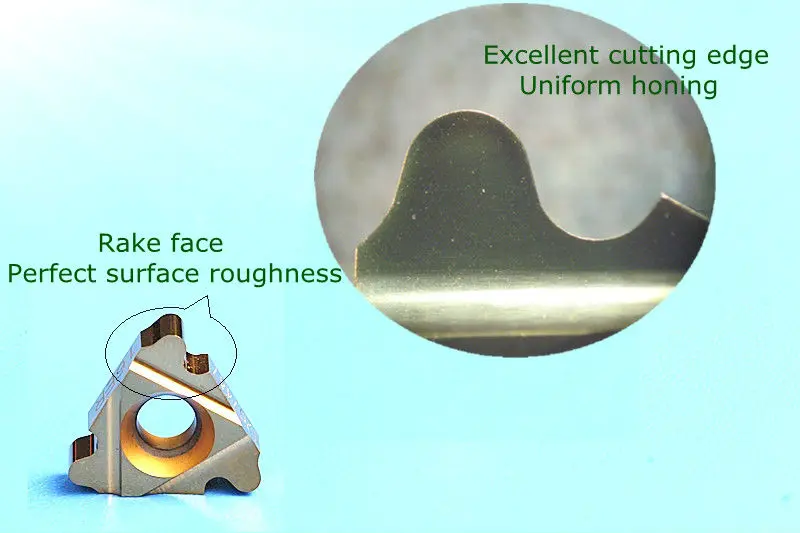

Enlarged view of Cutting Edge:



Flow chart:



Matched Tool Holder of Inserts:

  Machining Parameters:

Be processed material	M30(m/min)	P30(m/min)
Low carbon steel or medium-carbon steel	80-130	80-140
High carbon steel	60-110	60-120
Alloy steel or Adjusting quality steel	60-110	60-120
Stainless steel	60-100
Cast steel	60-110	60-120
Cast iron	60-200
Aluminium alloy or copper alloy	90-280

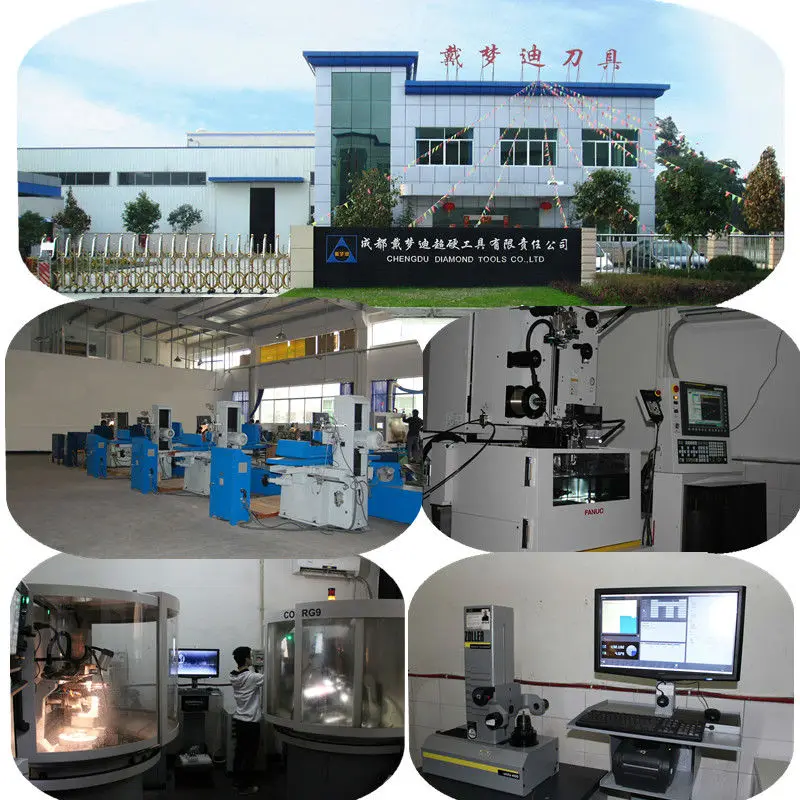

 Factory & Imported Equipments:

 Customers Visiting:



Certificates:



 Why us Diamond?

•   26 years experience in the cutting tool industry
•   Grinding and inspection equipments imported from UK, Germany and Japan
•   Full stock available for urgent demands
•   ISO, TUV and SGS certificates
•   Response within 12 hours in 365 days
•   Sample for testing before ordering
•   FREE after-sale service
•
