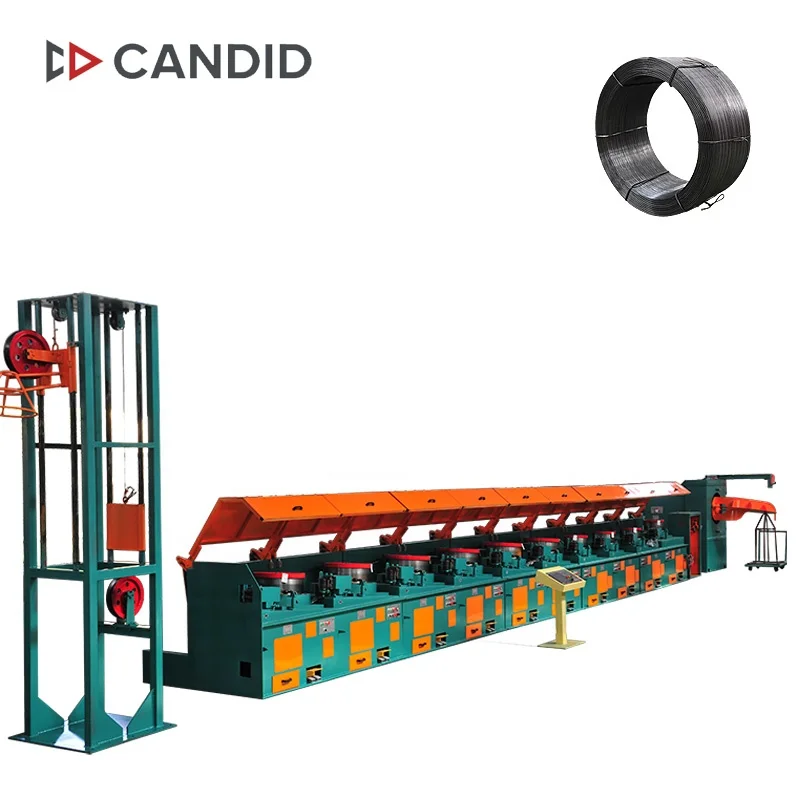

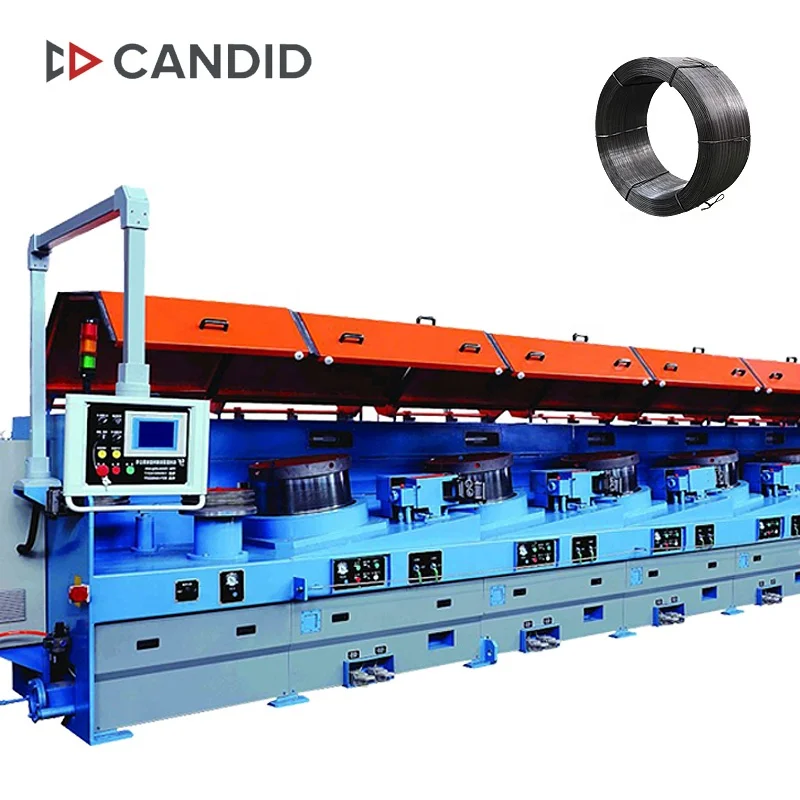

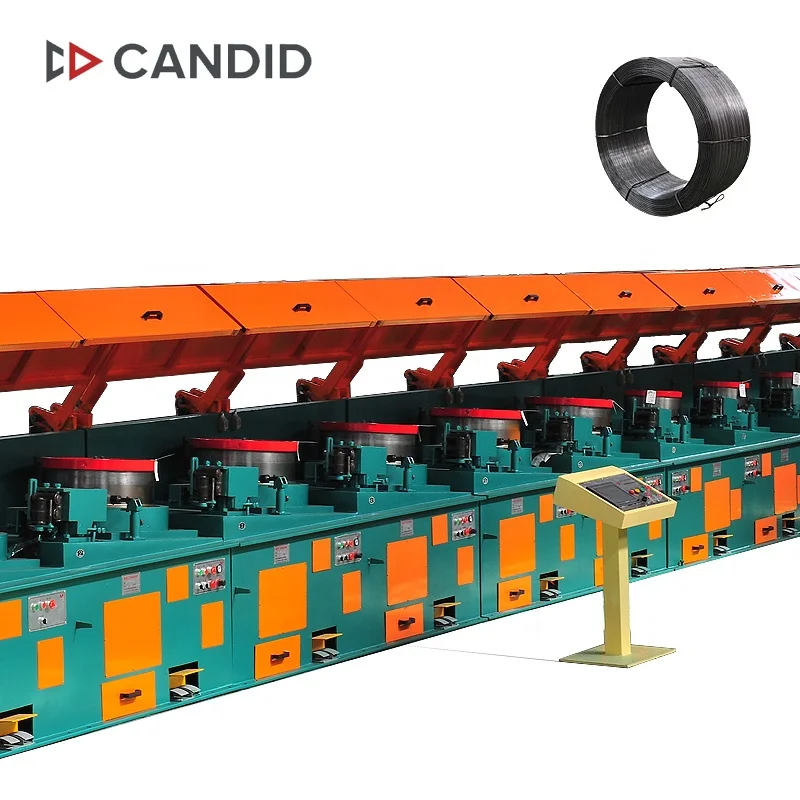

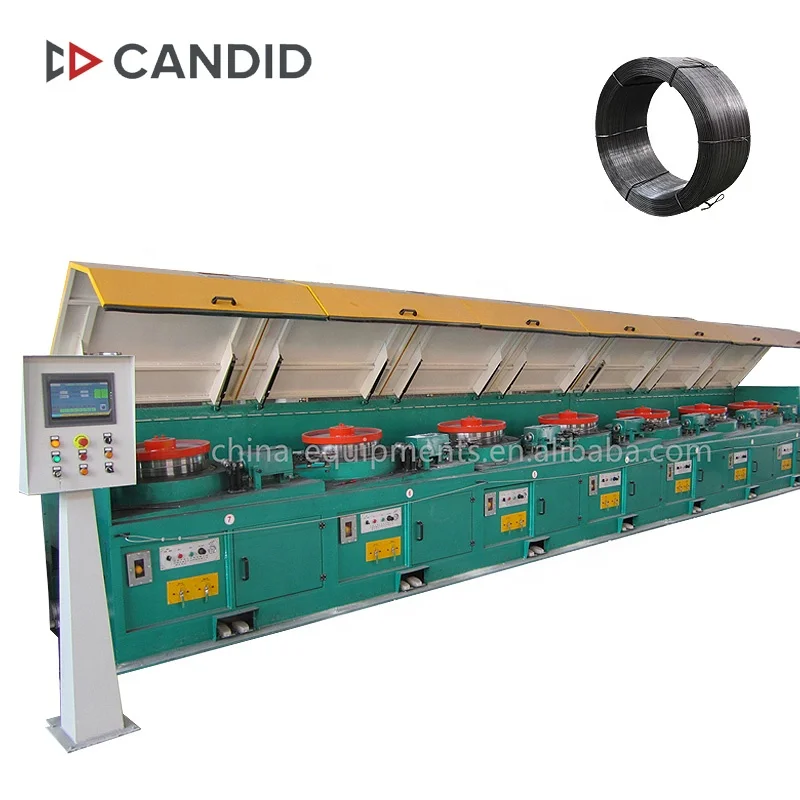

LT 17/280 Wire Drawing Machine
- Category: Metal Moulding Machinery >>>
- Supplier: Hangzhou Candid I/E Co. Ltd.
Share on (900503452):
Product Overview
Description
Product Description
LZ Series Wire Drawing Machine
Main Technical Parameter
Type | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
Material Intensity | ≤1250Mpa | ||||||||
Drawing Passes | 2 ~ 11 | 2 ~ 11 | 2 ~ 11 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 9 | 2 ~ 9 |
Max. Dia. Of Inlet Wire | 2.8mm | 3.5mm | 4.2mm | 50mm | 5.5mm | 6.5mm | 8mm | 10mm | 12.7mm |
Min. Dia. Of Outlet Wire | 0.5mm | 0.6mm | 0.75mm | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 2.2mm | 2.6mm |
Max. Speed Of Drawing | ~ 25m/s | ~ 20m/s | ~ 20m/s | ~ 16m/s | ~ 15m/s | ~ 15m/s | ~ 12m/s | ~ 12m/s | ~ 8m/s |
Drawing Power | 7.5~18.5kw | 11~22kw | 11~30kw | 15~37kw | 22~45kw | 22~55kw | 30~75kw | 45~90kw | 55~110kw |
Accessory Equipment
| Name | Model | Range of Dia. |
| Discharging Machine | ||
| Pointing Machine | F-96 | 6.5-1.5mm |
| Pointing Machine | F-80 | 3.5-1.0mm |
| Butt-Welding Machine | UN-10 | 8--2mm |
| Butt-Welding Machine | UN-3 | 6.5-1.5mm |
| Butt-Welding Machine | UN-1 | 3.5-1.0mm |
| Automatic Discharging Machine | XB-600 | capacity 800kg |
| Automatic Discharging Machine | XB-360 | capacity 400kg |
| I Type Spool Reeling Machine | SG-800 | capacity 800kg |
| I Type Spool Reeling Machine | SG-630 | capacity 500kg |
| Descaling Machine | SW650 | |
| Motorless Descaling Machine | with steel brush | |
| Well Type Furnace | RJ-90-9 |
