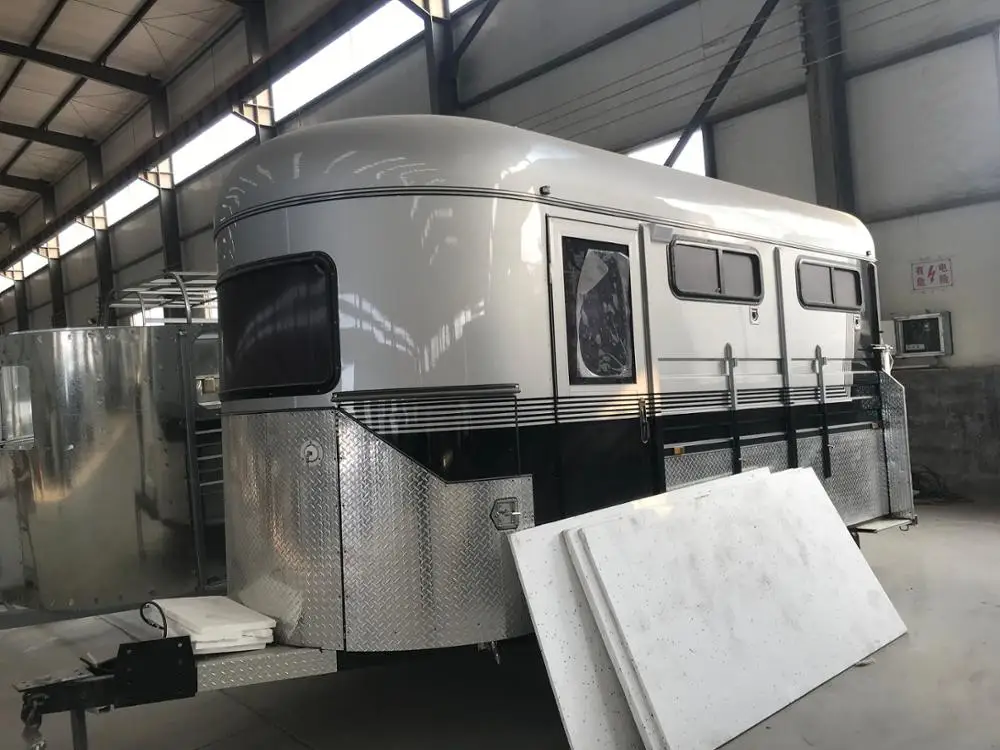

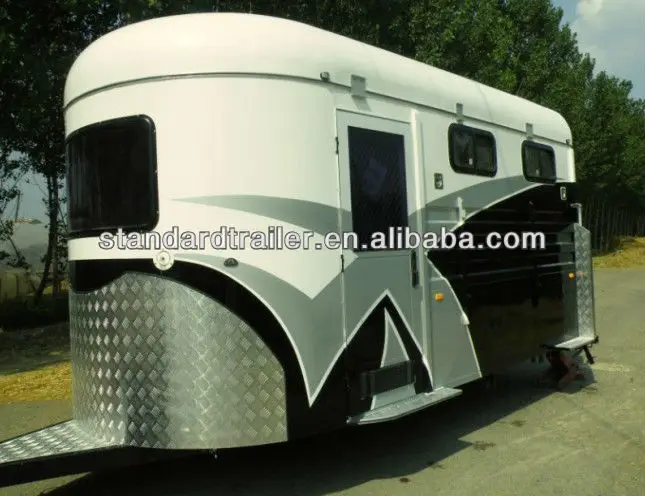

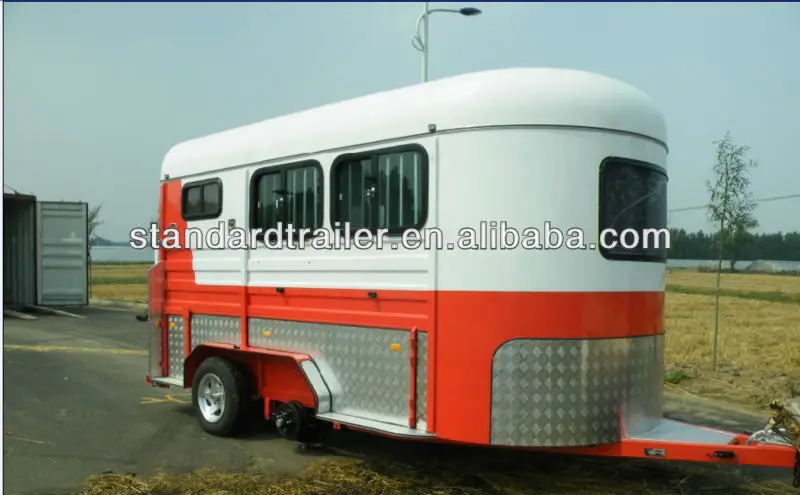

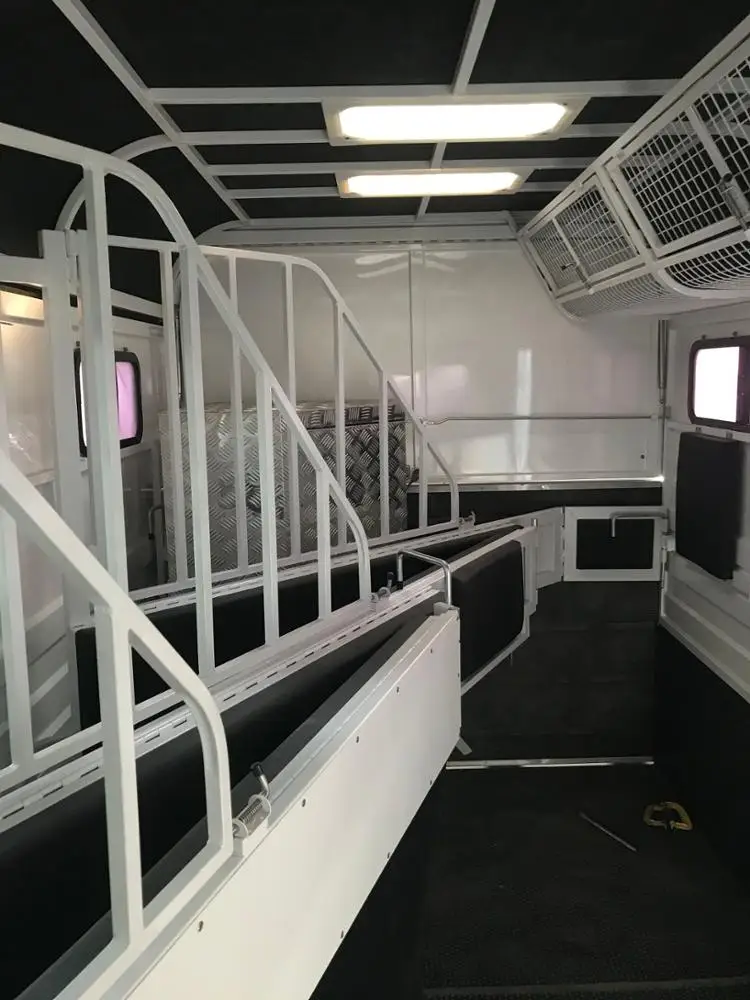

2 horse angle load deluxe float camper tent trailer

Product Overview

Description

Specifications:



Model	STD-2HAL-L860
Materials	Chassis Material: hot dip galvanized RHS (3.5mm-4.0mm)
	Frame Material:  hot dip galvanized RHS (2.5mm)
	Body Panel: galvanized sheet (1-1.5mm)
	Roof: Special molded FRP
Brake	Perfect security structure design, double axle electric brakes
Drawbar	Drawbar Checker Plate 1.2mm aluminium
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	Roll rocker tandem spring 7 plate
Axles	Two special trailer axles 50*50
Wheels & Tyre Rubber Matting	Five 185R14 tyres and 14' aluminum alloy rims including a spare wheel
Rubber Matting	18mm special plywood for floor& ramp door
	Rubber Matting For Inner Side Panel           6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door   17.5 mm anti-slip rubber sheet
Windows& Doors	Front Window (mm) 1220*610
	Side Sash Windows   600mm*400mm*4
	Skylight   two large size upturning ventilation windows

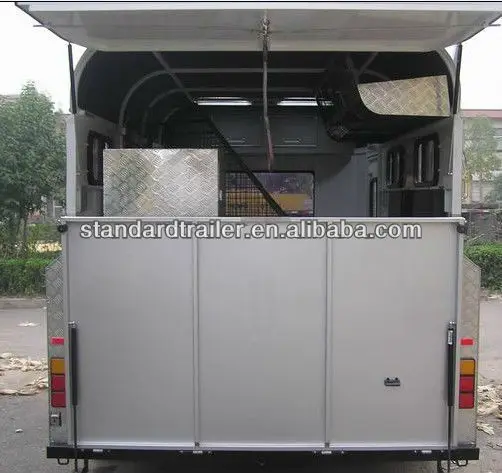

	Rear Upper Door (mm)1980*1065 Strut & High-intensity anti-rust strut
	Ramp Door (mm) 2030*1210
	Side Door (mm)   1730*615
	Hinges for Rear Upper Door   special 6mm diameter copper hinges
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights& Petro Reflectors	Trailer Plug       Seven-prongs Plug
	Rear Lights brackets aluminium
	LED interior lights, two small LED sidelights, two LED combination taillights
	Retro Reflectors   8

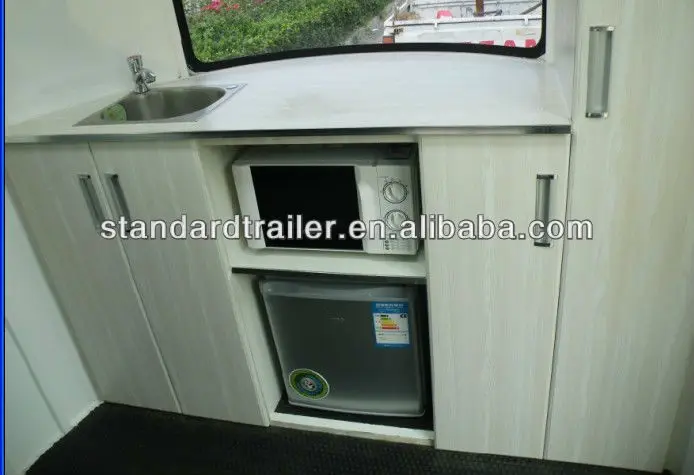

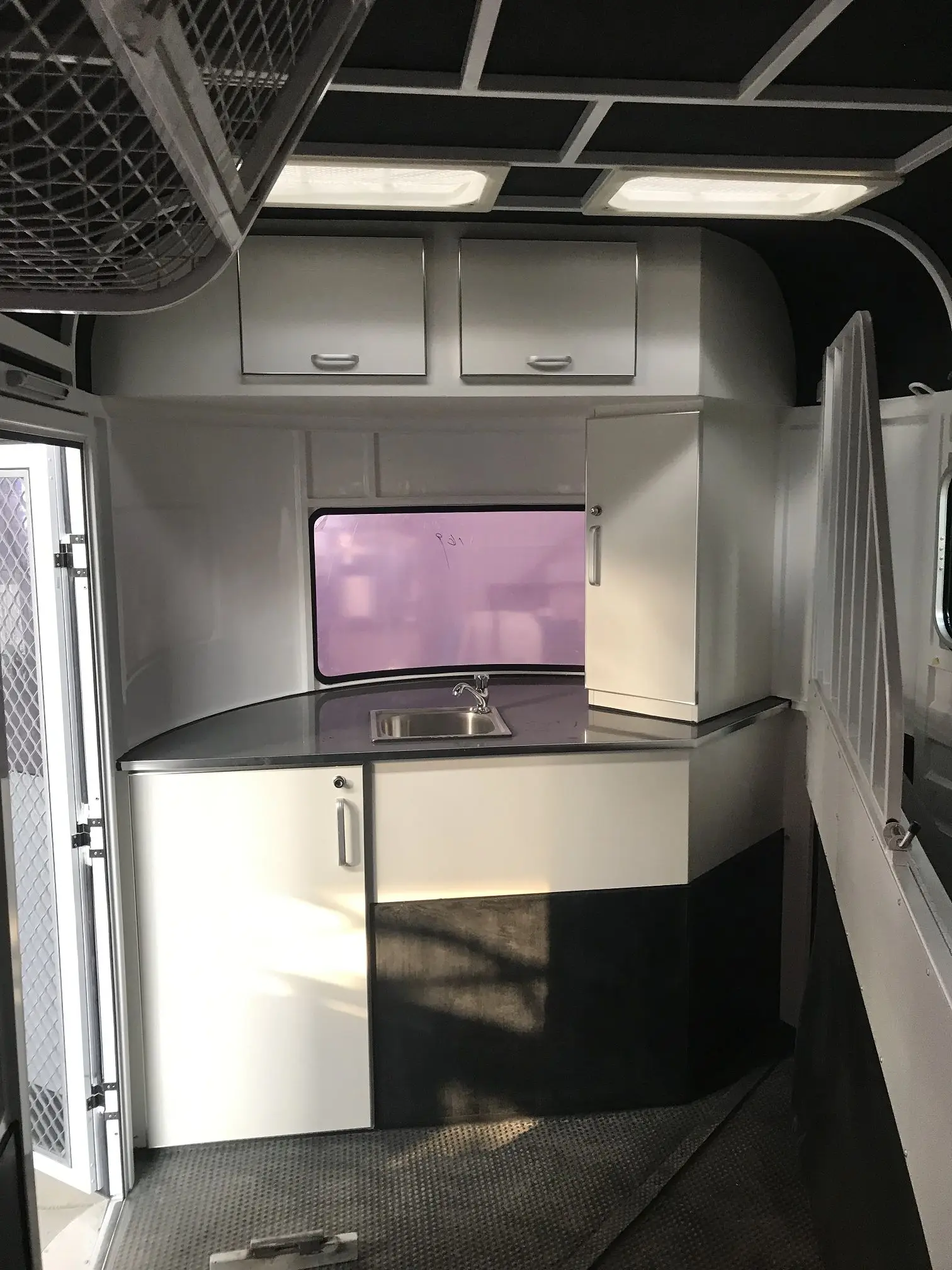

Auxiliary Fittings	Cupboard         Front

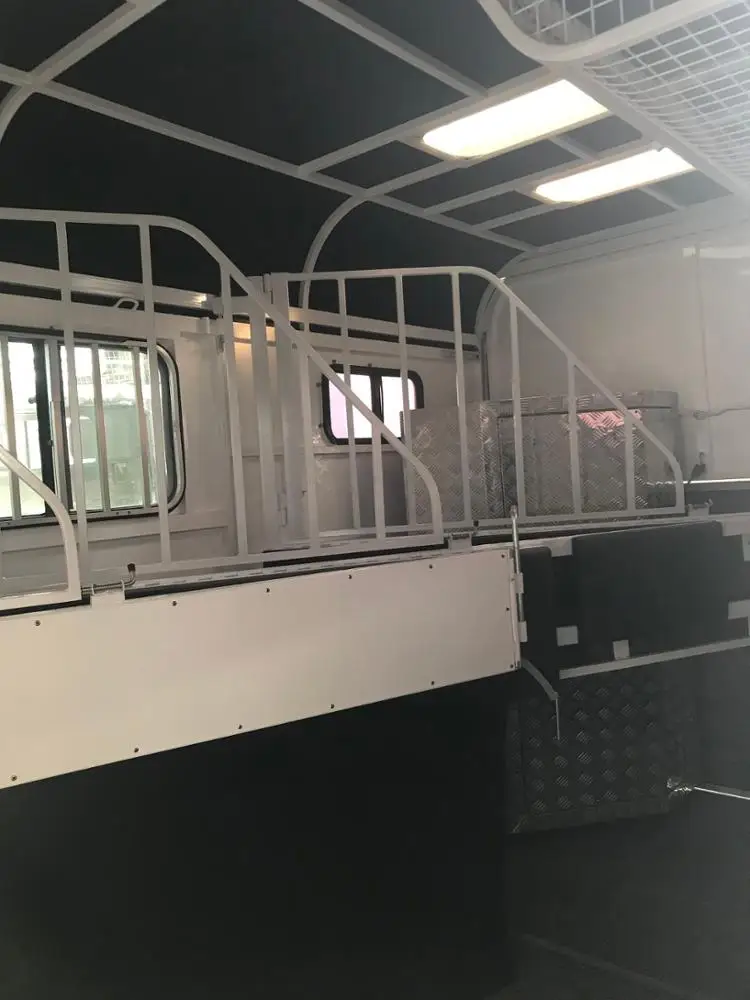

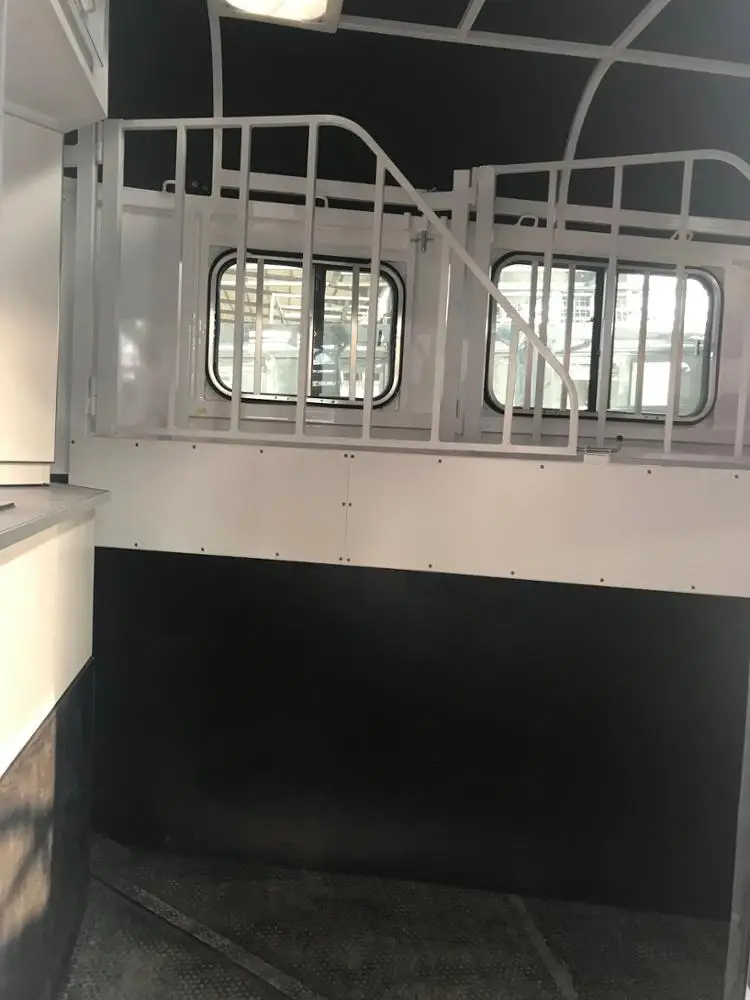

	Horse Protection Frame fully padded
	Horse Ring       Four
	Saddle Rack   in saddle box(1200mm height for 2 saddles)
	Rug Rack         Side
	Saddle Box       One
Dimensions	Body Dimension (L x W x H: mm) : 4120 x 1980 x 2230
	Inner Dimension (L x W x H: mm) : 4070 x 1930 x 2155
	Overall Dimension(L x W x H: mm): 4970 x 2290 x 2600
	Length of Tone (mm):     850
Empty Weight	1500 KGs
Carrying capacity	1800 KGs
