Card Dispenser IC/RFID/card reader&writer CRT 591 M
- Category: Access Control Card Readers >>>
- Supplier: Shenzhen Prova Tech Co. Ltd.
Share on (900818362):
Product Overview
Description
Product Description
OVERVIEW:
CRT-591-M is a card issuing machine with IC/RF card reader，has the following features：
1) With the functions of card dispense, retract, accept from front, prohibit from front.
2) Card-Empty, Pre-card empty detection with audible alarm.
3) Two method of retract card: Error card bin and path (By removing the bars on the bottom)
4) RS-232C communication method，support multi-communication.
5) With RF/IC card read & write，one SIM socket，support SIM card read & write；
6）One of the most compact card issuing machines with IC/RF card module.
1) With the functions of card dispense, retract, accept from front, prohibit from front.
2) Card-Empty, Pre-card empty detection with audible alarm.
3) Two method of retract card: Error card bin and path (By removing the bars on the bottom)
4) RS-232C communication method，support multi-communication.
5) With RF/IC card read & write，one SIM socket，support SIM card read & write；
6）One of the most compact card issuing machines with IC/RF card module.
Technical Specification:
Items | Specification |
Power Supply | DC 24V±5% |
Current Consumption | Static current: 40mA Normal work current: 600mA Peak current: 2.0A |
Communication Interface | RS-232C，support multi-communication |
Card read&write Type | Serial port support IC &RF card Read & Write |
Card Dimensions | Width:53.92～54.18 mm， Lenth:85.47～85.90 mm, Thickness:0.76±0.08mm（be available for Braille card） |
Weight | About 2.0 Kg（without accessories and package） |

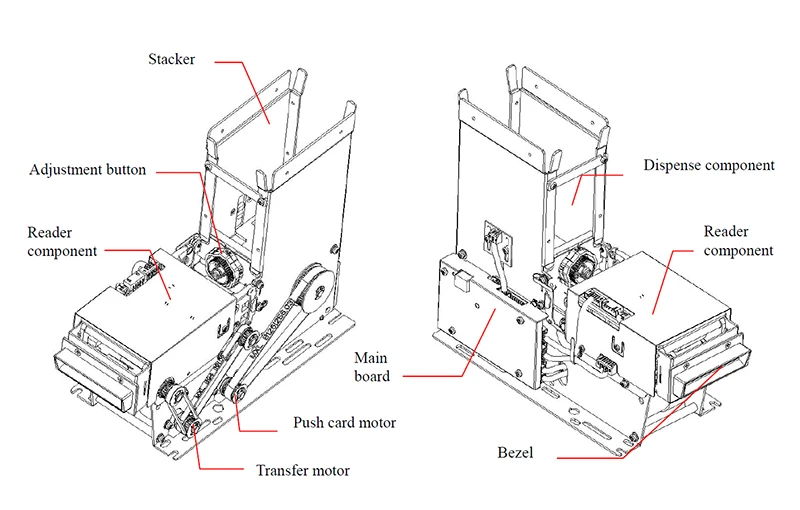

Set Dimension | Refer to structure and dimension drawings |
Card loading | Max Stacker capability 150 pcs（0.76mm card）(Extend is available) Error card bin: Max capability 25±4pcs（0.76mm card） |
Card pre-empty detect | 7-50±2pcs （Ex-work standard: 25±2pcs） |
Environment | Operation: -10℃～60℃, 0～90 % RH ( Without Condensing) Storage: -25℃～80℃, 0～95 % RH ( Without Condensing) |
MTBF | ≥100,000 hr（only electric parts）, note：250 times/day，25days/month，300hr/month |
IC Card standard | Compliant ISO7816 standard （AT24C01、24C02、……、24C256；SLE4442、SLE4428；CPU T=0/T=1） |
RF Card standars | Compliant ISO14443-3(Mifare one：S50、S70、UL etc) Compliant ISO14443-4（TYPE A CPU: Mifare plus，Mifare Desfire etc） Compliant ISO14443-3 TYPE B CPU |
SIM Card standard | Compliant ISO7816 standard CPU Card T=0/T=1 |
On-line download | Support On Line ISP Download |
RoHS standard | Compliant RoHS standard |
