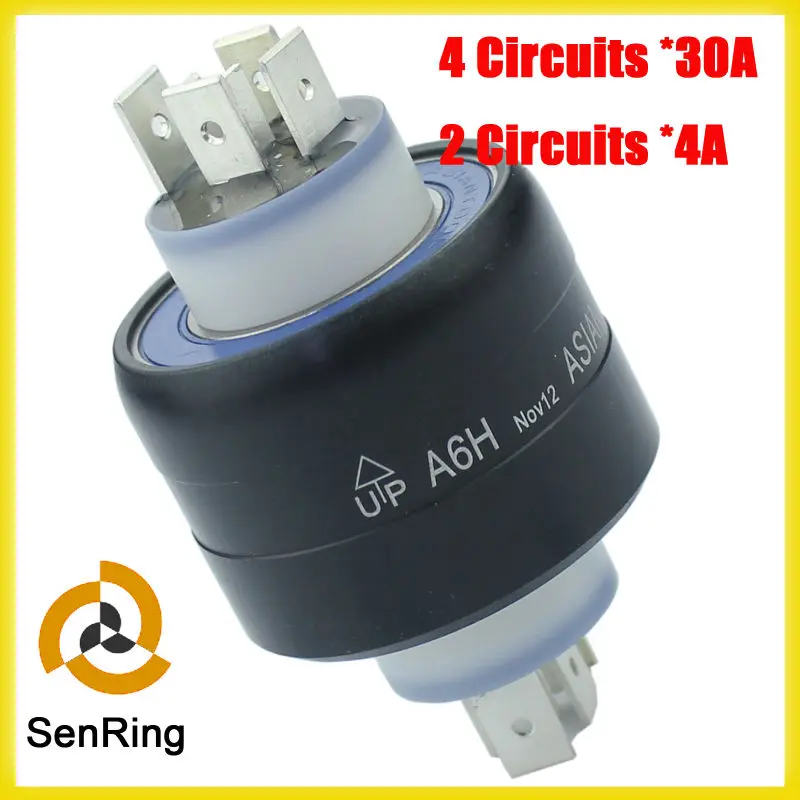

Mercury slip ring A6H(630) 4Circuit 30A.2Circuits 4A long life

Outline dimension:



Installation:





Function:

    A4H mercury sliprings shell material is oxidized aluminum alloy or stainless steel,A4H mercury sliprings use on any rotating object to transfer tiny voltage ,digital audio ,Gigabit Ethernet,HF signal, digital/analog video,sensor signal and so on.

Specifications:


Model	Poles	Current (A)	AC/DC (V)	MHZ	Contact Resistance	Max rpm	Max/Min	(x10-3Nm)	Insulation Resistance
A6H	6	30	500	200	<1m	300	60/-29	700	>25M



Notice:
1,Use no more than 60 temperature.
2,The vertical direction when installed, to keep U P upward, preservation needs to keep up also.
3,Not for rotating connector itself or copper terminal welding heat.
5,Dedicated terminals should not be reused many times.
6,Revolver such as vibrations will reduce service life.
7,This connector can in shell or plastic parts into axis, a floating pull in external fixation department, but never can withstand weight.
Above such matters for rotating connector don't comply with different degree of damage or produced reduce life cycle.

Features:

     1) Anti-jamming, low price.

    2) < 1m contact resistance.

    3) Free maintenance, more durable than traditional sliprings.

    4) Suitable for any of the signal and power revolver succeeded.
