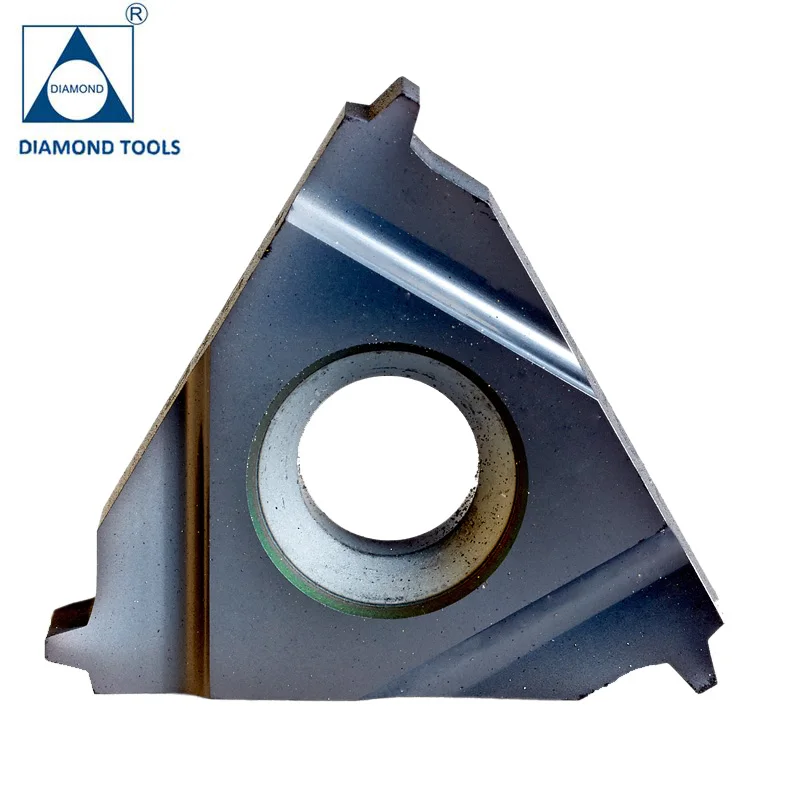

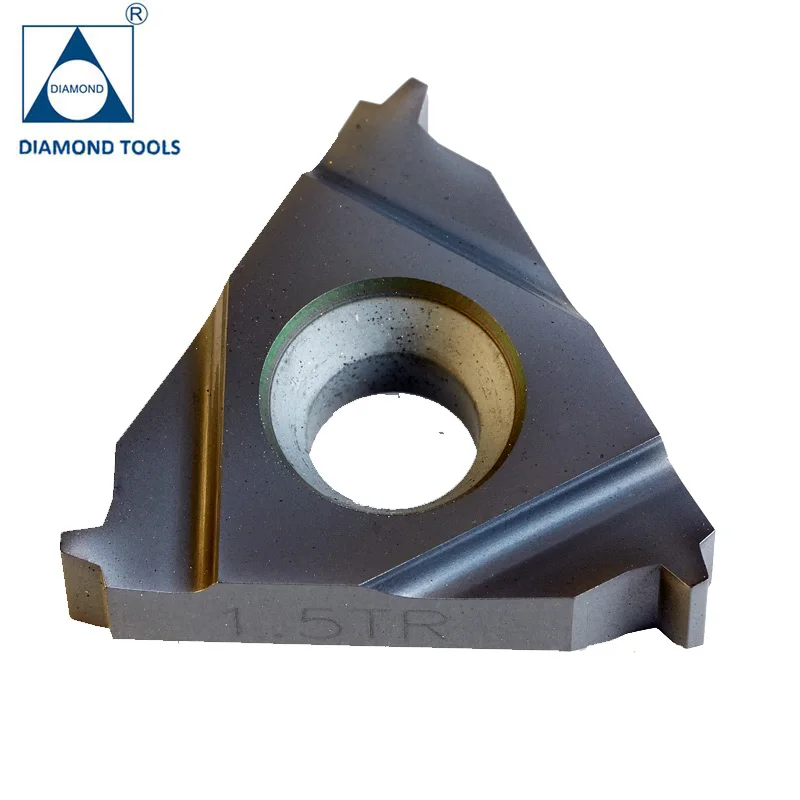

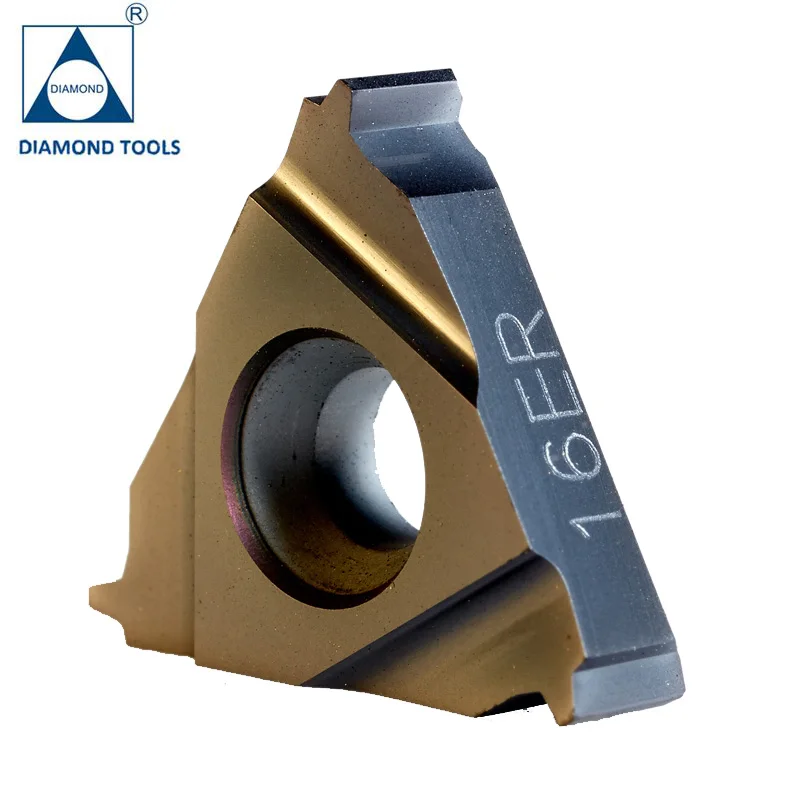

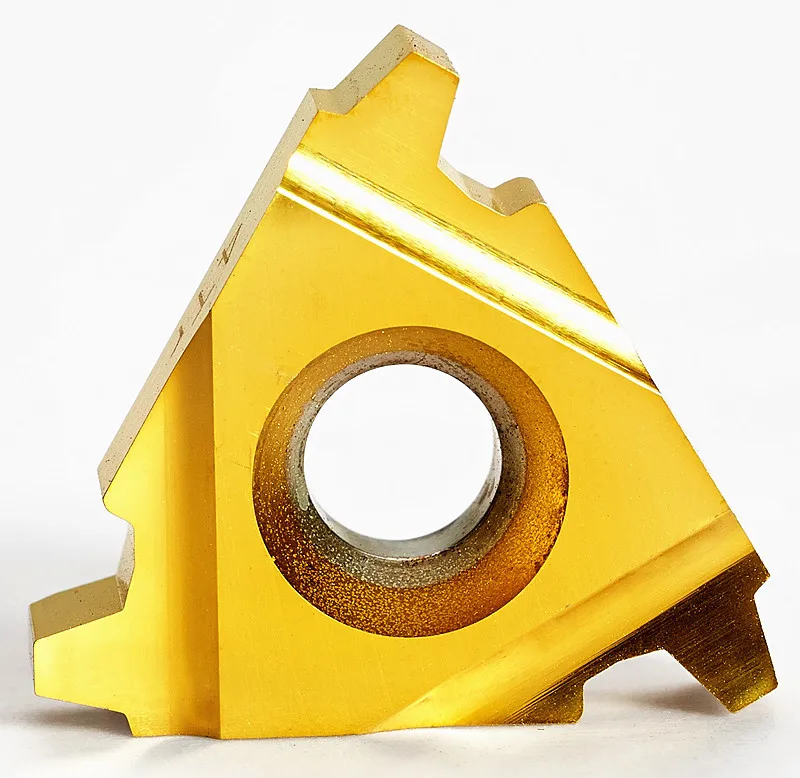

Screw Thread Cutting Tools 27IR 6.0TR

Product Overview

Description

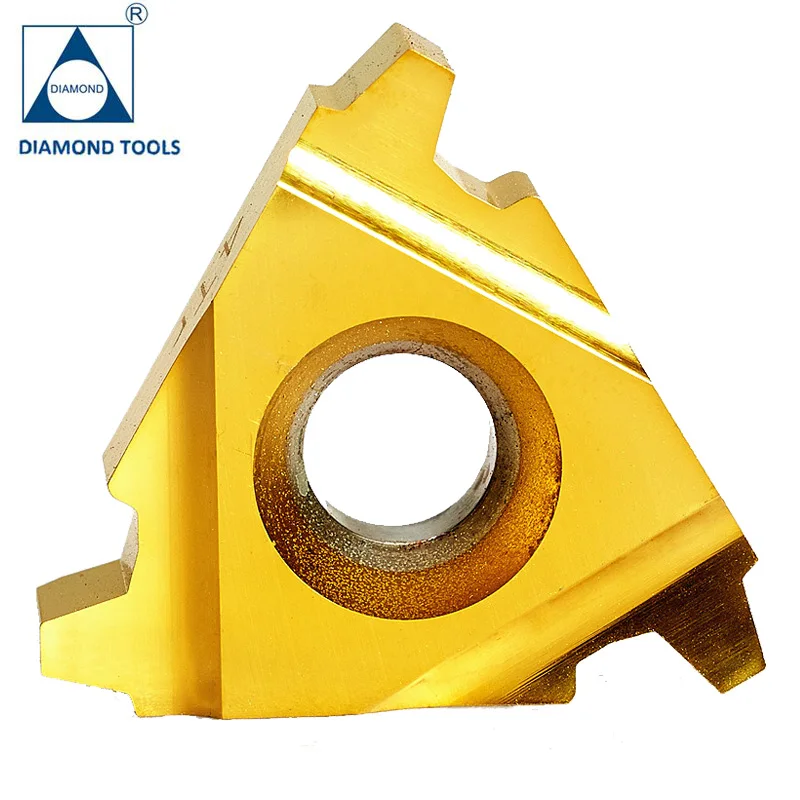

Screw Thread Cutting Tools 27IR 6.0TR



 Unique Advantages

1. Full profile design ensures the high precision of threads

2. Smooth rake face makes the chip removal easier

3. Uniform horning cutting edge ensures the insert small cutting force

4. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance

 Specification

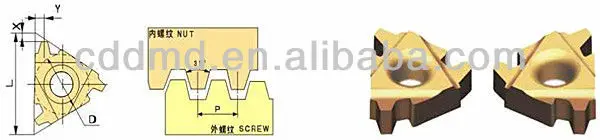

Internal Threading	D	Pitch	Designation		Dimension
		TPI	Right Hand	Left Hand	L	X	Y
TR 30°	3/8"	1.5	16IR 1.5TR	16IL 1.5TR	16	1.0	1.1
		2.0	16IR 2.0TR	16IL 2.0TR		1.1	1.3
		3.0	16IR 3.0TR	16IL 3.0TR		1.3	1.5
	1/2"	4.0	22IR 4.0TR	22IL 4.0TR	22	1.7	1.9
		5.0	22IR 5.0TR	22IL 5.0TR		2.1	2.5
	5/8"	6.0	27IR 6.0TR	27IL 6.0TR	27	2.2	2.6
		7.0	27IR 7.0TR	27IL 7.0TR		2.3	2.7

♥ Remark: If you can't search the types/models you are looking for, please contact us directly.

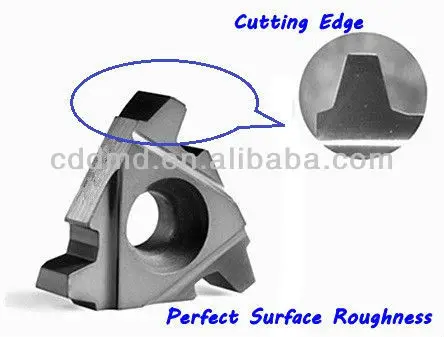

 Enlarged View

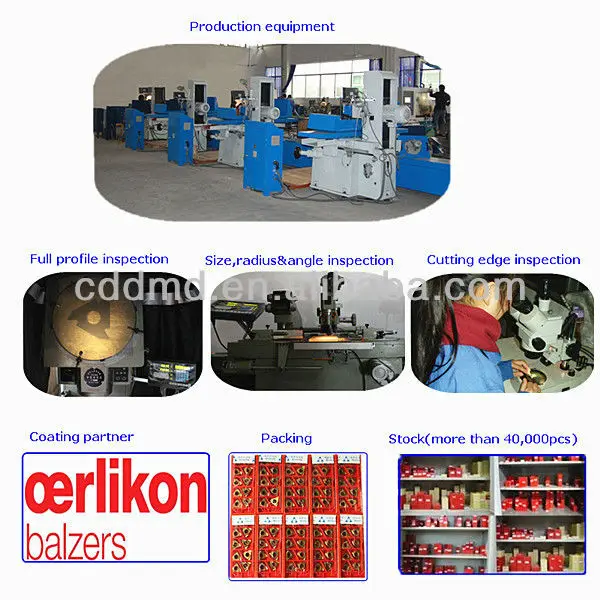

 Strict Production Flow

 Toolholder Recommended



 Application

Coating	TIALN	TIN
Material processed	M30 (m/min)	P30 (m/min)
Low carbon steel or medium-carbon steel	80-130	80-140
High carbon steel	60-110	60-120
Alloy steel or Adjusting quality steel	60-110	60-120
Stainless steel	60-100	/
Cast steel	60-110	60-120
Cast iron	60-200	/
Aluminum alloy or Copper alloy	90-280	/

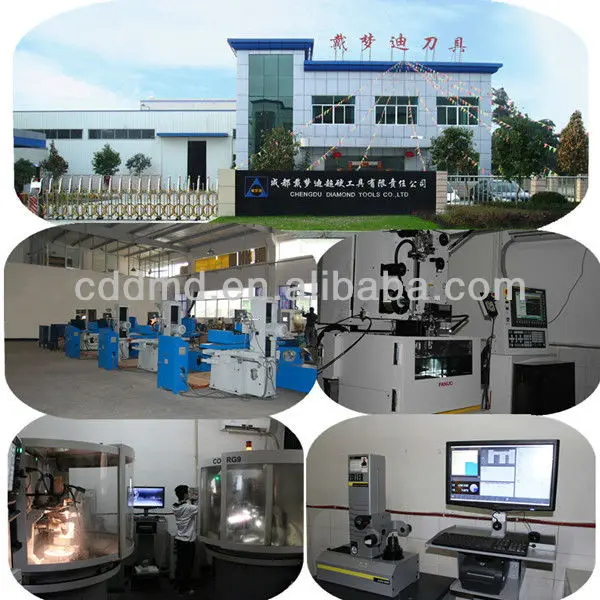

 Factory Overview & Imported Equipment



 Customer Visits & Exhibitions



 Certificates

♥ 26 years experience in the cutting tool industry, offering the best tooling soluton for

both external and internal thread

♥ Grinding and inspection equipments imported from UK, Germany and Japan

♥ Over 50,000pcs standard inserts in stock for urgent shipment

♥ ISO, Germany TUV and Swiss SGS certificates

♥ Samples for testing before ordering

♥ FREE technical support and after-sale service
