Diesel Engine Oil Pump with Flow Meter ACFD80

Share on (902029321):


Price:$60.00 - $80.00

Quantity:


Product Overview

Description


Diesel Engine Oil Pump with Flow Meter ACFD60









Product Description







  This AC big flow rate pump is fueling the diesel, kerosene, not for gasoline.


  And its pump head with iron material, and with 100% copper line.


  Its specification as follows:






  • For fueling diesel oil, kerosene, not for gasoline

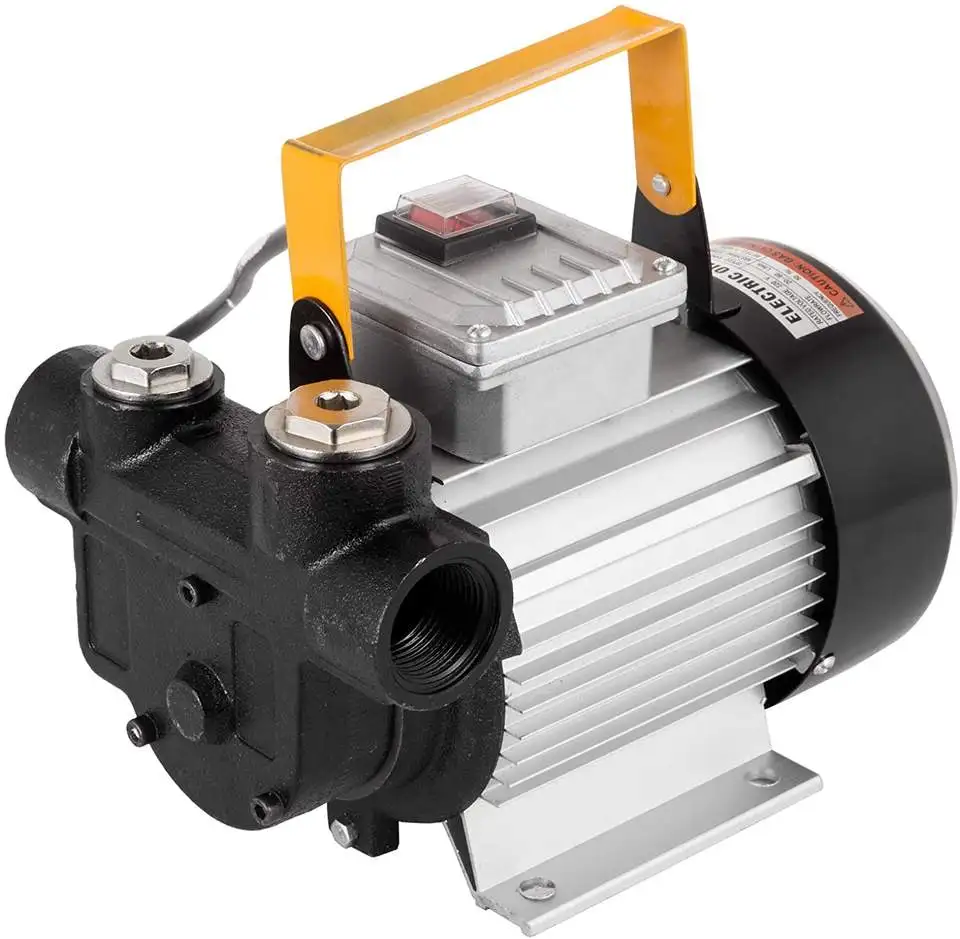

  • Self priming rotary vane pump, cast iron pump casing,

  • Small size, light weight, simple installation, easy to use

  • Bypass valve built in

  • Duty cycle: 30min

  • Applicable in transferring oil from barrels, fueling machines in construction sites, on boats and in agriculture etc.

























































Model



ACFD40



ACFD60



ACFD70



ACFD80



ACFD100



Flow rate



40L/min



60L/min



70L/min



80L/min



100L/min



Power



375w



550w



550w



550w



1kw



Deliver hose



4m



4m



4m



4m



4m



Manual nozzle



Yes



Yes



Yes



Yes



Yes



Filter



Yes



Yes



Yes



Yes



Yes
































































Item



Flow rate



Voltage



Power



Max pressure



Suction length



ACTP40



40L/min



230v



375



3bar



5m



ACTP60



60L/min



230v



550



3bar



5m



ACTP70



70L/min



230v



550



3bar



5m



ACTP80



80L/min



230v



550



3bar



5m



ACTP100



100L/min



230v



1000



3bar



5m

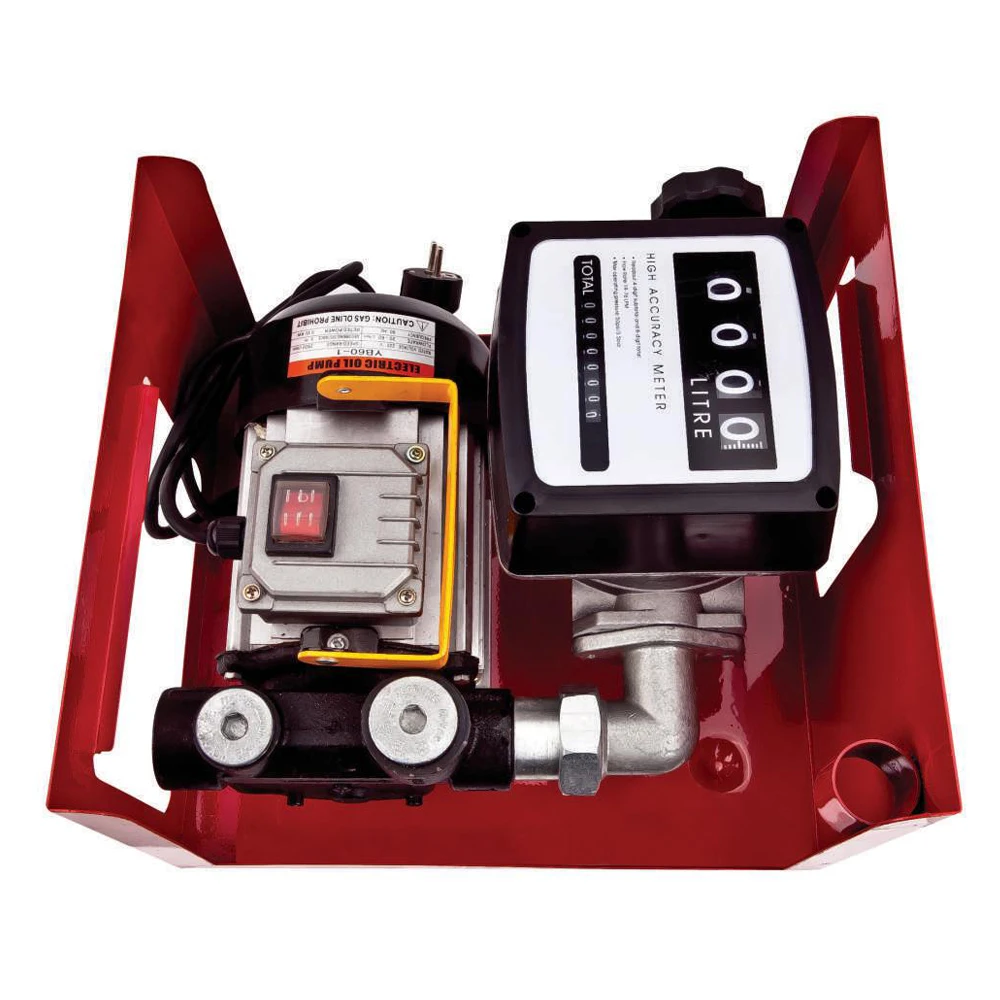

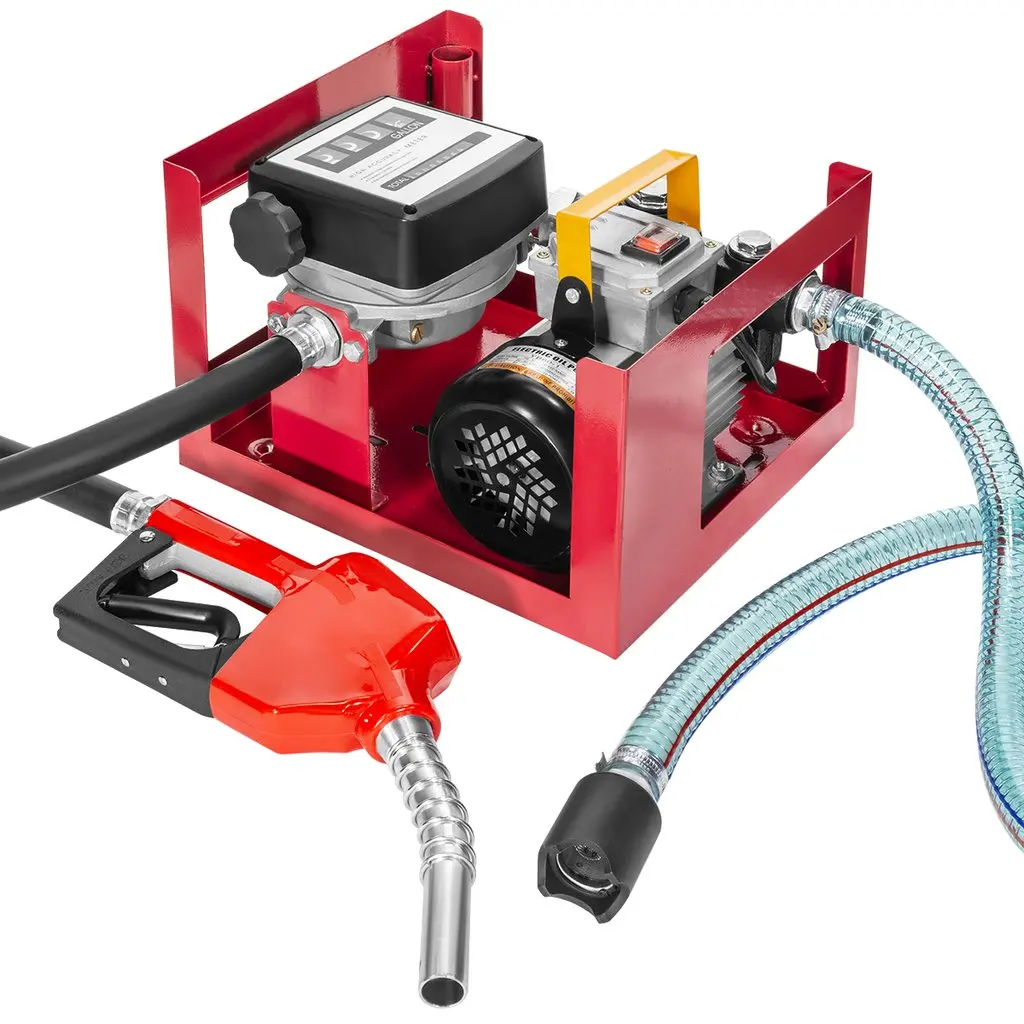

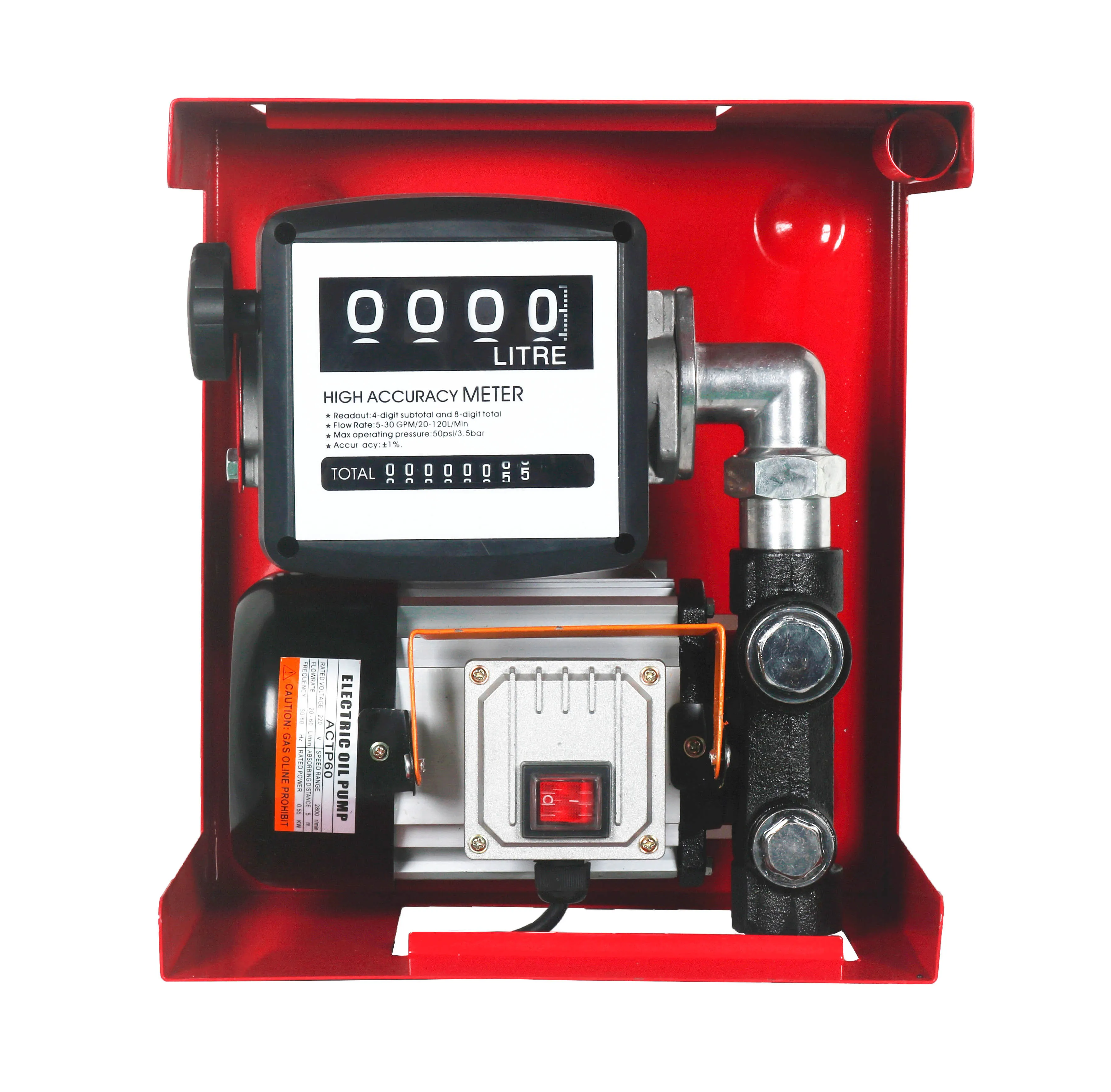

Product Pictures













Accesories

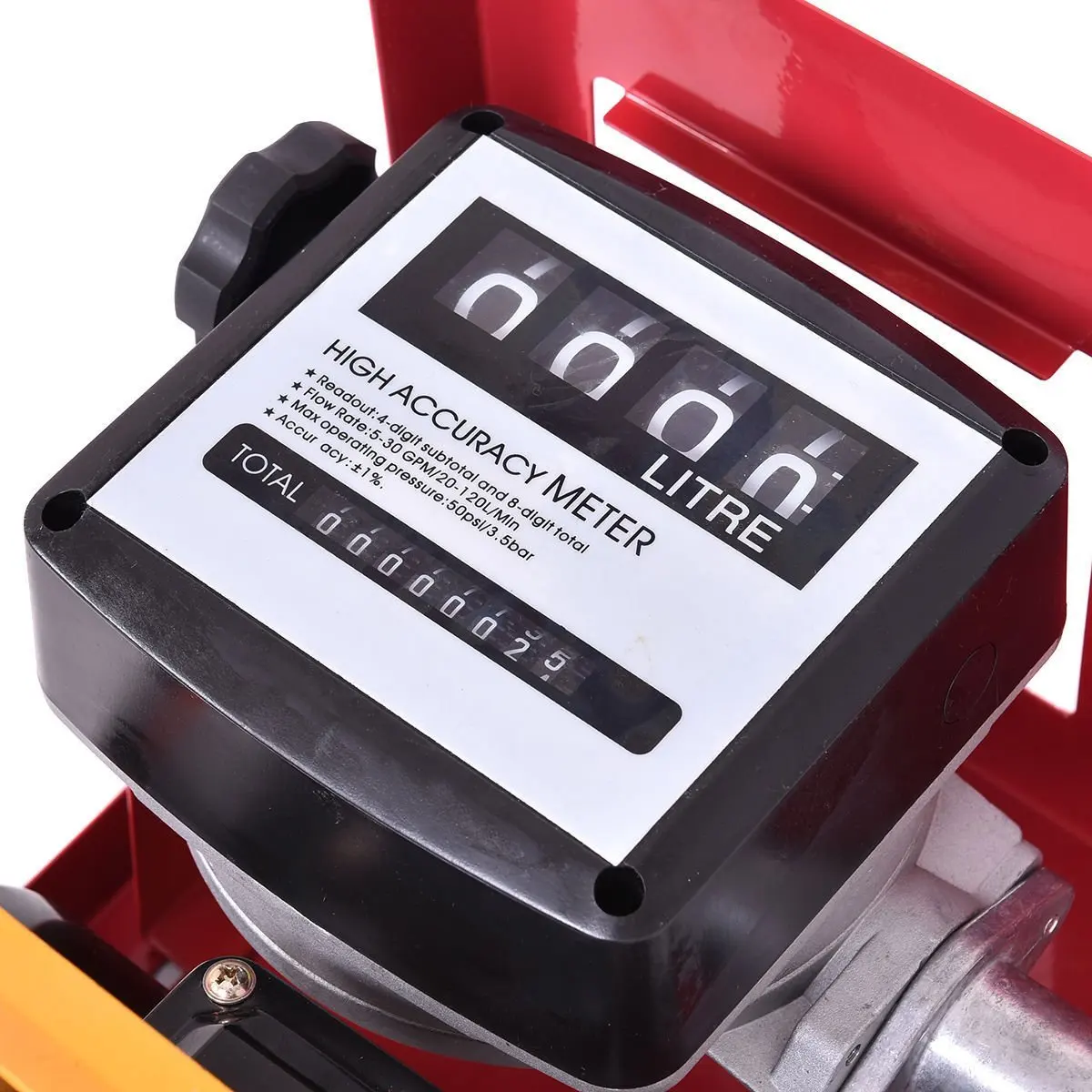

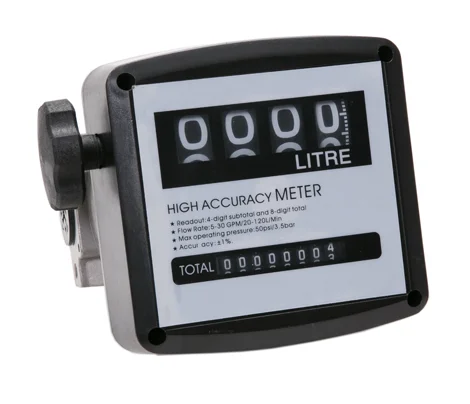

Mechanical Plastic Flow Meter


.png

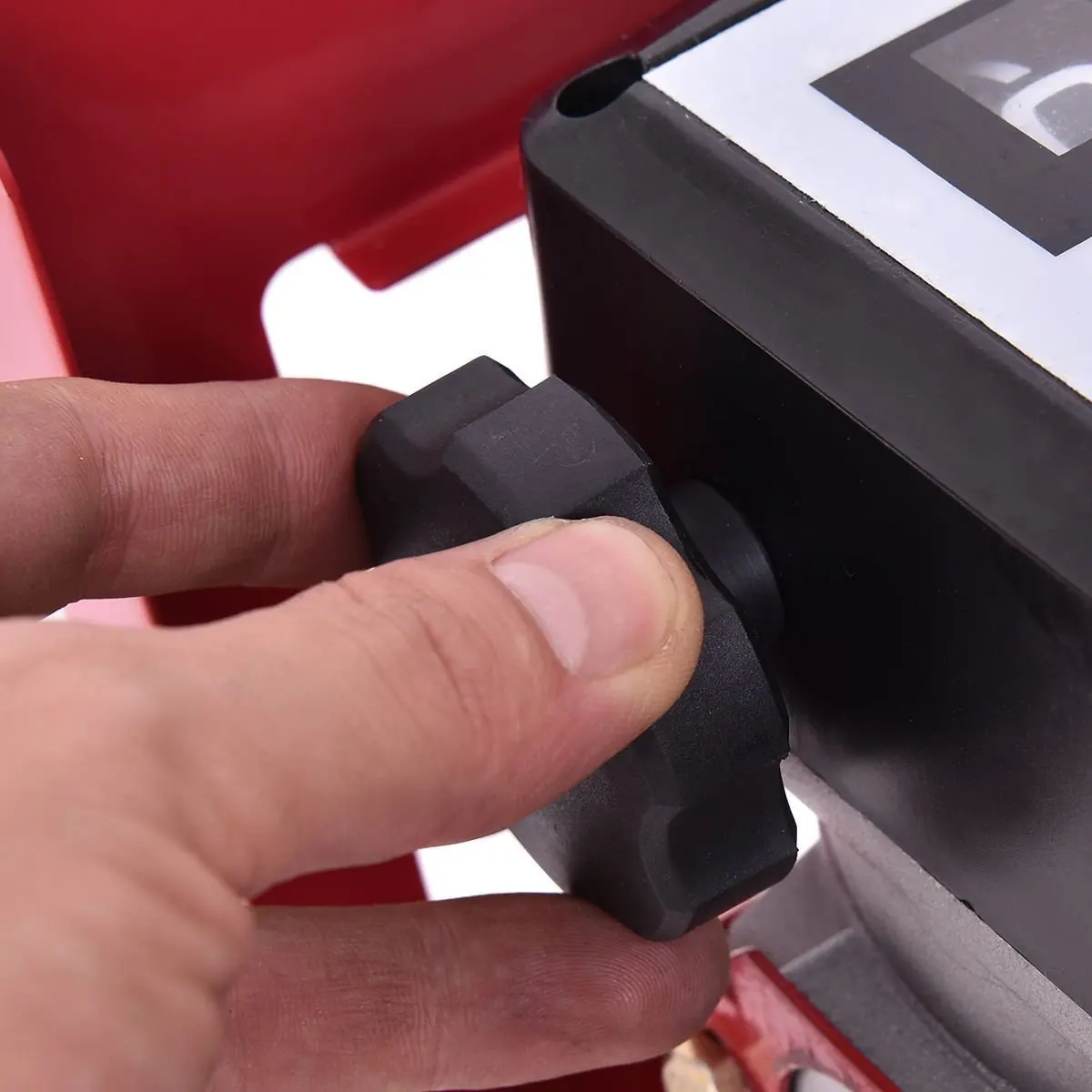

  • 4 digit flow meter 0-9999L (resettable).




  • Totaliser: 0-999999999L (non resettable cumulative in total).








  • Body material: Aluminum.

  • Size: 1"

  • Measurement: Litre

  • Flow Rate: 19-76L/min.

  • Max operating pressure: 50psi/3.5 Bar

  • Precision: +/- 1%

  • Digital subtotal: 4 digital

  • Digital Intotal: 8 digital
