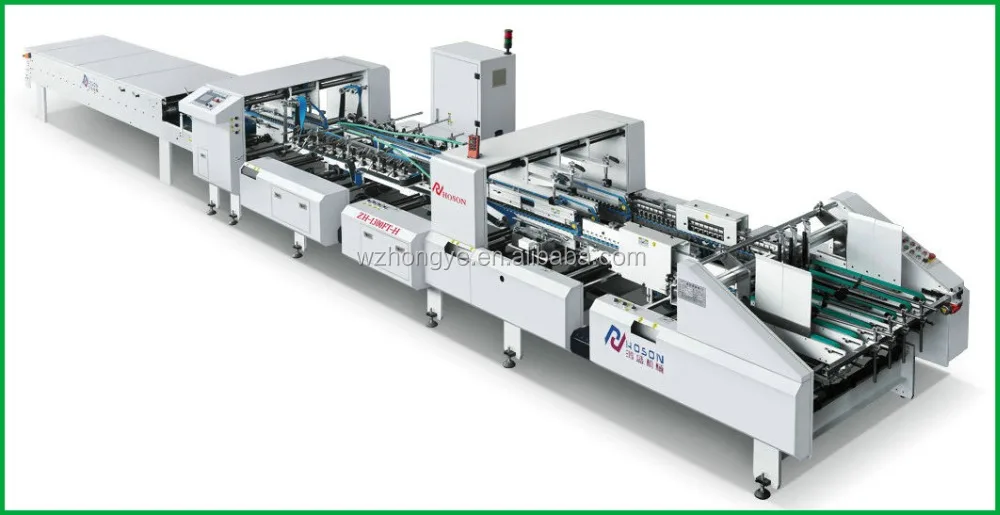

ZH 1300FT H Two Fold Type Carton Box Folder Gluer Machine

Product Overview

Description

 ZH-1300FT-H Upgrade Two-Fold Type Folder Gluer Machine





Features:

1. The machine is running steady with strengthened single-side driving system, and it is also easy for maintenance.


2. The motor is controlled by transducers (inverter) which are available for automatic timing. It is power saved and it helps to work stably.


3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.


4. Grinders are provided in both sides of machine, to make gluing more stable and firm.


5. There is a PLC system controlled by human through touch screen in this machine to make operation more convenient.


6. ZH-1300FT is in special design for the E/B flute. The spare parts are: Siemens Motor, Schneider Electric, Japanese Nitta Belts and Japanese Bearings. The pressing unit is in pneumatic design (air pressure system).


7. An option for paper feeding length of 1.2m is available after the special design.

Main Technical Parameters:

1	Line speed	0-180m/min , Continuous adjustment
2	Usage paper	280-800 g/ms, paperboard, E/B Flute
3	Box forming	Straight line box
4	Fold method	2nd & 4th folds 180°
5	Paper feeding	Automatic feeding, grinding unit
6	Electric Power	9.0KW
7	Dimension	11.8*1.6*1.6m
8	Weight	2800kg
9	Condition	New



































Box Type	Picture	A Max	A Min	B Max	B Min
Straight Line box		1050-300mm		780-300mm
