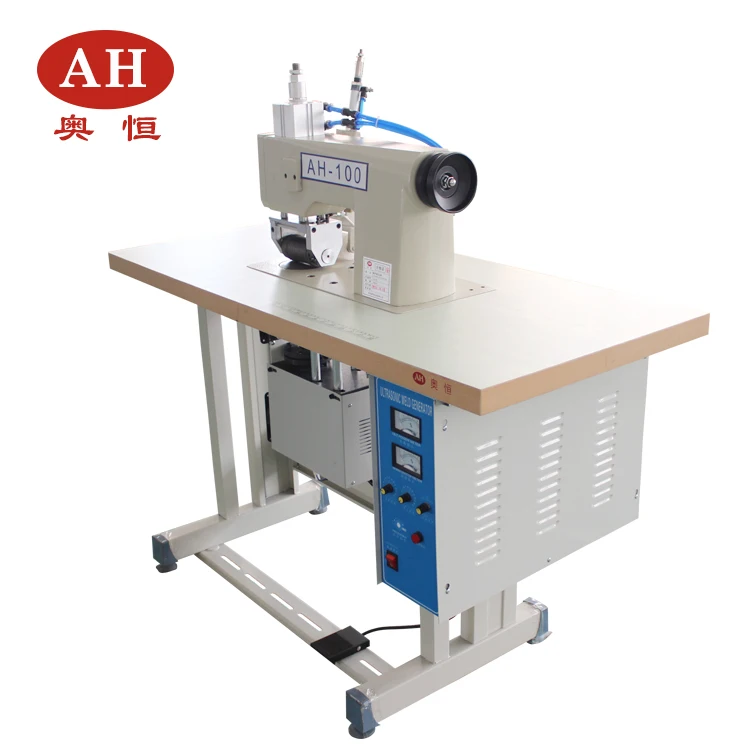

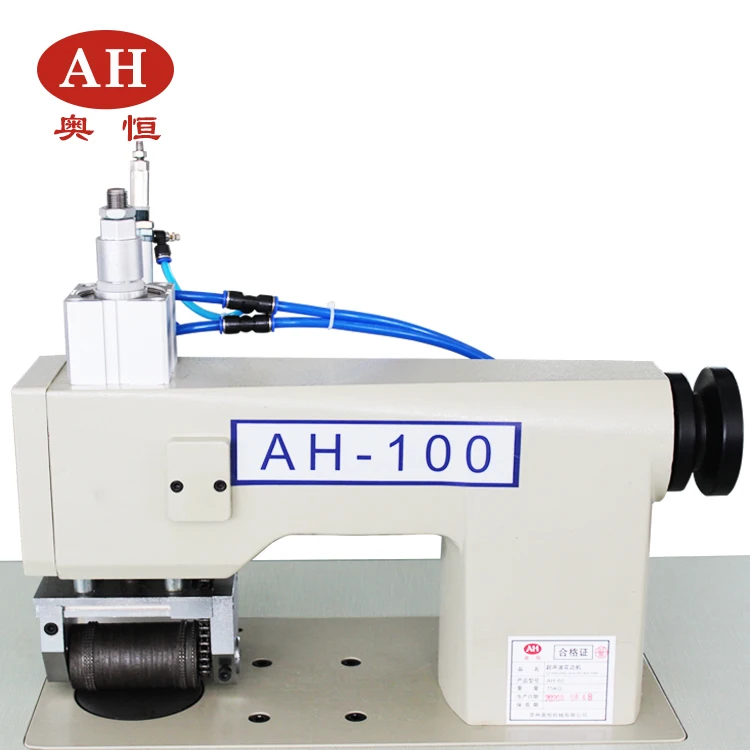

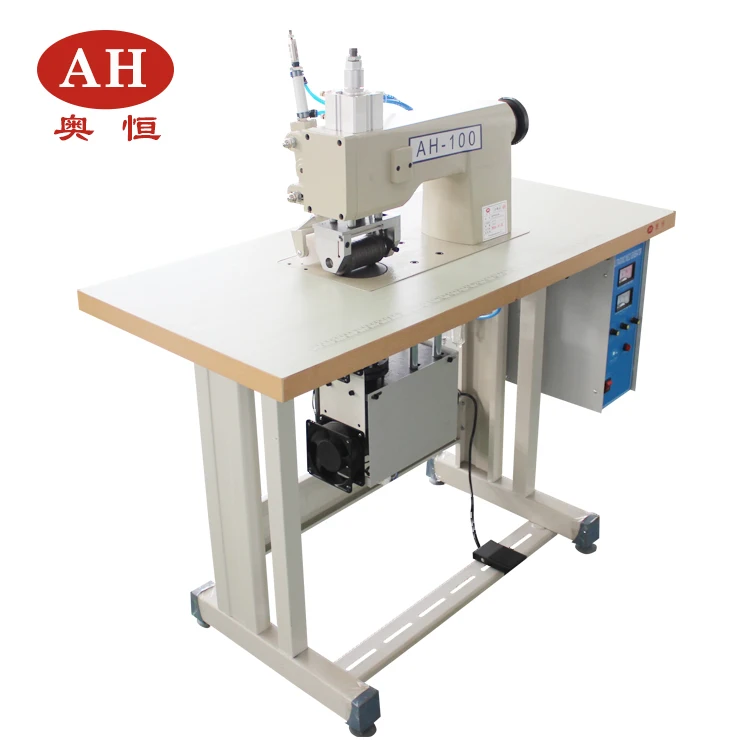

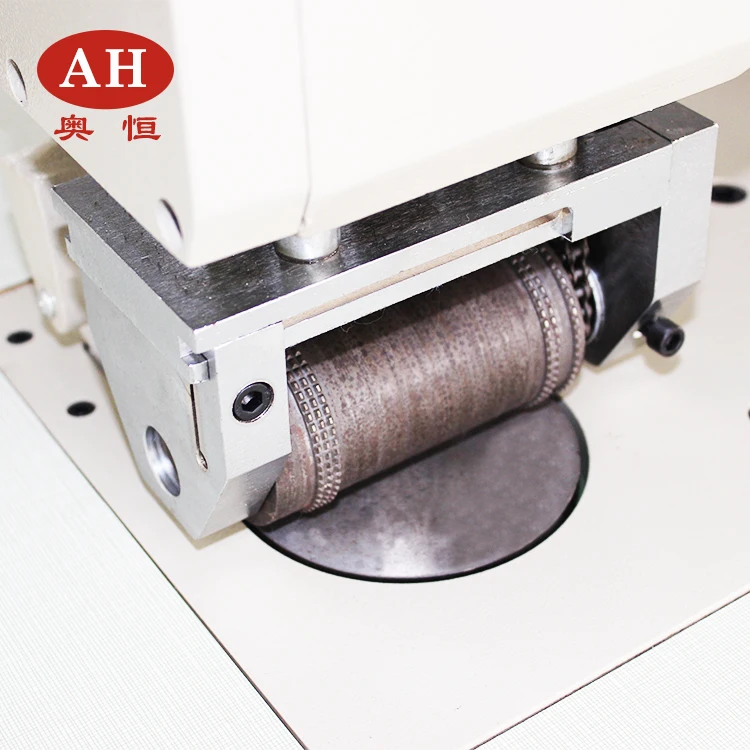

Ultrasonic singer polyester sewing thread machinery (AH 100 2S)

Product Overview

Description

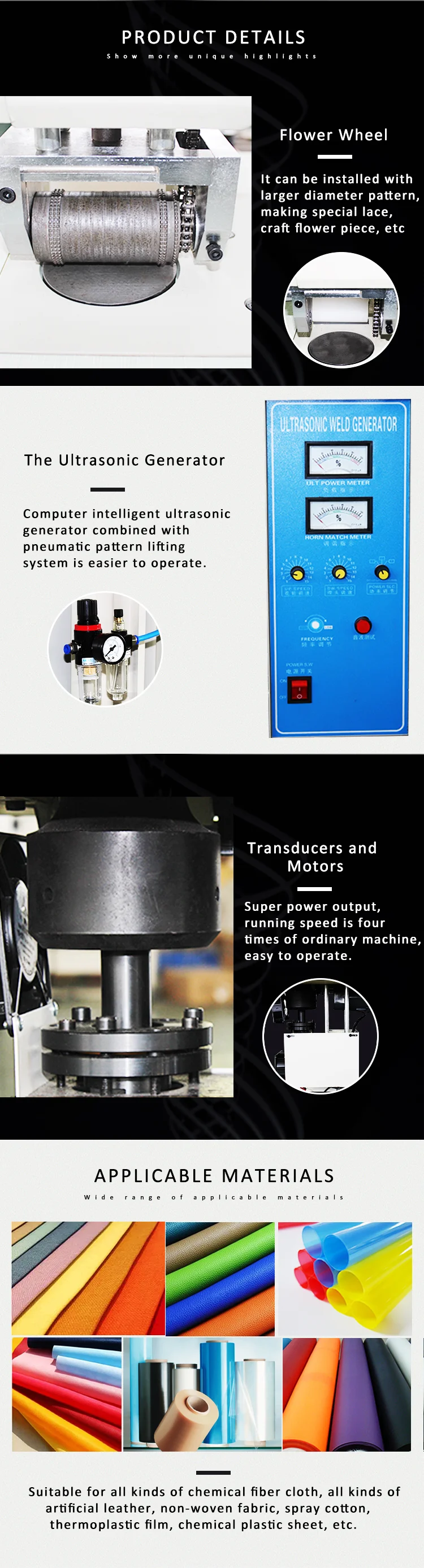

Basic components
1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Bottom mould fixed suspension structure;

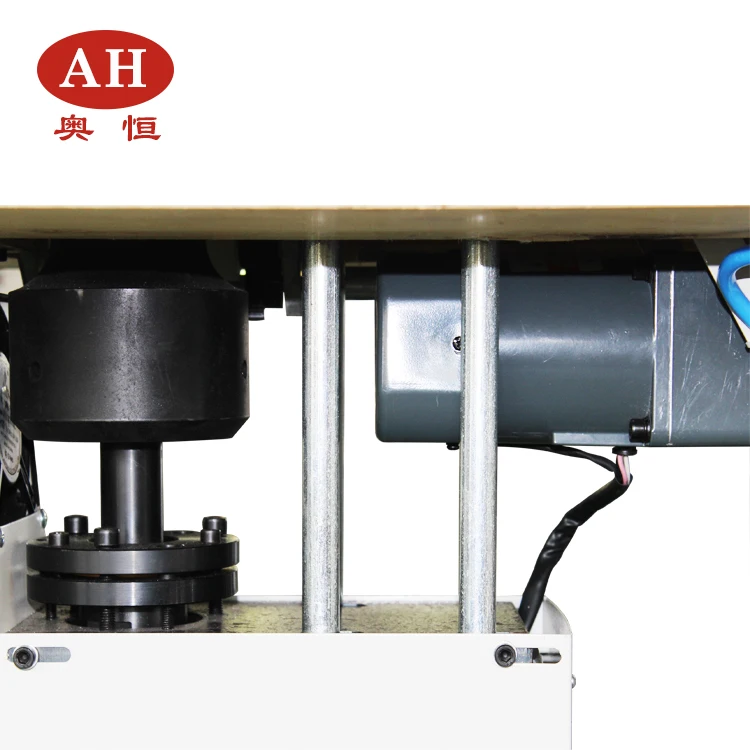

4. Double-motors speed adjustment system;
5. Manual roller lifting system;

Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials andthicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;
4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.

Functions
1. Trimming: Straight or curvilinear edge cutting  and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.





Suitable material:



All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PU, PE, PP, PS, etc.

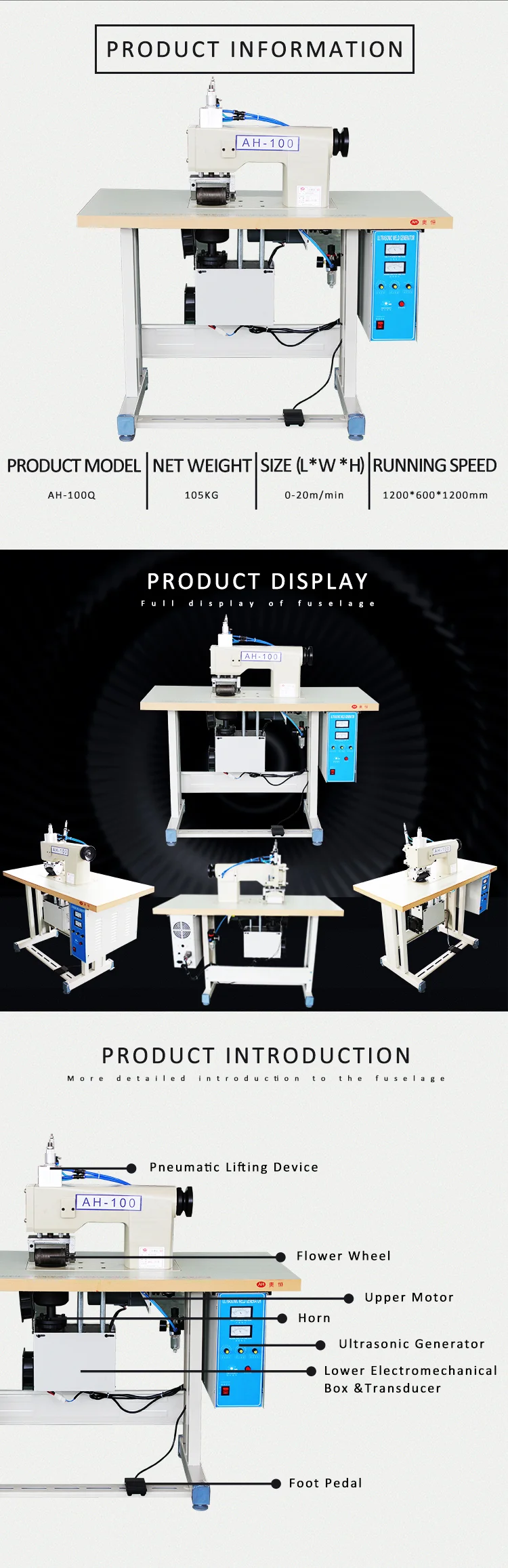

Technical specification

Commodity Ultrasonic lace machine Specification  AH-100Q Output(W) 2500W Frequency(KHz) 18KHz Voltage(V) 220V  Motors  2 Mould size Width:0-95mm Working speed 0-25m/min Welding area (mm) Ø95mm Dimension(L×W×H)   1200*600*1200mm N.W (kg) 105kgs



Application:

The ultrasonic lace machine is easy to be maintained and repaired. It's econonmy. It can be used to make many things such as lace clothing, table napkin, table cloth, non-woven fabric bags(shopping bags), etc
