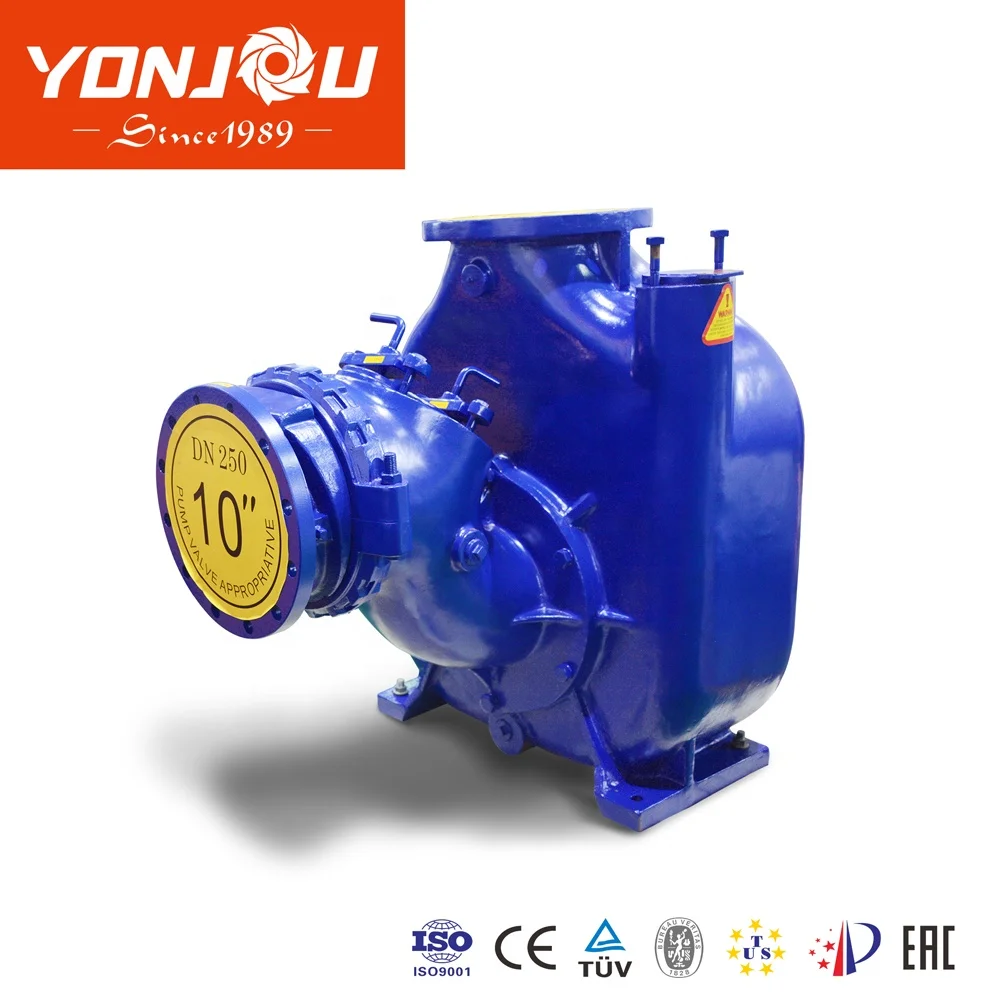

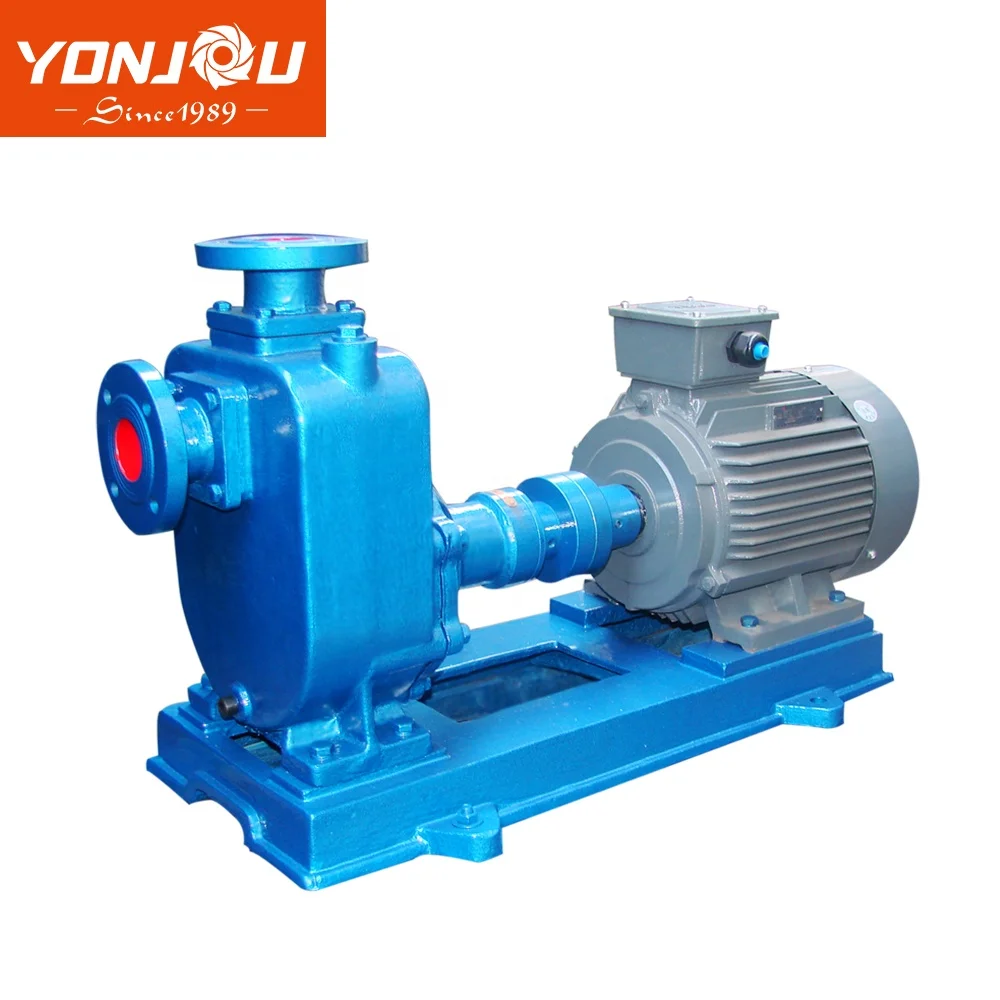

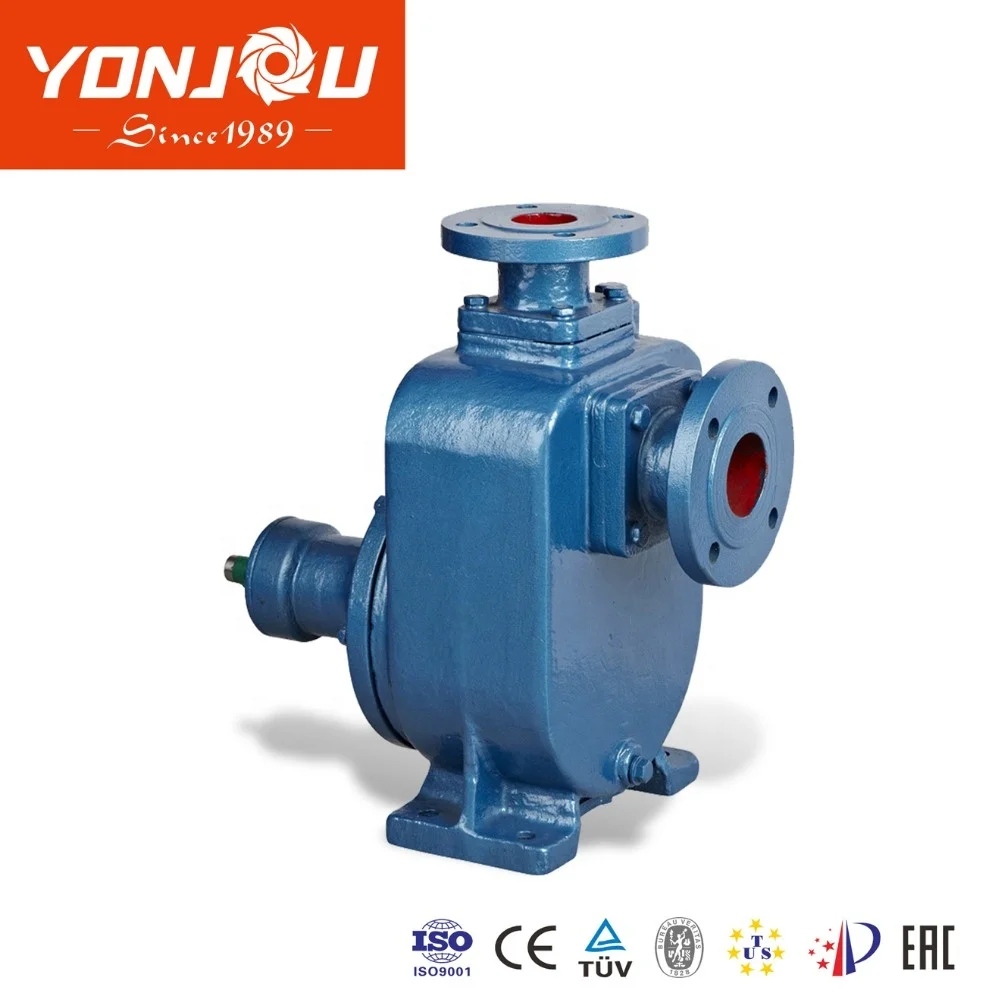

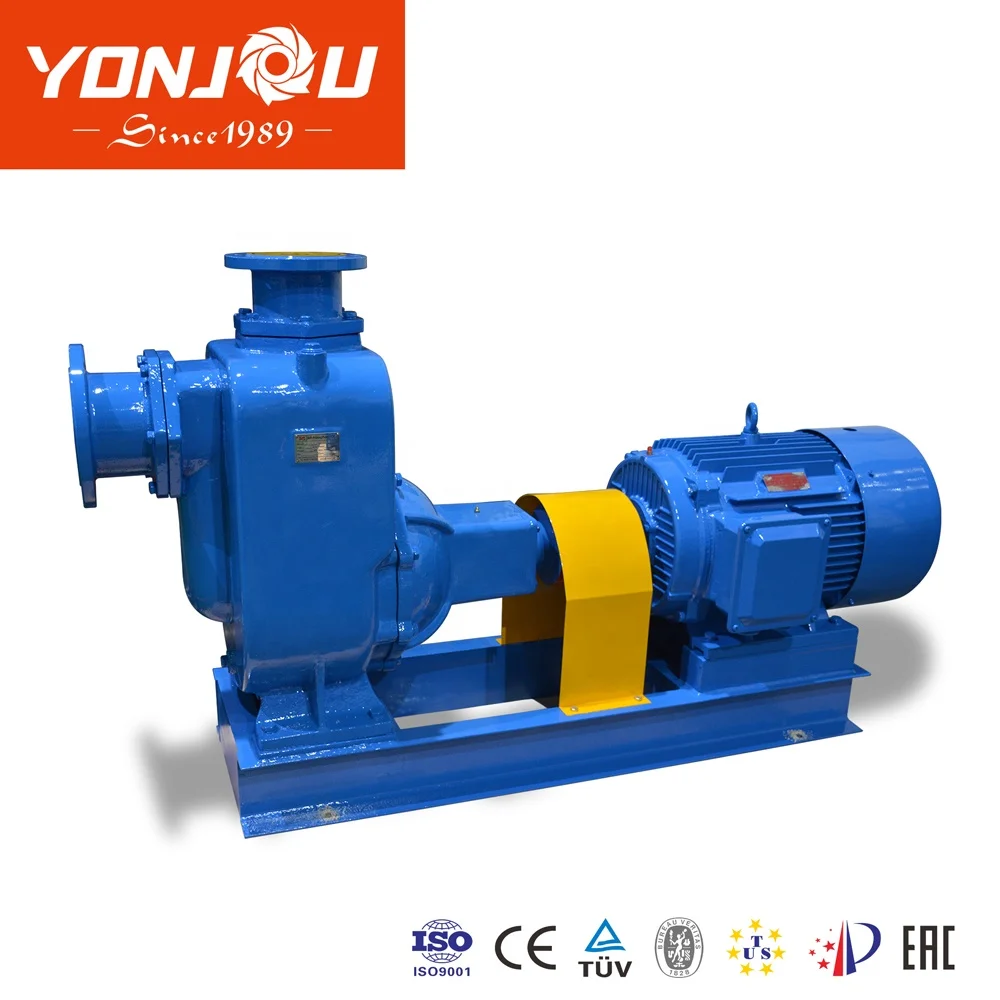

Marine and Ship Use Self Priming Centrifugal Oil Pump/Horizontal Seawater Dirty Water Transfer Pump

Product Overview

Description

Introduction:

1. Marine and Ship Use Self Priming Centrifugal Oil Pump/Horizontal Seawater Dirty Water Transfer Pump   pump may be equipped with diesel engine for wild application.

2. It is special designed for transfer of diesel, kerosene, etc.

3. Pump equipped with explosion proof motor and material of stainless steel or bronze impeller makes sure safe transfer liquids with low flashing point.

4. The diesel transfer pump is mainly used as a fuel off-loading pump, also applied in oil houses, gas stations, oil tankers, tank ships, docks, tank trucks and airports for the transfer of coal oil, diesel oil, aviation fuel and so on.

5. If adopting the corrosion-proof mechanical seal and stain­less steel material, it can also be applied for chemical industry, pharmacy, brewage, electroplate, printing and dyeing, paper making, electricity power, mines, etc.



Products details:

Working Principle:	Centrifugal, Self-priming
Main applications:	Light oil, diesel oil, etc
Driver:	Electric motor, diesel engine
Power Specs:	220/240/380/415V 3phase;  50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange, Quick coupled
Installation position:	Horizontal
Casing material:	Cast iron, Stainless steel
Impeller material:	Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Maximum drive rating:	132KW(175HP)
Maximum caliber:	300mm(12nch)
Maximum discharge-side pressure:	0.8MPa(8bar)
Maximum head:	80m(262.4ft)
Maximum suction height:	6.5m(21.3ft)
Flow rate range:	3.2-600m3/h(14.1-2640US.GPM)



Performance data:
