8HP Direct air source water heater coaxial heat exchanger

Product Overview

Description



Product performance parameter:







Reference Standard	GB 21362-2008 Heat pump water heater for commercial & industrial and similar appication
performance parameter	Capacity(kW)	Water flow rate  (t/h)	Water pressure drop kPa
	30	0.64	≤50

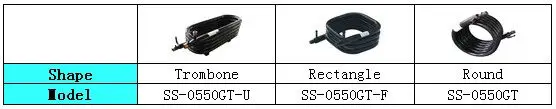

Solution of coaxial heat exchanger









Product features:



1. High efficiency: The patented convoluted inner tube generates more area and strongly enhances heat transfer between water and refrigerant.

2. Anti-freezing capability: Multi-spiral structure of inner tube imparts outstanding anti-freezing capability to coaxial heat exchanger.

3. Cleanness: Multi-spiral structure of inner tube allows water flow in high-speed turbulent state which will remove foul automatically to remain channel a high cleanness in long-term running.

4. Convenience to connect: The heat exchanger with simple structure whichcould fix the compressor inside. And the connection is convenient ,the cost is low.

5. Stable performance: Overall structure is easy for refrigerant turn from gas state to liquid state, water side is set up with drainage valve, vent valve which will be more safe and stable performance.

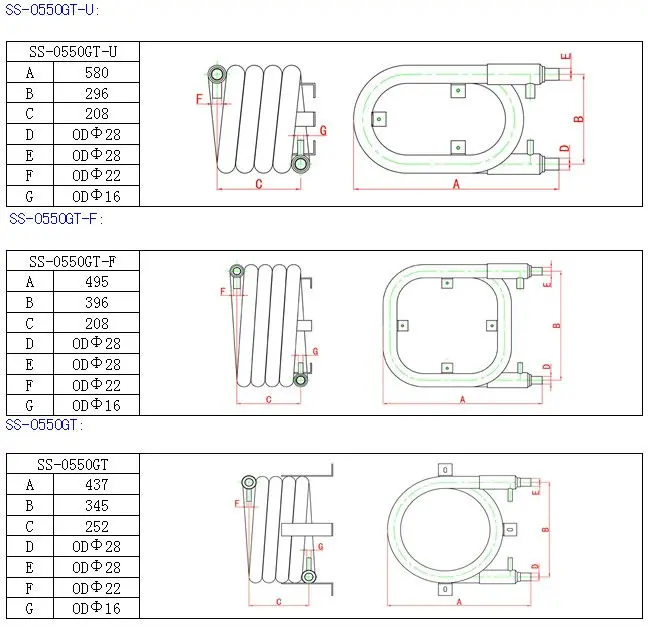

Product dimensions:(units:mm)



Connector for product:
