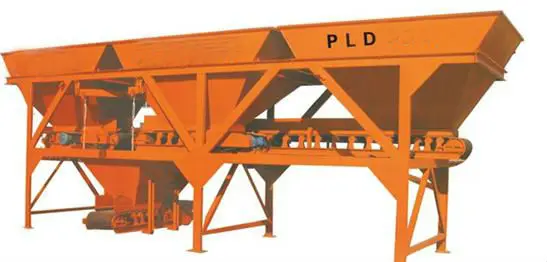

PLD800 PLD600 aggregate batching machine for construction building
- Category: >>>
- Supplier: Dezhou Haitian Electromechanical Technology Co. Ltd.Dezhou Ltd.
Share on (903131822):
Product Overview
Description
PLD800/PLD600/PLD1200 aggregate batching machine for concrete wall panel production
008615866626003

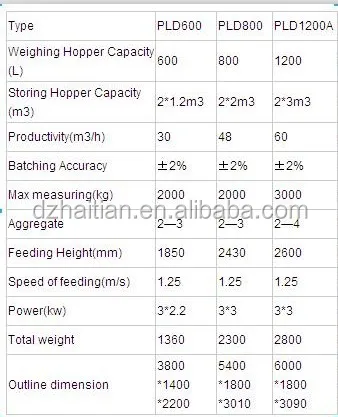

Specifications
| Type | PLD600 (2 bins) | PLD800 (2 bins) | PLD800 (3 bins) | PLD1200 (2 bins) | PLD1200 (3 bins) | PLD1600 (3 bins) | PLD1600 (4 bins) | PLD2400 (4 bins) | PLD3200 (4 bins) |
| Capacity of weighting hopper | 600L | 0.8m³ | 0.8m³ | 1.2m³ | 1.2m³ | 1.6m³ | 1.6m³ | 2.4m³ | 3.2m³ |
| Capacity of storage hopper | 1.5m³x2 | 2.2m³x2 | 2.2m³x3 | 3.7m³x2 | 3.7m³x3 | 5m³x3 | 8m³x4 | 15m³x4 | 20m³x4 |
| Productivity | 32m³/h | 48m³/h | 48m³/h | 60m³/h | 60m³/h | 80m³/h | 80m³/h | 120m³/h | 160m³/h |
| Error of batching | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Aggregate number | 2 | 2 | 3 | 2 | 3 | 3 | 4 | 4 | 4 |
| Feed height | 2400mm | 2840mm | 2840mm | 2656mm | 2981mm | 2944mm | 3050mm | 3050mm | 4130mm |
| Power (kw) | 3x3=9 | 4x3=12 | 4x4=16 | 4x3=12 | 4x4=16 | 4x4=16 | 4x5=20 | 4x5=20 | 15 |
| Overall weight | 1000 | 2050 | 3075 | 2580 | 4130 | 4725 | 6300 | 6330 | 8950 |
| Note: Power is for reference only, depends on the belt conveying way and the weighing type. | |||||||||

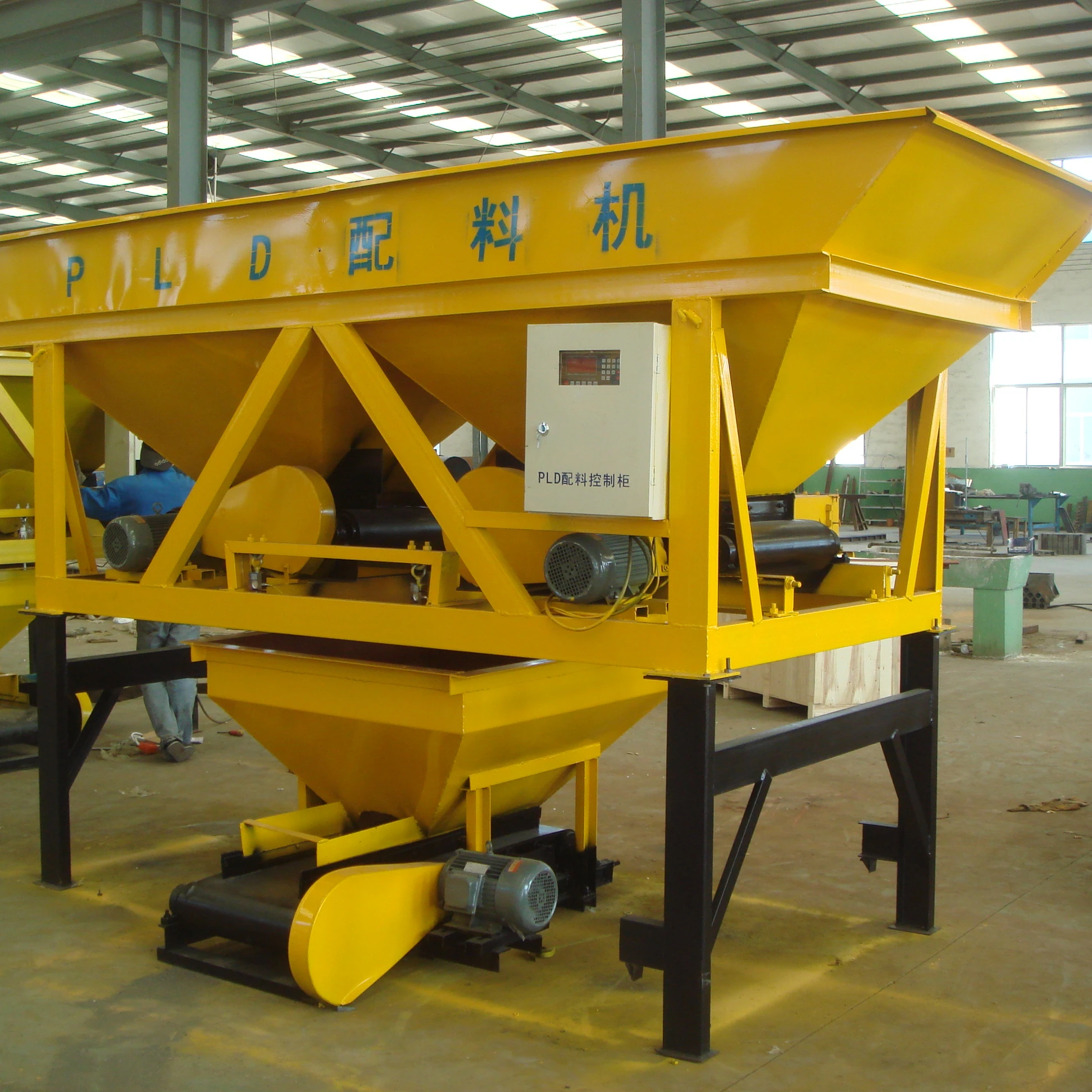

Concrete Batching Machine PLD600/PLD800 Concrete Batching machine
PLD Series Concrete Batching machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finishing the batching procedures of 3-6 kinds of materials (second grade concrete) such as sand, stone, cement according to users’ requirement. These serial products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this serial concrete batching machine with relative concrete mixer, different types and specification combined concrete mixing station can be formed.
,
