Mini USB Connector usb connector panel
- Category: >>>
- Supplier: Shenzhen,Youte,Electronic,Co.,Ltd.
Share on:
Product Overview
Description

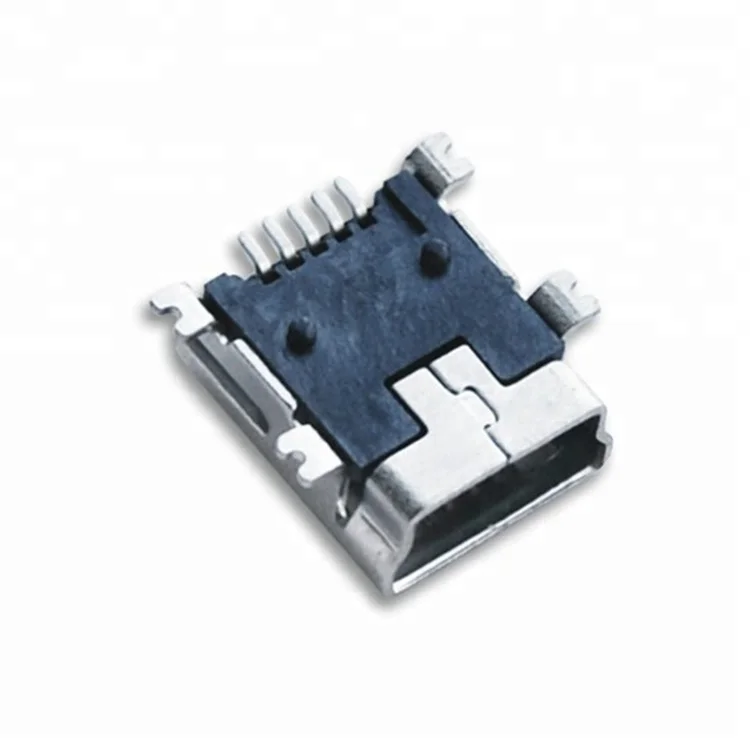

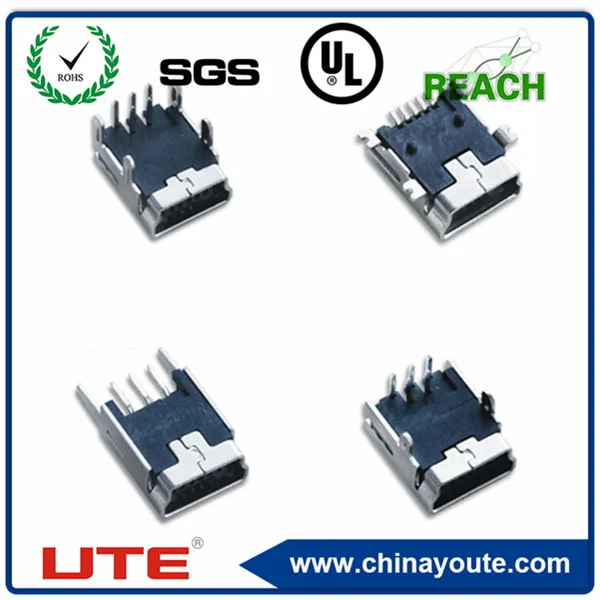

Mini USB Connector
Product Description
Electrical
|
|
Current Rating: | 1.5A/contact terminal |
Voltage Rating: | 30V DC |
Contact Resistance: | 30 milliohms MAX |
Insulation Resistance: | 1000MEGA ohms MIN |
Dielectric Withstanding Voltage: | 500 V AC AT Sea Level |
Mechanical
|
|
Connector Mate and Unmate Force: | Mate force: 3.75kgf(MAX) Unmate force:1.02kgf(MIN) |
Terminal Retention: | 1.2kgf(MIN) |
Material; |
|
Housing: | High Temperature plastics, UL94V-0 PBT/LCP White/Black |
Contact: | Copper Alloy C2680 |
Shell: | C2680/SPCC |
Finish |
|
Contact: Plated Gold in Mating Area: | Tin On Solder Talls |
Related Products
About US
Certificates
Our Exhibitions
Our Advantage
Packaging & Shipping
FAQ
Q: how long Delivery time ?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days USB Series: 7~15 days
Pin Header/Female Pin header
Connector: 7~15 days
SATA/HDMI Series: 7~15 days
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements
(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
