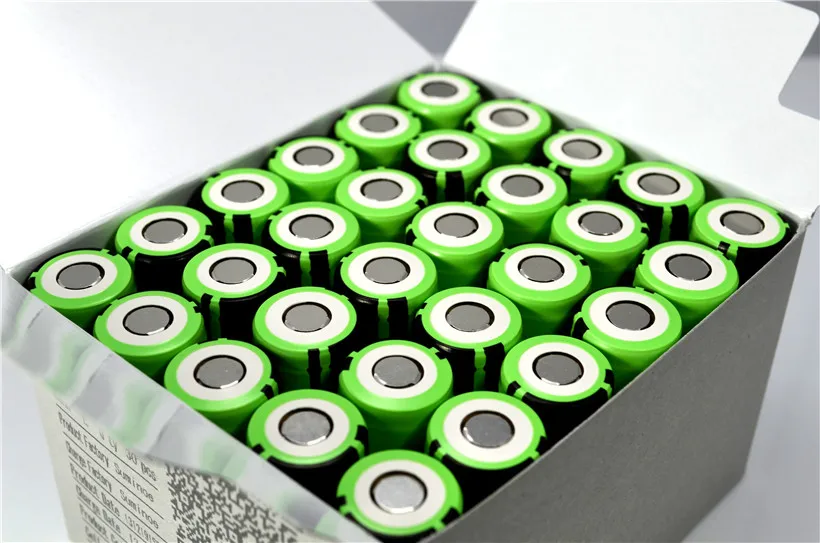

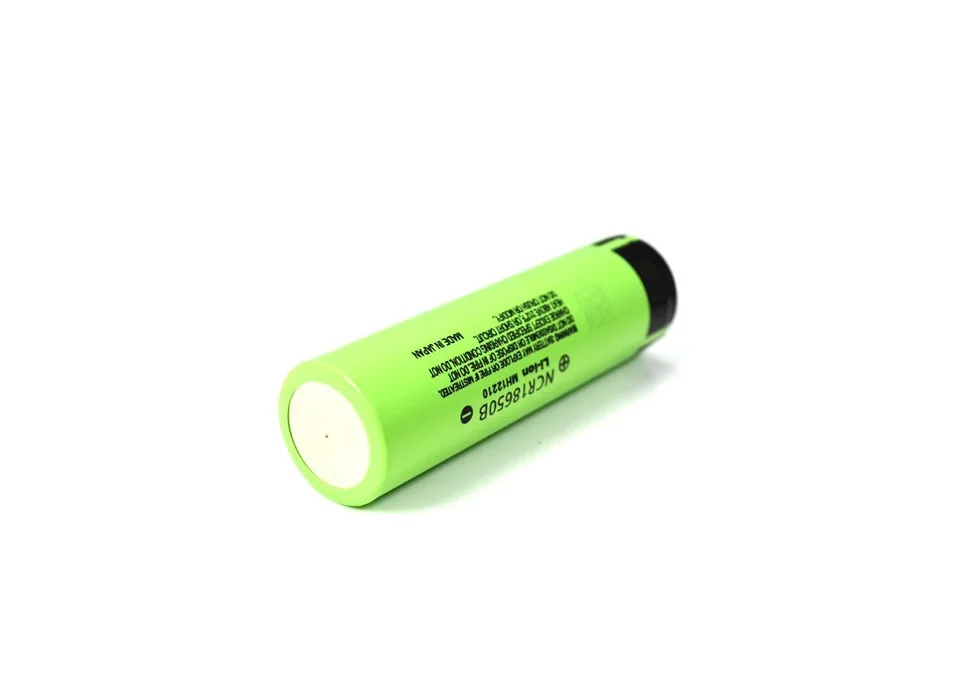

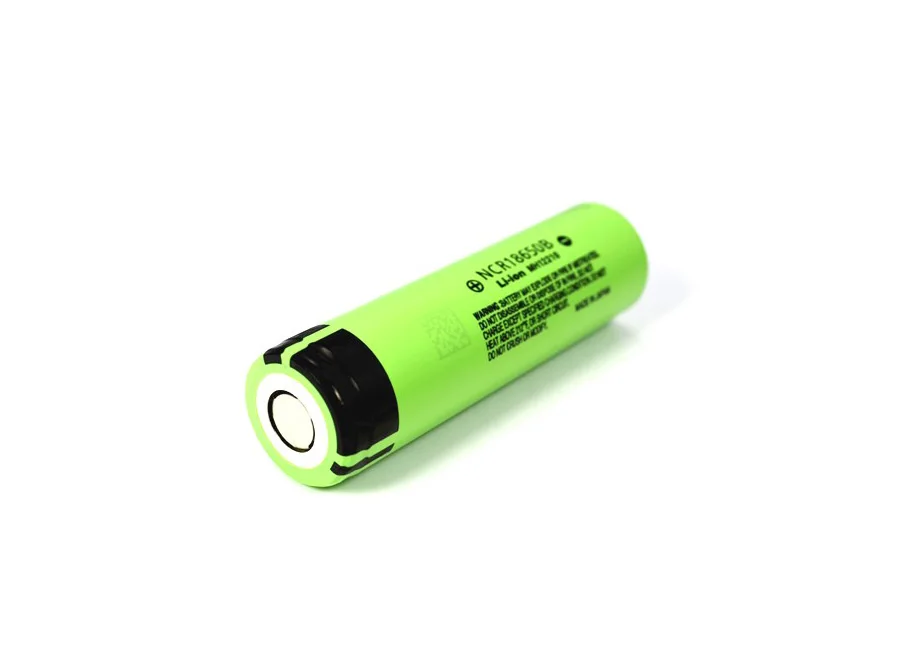

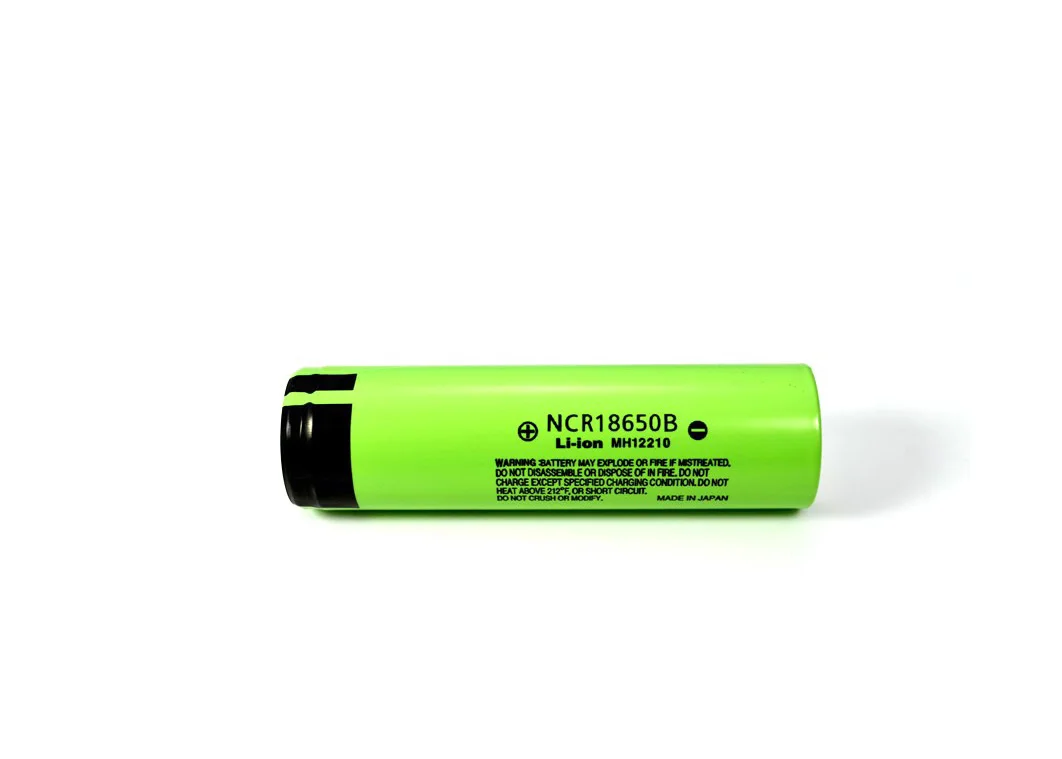

Made in Japan Original NCR18650B 18650 3400mah Li ion battery Cell

Share on (904477058):


Price:$4.50 - $4.85

Quantity:


Product Overview

Description






Product Description






































































NO.ItemSpecifications
1Nominal Voltage3.6V
2Nominal Capacity

Typ. 3350mAh


Min. 3250mAh


3Charging Method

CC-CV


4Charging Voltage4.20V
5Charging CurrentSt. 1625mA
6Charging time4.0 hrs.
7Max. Continuous Discharge Current

4.87A


8Discharge cut-off voltage 2.5V
9Cell weight

48.5g max.


10Cell dimension

Height : 65.3  mm max.
Diameter : 18.50 mm max.


11Ambient temperature

Charge : 10 to 45℃
Discharge: -20 to 60℃


Storage: -20~50℃


12Gravimetric Energy Density

243Wh/kg











Features



  • High energy density

  • Long stable power and long run time

  • Ideal for notebook PCs, boosters, portable devices, etc.





Application



  1. Cellular phone, note PC ect.

  2. DVD/DSC/DVD/Portable LCD TV ect.

  3. Portable CD player, MD player, Semiconductor-driven audio ect



Detailed Images

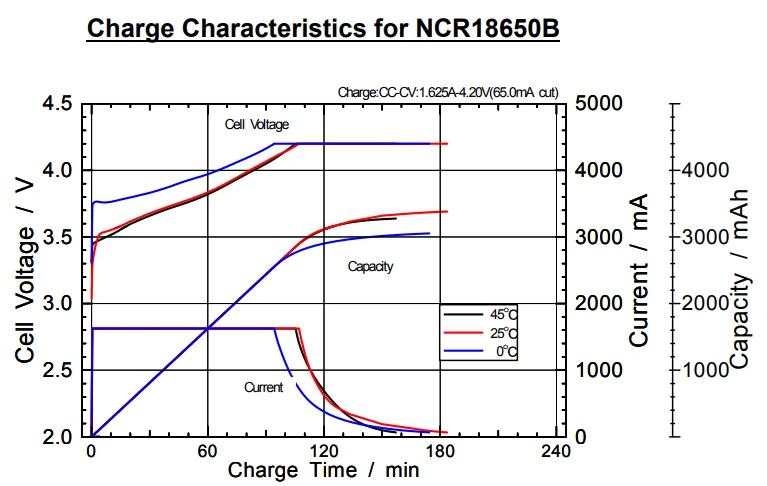

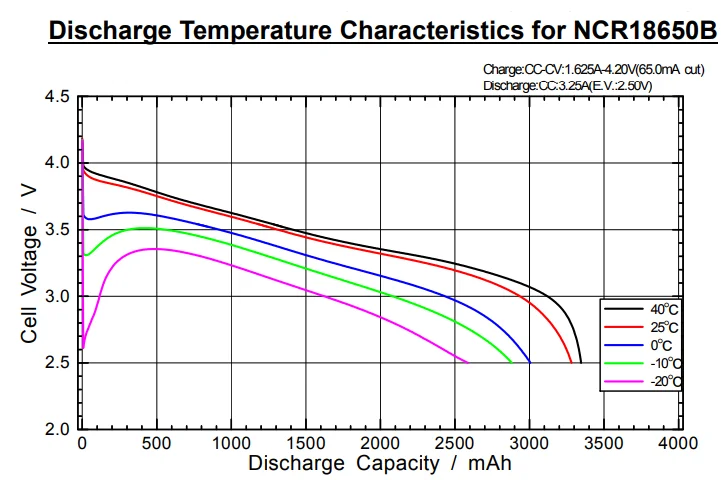

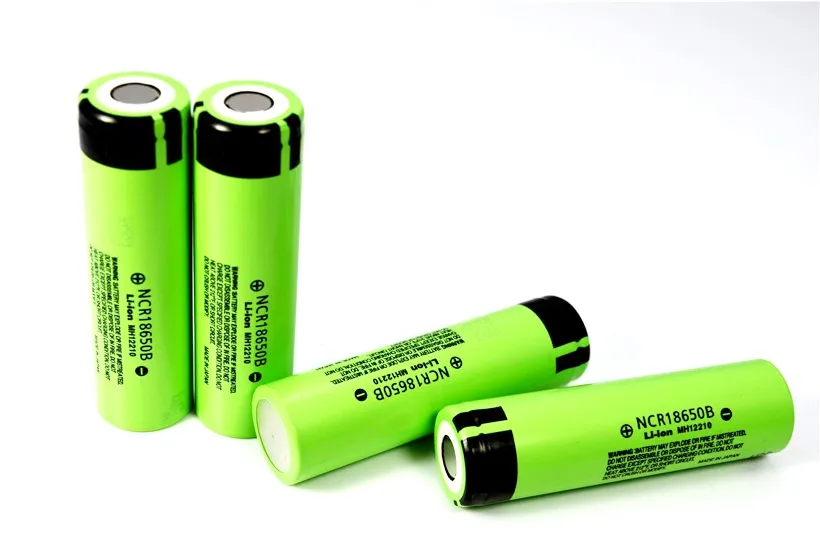

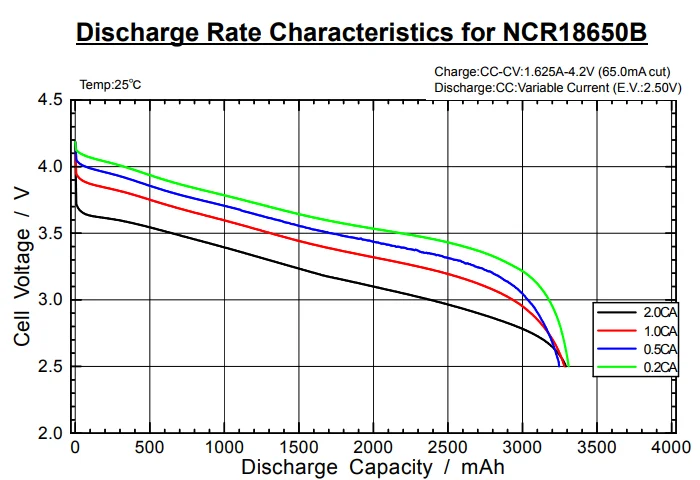

 charge.pngDischarge NCR18650B.pngdischarge temperature.pngPanasonic NCR18650B (1).jpgPanasonic NCR18650B (2).jpgPanasonic NCR18650B (3).jpg





Our Services


The cell is not for single use without any protection.


EVVA can assemble OEM battery pack order by using such super cells and our high end self-designed BMS for you.


EVVA will be responsible for replacing the batteries against defects during shipment for 10 days from the date batteires are received by you. Any other problem caused by malfunction of the equipment or mix-use of the batteries is not under this warranty.





Company Information


.jpg


EVVA prides itself on using only the highest quality cells to make lithium battery packs with advanced equipments and experiencing skills. The company has established strategic relationship with international lithium battery suppliers such as Sanyo, Sony, Panasonic, LG Chem, Samsung SDI, Skme, Moli, BAK, Lishen, ATL, HYB, etc..



With over 10-year year experience in the field of Lithiuim-ion battery packs, EVVA strives to provide a quality oriented, technically innovative and responsive service for our customers. All packs are PRC manufactured within a quality standards framework, which make EVVA products highly appraised by customers all over the world

Today, EVVA has implemented automation for part of the production, and millions of EVVA products have been deployed in various customer applications and devices. Thus, more and more customers is benefiting from EVVA's technical capabilities in Li-ion, Li-Polymer, LiFepo4 and other power technologies.









Safety Instructions


Stop charging the battery if charging isn't completed within the specified time.
Stop using the battery if the battery becomes abnormally hot, order, discoloration, deformation, or
abnormal conditions is detected during use, charge, or storage.
Keep away from fire immediately when leakage or foul odors are detected. If liquid leaks onto your
skin or cloths, wash well with fresh water immediately.
If liquid leaking from the battery gets into your eyes, don't rub your eyes and wash them with clean
water and go to see a doctor immediately.
If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
The battery can be used within the following temperature ranges. Don't exceed these ranges.
The operating temperature is based on the cell surface temperature in hottest position in pack.





Certifications


.png





FAQ


A. Is your battery quality approved?
Q: Yes, we guarantee that all cells are 100% original from Panasonic, Samsung, LG and Sony. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment

A: How can you prove that your cells are 100% original?
Q: We can show you the original pack list and other related documents.

A: what is your lead time if I placed an order?
Q: For all products in stock, our lead time is within 2 working days after payment received. For thoese that we don't stock for the moment such as customized battery packs, the lead time is around 10-15 days.

A: What is the payment methods?
Q: We accept T/T wire transfer, trade assurance and paypal.

A: What is your warranty?
Q: We guarantee the quality before the item is shipped. You can enjoy 30-day free refund, 4-month free replacement, and lifetime maintenance service from the date of delivery. Any damages caused by improper use are not covered by our warranty.
