2000Nm manual torque amplifier hand force multiplier

Product Overview

Description

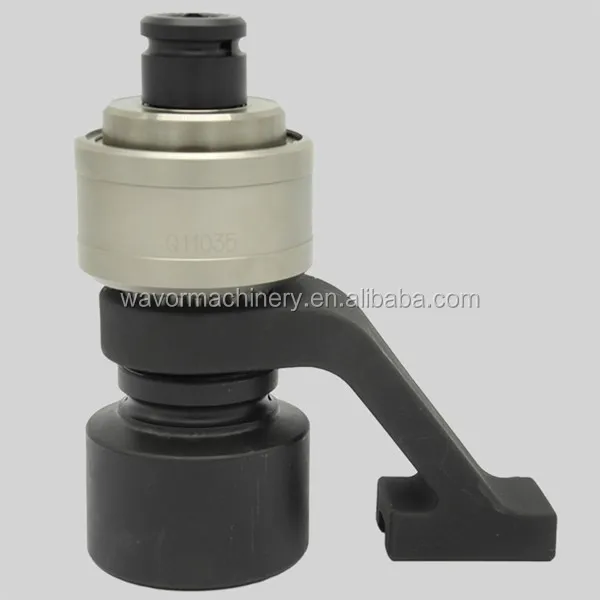

HM Series manual torque multiplier

Compact, durable and reliable

• Manual type, suitable for the occasions where it requests for high torque but power supply or space is limited.
• Sophisticated planetary gear system for torque multplying, accuracy ±5%
• Equipped with anti-returning device, more convenience and safe
• High torque/weight ratio, fulfill the locking / unlocking job easily with the hand wrench
• Easily switch from clockwise to anti-clockwise direction by the reversing lever and buttons.
• After-sales service:  1 year guarantee period, life-long maintnance.

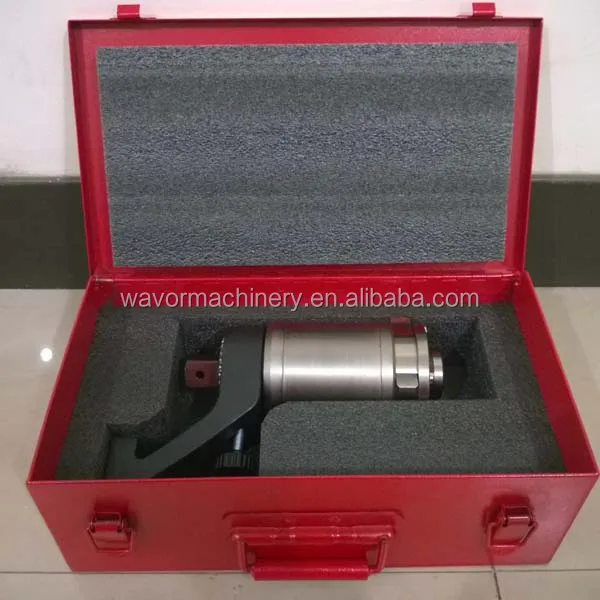

• Supply scope: 1 pcs manual torque multiplier,1 pcs reaction arm, 1 set operating instructions,1 piece of test report

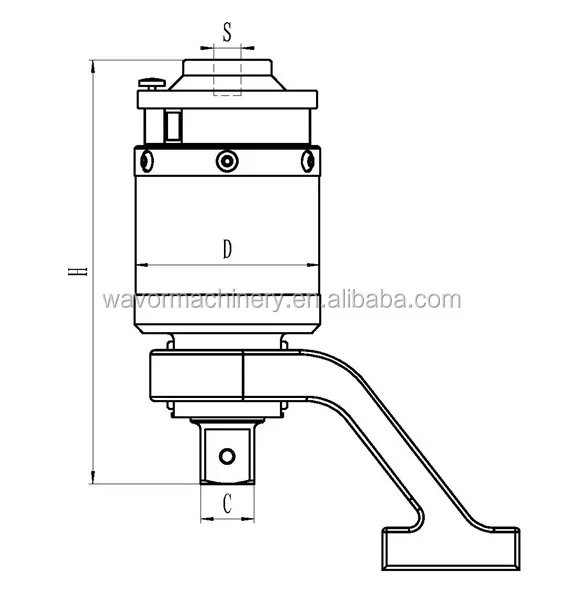

Model	Max Torque (Nm)	Torque Ratio	Input S	Output C	D (mm)	L (mm)	Weight* (kg)
HM-12	1200	1:4	1/2"	3/4"	88	145	3.0
HM-20	2000	1:4	3/4"	31"	88	156	3.1
HM-30	3000	1:10	1/2"	1"	88	200	5.1
HM-42	4200	1:14	1/2"	1-1/2"	96	210	6.7
HM-62	6200	1:20	1/2"	1-1/2"	114	242	9.2
HM-120	12000	1:38	1/2"	1-1/2"	143	305	16.3



Remark: 1. Above weight does not include the reaction arm

                 2. Do not drive hand torque multipliers by impact power tools. That would destroy the gear system. It is advised to be assisted with hand torque wrench.
