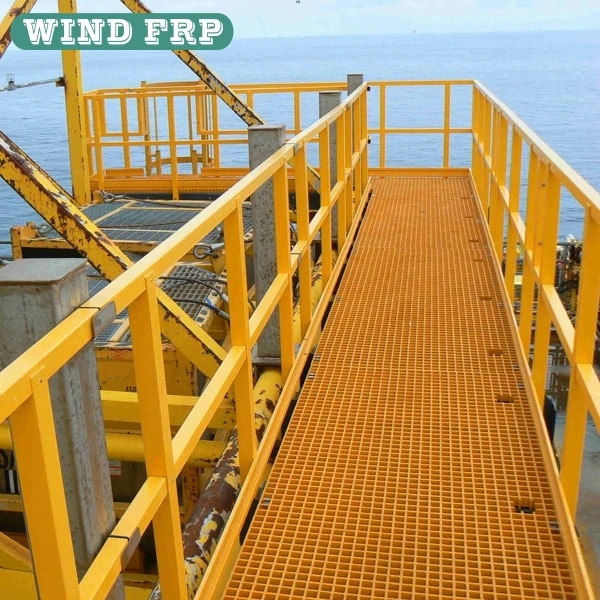

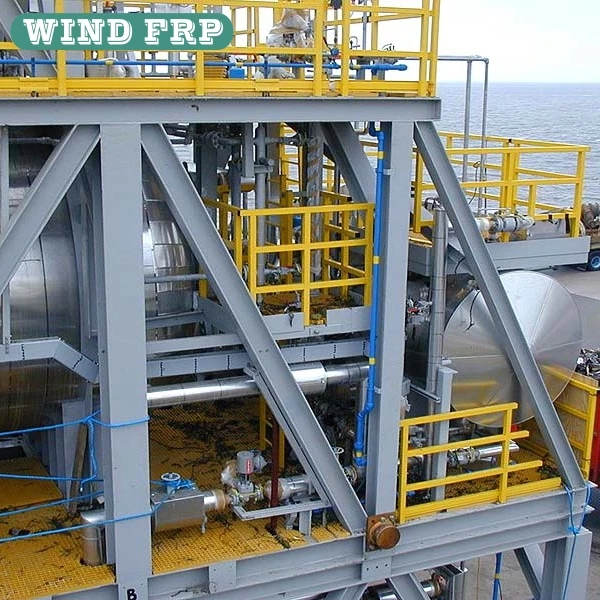

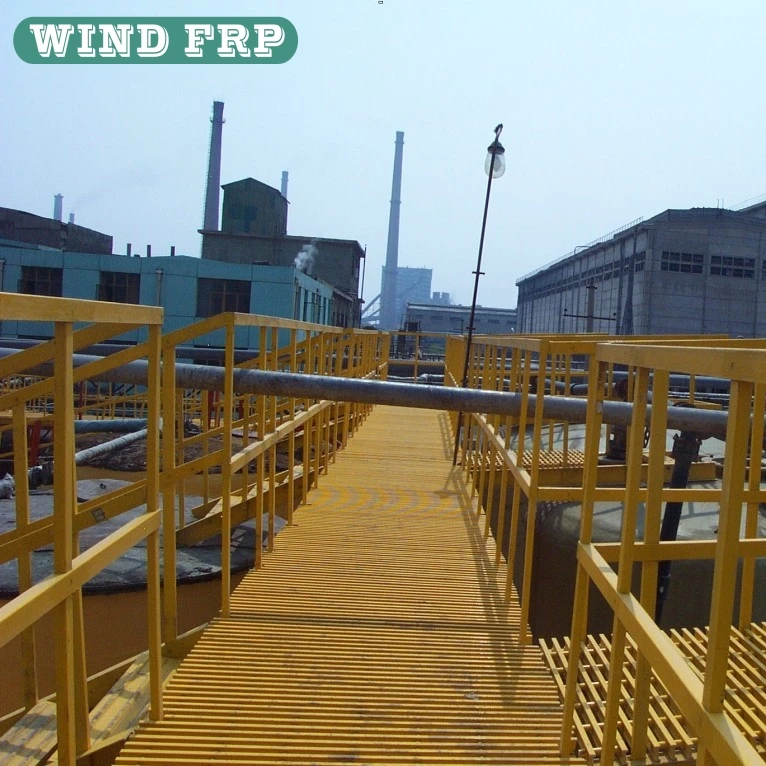

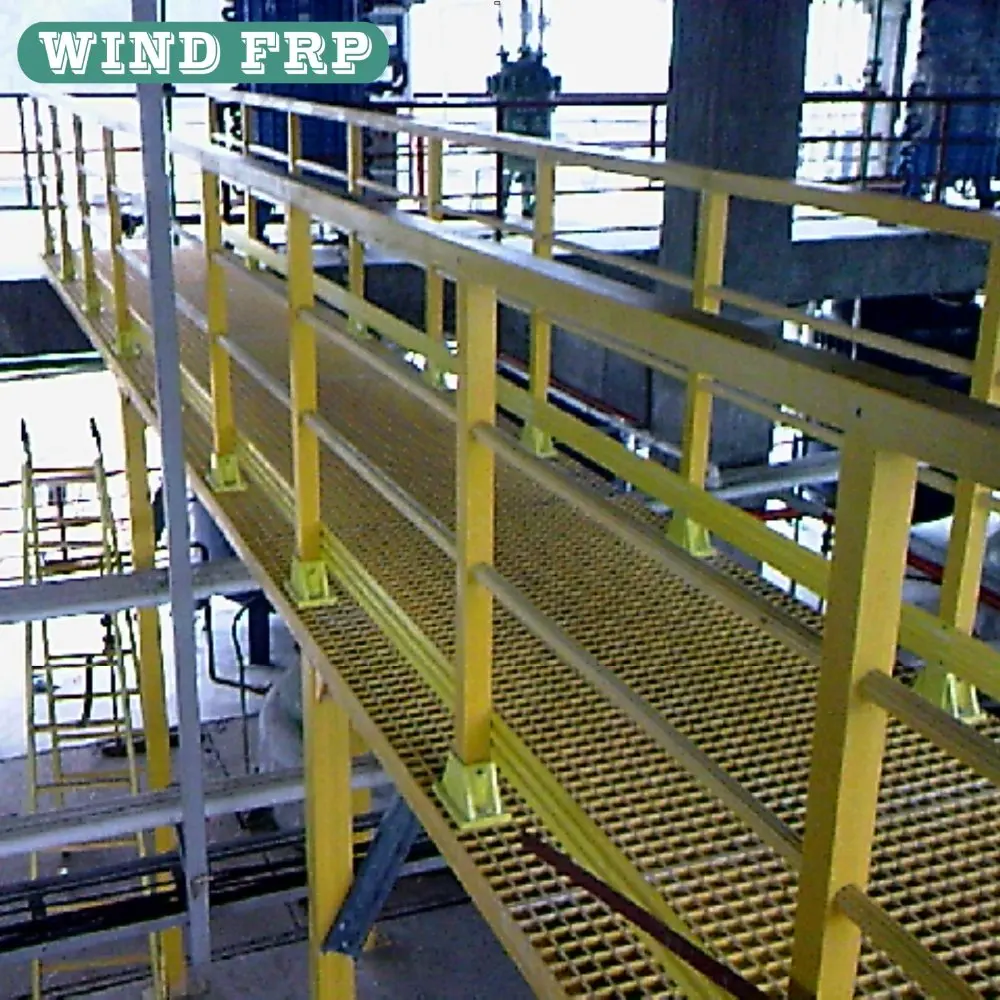

FRP GRP platform grated floor

Product Overview

Description

Model No.	Mesh Size    (mm)	Thickness  (mm)	Full Panel  Size (mm)	Open  Area	Net Weight (Kg/m²)	Noted
WD-FG01	38*38	15	1262*3663	72	7.5
WD-FG02	50*50	15	1223*3663	65	6.5
WD-FG03	38*38	25	1223*3663	68.7	12.4
WD-FG04	100*25	25	1010*3010	65.7	12.4
WD-FG05	38*38	30	1223*4040	68.3	15.1
WD-FG06	19*19	30	1223*3663	39.6	21.5	mini mesh
WD-FG07	38*38	35	1223*3663	66.1	17.8
WD-FG08	38*38	38	1223*3663	66.1	19.3
WD-FG09	19*19	38	1223*3663	39.6	22.8	mini mesh
WD-FG10	40*40	40	1260*3690	69.6	19.3
WD-FG11	50*50	50	1223*3663	70.6	21.5







1.Excellent properties as follows:



(1).Safety:FRP is recommended when corrosion protection and safety are your goal.







(2).Stability:Expansion and contraction is 24% and 50% less than aluminum and steel,  providing greater dimensional stability.







(3).Durability:Superior durability to Stainless Steel, Aluminum, and Galvanized Gratings, especially in highly corrosive environments.







(4).Strength:50%higher tensile strength than hot rolled steel and better impact resistance.

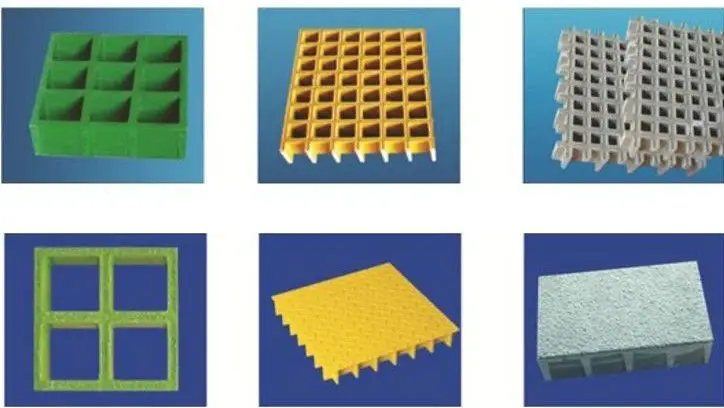

2.Surface Treatment: Smooth surface grating,Concave surface grating, Microvoid grating, Sandy grating,Cover board gratin,Transparent grating



a)Smooth surface and italic grid make it easy to clean.



b)Cross distributing loads equally to improve the bearing capacity.



c)Surface grooves prevent slipping, covered sand type is better in anti-slipping.











3.Installation manual:

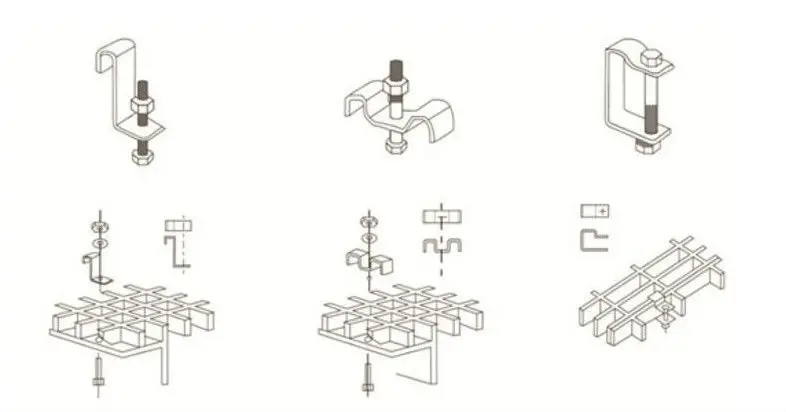

Three types of stainless steel Standard fixture: L, M, C







Use stainless steel clamp to connect gratings and fix the grating and frame.
