Four Outputs XGS PON CATV FTTB Optical Receiver(B9428)
- Category: >>>
- Supplier: Hangzhou Huatai Optic Tech. Co. Ltd.
Share on (905097055):
Product Overview
Description

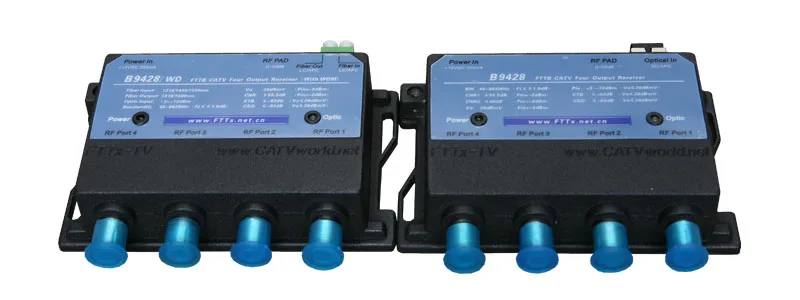

Four outputs CATV FTTB optical receiver
B9428
Product description
Huatai B9428 Four Outputs CATV FTTB Optical Receiver , 47~862MHz operate bandwidth, output level Vo=88dBμV (Pin=-2dBm), suitable for FTTP optical fiber access network, which is a low power consumption, high performance, and excellent cost performance RFTV broadcast network ONU(Optical network unit).
The product built-in RF inter-stage gain adjustment. All receiving optical power in the range of +3dBm to -12dBm has good linearity. According to different receiving optical power, the user can choose high CNR and suitable output level.
B9428 optical port have following three modes:
B9428/NC: RFTV operates in 1210~1600nm wavelength.
B9428/WF: built-in channel filter, RFTV operating in1550nm wavelength.
B9428/WD: built-in CWDM, RFTV operating in 1550nm wavelength, reach GEPON ONU through 1310/1490nm wavelength.
Product features
- Extra-low noise (3.8% modulate, -10dBm receive, CNR ≥ 45dB)
- All receiving optical power in the range of +3dBm to -12dBm has good linearity
- In the range of 47~862MHz, all have good flatness (FL≤±1.0dB)
- Built-in inter-stage gain adjustment, can choose high CNR and suitable output level according to different receiving optical power.
- Four-way high level output, can supply service for more users
- Zinc. die-casting all-in-one metal shell, supply safeguards to opto-electrical sensing device
- Low power consumption, high cost performance.
Main application
- FTTH,FTTP, FTTO
- FTTC, FTTN
- HFC
Technical index
Performance | Index | Supplement | ||
Optic feature | Operation wavelength | (nm) | 1260~1600 | B9428/NC |
1540~1560 | B9428/WF, B9428/WD | |||
Input wavelength | (nm) | 1310, 1490/1550 | ||
Pass wavelength | (nm) | 1310, 1490 | ||
Channel Isolation | (dB) | ≥40 | 1550 &1490nm | |
Responsivty | (A/W) | ≥0.85 | 1310nm | |
≥0.9 | 1550nm | |||
Receiving power | (dBm) | +3 ~ -12 | ||
Optical return loss | (dB) | ≥55 | ||
Optical fiber connector | SC/APC | B9428/WD: LC/APC | ||
RF feature | Work bandwidth | (MHz) | 47 ~ 862 | |
Flatness | (dB) | ≤±1.0 | ||
Output level | (dBμV) | 88 | Pin: -5dBm | |
Output level adjust | (dB) | 0 ~ 18 | MGC | |
Return loss | (dB) | ≥14 | 47 ~ 862MHz | |
Output impedance | (Ω) | 75 | ||
Output port number | 4 | |||
RF tie-in | F-Female | |||
Link feature | Test channel | CH | PAL-D/59CH | NTSC/80CH |
OMI | (%) | 3.8 | ||
CNR1 | (dB) | 56.6 | Pin: -2dBm | |
CNR2 | (dB) | 48.5 | Pin: -8dBm | |
CTB | (dB) | ≤-63 | Vo≤88dBμV | |
CSO | (dB) | ≤-63 | Vo≤88dBμV | |
HUM | (dB) | ≤-60 | ||
General feature | Power supply | (V) | +12VDC | ±1.0V |
Power Consume | (W) | ≤3 | +12VC, 190mA | |
Work temp | (°C) | -20 ~ +50 | ||
Storage temp | (°C) | -40 ~ 85 | ||
Work relative temp | (%) | 5 ~ 59 | ||
Size (W)×(D)×(H) | 4.6×2.9×1.1 ( " ) 118×73×29 ( mm ) | |||
