8V 2A AC DC Power Supply For Ingenico ICT 220

Product Overview

Description

8V 2A AC DC Power Adapter For Ingenico ICT 220







 For Ingenico 179901469 POWER SUPPLY FOR IPP320,IPP350 ISS250,120V,AC/8V DC









Electrical Characteristics:



• AC input voltage ……100-240VAC
• Output ………8V 2A
• Input frequency ………47-63Hz
• AC inrush current(max.) …….20A/230V
• Line regulation (full load).......±0.5%
• Peak- to -peak ripple …….<500MV
• Working temperature………….0-35°C@100%,50°C@70% load
• Setup rise hold up time………100ms,50ms,20ms@240VAC input
• Strong made totally compatible part
• Over voltage protection………115%-135% rated output voltage
• Withstand voltage………I/P-O/P 3Kvac,1 minute
• Over load protection ………115%-135%fold back current limiting, Auto-recovery
• Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
• Input Rated Voltage ……… 100 to 240VAC
• Input Voltage Range ……… 90 to 264VAC
• Input Rated Frequency ………50/60Hz
• Input Frequency Range ……… 47Hz to 63Hz
• Inrush Current ……… 60A Max
• No Load Power Consumption ……… within 0.3W
• Efficiency ……… 80% Min
• Line Regulation……… ± 1%
• Load Regulation ……… ± 5%
• Over Shoot ………10% Max
• Ripple And Noise……1% Max
• Rising Time ……… 20ms Max At 115Vac
• Output Hold up Time ……… 8ms Min At 230Vac
• Protection ………  OCP OVP SCP OPP
• Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
• Leakage Current ……… 0.25 mA At 230Vac



Environment:



• Operating Temperature: 0~40°C ,full load , normal operation
• Storage Temperature: -20~80°C with package
• Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,



Description:



General Information
Manufacturer Website Address	www.hylook.cn
Compatible Brand Name	Ingenico
Product Model	179901469
Product Type	AC Adapter
Technical Information
Device Supported	POS System
Power Description
Input Voltage	110 V AC
Frequency	60 Hz
Output Voltage	8 V DC
Maximum Output Current	2 A
Miscellaneous
Compatibility	Ingenico ICT220 POS System

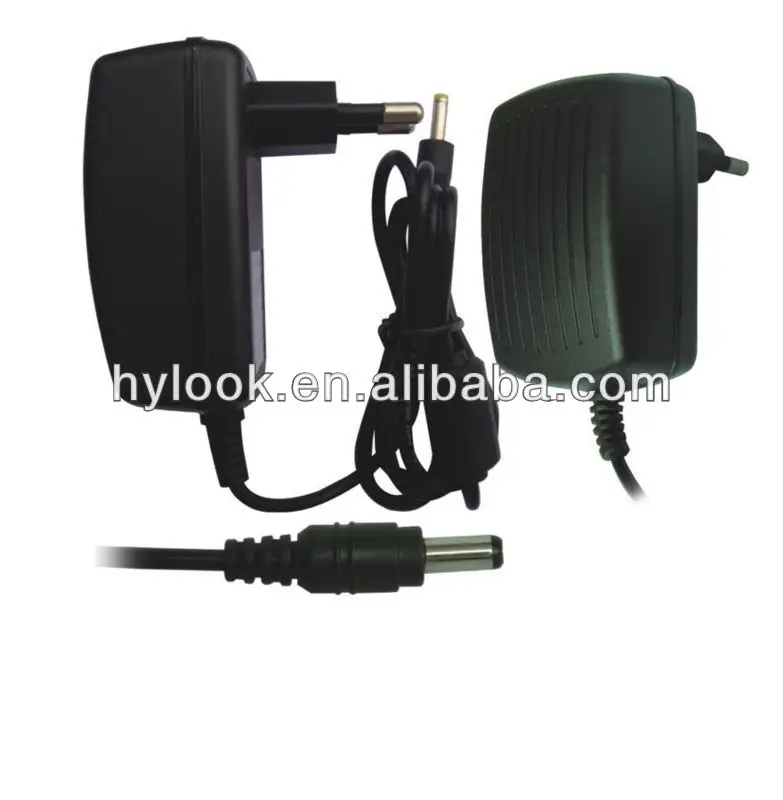

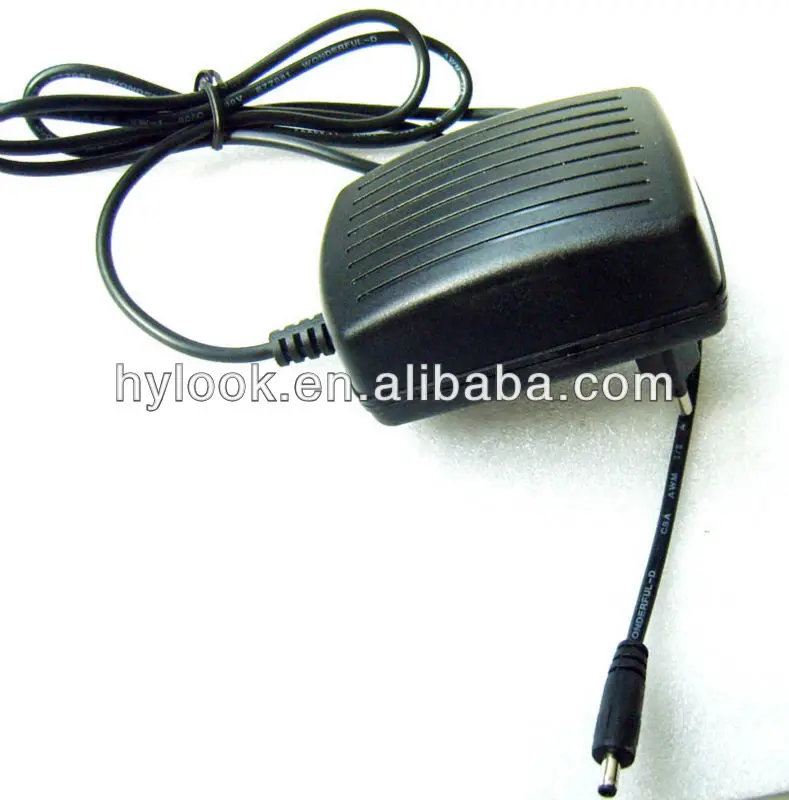

Photos:



Specification:

• Output Type:8V 2A
• Input: 100-240V AC 50/60Hz
• Cable length: about 120CM
• Out put adaptor : 5.5mm or according to your requirement
• Condition: Brand New 100%
• We have the Adapter for US/EU/UK/Australia
• 100% burn in test 4 hours,assure the quality:
• Packing





Advantages:



1.       AC input power suitable for the world



2.       Soft-start current can reduce the AC input impact efficiency



3.       With short-circuit and overload protection



4.       Compact size ,light weight



5.       100%full-load burning test
