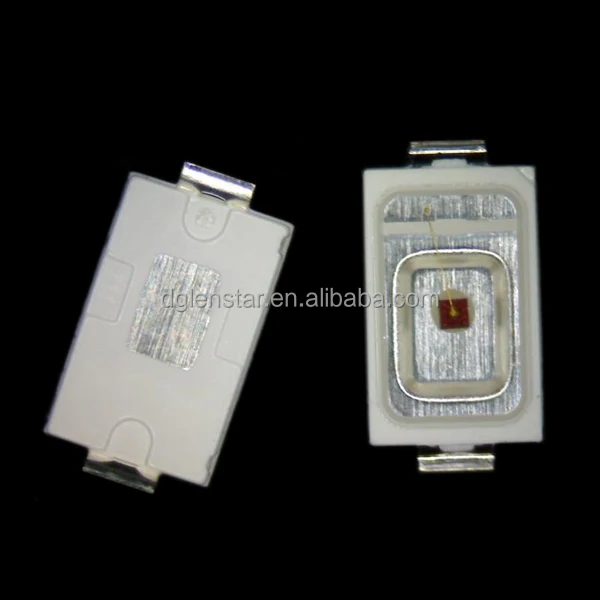

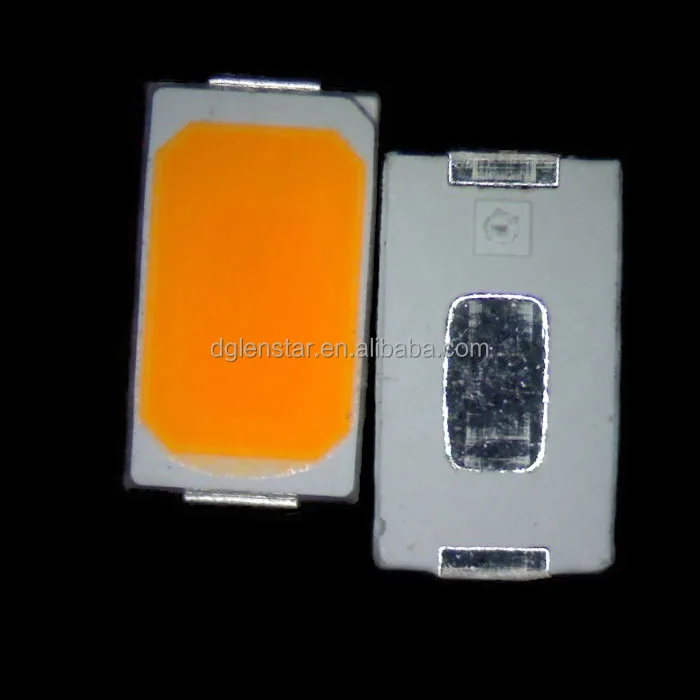

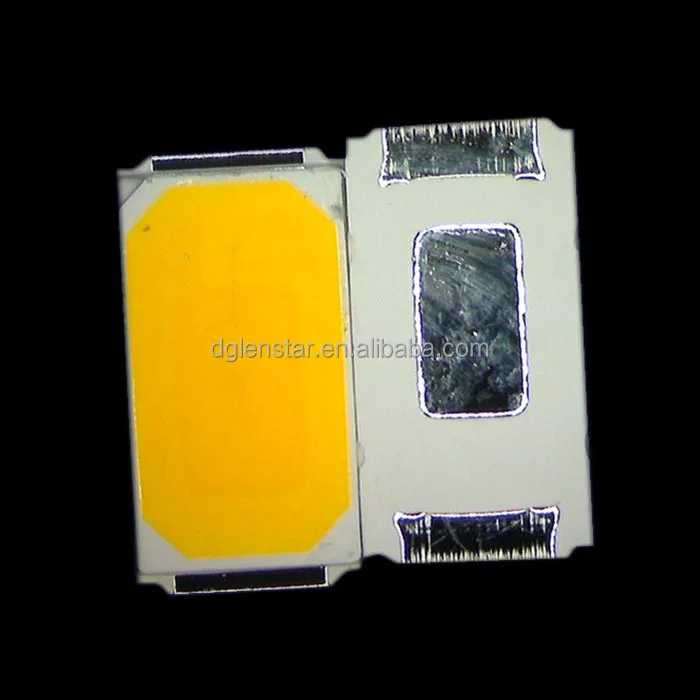

PLCC2 5730 Series T0.8mm 0.5Watt White Surface Middle Power White Color type SMD LED

Product Overview

Description

Descriptions:

• The PLCC2 5730 Series T0.8mm 0.5Watt White Surface Middle Power White Color type SMD LED utilizing advanced InGaN chip technology.
• The PLCC2 5730 Series T0.8mm 0.5Watt White Surface Middle Power White color type SMD LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission
• The low current requirement makes the device ideal for portable equipment or other application where power is at a premium.

Features:

• Longer Life Span
• PLCC2 package
• Heatproof design
• Faster Turn-on time
• High flux output
• High current capability
• Lower Maintenance Cost
• White package
• Optical indicator
• Colorless clear window
• Ideal for Tube lamp, backlight and light pipe application
• Inter reflector
• Wide Viewing Angle
• Suitable for automatic placement requipment
• Suitable for reflow and wave solder processes
• Available on tape and reel (12mm tape)
• Pb free
• Rohs compliant

Applications:

• Indicator and backlight for audio and vedio equipment
• Indicator and backlight for office and family equipment
• Flat backlight for LCD's, switches and symbols
• Light pipe application
• General use

Outline Dimensions (Unit: mm) :

Packing:

• 3,000PCS/Reel, Reel Diameter: 180mm
• 1Reel/Bag, Gross Weight: 0.13KG
• 10Bags/Box, Box Size: (L)25cm(W)20cm(H)13cm, Gross Weight: 1.5KG
• 5Boxes/CTN, CTN Size: (L)67mm(W)26cm(H)20cm, Gross Weight: 8KG

Notice:

• It is recommended to store the products in the following conditions: Humidity: 60% RH, Max Temperature: 5°C ~ 30°C (41°F ~ 86°F)
• Shelf life in sealed bag: 12month at <40°C and <90%RH.
• After the bag is opened, devices that will be subjected to infrared reflow, vapor-phase reflow, or equivalent processing must be: Mounted within 1 year at factory conditions of <30°C / 60%RH, or stored at <20%RH within zip-lock sealed.
