Automatic Drinking Water Producing Bottling Filling Machine Line
The whole line contacts 5 main parts:
1.Bottle blowing machine 2.Water treatment sytem 3.Water bottle washing filling and capping three in one machine 4.Labeling machine 5.Shrink Packing machine
1.Bottle blowing machine
To Blow the preformers to be bottles.

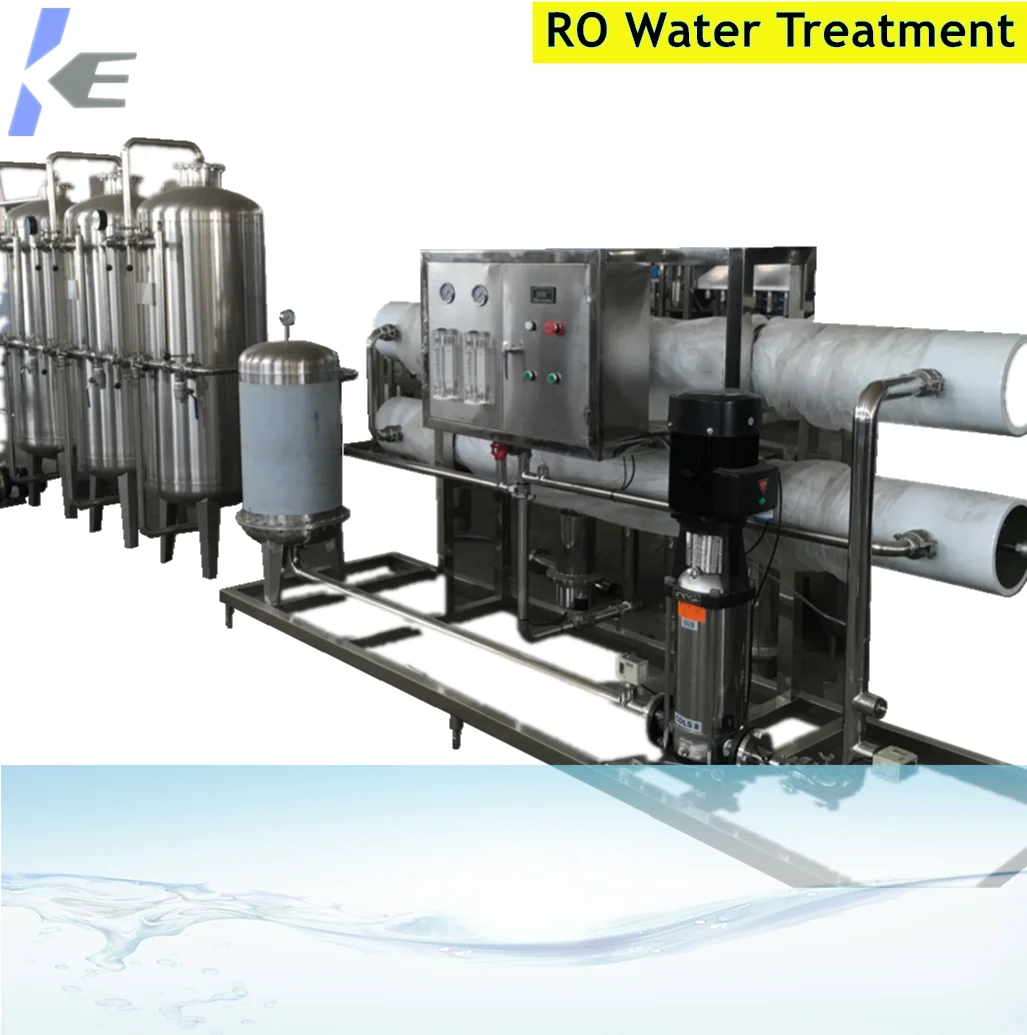

2.Water treatment sytem
To produce mineral water or pure water from well,lake,river and other source water

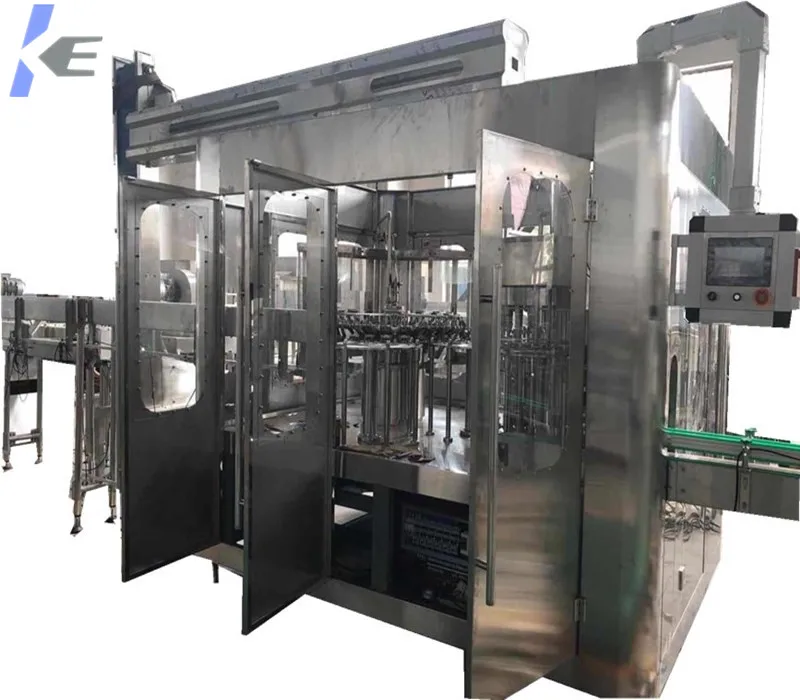

3.Water bottle washing filling and capping three in one machine
To wash the bottles ,fill drinking water into bottles,seal bottles with caps.

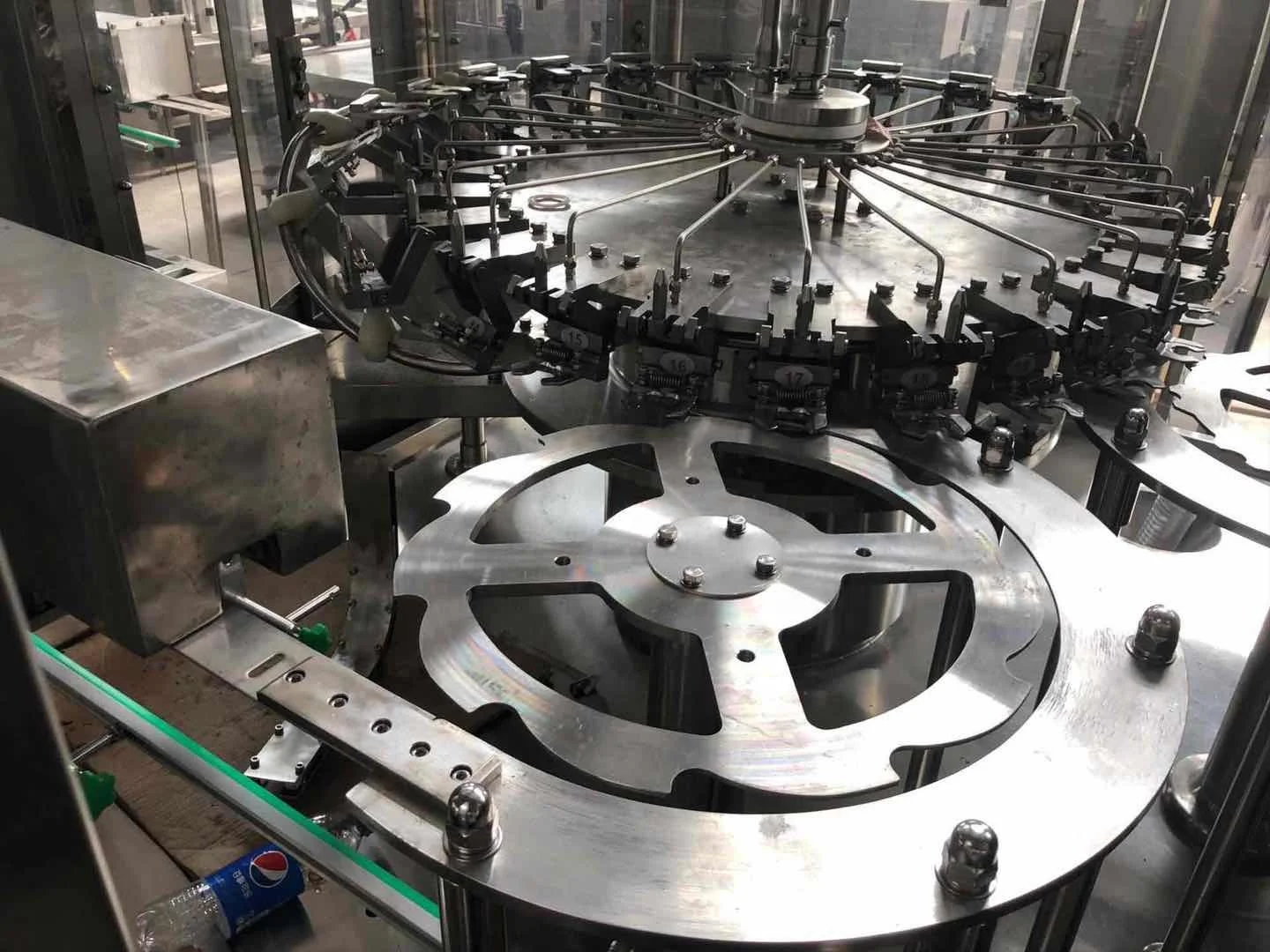

Washing bottle

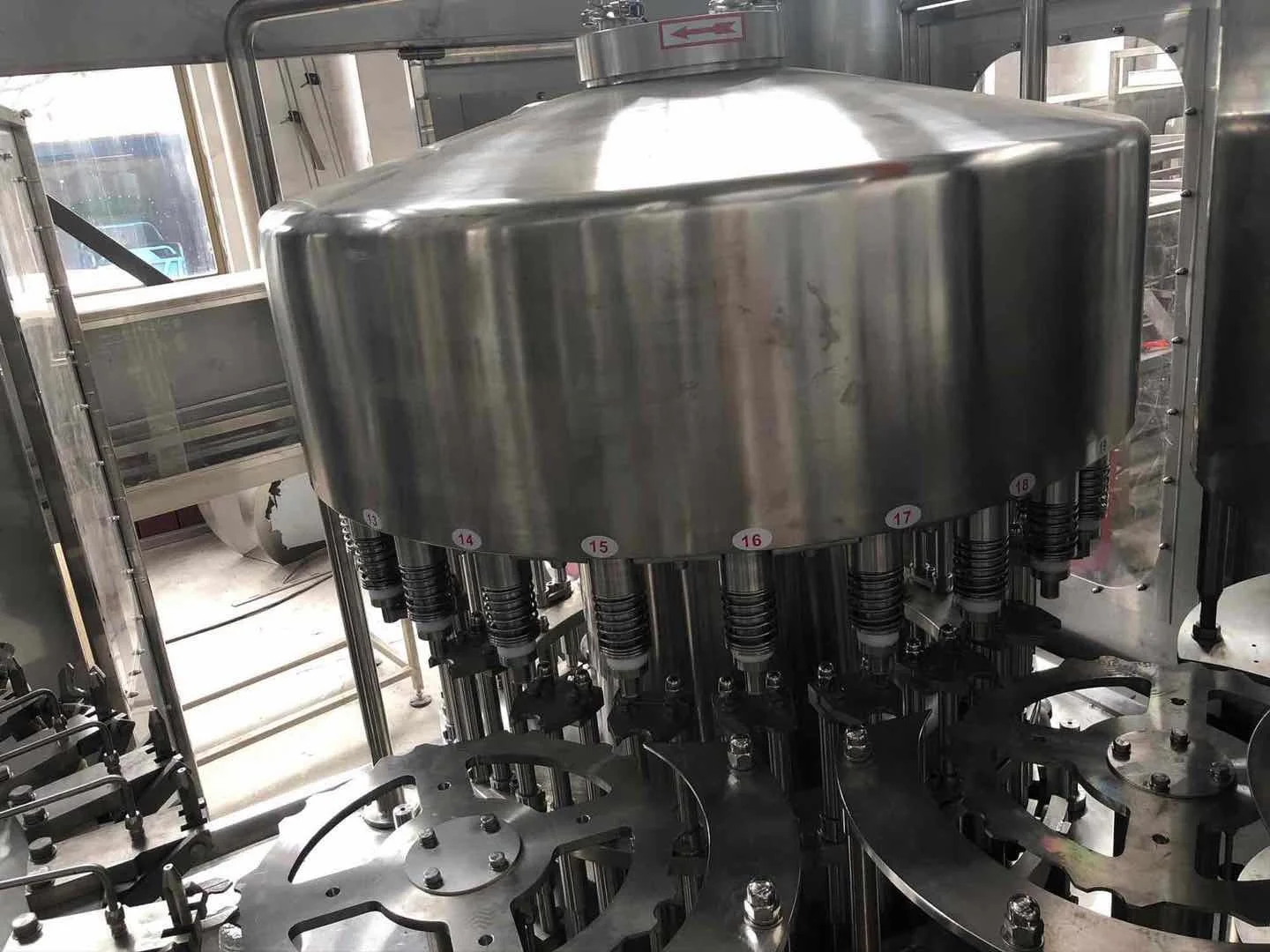

Filling
Climbing type automatic cap feeder
Product Paramenters
Mode
XGF12-12-5
XGF18-18-6
XGF24-24-8
XGF32-32-8
XGF40-40-10
Head of washing, filling, sealing
12-12-5
18-18-6
24-24-8
32-32-10
40-40-12
Production capacity (bottle/hour)
4000-5000
6000-8000
8000-10000
10000-12000
13000-14000
Suitable bottle diameter(mm)
D=50-90 H=150-310 330-1500 ml
D=50-90 H=150-310 330-1500 ml
D=50-90 H=150-310 330-1500 ml
D=50-90 H=150-310 330-1500 ml
D=50-90 H=150-310 330-1500 ml
Spraying pressure（Mpa）
0.25
0.25
0.25
0.25
0.25
Motor power（Kw）
3.13
3.84
4.1
5.6
7.1
Power of outer vacuum pump
0.3-0.7
0.3-0.7
0.3-0.7
0.3-0.7
0.3-0.7
Overall dimension (mm)
2100×1650×2 300
2400×1900×2 300
2800×2100×2 300
4200×2300×2 300
5000×2800×2 400
Weight(Kg)
2500
3000
4000
5000
9000

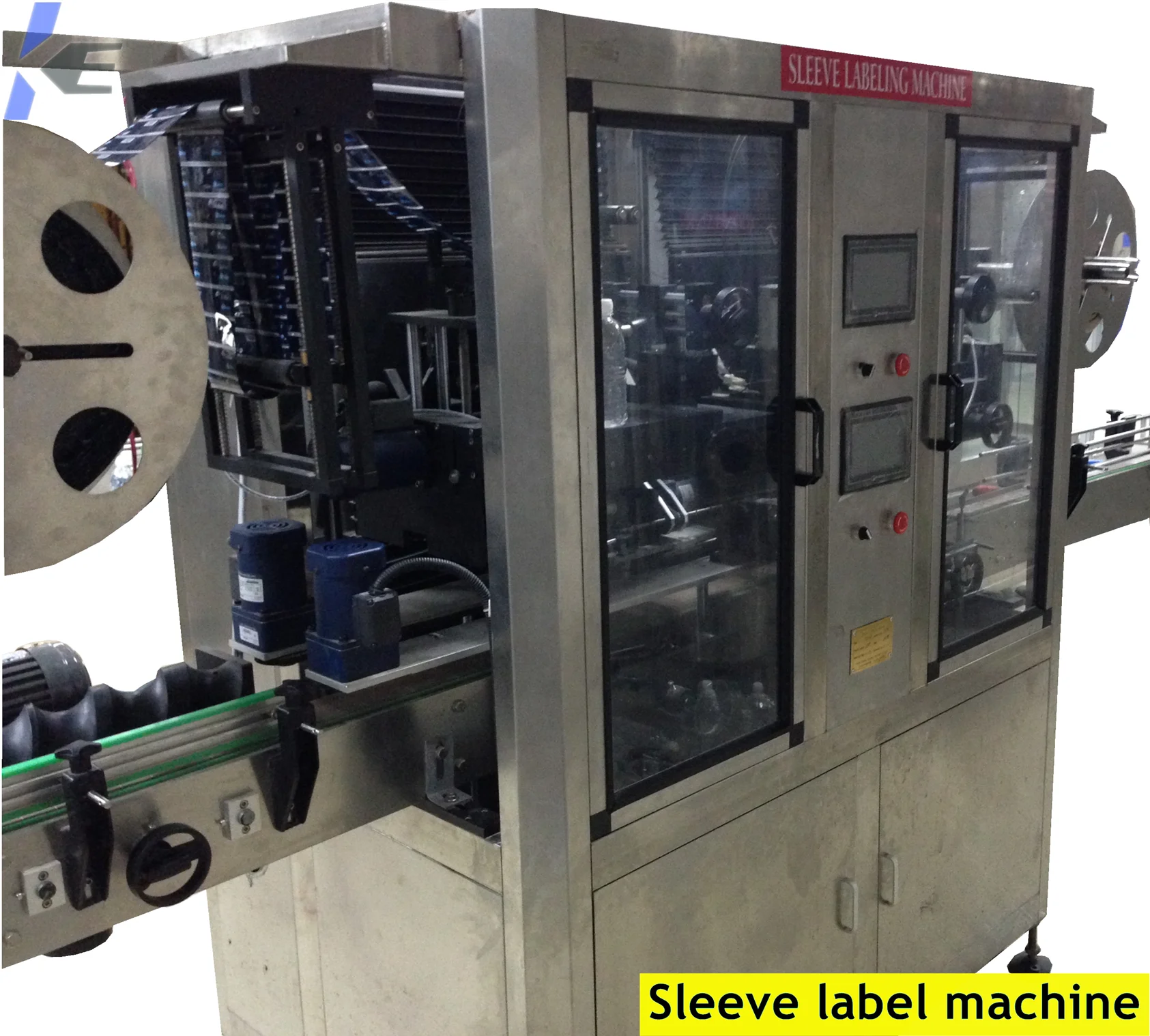

4. Sleeve labeling machine

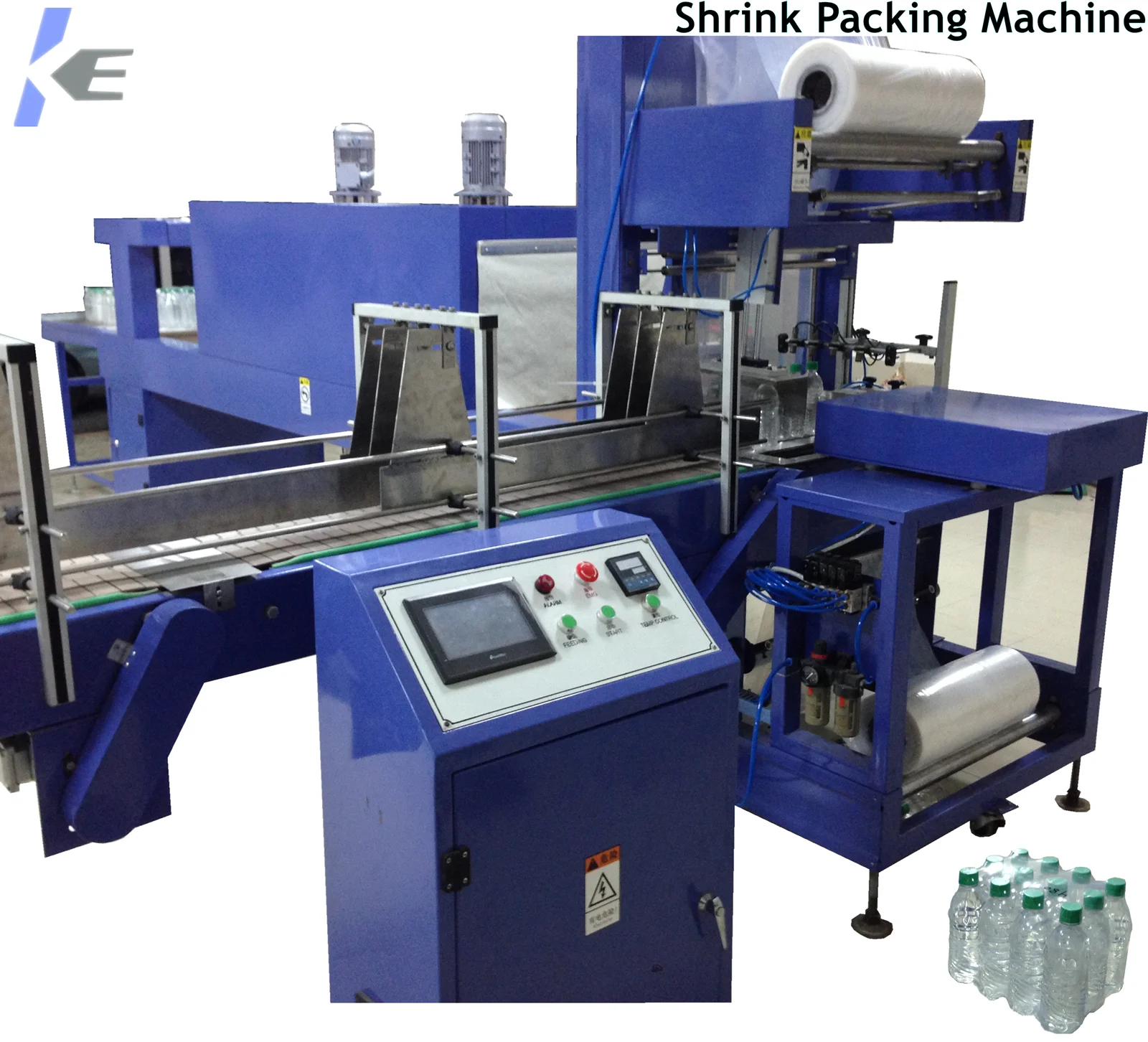

5.Shrink Packing machine
Company Profile
Processing Equipment
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customers Visit
Connection debugging before delivery
We will connect all the machines and pipes in the factory, simulate the operation in your factory, and disassemble and pack them into containers for transportation after they are qualified.
After sales and return visits
Certifications
One year warranty During warranty period,the spare parts is free. All spare parts will be supplied in cost price after warranty period
Remote services solve basic questions by telephone,email,whatsapp,wechat and video call.
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines. Operating manuals will be sent with machine or by email.
