Our PVC Plastic ribbed Formwork panel width are 500mm ,310mm. the length can be customized as per your request up to 6 m. The unit price is USD35 per square meter. Sure they can bring you more benifit. The reason I suggest you this type plastic formwork board are as following:

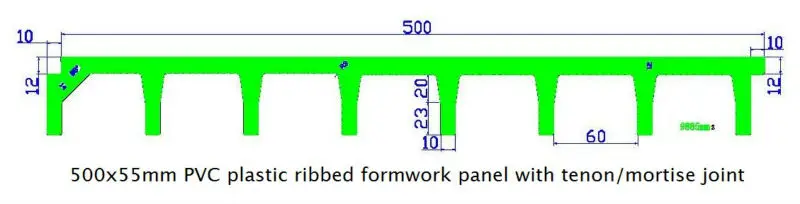

1. It is very durable because of the ribbed structure. The board surface is 12mm thick. Along the width of 500mm, there integrated are 8 ribbs who are 10~12mm thick and 43mm high, reinforce the surface panel. So the rigidness and strength is very high. They are very durable and reusable 40 times and even much more.
2. Thanks to the ribbs integrated on the formwork board, a lot of stringer, which must be necessary if you use plain boards which have no ribs as reinforcements, are saved. So using this type of ribbed formwork board, it is not only more easy and much faster to erect /assemble the formwork system, but also save a lot of materials.
3. The density of the material is about 0.65g/cm3, the board weigh about 13kg per square meter, hence it is very light and very easy and convenient for worker to handle.
4. The surface is very hard and very smooth. The surface wear resistance is excellent. Due to the surface is very smooth and water repellent, it is very easy to remove the formwork from cured concrete surface. The demoulding agent can be saved and a lot of labour works to remove the shuttering panel can be saved. The concrete surface is very nice and unnecessary to repair the concrete surface with mortar.
5. After their service life, the formwork board and waste can be recycled. Therefore there is no pollution to environment. It is eco-friendly sustainable economical shuttering boards for concrete casting works.

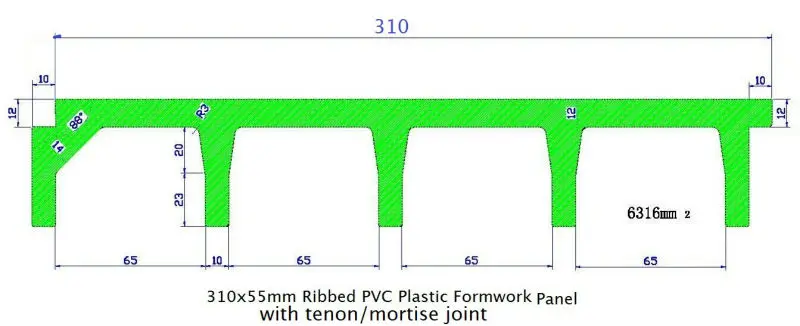

5. The width of the formwork board is 500mm, 310mm, 200 wide, the length can be costomized as long as clients request.
6. The boards have tongue and groove joint, and equipped with clamps, hence the boards can be assembled very easy and very fast.
7. Due to the structure of the tongue and groove , the external (male) corner formwork is unnecessary. We have internal (female) corner which is made of same material and same process.
8. After the fromwork were used or can not used due to damage, all the panels can be returned to our factory . And we shall give you, free of charge, our 1 new panels to replace your 3 old or damaged panels .
