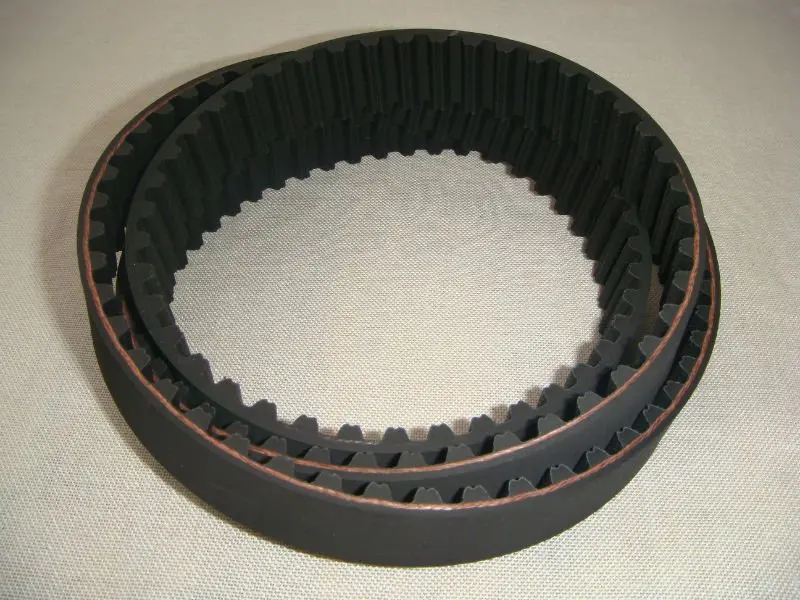

177R25 auto timing belt

Product Overview

Description

Raw Material of Automotive Synchronous Belt

The company applies the superior imported polymerized chloroprene rubber (or hydrogenated nitrile-butadiene rubber HNBR) from Japan as main raw materials. It matches with multiple auxiliary materials with different uses.framework materials are the superior imported glass fiber cord from Japan. Belt tooth surface applies nylon 66 lycra as protection. It has been manufactured in strict accordance with the technical standards.It features as the tidy outline, full tooth profile,long service life,low noise etc.

hydrogenated nitrile rubber band

Oil resistance excellent - oil resistance with very low inflation, higher oil resistance;

Durability good - dynamic performance than chloroprene rubber belt for the gifted, is the first choice in the luxury car drive belt; Wear properties gifted - wear than small chloroprene rubber belt to reduce the noise, effectively extending the service life of the belt









Model	Pitch	Tooth height	Belt height
ZA	9.525	1.91	4.10
ZB	9.525	2.29	4.50
ZH	9.52	3.50	5.50
YH	58.00	3.04	5.20
ZR	9.525	3.20	5.70
YS	8.00	200	5.10
ZS	9.525	3.53	5.70
YA	8.00	2.95	5.20
ZAS	9.525	2.32	4.62
ZBS	9.525	2.76	5.06
S8M YU	8.00	3.05	5.30
FS	9.525	3.05	5.35
MY	8.00	3.06	5.20
MR	9.525	3.54	5.69
RU	9.525	3.41	5.40
ZLB	9.525	2.70	5.05
