LCD TV motherboard

Product Overview

Description





USB LCD TV motherboard with H.264 HD play

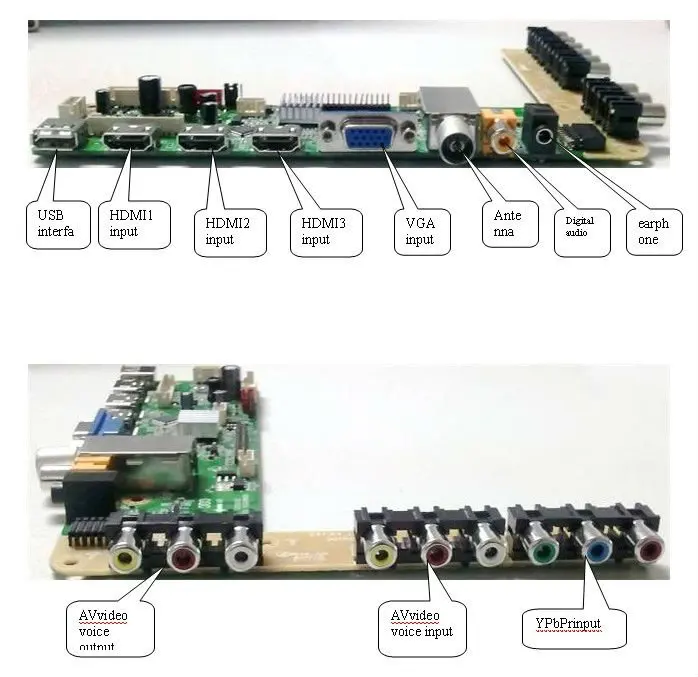

PORT:TV+3HDMI+VGA+USB+YPBPR+2AV+SPDIF

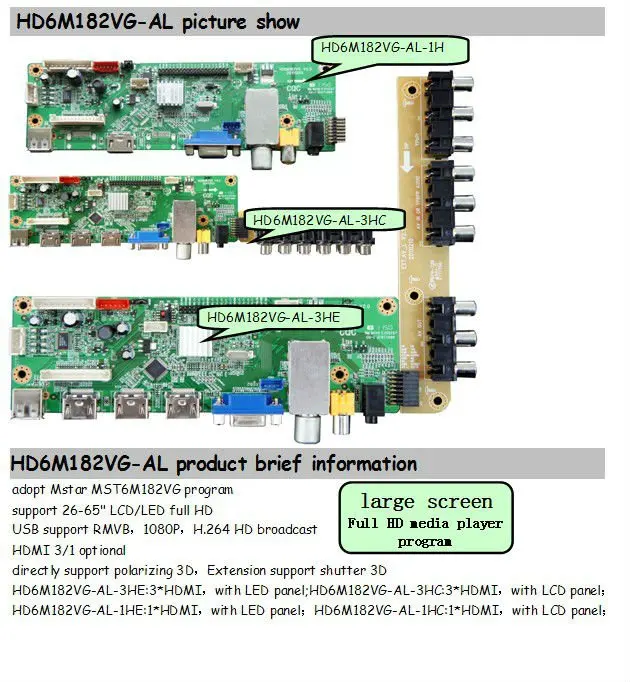

 Universal HD LCD TV main controller board    (HD6M182VG-AL)

• TV system support PAL+SECAM/NTSC system,optional full standard system .
• Max supports FULL HD 1920X1200 resolution TFT-LCD screen.
• Optional LCD TV strcture or LED TV strcture.
• Optionally used for vehicle,Monitor series mainboard .
• Analog high definition port signal(ypbpr)input,Max support 1080 format.
• High definition digital multimedia port(HDMI)1.4,HDCP1.2 and DVI 1.0.

Selling port : (1) adopt Mstar MST6M182VG program

                        (2) USB support RMVB ,1080P ,H.264

                        (3) suport passive 3D ,Extend support active 3D





26-55 inch TFT LCD module with TV main controller  board different VERSION OF THIS TV main controller  board



 Package











APPLICATION



TV set/LCD monitor/Advertising machine/industrial machine/security monitor display/projection equipment .
