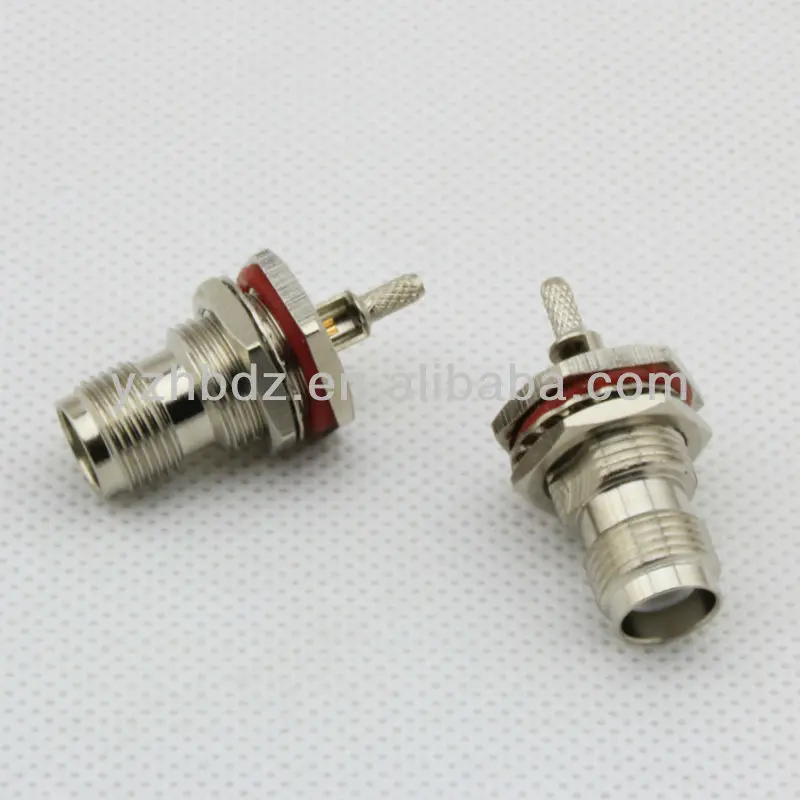

Hongbo TNC CONNECTOR
- Category: >>>
- Supplier: Yangzhou Hongbo Electronics Co. Ltd.
Share on (912818457):
Product Overview
Description
TYPE TNC is a Kind of RF coaxial connectors with screw Coupling mechanism, Characteristic impedance is 50Ω. The characteristic of connector is in wide working frequency, reliable connectoin,great vibration performance etc. They are used in connection with RF coaxial cable in the computer network,radio station, the mini-car telephone, navigation of spaceflight, microwave monitor system using radar and all kinds of radio equipments.
Major Technical Characteristics | MATERIAL & PLATING | |||
Temperature Range: | -55~+155°C(PE Cable -40~+85°C) | |||
Impedance: | 50Ω | Body | brass | Nickel plated |
Frequency Range: | DC~11GHz | |||
Working Voltage: | 1000V r.m.s at sea level | Resilient contact | Beryllium-copper | Gold plated |
Withstanding Voltage: | 2500V r.m.s at sea level | |||
Contact resistance: | a)Center Contact ≤1m Ω b)Outer Contact ≤1m Ω | Pin contact | brass | Gold plated |
Insulation resistance: | ≥5000MΩ | Socket contact | Beryllium-copper | Gold plated |
Center Conductor retention force: | ≥0.56N | insulator | PTFE |
|
Vibration | 100m/S2(10~500Hz),10g | |||
Coupling nut retention force | 450 N | Crimp ferrule | Copper alloy | Nickel or gold plated |
Disengagement force | 8~63 N | |||
Voltage Standing Wave Ratio: | Straight ≤1.15/ 6GHz Right angle ≤1.25/6GHz | O-ring sealing | 6146silicone rubber |
|
Durability(mating): | ≥500times(cycles) | |||
Applicable Standard: MIL-C-39012 CECC 22210 IEC-60169-16
