mini usb female smt AB type 10pin connector

Product Overview

Description

usb connector
→Specification←
Rated Load:	1Amp	Contact Resistance:	30M Ω  Max
Insulation Resistance:	500MΩ Min(AT 500V DC	Voltage Resistance:	AC 500V/Min
→Package←	Inner Packing:Plastic plate or Plastic tube  . Outside Packing: Standard export carton



 usb connector



Specifications







Current rating: 3AMP







Contact resistance: 20MΩ Max







Insulation resistance: 1000 MΩ Min







Withstand voltage: AC 500V











Operation temperature:







Gold plated, from -55°C to +105°C







Tin plated, from -40°C to +105°C







Contact material: Brass/Phosphor Bronze







Contact plating: Au or Sn over 50 u" Ni







Insulator material: Polyester (UL94V-0), Nylon-66/PBT







Color:Black/Blue/Red/White/Yellow/Grey











Advantage



1.All kinds of products 100% tested before delivery..



2.Well-equipped testing facilities and strong technical force.



3. Prompt delivery and competitive price and quality.



4. Used in the most of home appliances,computer,PCB,LCD,TV.



5.Our factory has nearly ten years manufacturing experience.







We provide many kinds connectors, such as pin header ,female header, box header, ejector header, ic socket, d-sub connectors ,sockets,switches, cables etc,and promise all products are ROHS with high quality, if you have any need or question,please don't hesitate to contact us.







Factory  Photo:

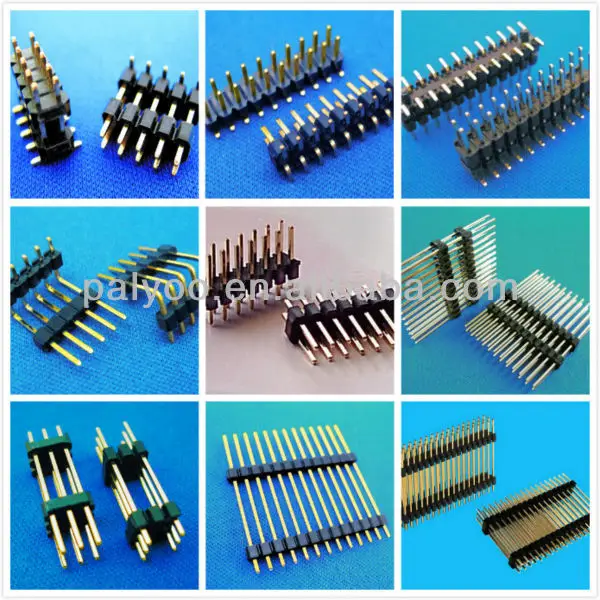

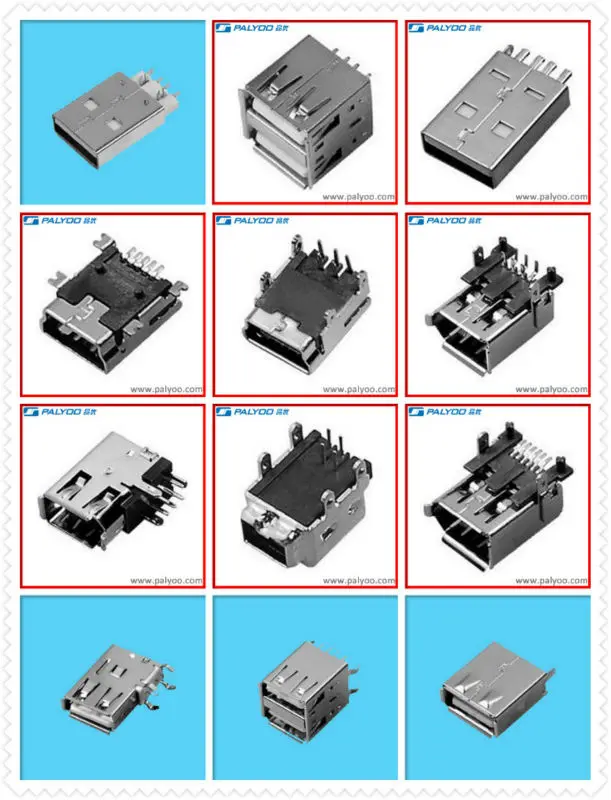

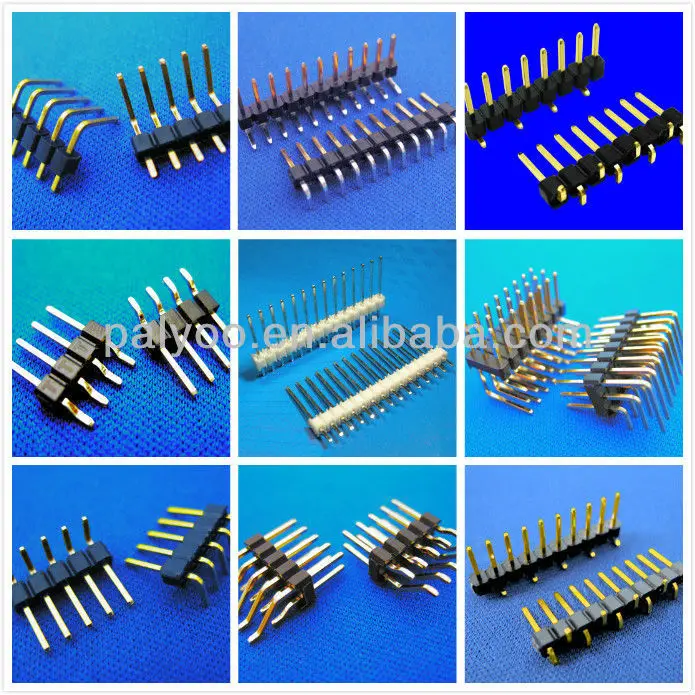

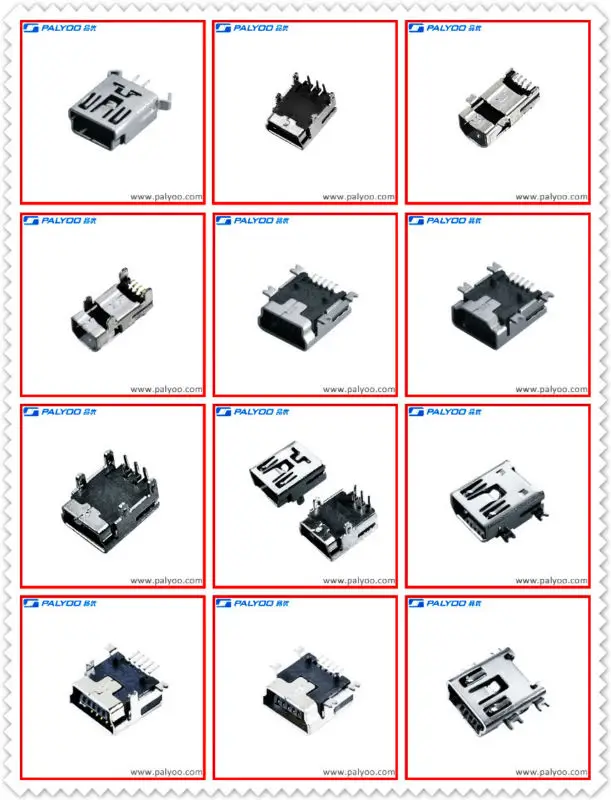

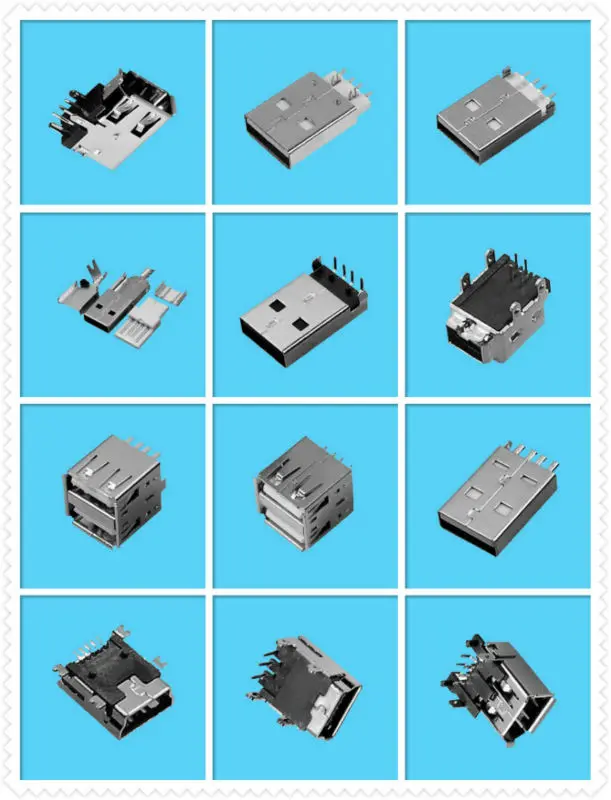

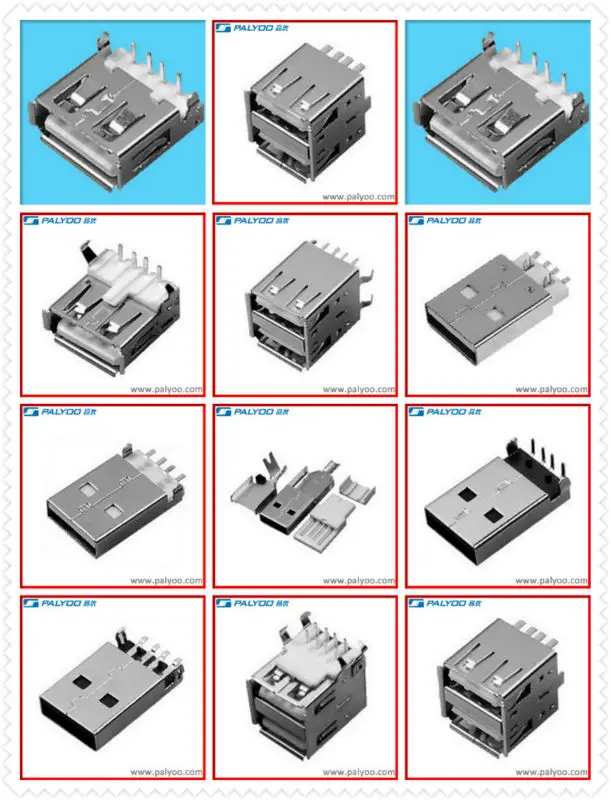

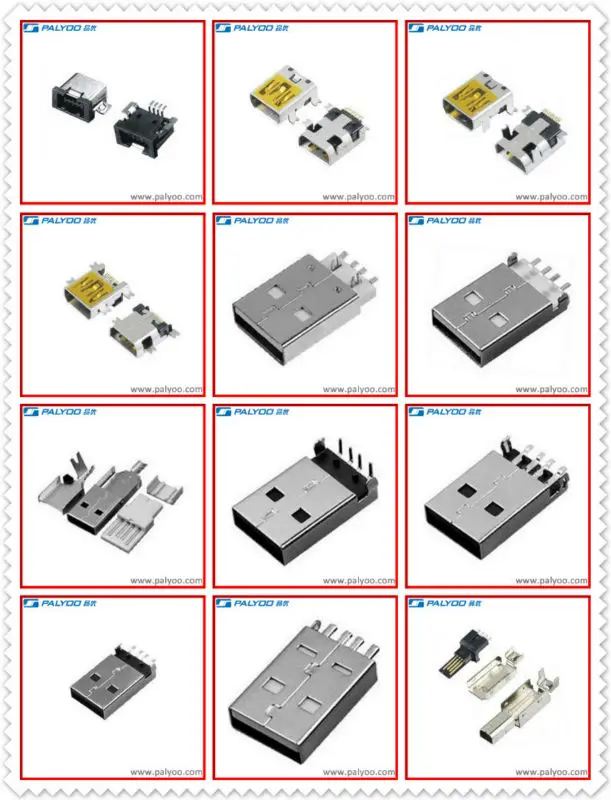

Connectors Products photo:
