Wrapping Band Wiring Accessories

Product Overview

Description

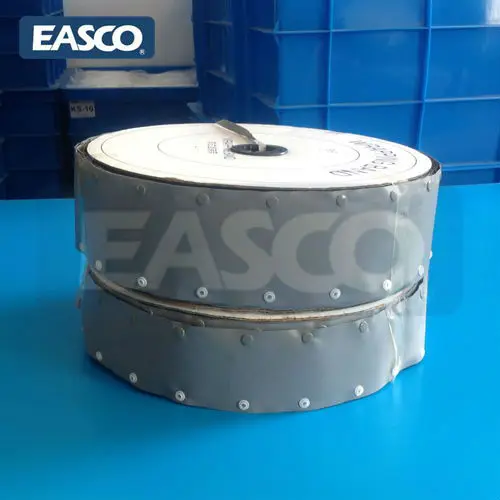

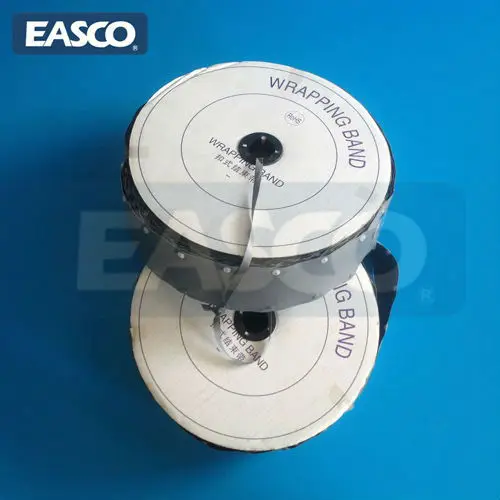

EASCO Rohs Wrapping Band Routing Wires  !



FEATURES:



1)Rosh certified EASCO Button Type Wrapping Band.



2)Material: PVC Flamability rating.



3)Color: Grey.



4)Good for cable wrapping.



5) Easy to wrap, re-usable.

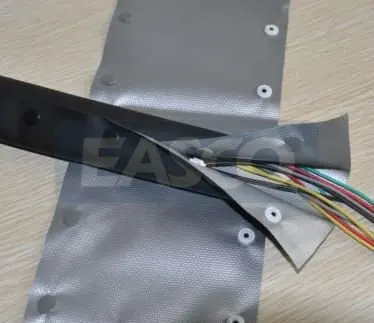

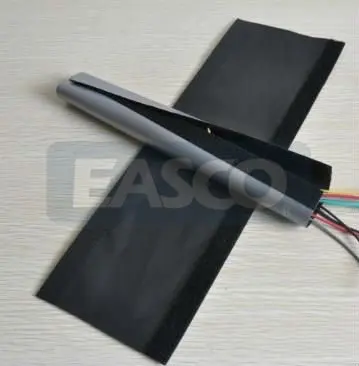

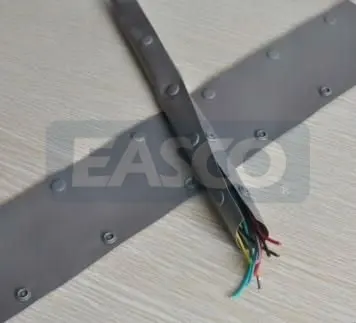

6)An economical way of cable binding. Easily applied to electric harness, cables and wire bundles.



SPECIFICATIONS:

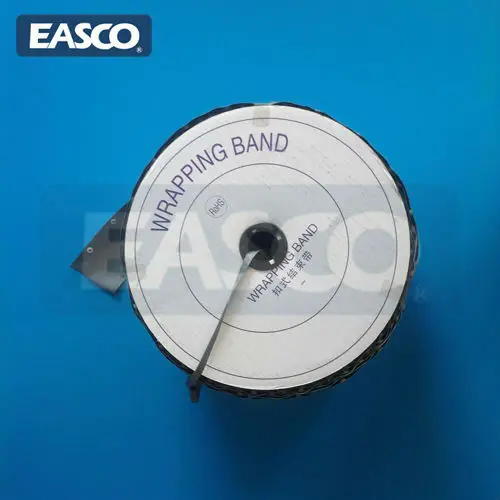

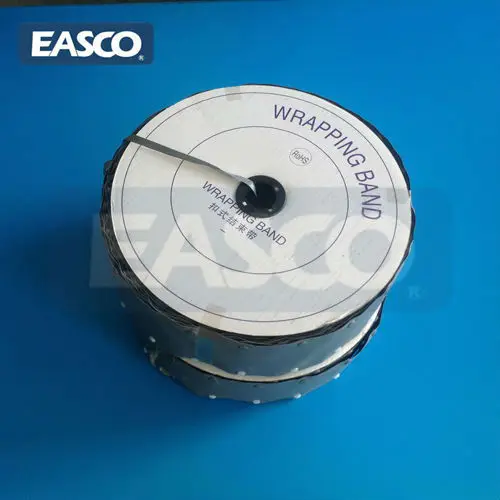

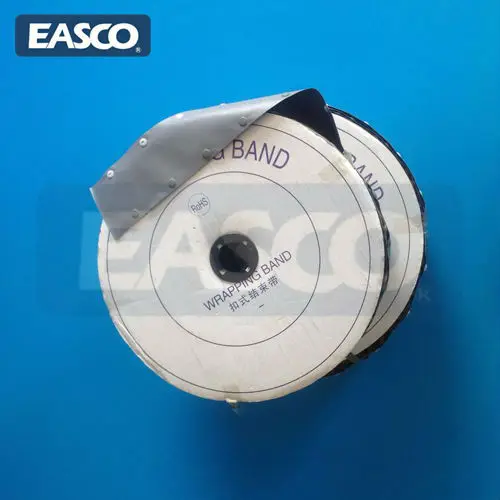

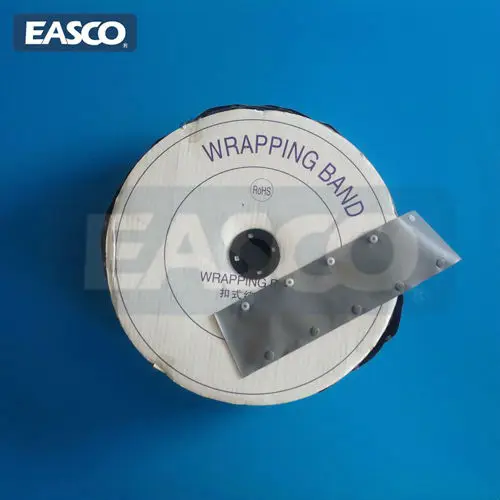

Button Type Wrapping Bands:

Material: PVC Flamability rating



Item No.	Button Distance	Max.Bundle Dia.	Packing
	(mm)	(mm)
WBS-75	55	15	50M/Roll
WBS-90	70	20
WBS-100	80	25
WBS-115	90	30
WBS-146	126	40
WBS-175	155	50
WBS-241	221	60
WBS-333	313	100



Item No.	Button Distance	Max.Bundle Dia.	Packing
	(mm)	(mm)
WB-60	40	12	73M/Roll
WB-80	60	19
WB-100	80	25
WB-120	100	31
WB-140	120	37
WB-160	140	44
WB-180	160	50
WB-202	182	57
WB-242	222	70
WB-335	315	100
WB-495	475	150



Item No.	Button Distance	Max.Bundle Dia.	Packing
	(mm)	(mm)
WBT-70	70	15	50M/Roll
WBT-84	84	20
WBT-100	100	25
WBT-115	115	30
WBT-147	147	40
WBT-183	183	50
WBT-246	246	70
WBT-340	340	100

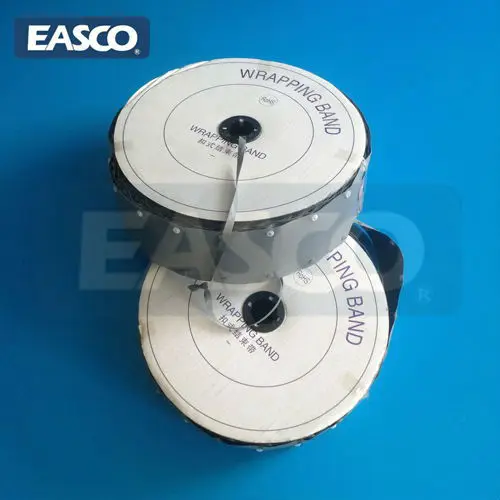

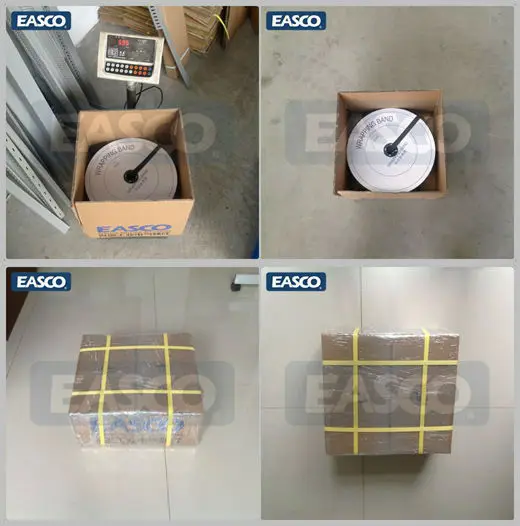

Packing for 2 Rolls of Button Wrapping Band WB-60 :

Desp.	Button Type Wrapping Band
Item No.	WB-60
Qty	2 Rolls  (73Mtrs x 2 Rolls)
G.W.(kg)	6.10kg.
Meas(cbm)	40 x 40 x18

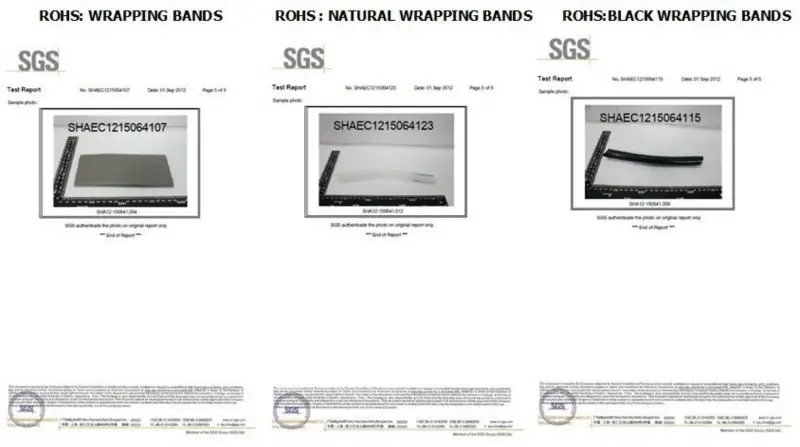

CERTIFICATES FOR EASCO SPIRAL WRAPPING BANDS:

ROHS FOR SPIRAL WRAPPING BANDS, ROHS FOR NATURAL WRAPPING BANDS, ROHS FOR BLACK WRAPPING BANDS.UL94V0 FOR WRAPPING BANDS.



Pictures of EASCO Wiring Accessories Plant:

EASCO, founded in 1993, is a manufacturer with core competencies in the fields of wire & cable management in China.



EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, ourproduct categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
