Hot PVC WPC Shuttering Construction Making Machine/Plastic Wood Machine/Building Template Production Line

Product Overview

Description



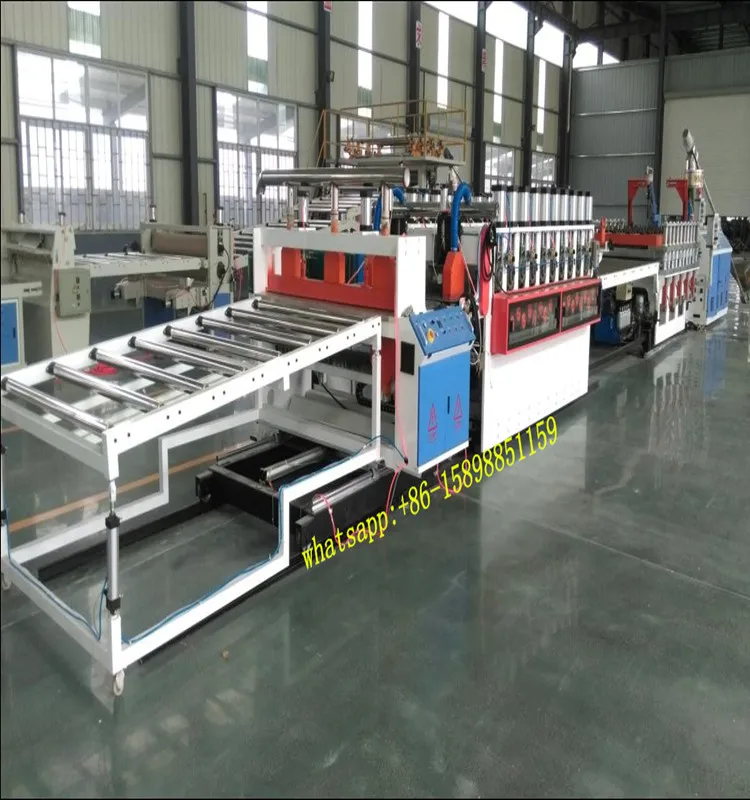

               Hot PVC WPC Shuttering Construction Making Machine/Plastic Wood Machine/Building Template Production Line



Characteristics of the equipment

This machine uses the special designed screw and barrel, die and extrusion process to produce plastic and wood products.The series of products are: One step thick plastic and wood plate extrusion machine, one step plastic and wood profile extrusion machine, one step plastic and wood decoration plate extrusion machine, plastic and wood pelletizing machine and different kinds of plastic and wood dies.



Configuration

Components	Amount
1,Conical double screw extruder SJSZ-80/156	1 set
2,Extruder Mould	1 set
3,Vacuum calibrating and forming table	1 set
4,ZS-1450 Cooling bracket	1 set
5,Haul-off unit	1 set
6, Transverse cutting bracket	1 set
7, Dropper for the finished product	1 set
8, Control system	1 set



 Main Technique Parameter

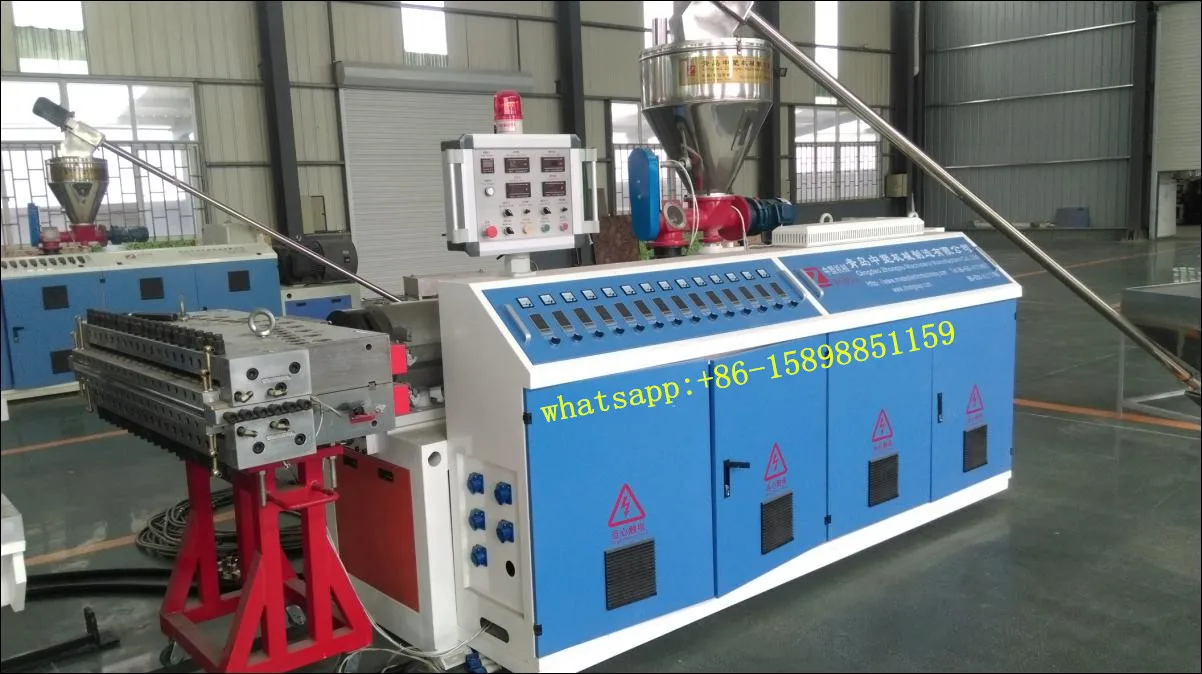

1,Conical double screw extruder SJSZ-80/156



a) Output: 300-400kg/h

b) Transmission system:

High torque output vertical reducer gear box

Structure: vertical

Provided with outside-circulation cooling system

Imported thrust bearing and high-torque output

Material of Gear: 20CrMnTi,with gear grinding technical treatment and cementite

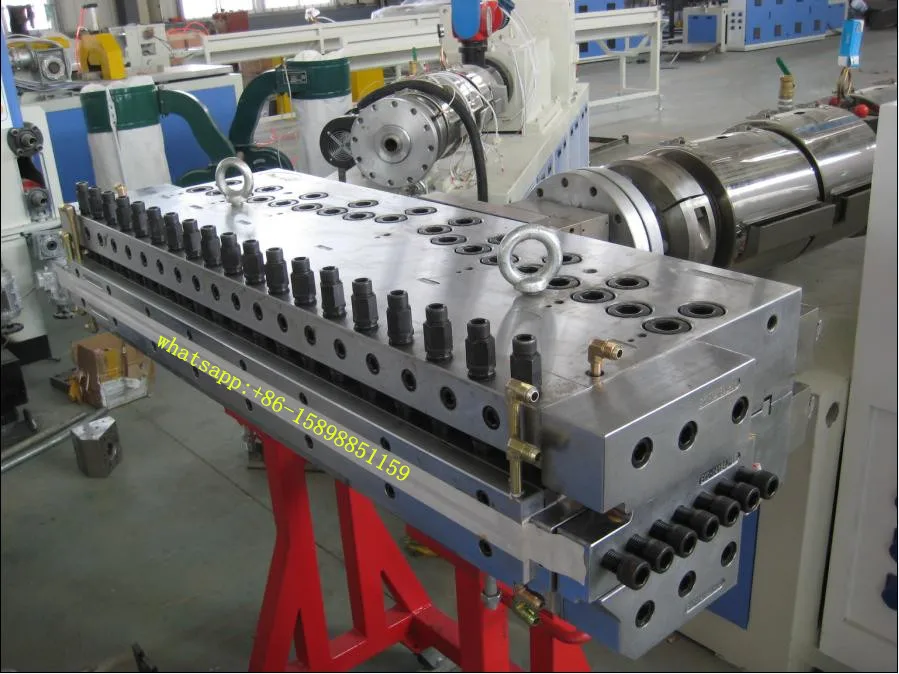

2,Extruder Mould

a) Structure: special design for PVC WPC board

b) Width of die: 1400mm

c)Thickness: 12-20mm

d) Material: 5CrNiMo, high quality alloy

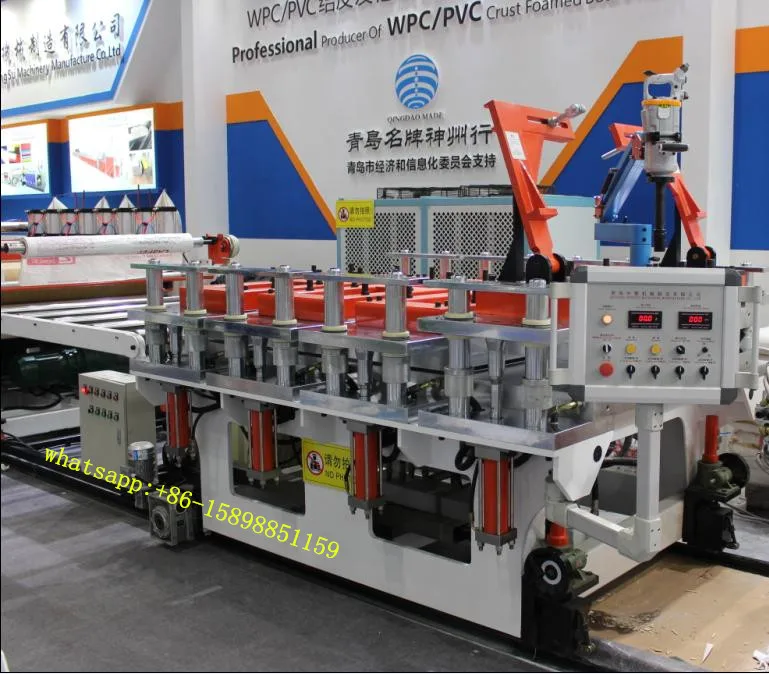

3,Vacuum calibrating and forming table



Max. calibrating width: 1450mm

Calibrating table length:2000mm

Vacuum pump power:5.5kw*2 units

Max. exhausting volume:80m3/min

Water pump power:4kw

4, 4,ZS-1450 Cooling bracket

a) Total length of roller bracket 5000mm

b) Cooling Roller

Diameter: Ø63mm

Length: 1220mm

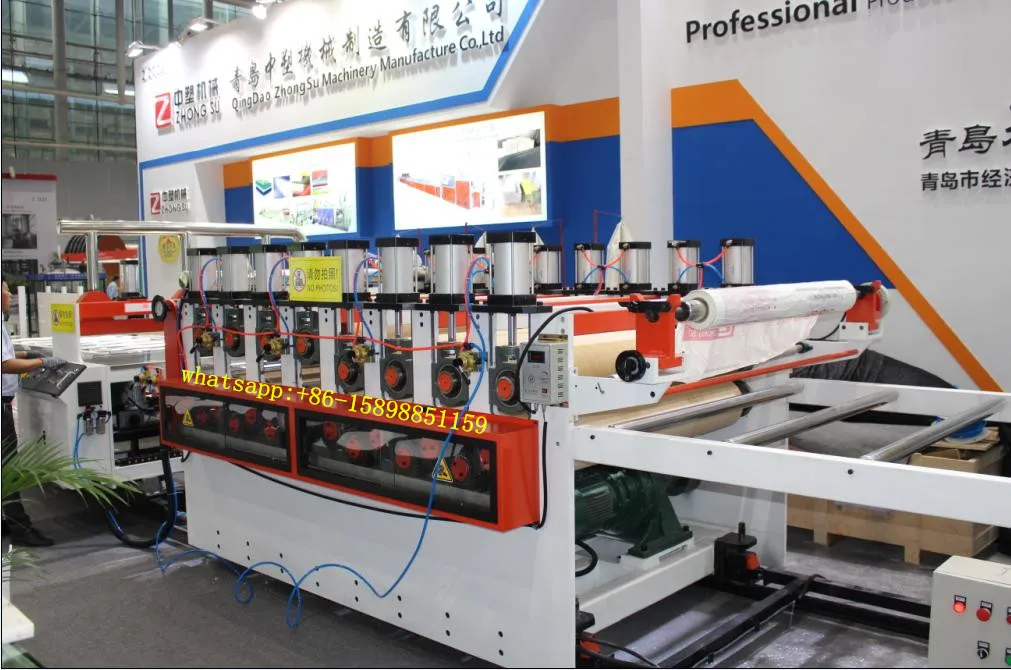

5, 5,Haul-off unit

Max. pulling width:1450mm

Max pulling thickness:20mm

Pair roller qty: 7 pairs

Driven motor power:5.5kw

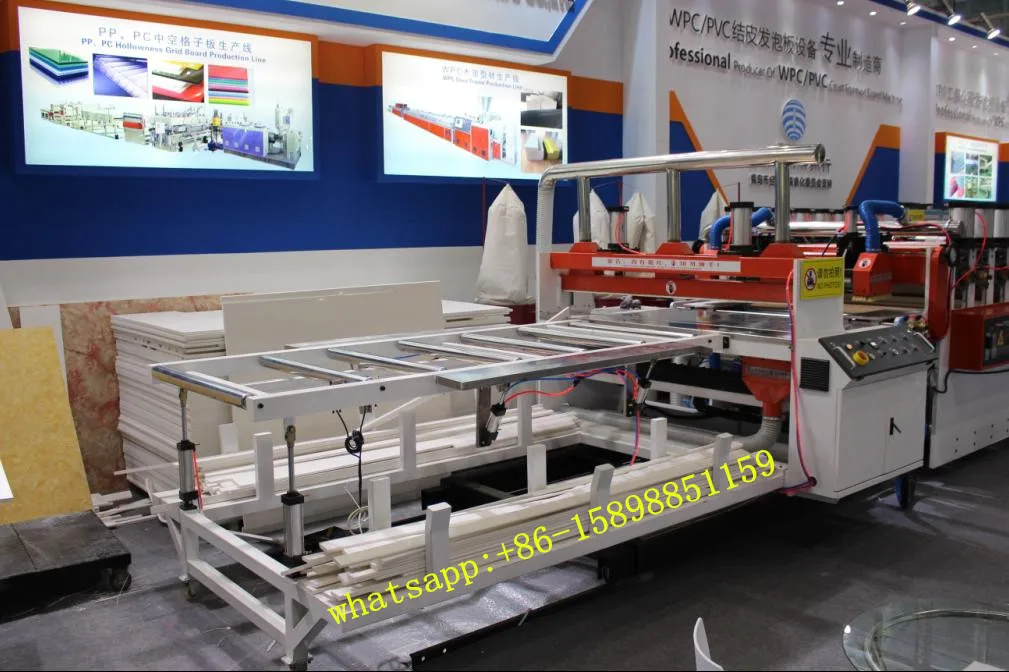

6, Transverse cutting bracket

Rack type synchronize pressing unit

Special design flat cutting motor: 2.2kW

With non-pole cylinder left and right moving system
