PVC Coated metal corrugated tube for electric wire

Product Overview

Description

PVC Coated metal corrugated tube for electric wire

Structure: GI inside-squarelock,flexible

                PVC outside-insulate, waterproofness







PVC Coated metal corrugated tube for electric wire

1.Material:GI&PVC



2.Specification:As below or special non-standard sizes can be customized.



NO.	Size	Inside diamter/mm		Out diamter/mm
		Min	Max	Min	Max
JH-006	3/16"	5.70	6.00	8.90	9.2
JH-008	1/4"	7.80	8.10	12.0	12.3
JH-010	5/16"	9.70	10.0	14.0	14.3
JH-012	3/8"	12.3	12.6	16.5	16.8
JH-016	1/2"	15.7	16.0	20.5	20.8
JH-020	3/4"	19.7	20.0	25.3	25.6
JH-025	1"	25.3	25.8	30.7	31.2
JH-032	1-1/4"	32.3	32.8	38.5	39.0
JH-038	1-1/2"	38.3	38.8	45.7	46.2
JH-051	2"	50.0	50.5	58.5	59.3
JH-064	2-1/2"	62.5	63.2	73.5	74.0
JH-075	3"	73.0	73.7	84.5	85.2
JH-100	4"	97.5	98.5	109.5	110.5





3.Packing Uint:20/roll  &25m/roll  &50m/roll  &100m/roll  &200m/roll  &As your requirement





4.Colar:Black,grey, other colors can be customized







5.Description of PVC Coated metal corrugated tube for electric wire:

 1).Produced according to various national standard.



 2).Protection levels : IP66



 3).Working temperature: -10°C~+80°C



 4).Properties of PVC Coated metal corrugated tube for electric wire:



   a)Flexible, excellent tenacity and high mechanical strength.



    b)Bellows inside and outside.



   c)Luster in surface and Insulation.



    d)wind resistant;anti-friction; resistant to oil,acid and solvents;uv-resistant.



    e)free of halogen,phosphor and cadmium.



  5). Durable and long life, Inner core made from  galvanized iron strip.



  6).Application of PVC Coated metal corrugated tube for electric wire:

  Machine tool, machine building,electric insulation protection system, electric automatic control system,public traffic equipment, metro,electric locomotive and air-conditioner equipment, etc.

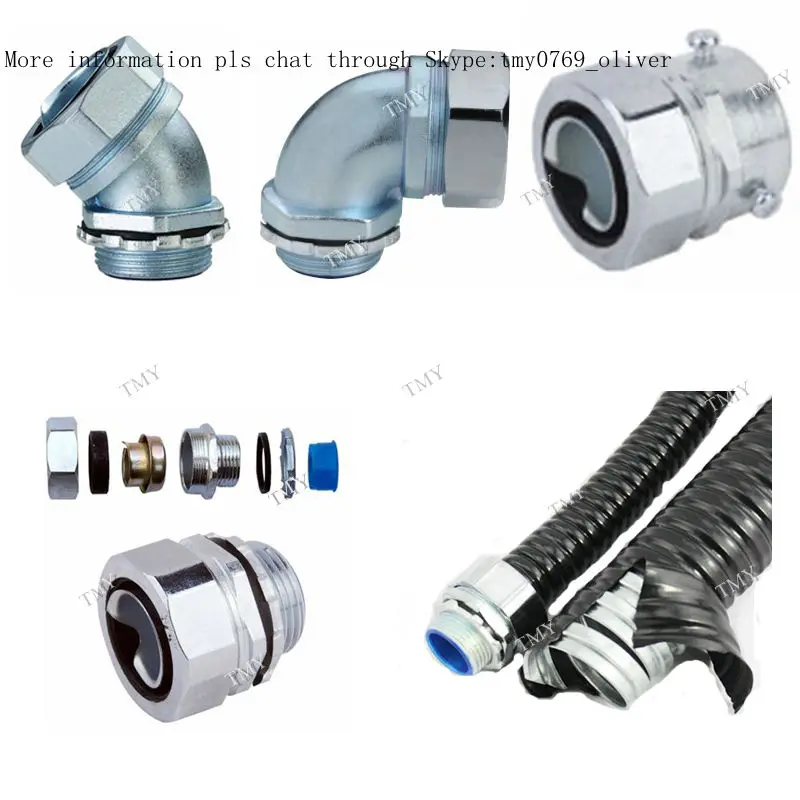

 6.Fitting of PVC Coated metal corrugated tube for electric wire



About us:

• ♣   ISO9001:2008,SGS,UL94



• ♣   Specialise in this field for 10 years.



• ♣   We are manufacturer.



• ♣   Advanced machine to  keep production running smoothy.



• ♣   Rapid logistics system.



• ♣   More than 5000 square meters factory.



• ♣   100 workers and 8 engineers.



• ♣   ISO9001:2008 Quality Management System.



• ♣   Delivery On time.



















More products of our company







MARKS:

• PVC Coated metal corrugated tube for electric wire

 only for wires and cables protection, not for other usages such as water,gas,food,etc.
• The size above only for reference,more details pls contact us.
