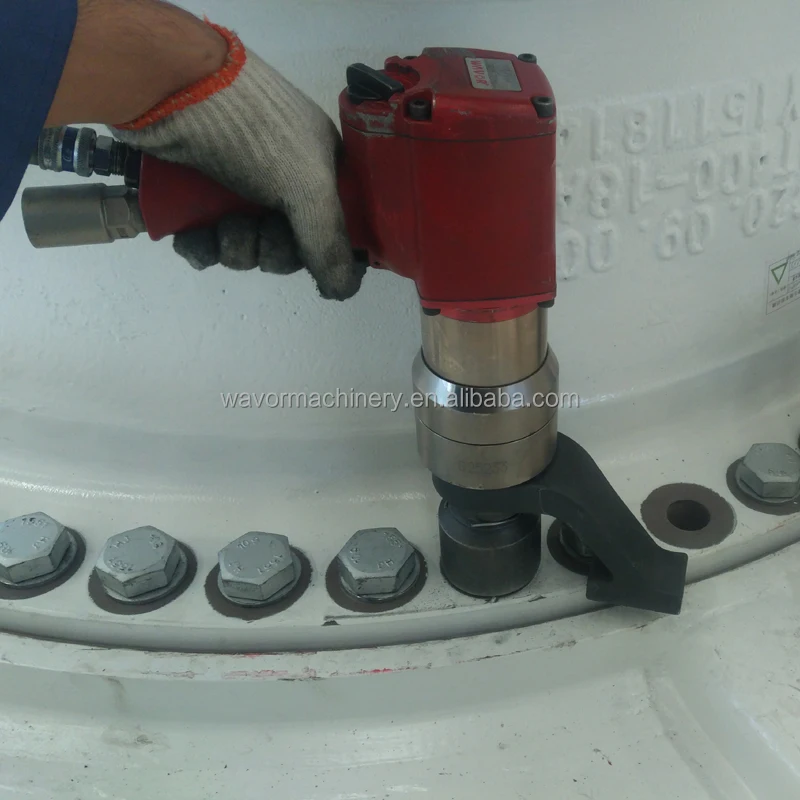

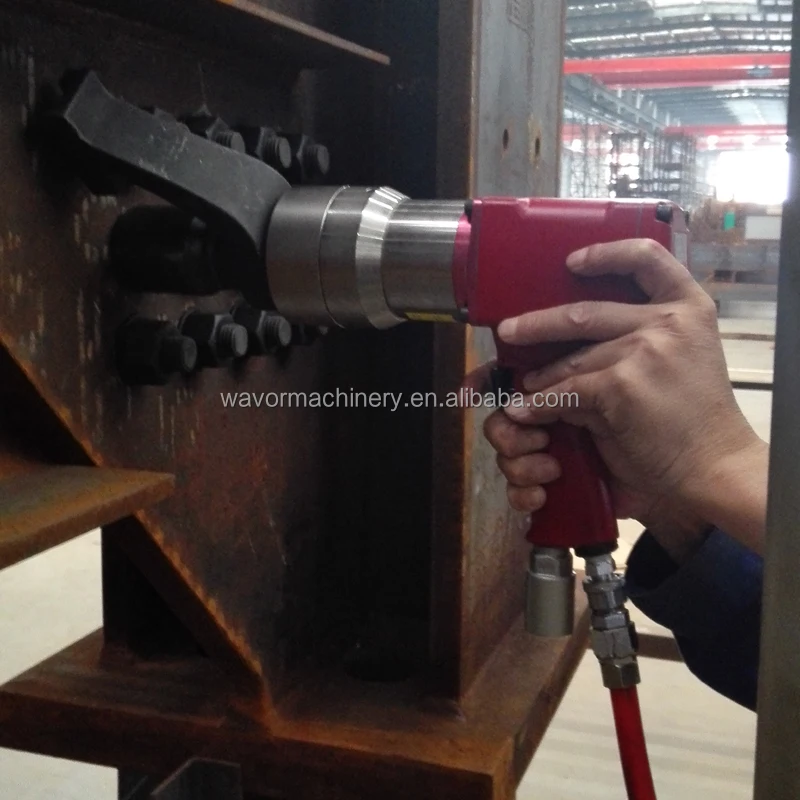

2100nm pistol grip torque wrench pneumatic nutrunner

Product Overview

Description











 PSW pneumatic torque wrench,single speed wrench

• High output and repeat accuracy:±5% and ±3%
• Air pressure requirements: no less than 6 bar
• Air flow requirement: PSW-06/10/15 600L/min, PSW-21 800 L/min.
• Powerful and low noise, less than 80Dba under max.power
• Set and control torque by adjusting the pressure, convenient and high repeatability
• With single speed gearbox, light weight,small size and high speed, and easily operated
• Very suitable for continuous operation in production assembly and maintenance
• Reverse pressure-bias motor provide the higher power and torque when removing or loosening bolts
• Free connection of power handle and drive unit, could be rotated 360°.
• After-sales service: 1 year guarantee period, then lifelong maintanence.
• Supply scope: 1 pcs torque wrench, 1 pcs reaction arm, 1 pcs air register kit, 1 copy operating instructions,1 copy test report.





Model	Torque (Nm)	Square C	Diameter D(mm)	Length L(mm)	Width E(mm)	Free Speed (rpm)	Weight (kg)
PSW-06	75-650	3/4"	76	300	186	23	4.9
PSW-10	120-1060	1"	76	300	186	13	5
PSW-15	170-1500	1"	76	300	186	10	5
PSW-21	310-2100	1"	88	310	255	14	7.5
PSW-28	430-2800	1"	88	310	255	10.5	7.5
PSW-39	610-3900	1-1/2"	96	350	255	7.5	9.8
PSW-58	950-5800	1-1/2"	114	400	255	5	12.5
PSW-100	1650-10000	1-1/2"	143	445	255	3	19.2





 Remark: 1. Above weight does not include the weight of reaction arm.

               2. Free speed is no load speed at 6 bar air pressure.
