Машина для производства мешков из крафт бумаги с квадратным дном
- Category: >>>
- Supplier: Zhejiang Bangtai Machine Co. Ltd.
Share on (915166047):
Product Overview
Description
Product Description

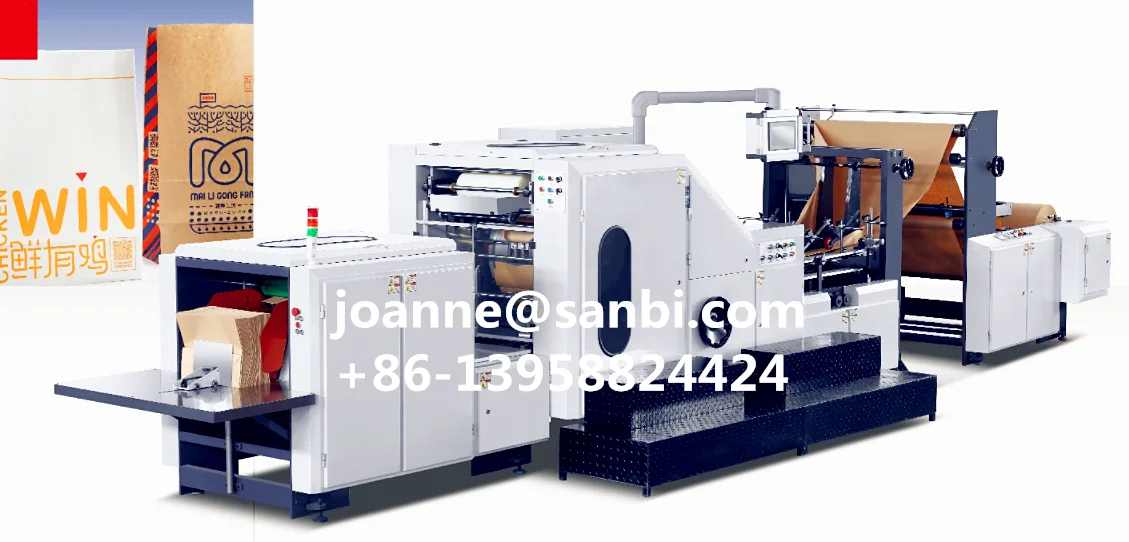

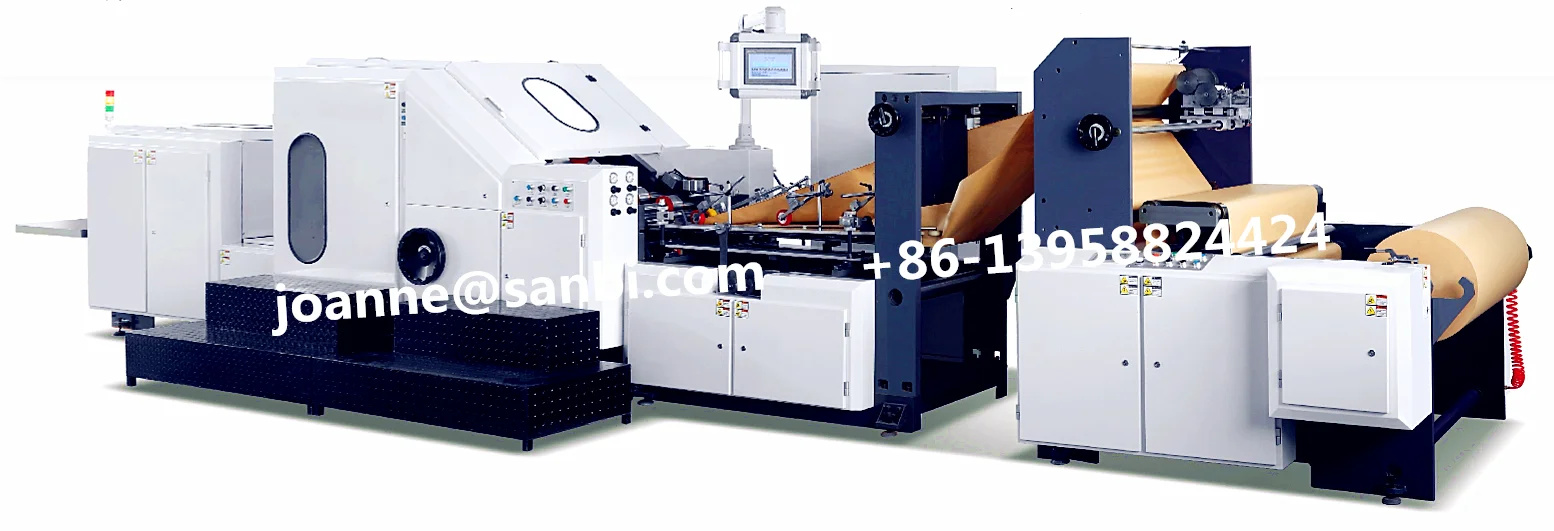

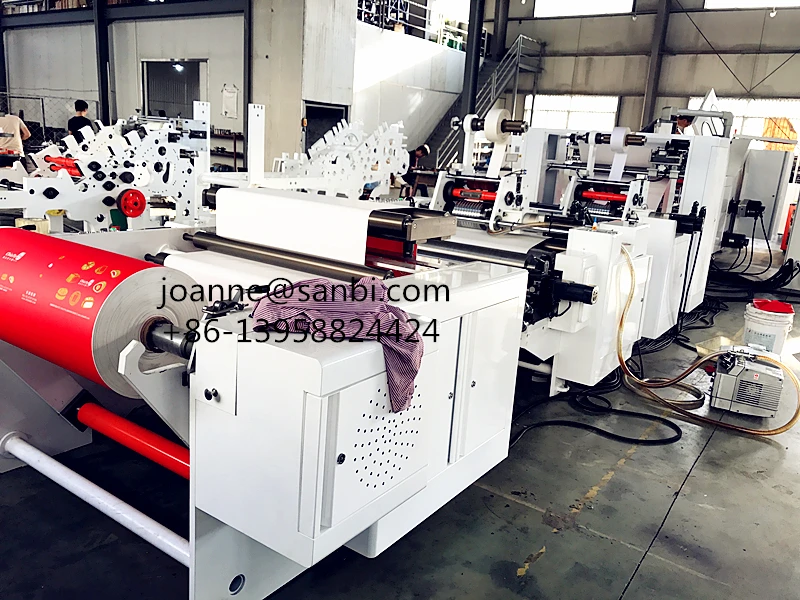

SQUARE BOTTOM Paper bag making machine
Adjustable Roll to Square Bottom Paper bag making machine

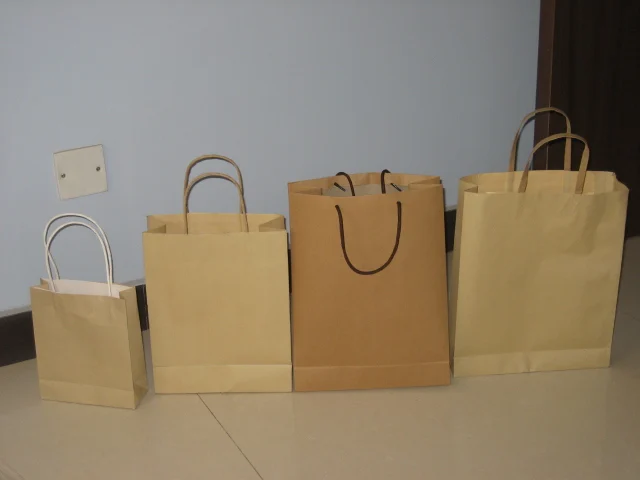

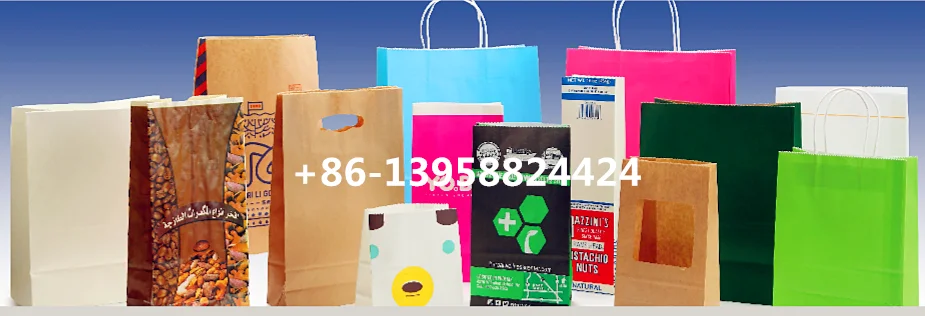

Application：This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing,tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC(inovance) system, equipped with in-touch screenMCGS )( and servo motor for bag length control, this machine can produce different size paper bag
TECHNICAL PARAMETER
Width of Paper roll ............................................................. 600-1300mm
Length of tube paper .................................................................225-520mm
Width of Bag ....................................................................... 220-450mm
Width of Bag Bottom .......................................................... 80-180mm
Paper weight .........................................................................80-160g/m2
Max. Diameter of Paper Roll ...............................................ф1500 mm
Internal Diameter of Roll Core..............................................ф76 mm
Max.Speed ............................................................................150 pcs/min
Total Power ...........................................................................15Kw
Weight of Machine ...............................................................Approx 9000 kg
Overall Dimension............................................................... 8600x2500x1800mm
Length of tube paper .................................................................225-520mm
Width of Bag ....................................................................... 220-450mm
Width of Bag Bottom .......................................................... 80-180mm
Paper weight .........................................................................80-160g/m2
Max. Diameter of Paper Roll ...............................................ф1500 mm
Internal Diameter of Roll Core..............................................ф76 mm
Max.Speed ............................................................................150 pcs/min
Total Power ...........................................................................15Kw
Weight of Machine ...............................................................Approx 9000 kg
Overall Dimension............................................................... 8600x2500x1800mm

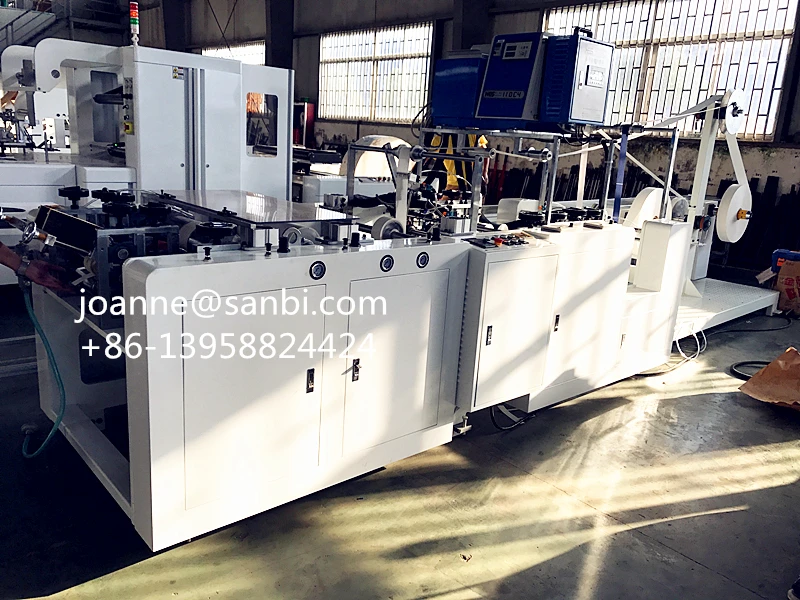

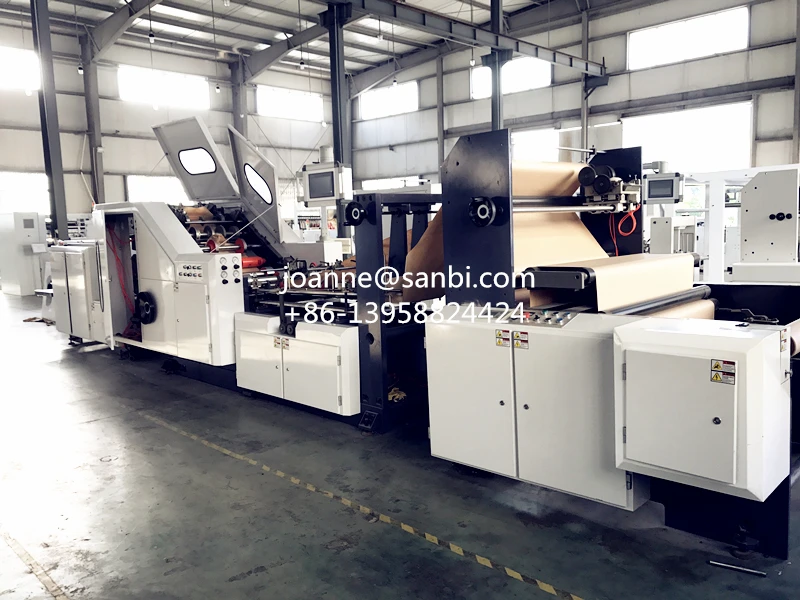

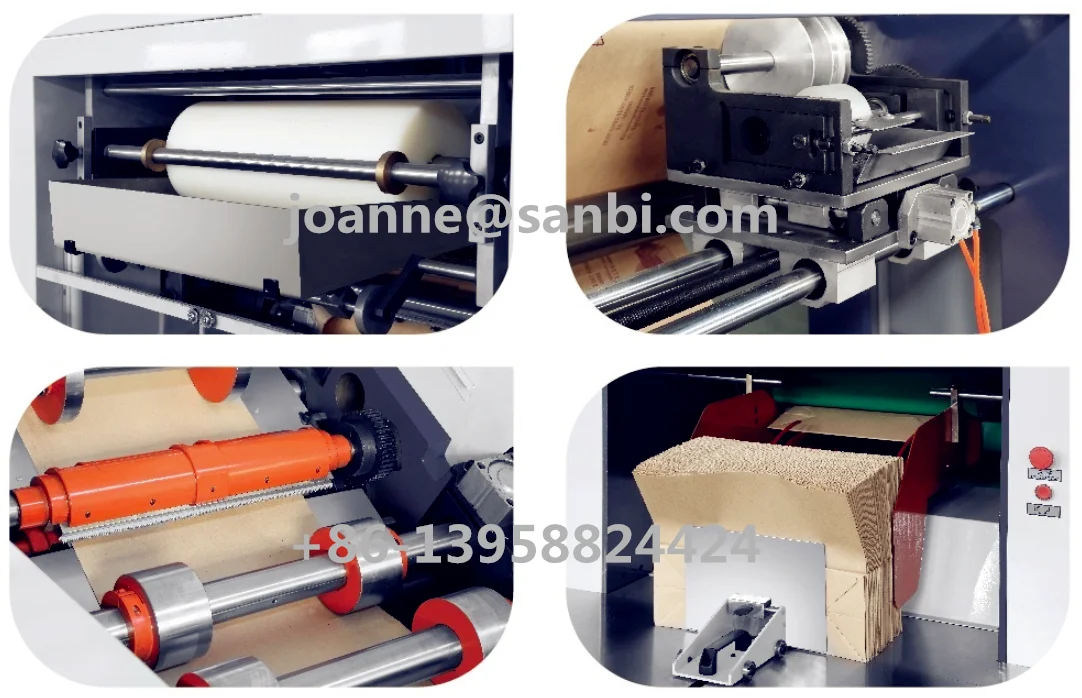

Details Images
Recommend Products

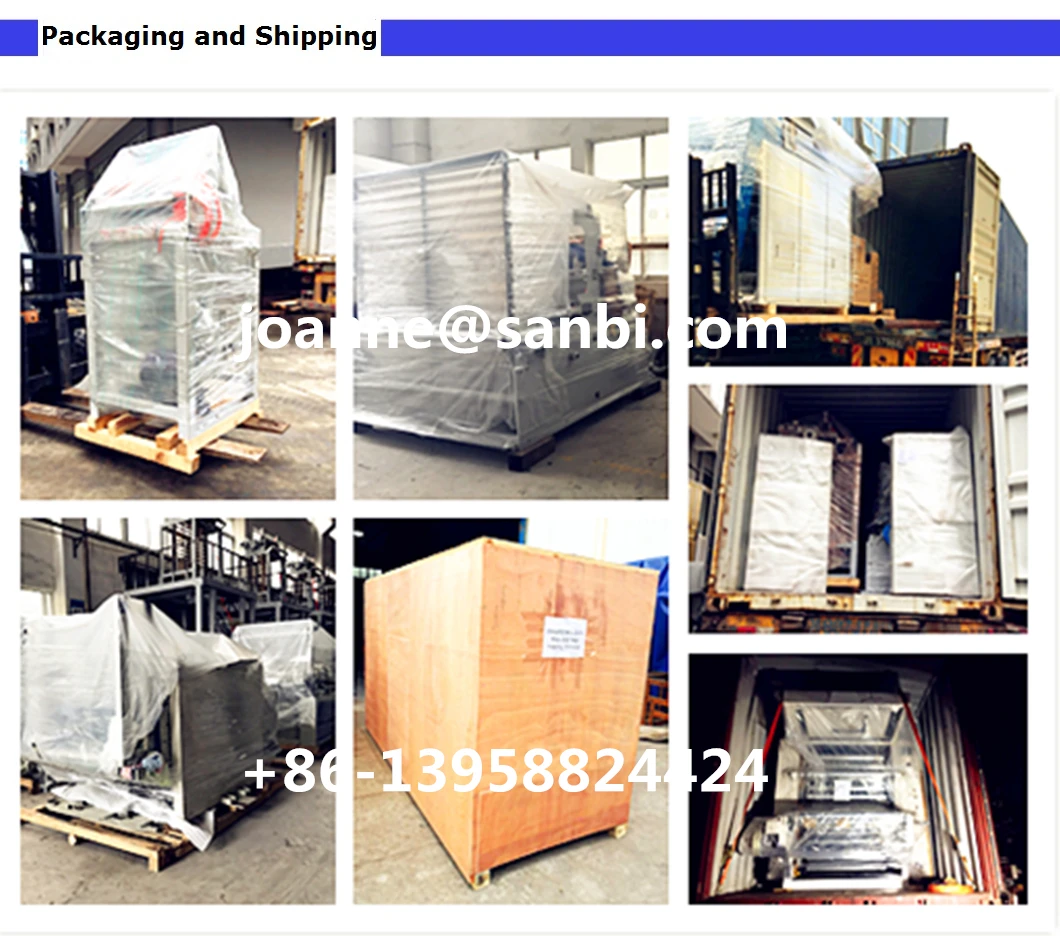

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
