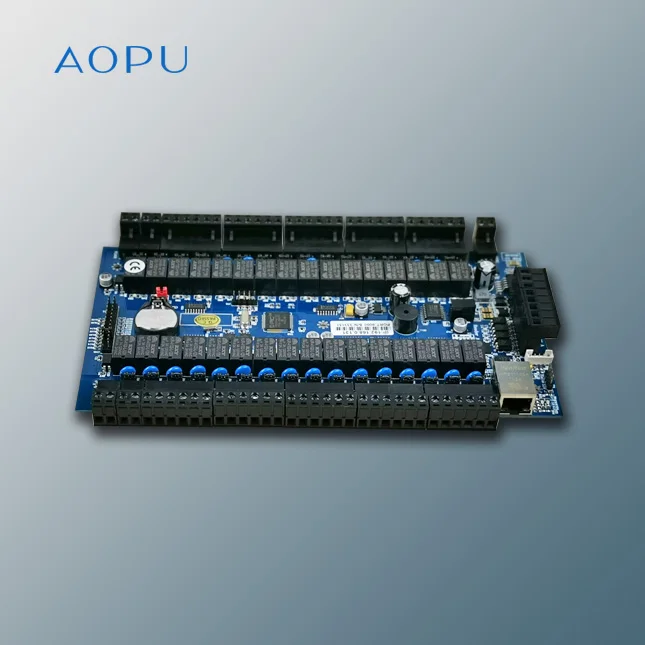

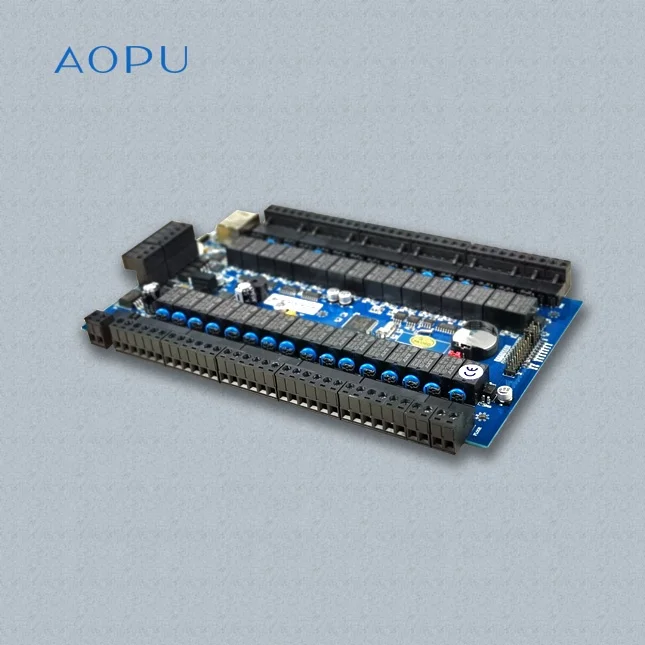

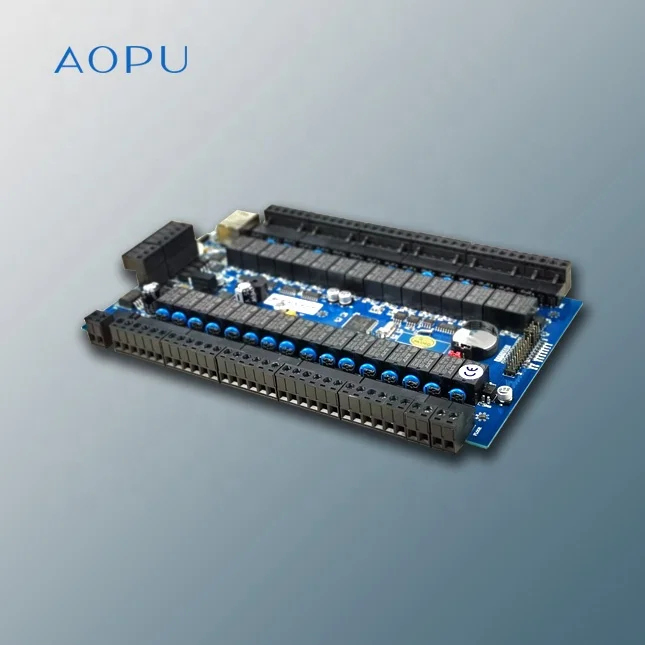

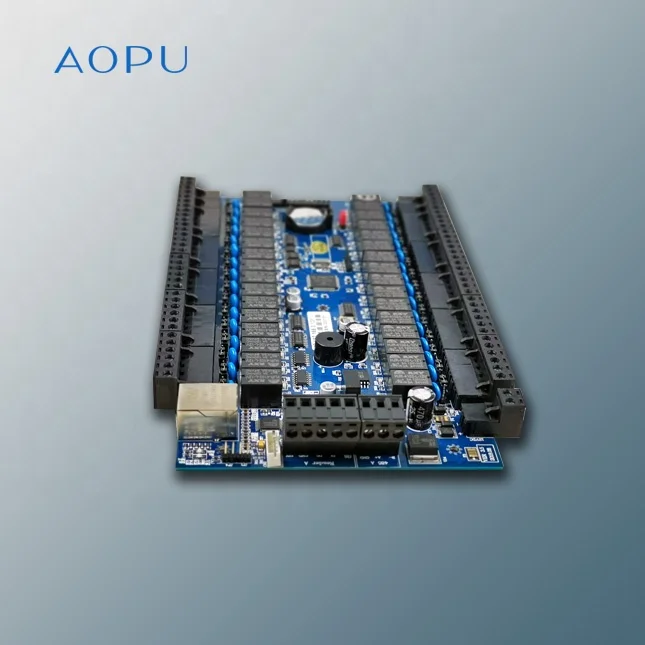

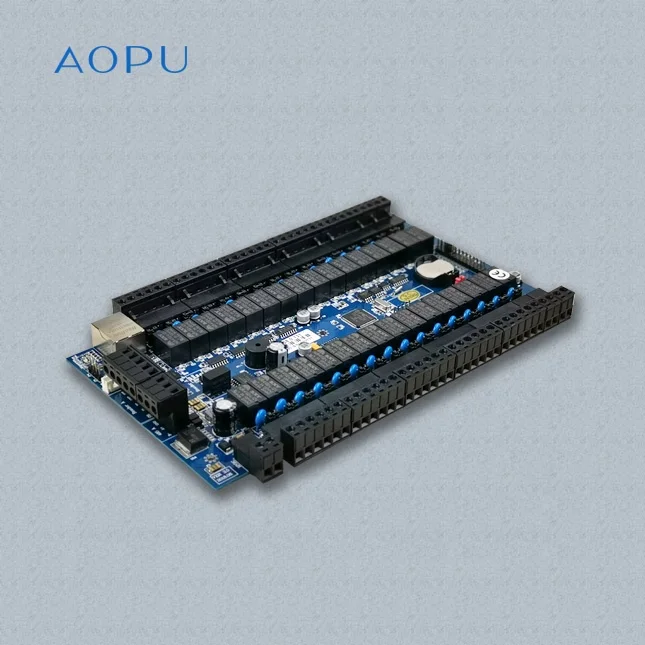

RFID TCP/IP lift 32 floors puch machine button sensor elevator access control system

Reader

2 WG Reader

Fire alarm input

1

Card capacity

20000

Log records

60000

Alarm capacity

10000

Communication

TCP/IP

Door open method

Card

Password

Card+PW

Double card

Fist card

Software

Fire alarm

Release button

Door timer

Model No.

E05.NET

Panel size

228mm*145mm*23mm

Panel color

deep blue

Panel weight

about 450g

Box color

Black

Box weight

1.6KG

Temperature

<=60 degre

Enviroment humidity

10%-95% R.H

Voltage

DC12V

Working current

<=130ma

Rated power

<=1w

Power off protection

10 years

• Support RS485 and TCP/IP access controller at the same time. All of access      controller is using the same software management.

• Support access control and lift access controller and locker access controller management at the same time.
•
• Support 3 kinds of language, and customer can add their own language as their will.
• Simple operation, finishing operation by single click, double click, or right click.
• Real time monitoring like and kinds of alarm, card swiping.
• Support color indicating, using different color to stand for different records.
• Support full screen showing.
• Access,Support Access and SQL server at the same time. The default is Access.
• Three operation authorized: set up users for door, set up door for users, and set up permission teams.
• Support automatic shift arrangement(only SQL available)
• Support daily records, user can check the operation and management history record, easy to manage and system maintenance.
