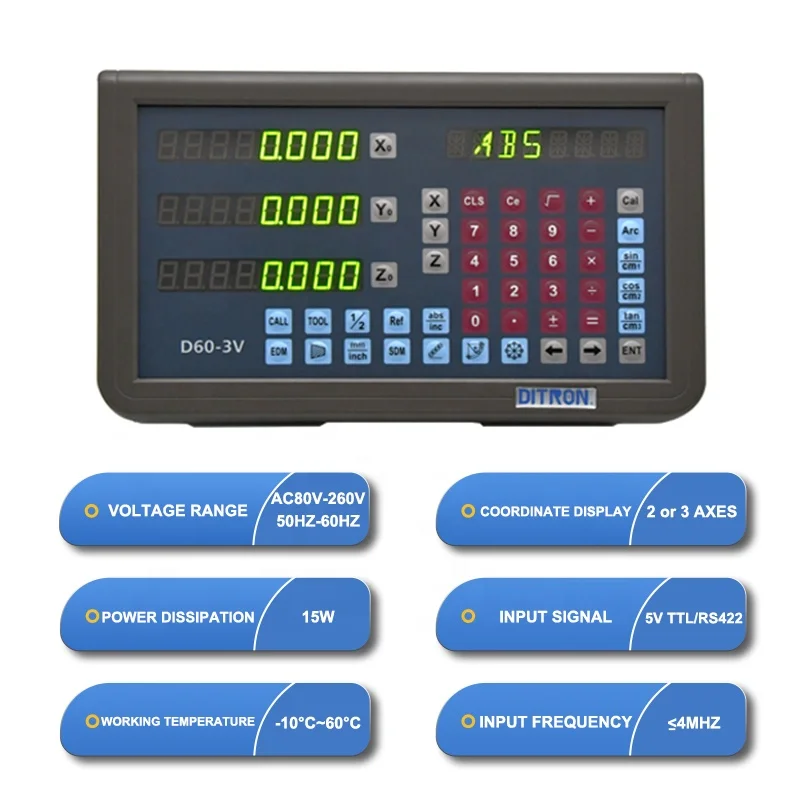

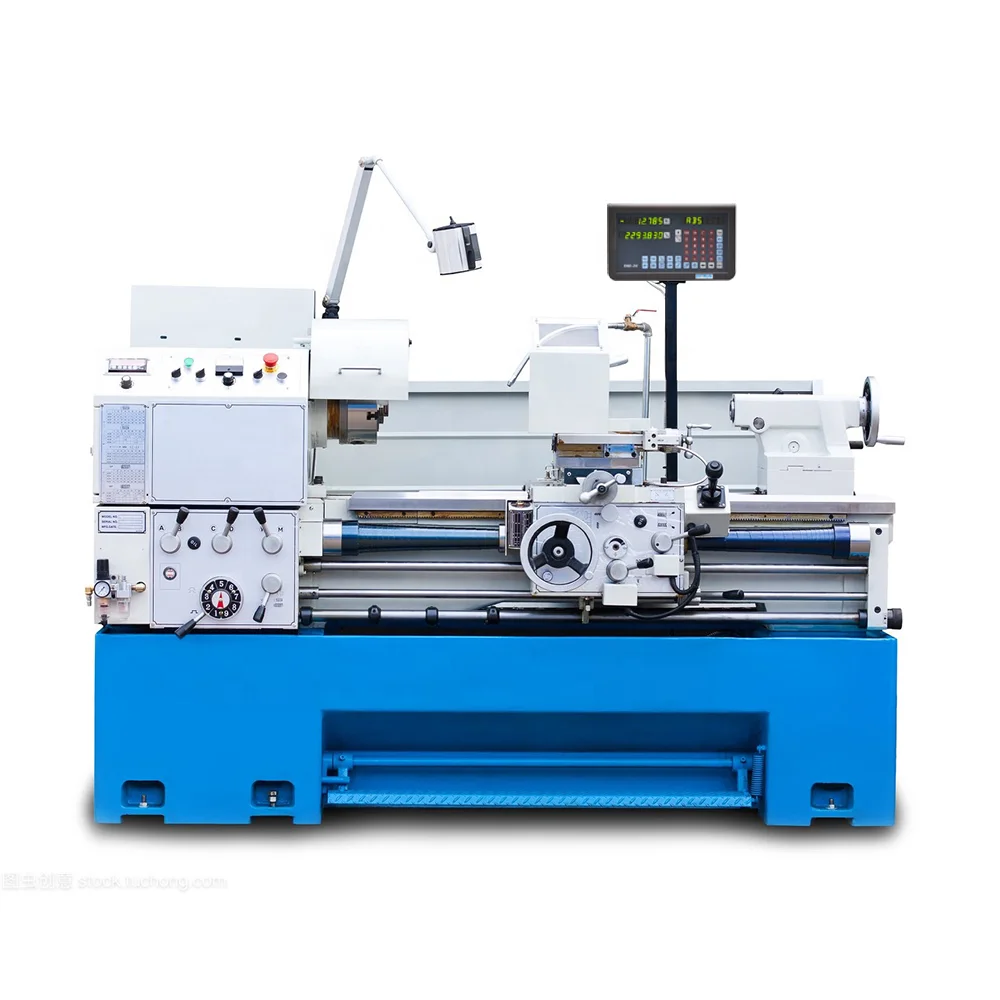

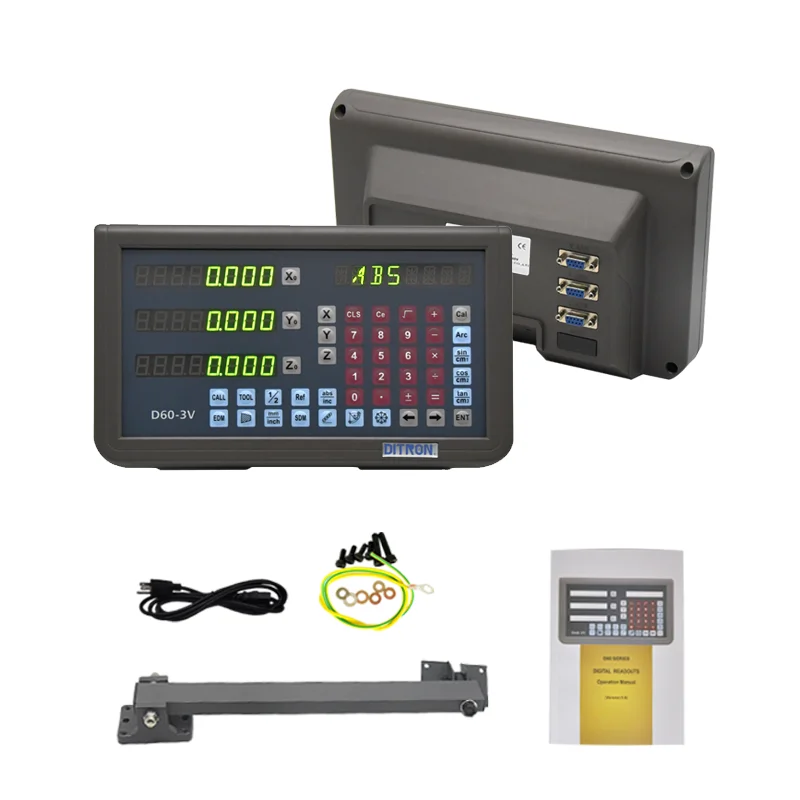

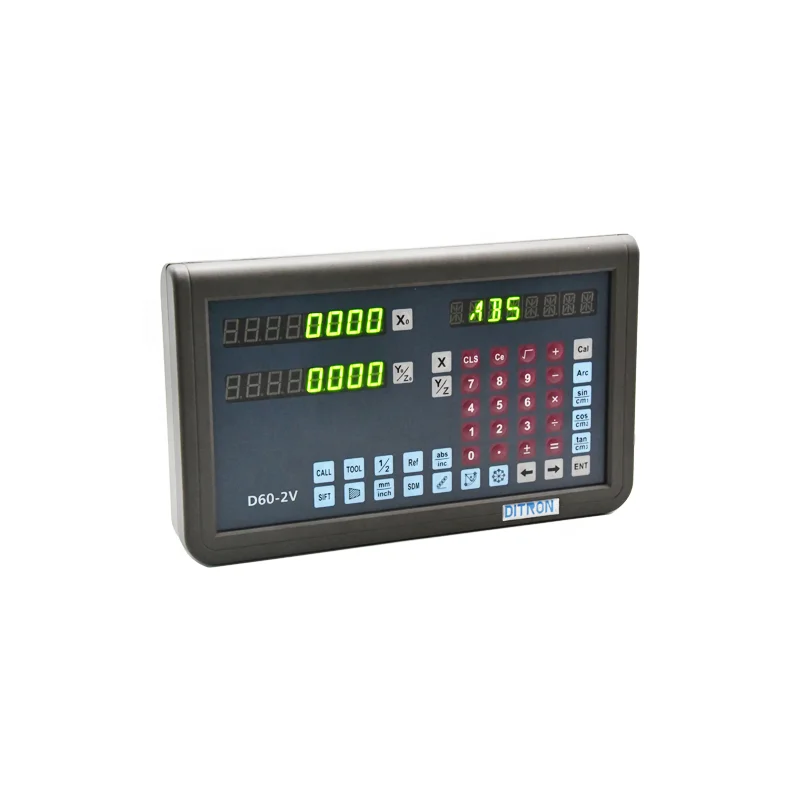

DITRON 2/3 Axis Metal Case Dro Digital Readout Display Electronic Measuring Instrument for Milling Lathe Machine

1.Voltage Range:AC80V-260V/50HZ-60HZ

2.Power Dissipation:15W

3.Working Temperature:-10C°-60C°

4.Coordinate Display:2Axis/3Axis

5.Input Signal:5VTTL/RS422

6.Input Frequency:≤4MHZ

7.Resolution:0.1um,0.2um,1um,2um,2.5um,5um,10um

1)Display as 8 digits with green LED.

2)Aluminum casing,industrial quality.

3)Unique film makes covering on the Windows makes the displaying much more recognizable.

4)High integration makes the performance be stable.

5)Switching on &switching off can meet more than 100000 times.

6)Adopting the advanced digital filtering makes the counting be more accurate and stable.

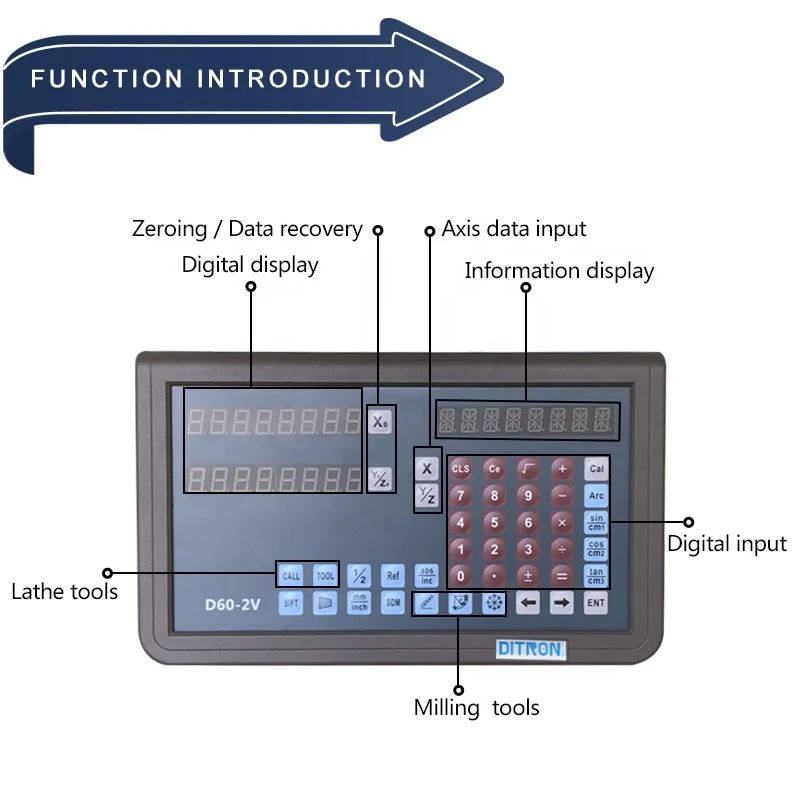

 Basic Function:

1)Zeroing,Data Recovery

2)Value Inputing

3)Metric and Imperial Switching

4)Power off Memory

5)Encoder Selection(Rotary or Linear)

6)Linear Compensation

7)Non-linear Compensation

8)Calculator

9)Counting Direction Setting

10)ABS/INC Coordinate

11)200 sets of SDM Coordinates

12)REF Centering

Special Function:

1)PLD function

2)PCD function

3)Simple R function

4)Smooth R function

5)Radius/Diameter switching

6)Axis summing

7)Digital Filtering Function

8)Taper Measuring Function

9)RS232 Interface

10)EDM Function

11)200 sets of Tool Memory

\\
