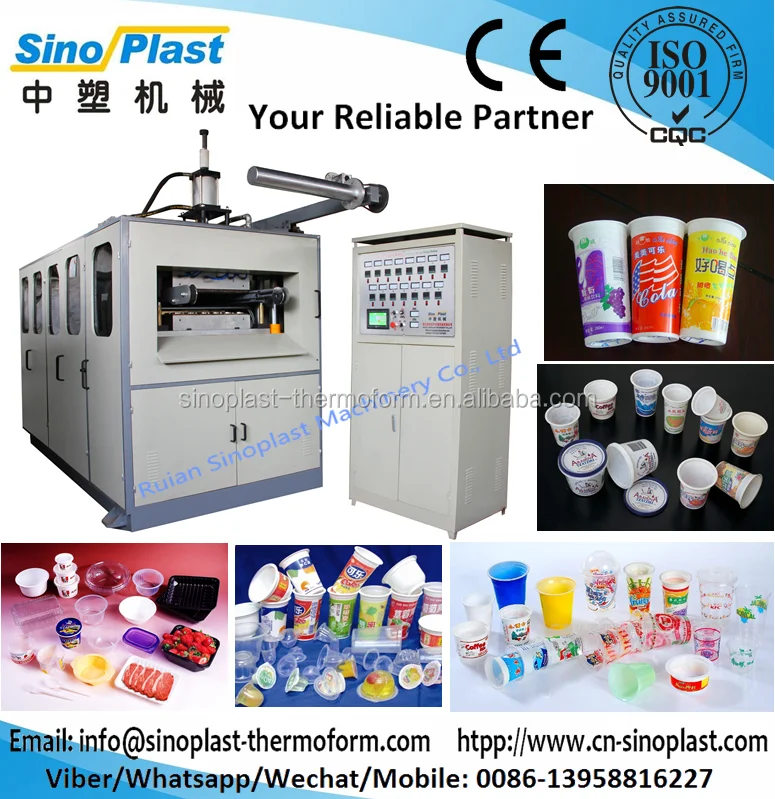

SPC 660C Automatic Plastic Cup Lid Bowl thermoforming machine,plastic cup making machine
- Category: Plastic Product Making Machinery >>>
- Supplier: Pingyang Sinoplast Machinery Co. Ltd.
Share on (916620694):
Product Overview
Description
Our strengths
Products Description
Product Paramenters
Model | SPC-660C |

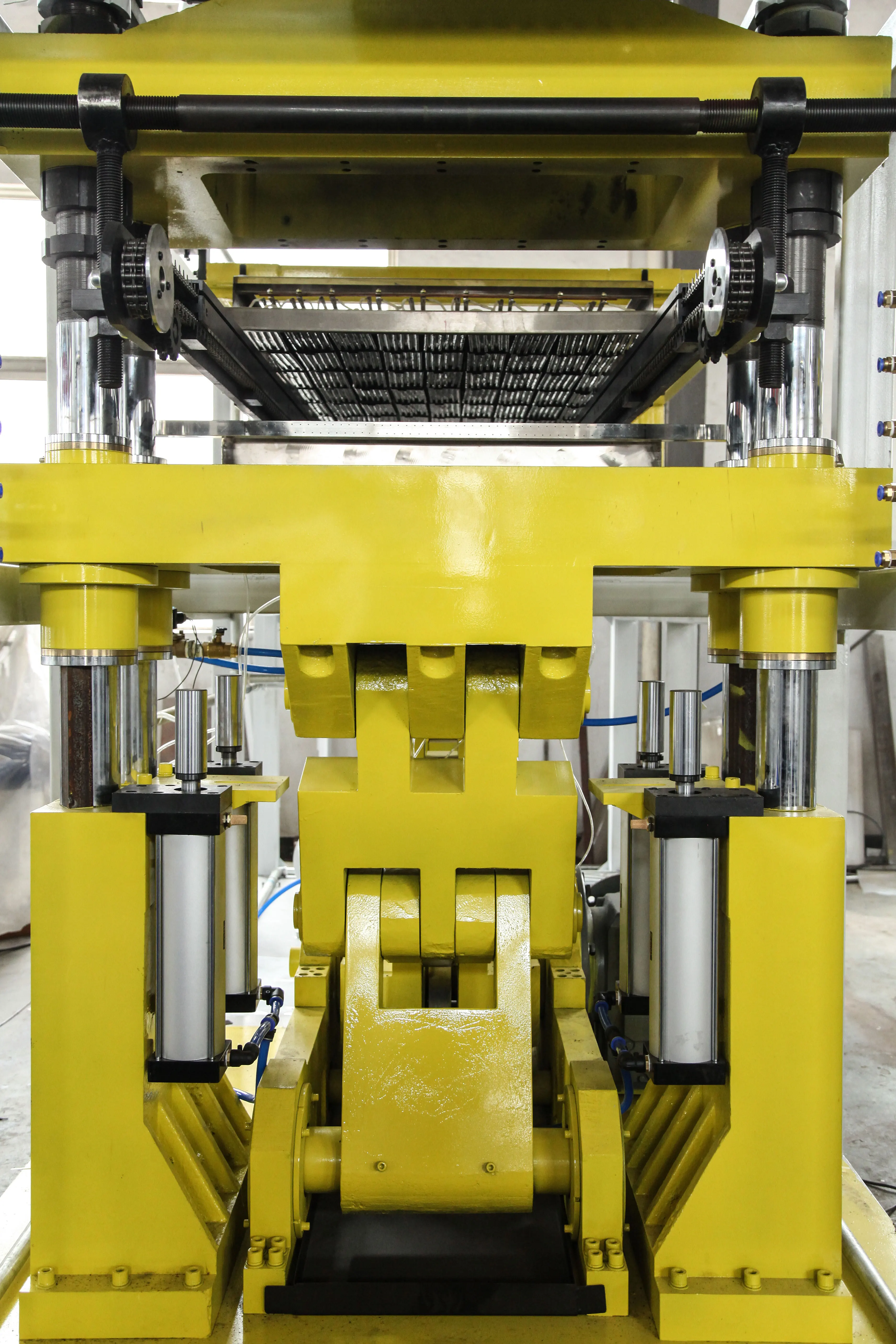

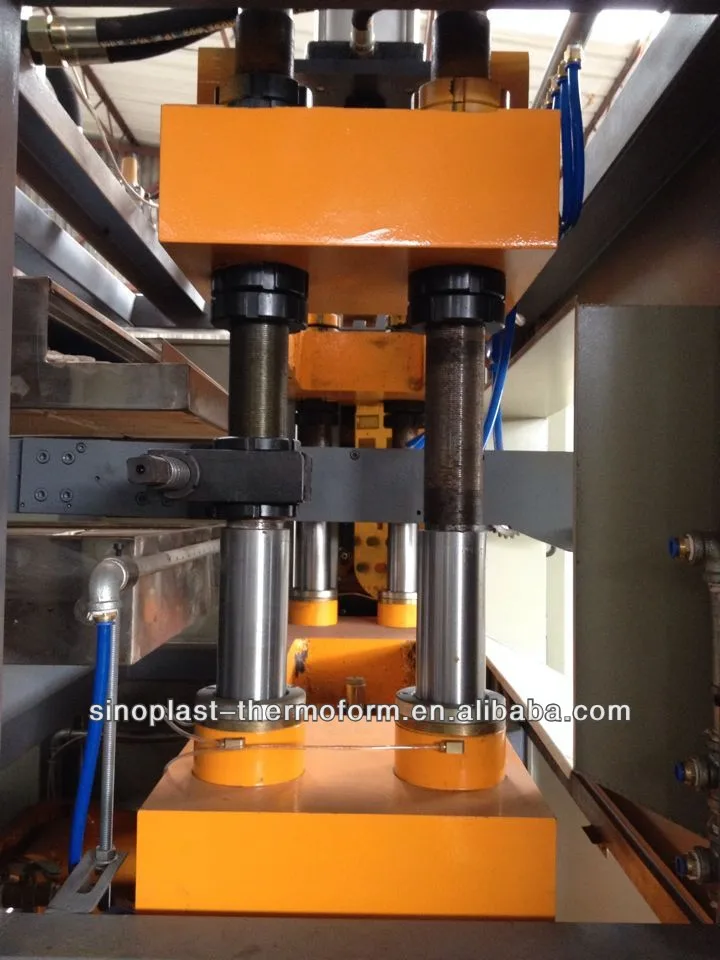

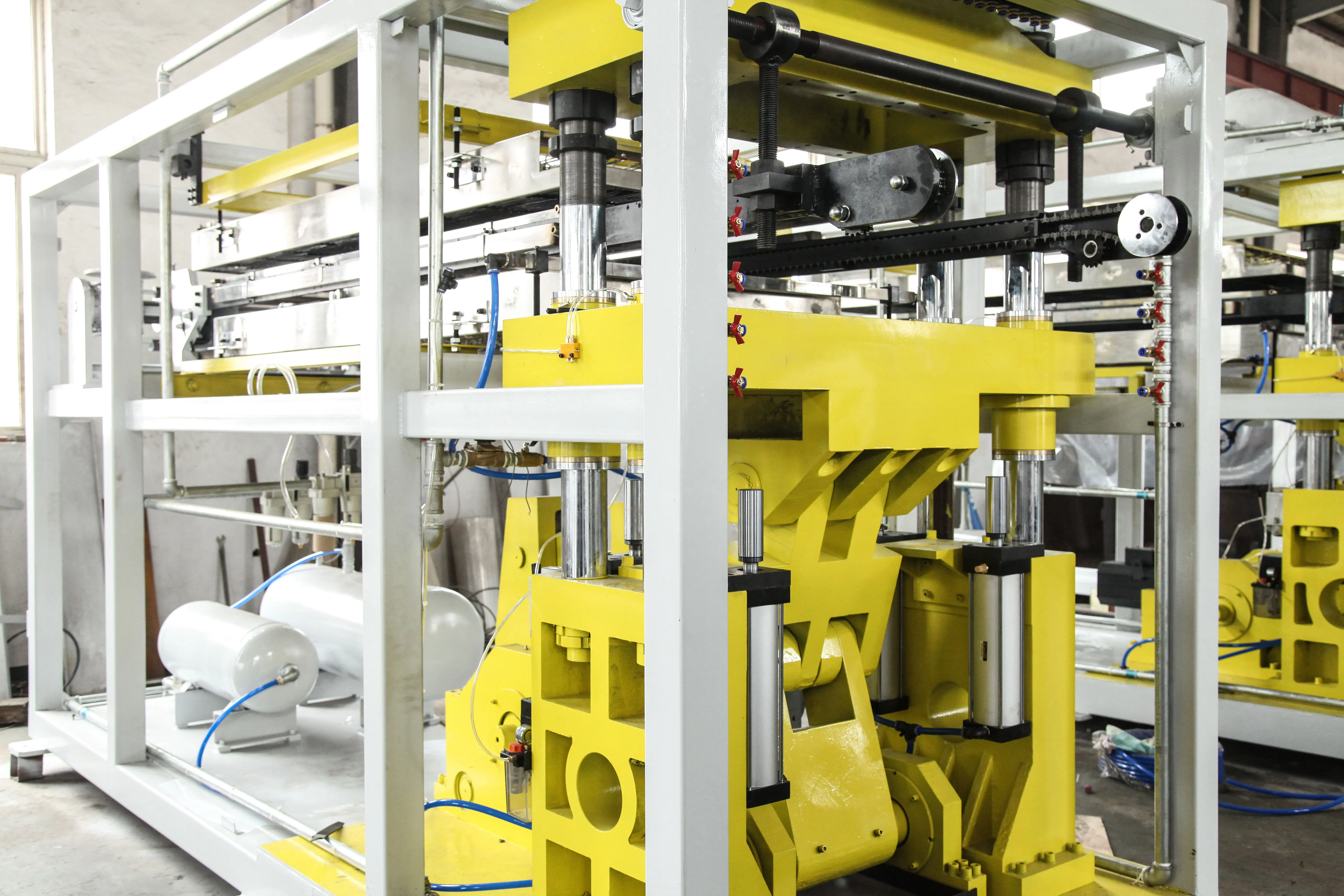

Mould Driving Method | Cam |
Approximate Max. Forming Area | 660 x 300 mm |
Approx. Running Speed | 15-30 Stroke / min approx. during production |
Approx. Sheet width required for feeding. | 500 – 660 mm in rolls. |
Mode of cutting arrangement. | In mould automatic |
Sheet thickness Range | 0.20 – 2.0 mm |
Material | PP, PS, PET, PVC,PLA |
Max. Draw depth, i.e. cup length. | 140 mm (Could be special design) |

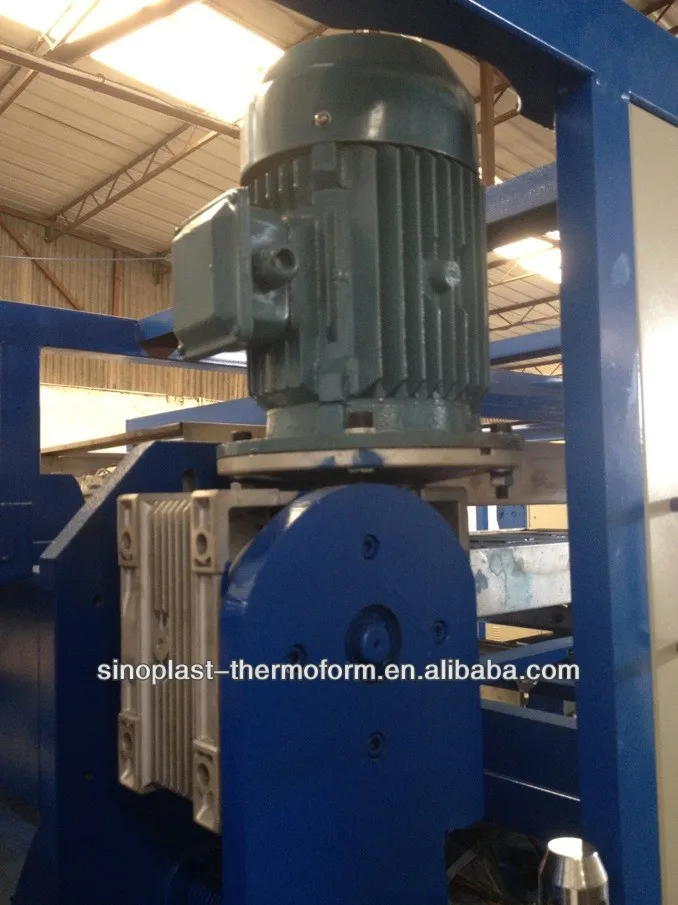

Oil Pump Motor Power | 11KW, 6P |
Sheet Feeding Motor | 2.2KW |
Max. Sheet roll diameter. | 800 mm |
Heating arrangement | Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. | PID K-Type |
Type of Mould | Multi cavity 1 – 3 row. |
Approx. Electrical Consumption | 45KW/hr |
Approximate Dimension | L3100×W1500×H2500 (mm) |
Approximate Weight | 4000Kg |
Company Profile
Logistics transportation
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of
products' quality.
3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,
4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia,
Europe, Middle East, Africa, America and etc.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located?
A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
8. Q: How to reach our factory?
A: It will take 50 minutes from Wenzhou Airport by car, 25 minutes from Ruian Highspeed Rail Station by car.
A: We are a factory.
2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of
products' quality.
3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,
4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia,
Europe, Middle East, Africa, America and etc.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located?
A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
8. Q: How to reach our factory?
A: It will take 50 minutes from Wenzhou Airport by car, 25 minutes from Ruian Highspeed Rail Station by car.
